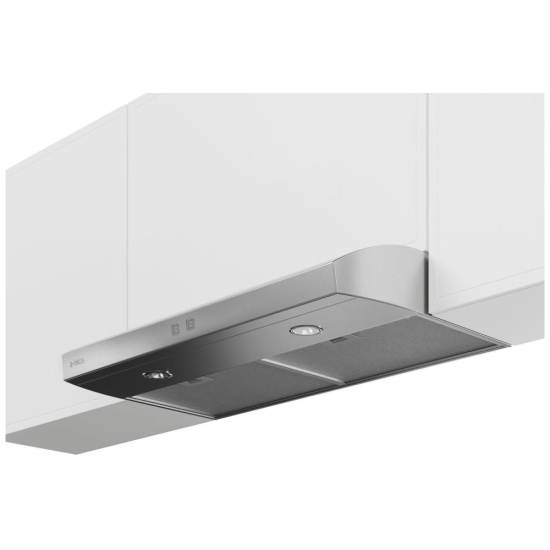

With a compact 4 3/ height, Bellagio is an ideal choice where under-cabinet space is limited. Equipped with an upgraded 4-speed, 400 CFM internal blower that provides sufficient ventilation power, dishwasher-safe, anodized aluminum mesh filters, and multiple backlight color touch controls illuminated in elegant white, green, blue, or red. Available in 30 or 36 width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
- 3X Layer Mesh Filter
- Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
Manufacturer's Warranty: 2 years
Canadian model: EBL436S2
Canadian UPC: 190603006049
EAN: 0190603006049
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 13.50 |
| NET WEIGHT (kg) | 10.60 |
| CARTON LENGHT (mm) | 1016.00 |
| CARTON HEIGHT (mm) | 618.00 |
| CARTON WIDTH (mm) | 149.00 |
| VOLUMEN (M3) | 0.16 |
| SHIPPING WEIGHT (lb) | 29.76 |
| NET WEIGHT (lb) | 23.37 |
| CARTON LENGHT | 40.00 |
| CARTON HEIGHT | 24.33 |
| CARTON WIDTH | 5.87 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light, CFM reduction system |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 26.40 |
| db (max) | 51.00 |
| SONES | 0.9 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 3A |
| HERTZ | 60.00 |
| WATTS | 445.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Electronic Touch Controls with Adjustable Color Backlight |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS (CM) | 91 x 51 x 12 |
| DIMENSIONS (INCH) | 36" x 20" x 4 3/4" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 4 3/4" |
| Maximum Overall Height - Top to Bottom | 4 3/4" |
| Overall Height - Top to Bottom | 4 3/4" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 20" |
| Hood Height | 4 3/4" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02179 |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GRI0131087A |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
PRODUCT FEATURES (EBL436S2-product-features-canada.pdf)
