With a black panel and polished stainless steel, Foglia features a gently arched front that softens its profile and provides an angled panel for easy access to the controls. Available in 30 and 36 widths, Foglia includes a powerful 600 CFM blower, dimmable LED lighting, stainless steel microhole filters, and capacitive touch controls for convenience and safety. Designed for standard ducted installation, Foglia can also be installed as a recirculating system using the optional Recirculating Kit.
- Dim Light
- The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Microhole Filter
- A multi-layered stainless steel filter that uses an offset hole pattern to effectively capture grease with high efficiency, plus offers large volume capacity at ALL blower speeds, silent operation and durability that will last the life of the hood.
- Professional Performance
- Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
- Smart Installation
- The Smart Installation Plus, has been designed to make the installation of a hood easier; in case the hood is wall mounted, through an adjustment of the appliance alignment between the cabinets; if the hood is built-in mounted, through well explained.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
Manufacturer's Warranty: 2 years
Canadian model: EFG636S1
Canadian UPC: 190603002126
EAN: 0190603002126
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 21.30 |
| NET WEIGHT (kg) | 16.40 |
| CARTON LENGHT (mm) | 1027.00 |
| CARTON HEIGHT (mm) | 675.00 |
| CARTON WIDTH (mm) | 369.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 46.96 |
| NET WEIGHT | 36.16 |
| CARTON LENGHT | 40.43 |
| CARTON HEIGHT | 26.57 |
| CARTON WIDTH | 14.53 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + Black Glass |
| Color | inox + glass |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light,Dim light,Top performance,CFM reduction system,Touch controls,Hush system |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 32.00 |
| db (max) | 55.00 |
| SONES | 1.3 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.8 A |
| HERTZ | 60.00 |
| WATTS | 455.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |

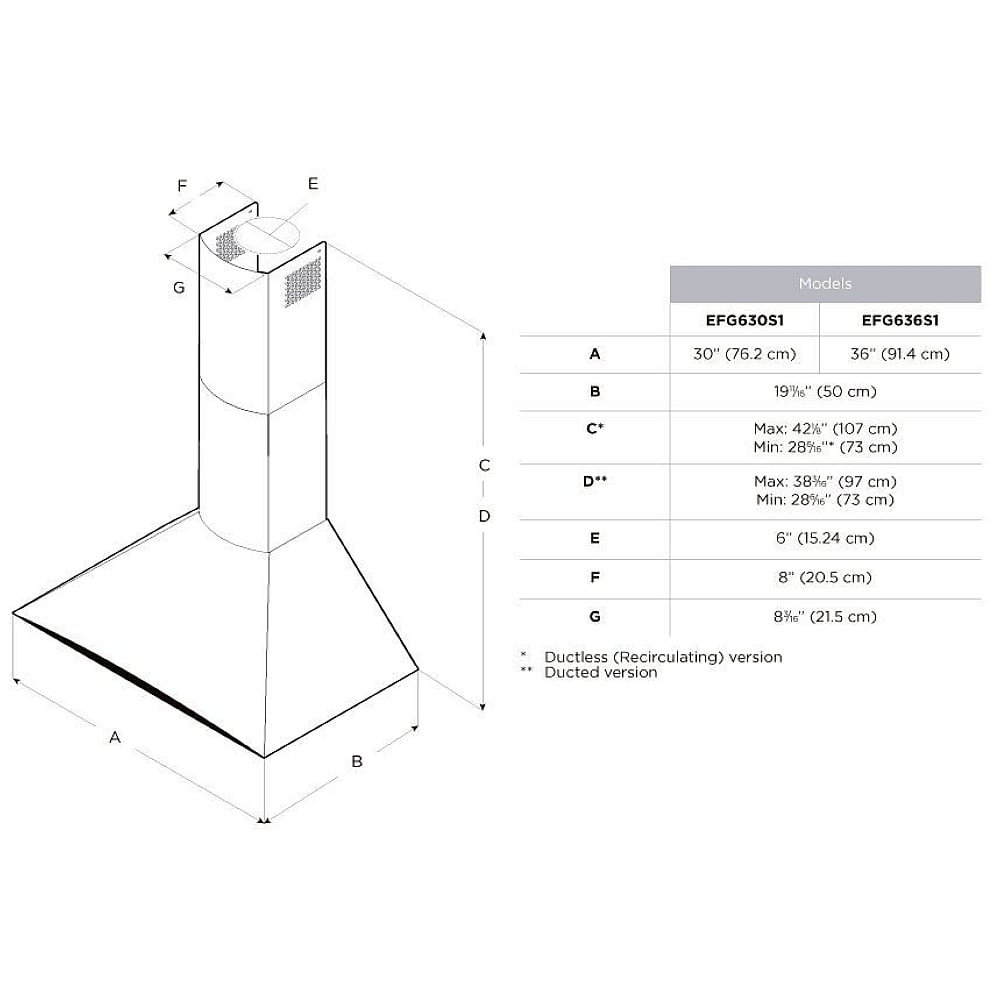

| DIMENSIONS | 91 x 51 x 72 |
| DIMENSIONSinches | 36" x 19 11/16" x 28 3/8" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 28 3/8" |
| Maximum Overall Height - Top to Bottom | 42 1/8" |
| Overall Height - Top to Bottom | 28 3/8"-42 1/8 |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 19 7/8 |
| Hood Height | 10 7/8 |
| Minimum Compatible Ceiling Height | 7'5" |
| Maximum Compatible Ceiling Height | 9'6" |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 8 3/16" |
| Chimney Depth - Front to Back | 8" |
| Chimney Height - Top to Bottom | 31 1/4" |
| RECIRCULATION KIT NUMBER | KIT02766 |
| CHIMNEY EXTENSION NUMBER | KIT02784 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
| Selected Model | |
| Color | Stainless Steel |
| Model number | EFG636S1 |
| Dimensions | |
| Dimensions | 36'' (W) X 20'' (D) X 10'' (H) |
| Exterior Appearence | |
| Stainless Steel grade | 430 |
| Features | |
| Controls | Multi-Function Electronic with black glass touch display |
| Illumination | 2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included) |
| Blower Type | 4-speed, 600 CFM |
| CRS CFM Reduction (< 300 CFM) | Included Function |
| Blower Performance | Speed 1, 210 CFM, 1.9 Sones Speed 2, 300 CFM, 4.5 Sones Speed 3, 470 CFM, 7.9 Sones Speed 4, 600 CFM, 9.3 Sones |
| Filter Type | Dishwasher-Safe, Stainless Steel Micro Hole Filters (X3) |
| Ducting | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Duct transition | 6” Round with Back Draft Damper (top) |
| Chimney (ducted out) | For ceiling height 7'5'' to 9'2'' |
| Chimney (recirculating) | For Ceiling height 7'5'' to 9'6'' |
| Special features | Hush Silence System |
| Electrical Requirements | |
| Electrical requirements | 120V-60 HZ / 490 Watt at 4.1 Amps |
| Accessories (optionnal) | |
| Extension Chimney Kit (ducted out) | KIT02784 | For ceiling height 8.5'' à 11'3'' (with appropriate accessories) |
| Extension Chimney Kit (recirculating) | KIT02784 | for ceiling height 8'7'' to 11'7'' (with appropriate accessories) |
| Recirculating Kit | KIT02766 (For 30'' &36'' includes 6 deflectors and 2 carbon filters) |
| Warranty | |
| Complete 2 years warranty | Entire Appliance; In-Home; Parts & Labour |
INSTALL INSTRUCTIONS (EFG636S1-install-instructions-canada.pdf)
