Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	21.90
NET WEIGHT (kg)	16.40
CARTON LENGHT (mm)	1027.00
CARTON HEIGHT (mm)	675.00
CARTON WIDTH (mm)	369.00
VOLUMEN (M3)	0.30
SHIPPING WEIGHT	48.28
NET WEIGHT	36.16
CARTON LENGHT	40.43
CARTON HEIGHT	26.57
CARTON WIDTH	14.53
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel + Glass
Color	inox + glass
Type of Ventilation	Convertible
HOODS FEATURES	Touch controls, Hush system,Led light,Top performance,CFM reduction system , Dim light
WIDTH (IN)	36"
WIDTH (CM)	90.00
AIRFLOW (M3/H)	1020.00
CFM (MAX)	600.00
db (min)	15.00
db (max)	52.00
SONES	0.4 - 5.2
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top Only
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120 V/60 Hz
AMPERAGE	3,7 A
HERTZ	60.00
WATTS	455.00
LIGHTING	Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	2.10
KELVINS	4000.00
GREASE FILTER TYPE	Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Multi-function Electronic with black glass touch display
SPEED CONTROL	YES
NUMBER OF SPEEDS	3 + booster
REMOTE CONTROL	NO
POWER SOURCE	Hardwired
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes
DIMENSIONS	91 x 50 x 75
DIMENSIONSinches	36" x 19 11/16" x 28 3/8"
ADJUSTABLE HEIGHT	YES
Minimum Overall Height - Top to Bottom	28 3/8"
Maximum Overall Height - Top to Bottom	42 1/8"
Overall Height - Top to Bottom	28 3/8"-42 1/8"
Overall Width - Side to Side2	36"
Overall Depth - Front to Back	19 11/16"
Hood Height	10"
Minimum Compatible Ceiling Height	7'5"
Maximum Compatible Ceiling Height	9'1
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	8 3/16"
Chimney Depth - Front to Back	7 3/16"
Chimney Height - Top to Bottom	32 1/4"
RECIRCULATION KIT NUMBER	KIT02766
CHIMNEY EXTENSION NUMBER	KIT02762
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	-
BACKSPLASH KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
cUL listed	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES
CERTIFICADO NOM	NA

Selected Model
Color	Stainless Steel
Model number	EVR636S2
Model also available

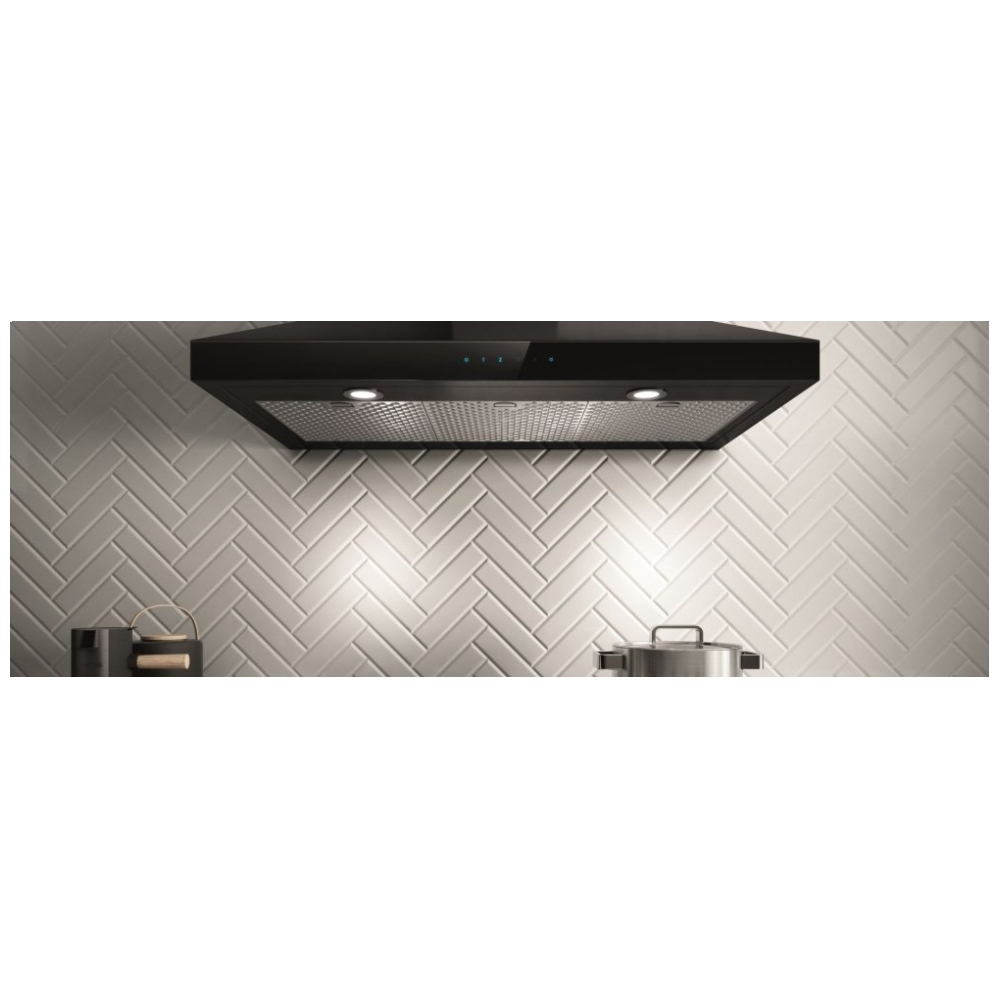

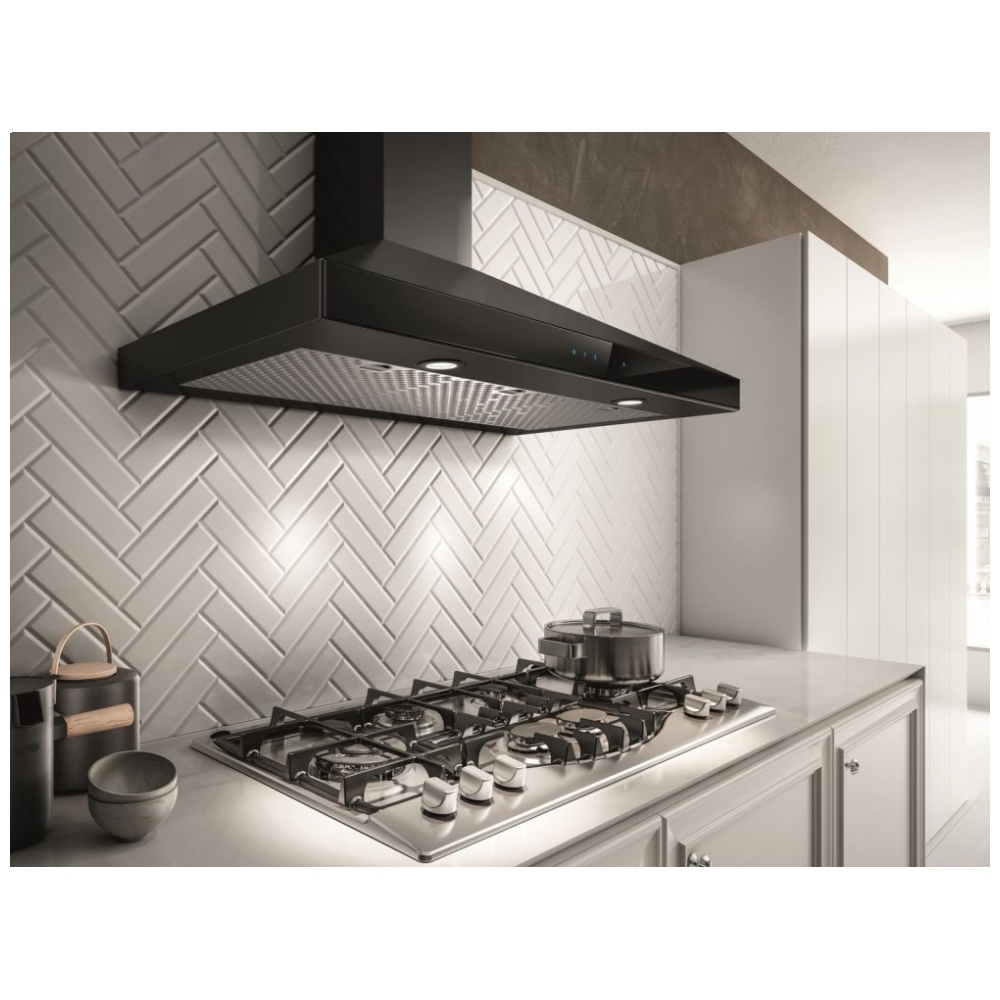

Black	EVR636BL
Dimensions
Dimensions	36'' (W) X 19 11/16'' (D) X 10 1/4'' (H)
Exterior Appearence
Stainless Steel grade	430
Features
Controls	Multi-Function Electronic Touch Controls with LCD display
Illumination	2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included)
Blower Type	4-speed, 600 CFM
CRS CFM Reduction (< 300 CFM)	Included Function
Blower Performance	Speed 1, 160 CFM, 1.7 Sones Speed 2, 280 CFM, 3.3 Sones Speed 3, 475 CFM, 6.0 Sones Speed 4, 600 CFM, 8.2 Sones
Filter Type	Dishwasher-Safe, Stainless Steel Micro Hole Filters (X3)
Ducting	Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition	6” Round with Back Draft Damper (top)
Chimney (ducted out)	For ceiling height 7'5'' to 9'1''
Chimney (recirculating)	For ceiling height 7'5'' to 9'5''
Special features	Hush Silence System
Electrical Requirements
Electrical requirements	120V-60 HZ / 265 Watt à 2 Amps 120V-60 HZ / 550 Watt at 4.6 Amps
Accessories (optionnal)
Extension Chimney Kit (ducted out)	KIT02762 \| For celling heights 8'5'' to 11'3'' (with appropriate accessories)
Extension Chimney Kit (recirculating)	KIT02762 \| For celling heights 8'6'' to 11'7'' (with appropriate accessories)
Recirculating Kit	KIT02766 (For 30'' &36'' includes 6 deflectors and 2 carbon filters)
Warranty
Complete 2 years warranty	Entire Appliance; In-Home; Parts & Labour

Elica EVR636S2

Elica EVR636S2

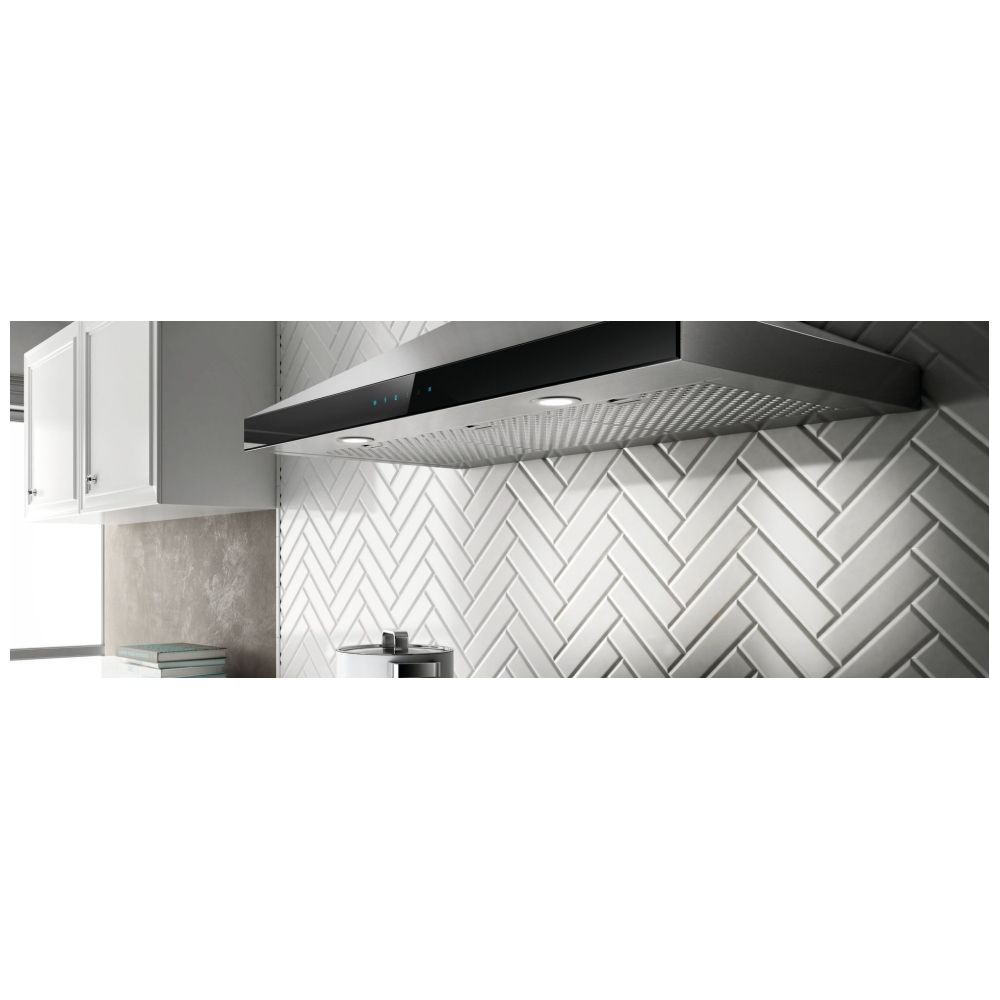

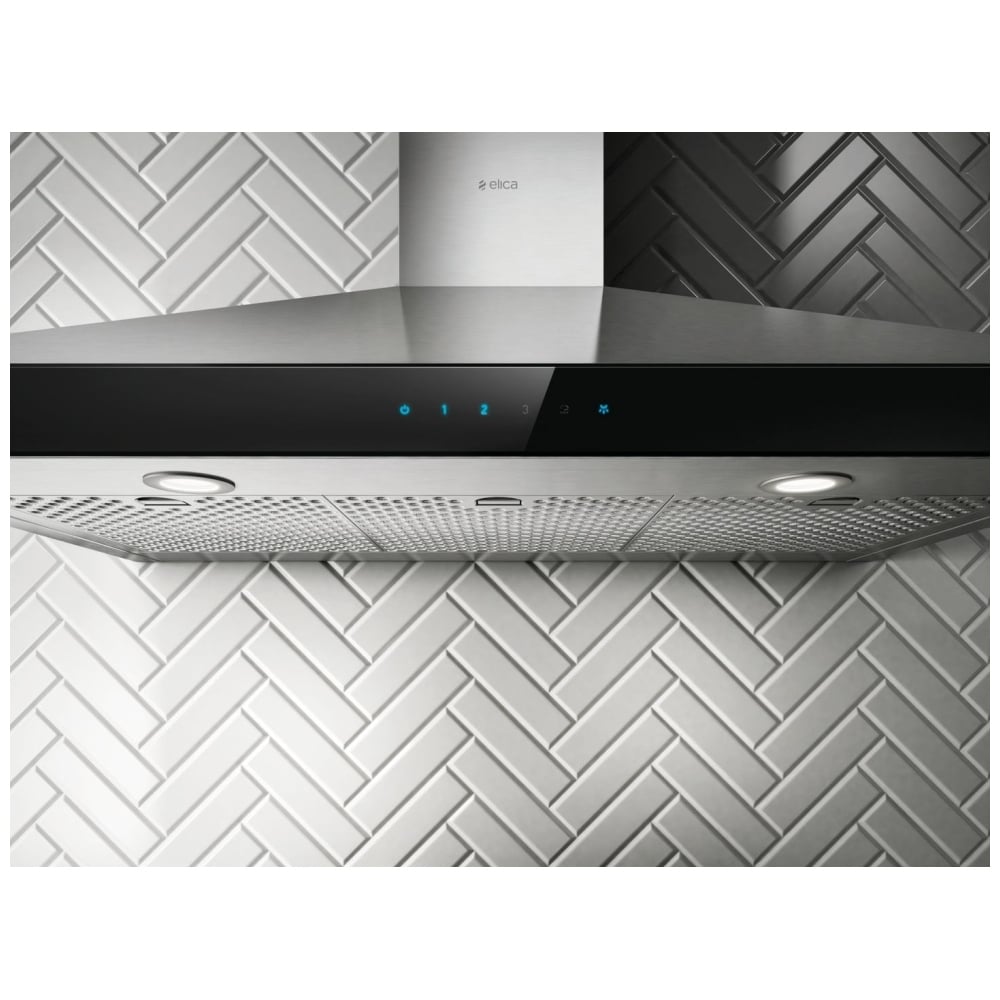

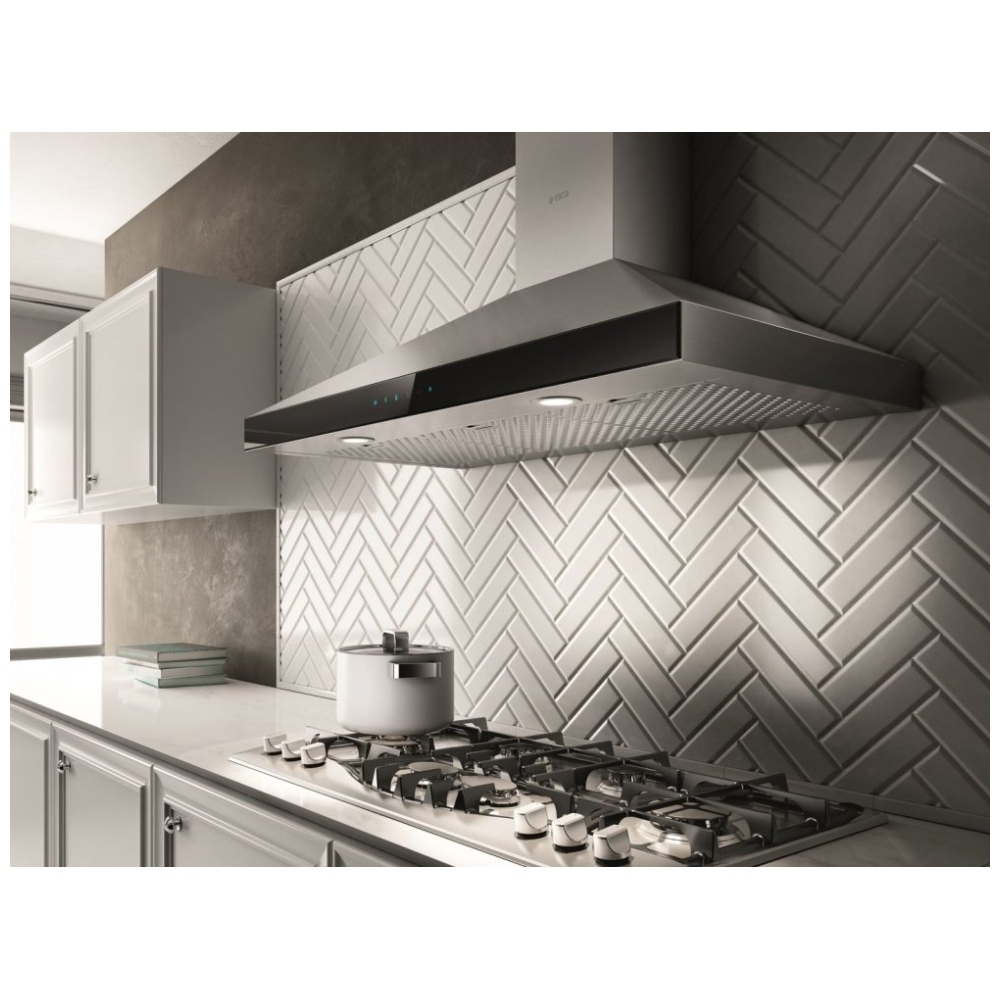

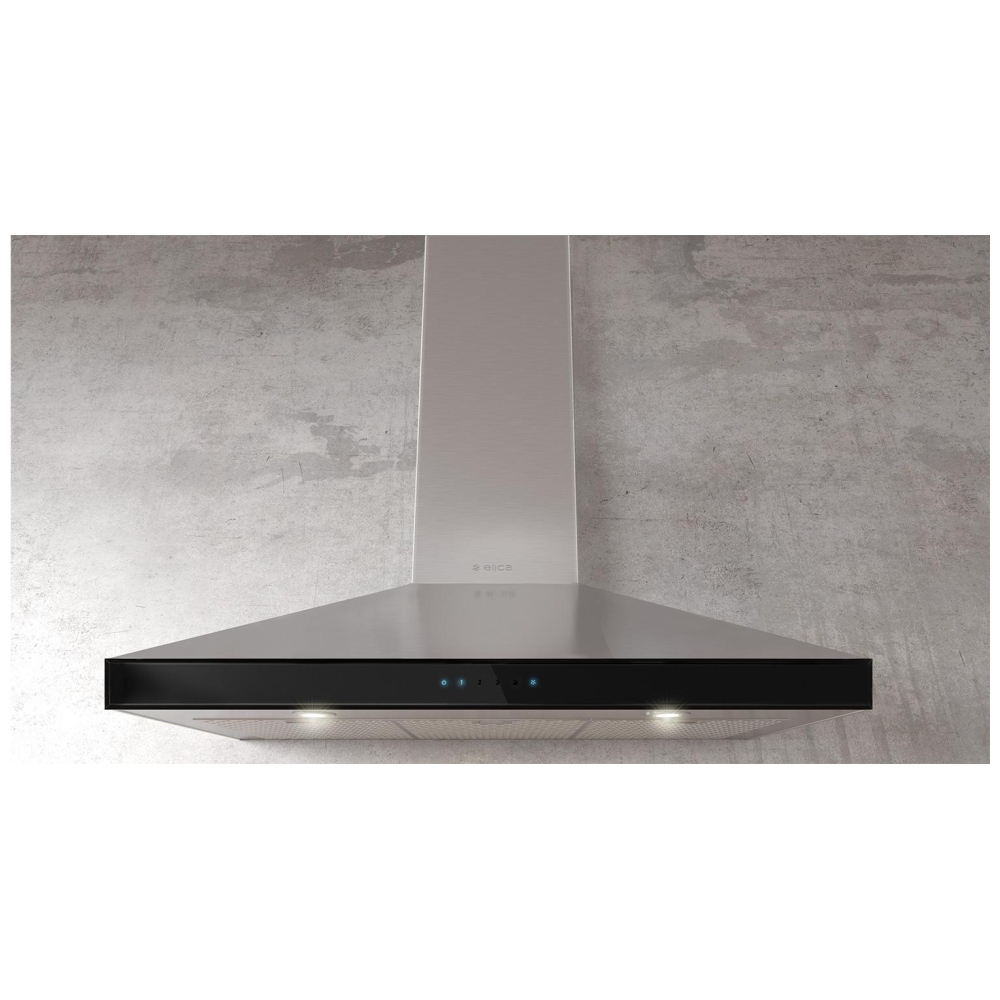

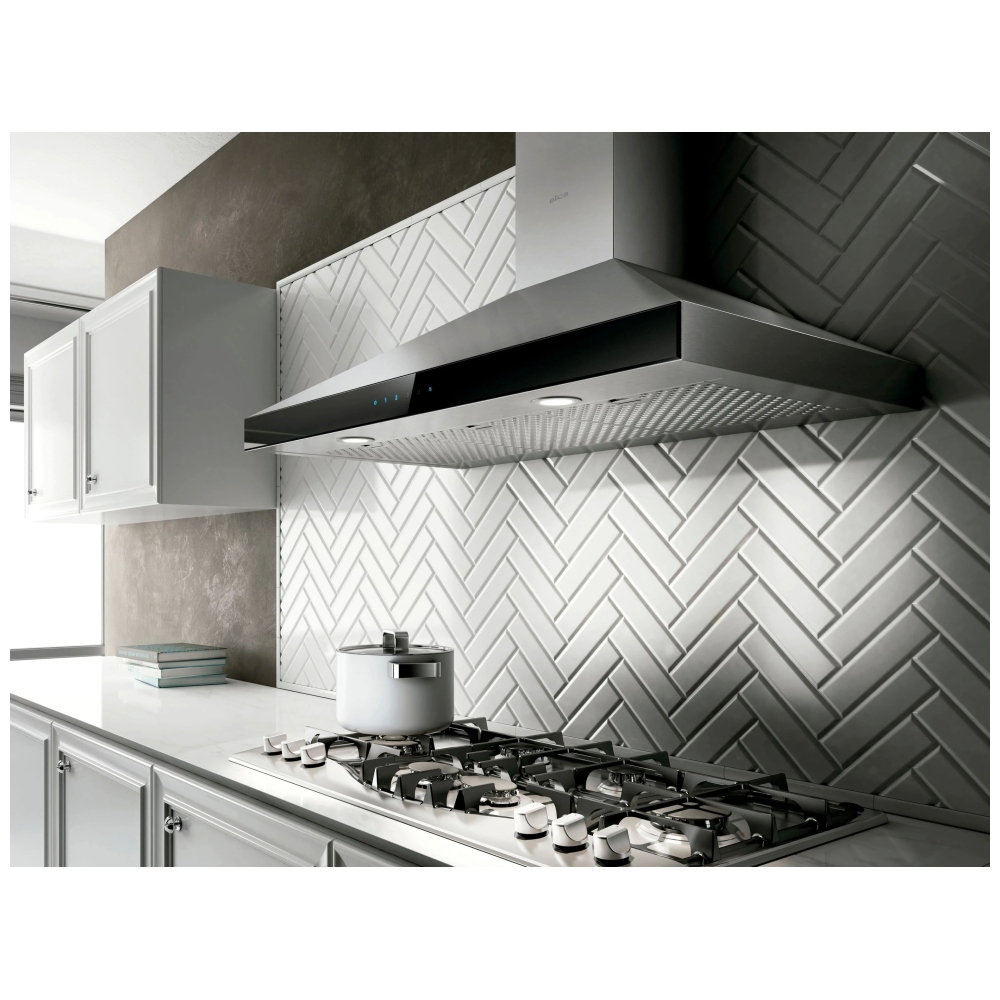

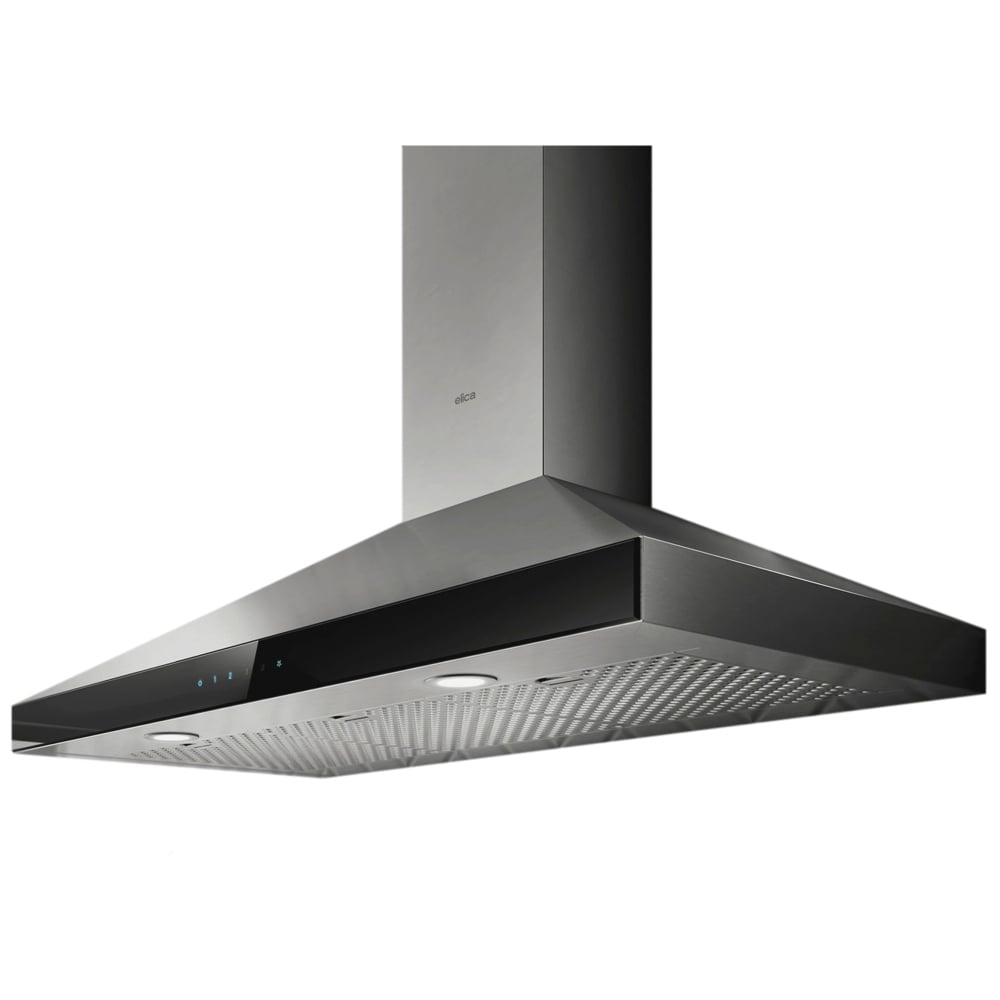

Elica EVR636S2 Range Hood, 36 inch Exterior Width, Chimney, Wall Mounted, 600 CFM, LED, Dishwasher Safe Filters, Black Glass colour Blower Included
