Elica EHK648SS
Discontinued
ACPI47
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $154.12 for 18 months
Ratings & Reviews
ACPI47
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $154.12 for 18 months
Description & Features
Harmony and simplicity. With its reduced depth, Haiku is a particularly ergonomic product without compromising its suction capacity. The aesthetic linearity can be seen in the cast iron eff ect aluminum grilles, which strongly characterize the product. They are easy to remove and equipped with a blocking system designed to avoid accidental falls. Haiku has the only system with adjustable depth.
  • Special Material
  • In the quest for attractive products to show off but which have a functional, everyday use, materials play a key role. They can make the difference by becoming an attractive signature feature or by disappearing into the background and by being easy to maintain in the long term. They are fundamental in the process of innovation, forming the basis of an attractive look and a fulfilling user experience. Elica selects materials in which sturdiness, easy cleaning and aesthetic impact are combined in a perfect balance. The wide selection of finishes available offers maximum freedom of choice whatever the setting.
  • Total Integration
  • The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The Total Integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
  • Long Life Filter
  • To ensure the best performance and long-term duration of your hood, the traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keeping it looking good as new. The level of efficiency is about 60%.
  • Top Performance
  • Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.

Manufacturer's Warranty: 2 years

Canadian model: EHK648SS

Canadian UPC: 190603003895

EAN: 0190603003895

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 43.60
NET WEIGHT (kg) 34.30
CARTON LENGHT (mm) 781.00
CARTON HEIGHT (mm) 413.00
CARTON WIDTH (mm) 1284.00
VOLUMEN (M3) 0.40
SHIPPING WEIGHT 96.12
NET WEIGHT 75.62
CARTON LENGHT 30.75
CARTON HEIGHT 16.26
CARTON WIDTH 50.55
COUNTRY OF MANUFACTURE PL
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Convertible
HOODS FEATURES Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence
WIDTH (IN) 48"
WIDTH (CM) 120.00
AIRFLOW (M3/H) 1020.00
CFM (MAX) 600.00
db (min) 36.00
db (max) 55.00
SONES 1.8 - 6.8
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 6"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 6"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 3.8 A
HERTZ 60.00
WATTS 460.00
LIGHTING Strip LED 1 x 7 ww 3500 KK
BULB TYPE Strip LED
BULB INCLUDED YES
NUMBER OF LIGHTS 1.00
BULB WATTS 7.00
KELVINS 3500.00
GREASE FILTER TYPE Sophisticated Black Iron Grates + 6 Layer Mesh Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Iron
BLOWER TYPE Interior Unit
CONTROL TYPE Sensitive Touch Control with Backlight
SPEED CONTROL YES
NUMBER OF SPEEDS 3 + booster
REMOTE CONTROL NO
POWER SOURCE Power Cord
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED YES
CFM REDUCTION No

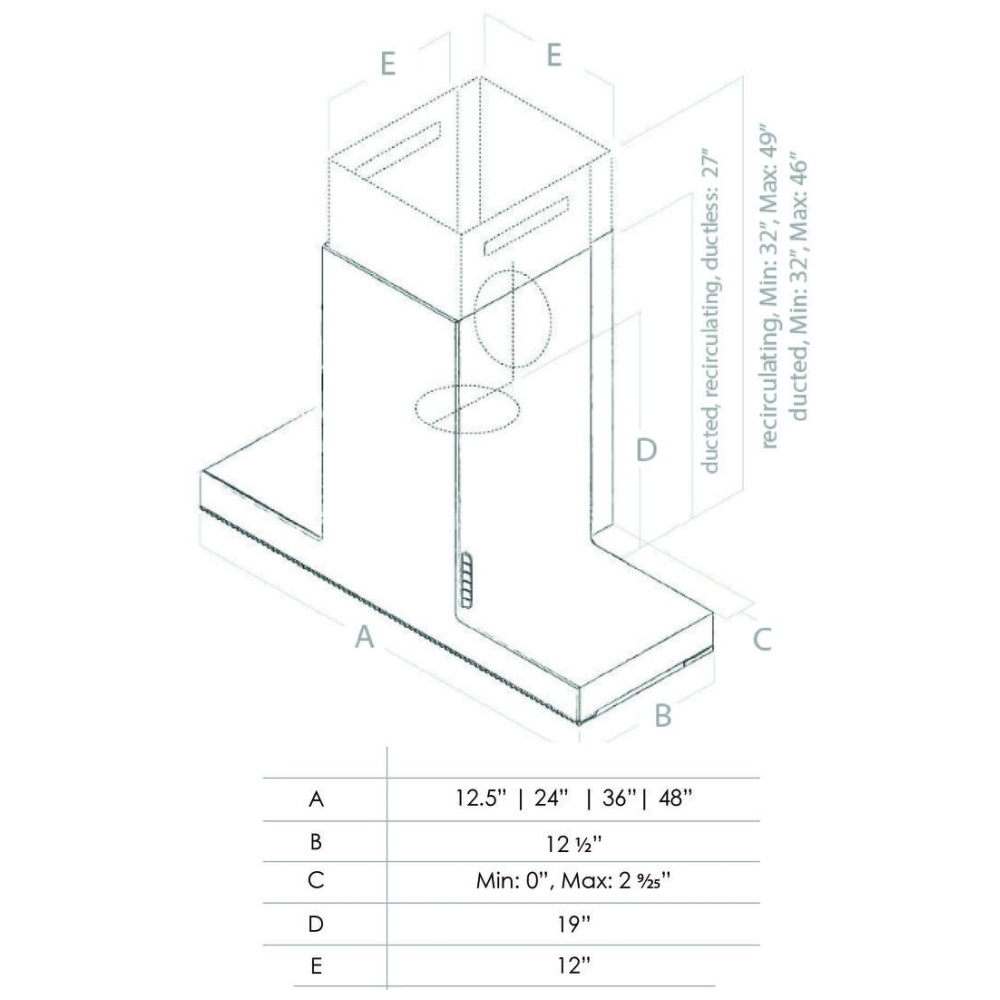

DIMENSIONS 120 x 32 x 83
DIMENSIONSinches 48" x 12 3/5-15 x 32"
ADJUSTABLE HEIGHT YES
Minimum Overall Height - Top to Bottom 32"
Maximum Overall Height - Top to Bottom 49"
Overall Height - Top to Bottom 32 -49
Overall Width - Side to Side2 48"
Overall Depth - Front to Back 15
Hood Height 32"
Minimum Compatible Ceiling Height 7'3"
Maximum Compatible Ceiling Height 10'1"
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side 12"
Chimney Depth - Front to Back 12"
Chimney Height - Top to Bottom 49
RECIRCULATION KIT NUMBER CFC0141725AUL
CHIMNEY EXTENSION NUMBER -
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT -
BACKSPLASH KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT -
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed NA
UL listed NA
AHAM verified NA
TITLE 24 NA
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT YES
HEAT SENSOR NO
CHAROCAL FILTER YES
CERTIFICADO NOM Activo
