Elica EPL630S1
Discontinued
AWYJ7G
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $53.00 for 18 months
Ratings & Reviews
1
Read Reviews
(1 reviews)
AWYJ7G
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $53.00 for 18 months
Description & Features

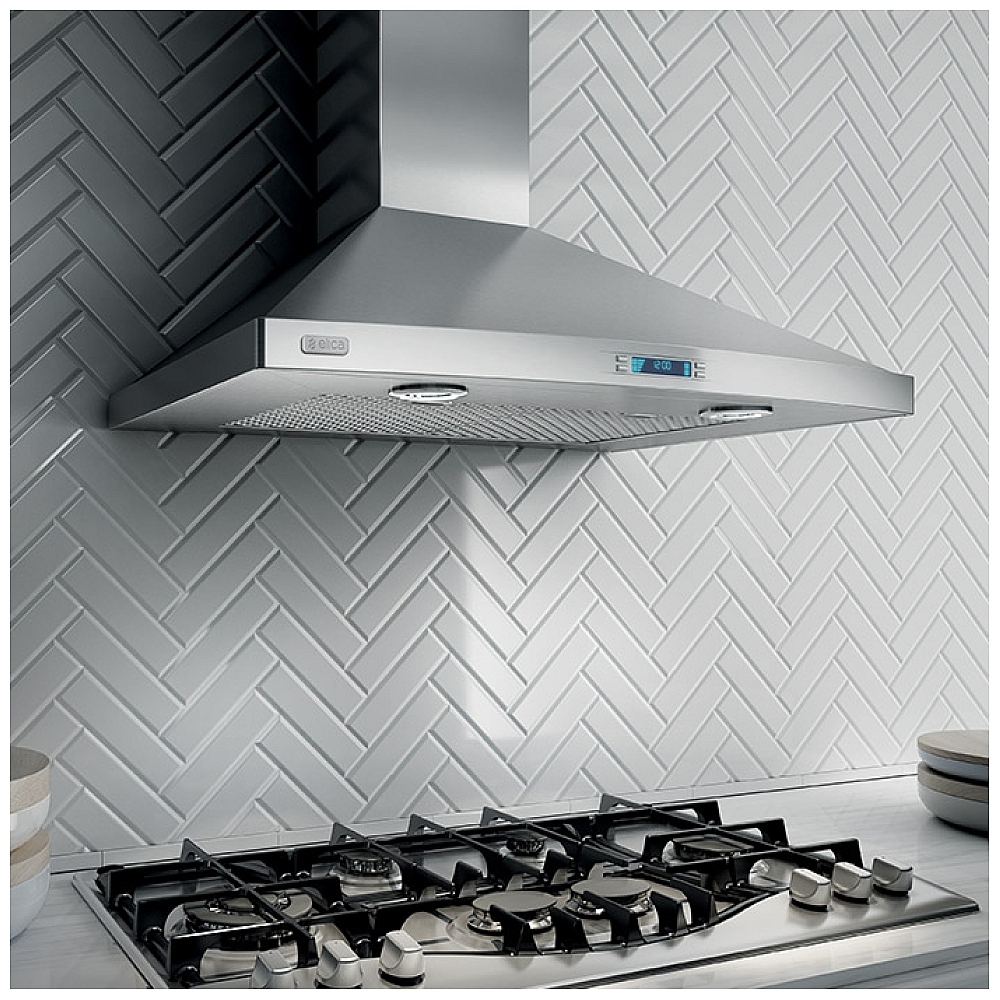

The rounded front, beautifully sloping angles and stainless steel finish of Pilato make a striking visual statement.


Technical features

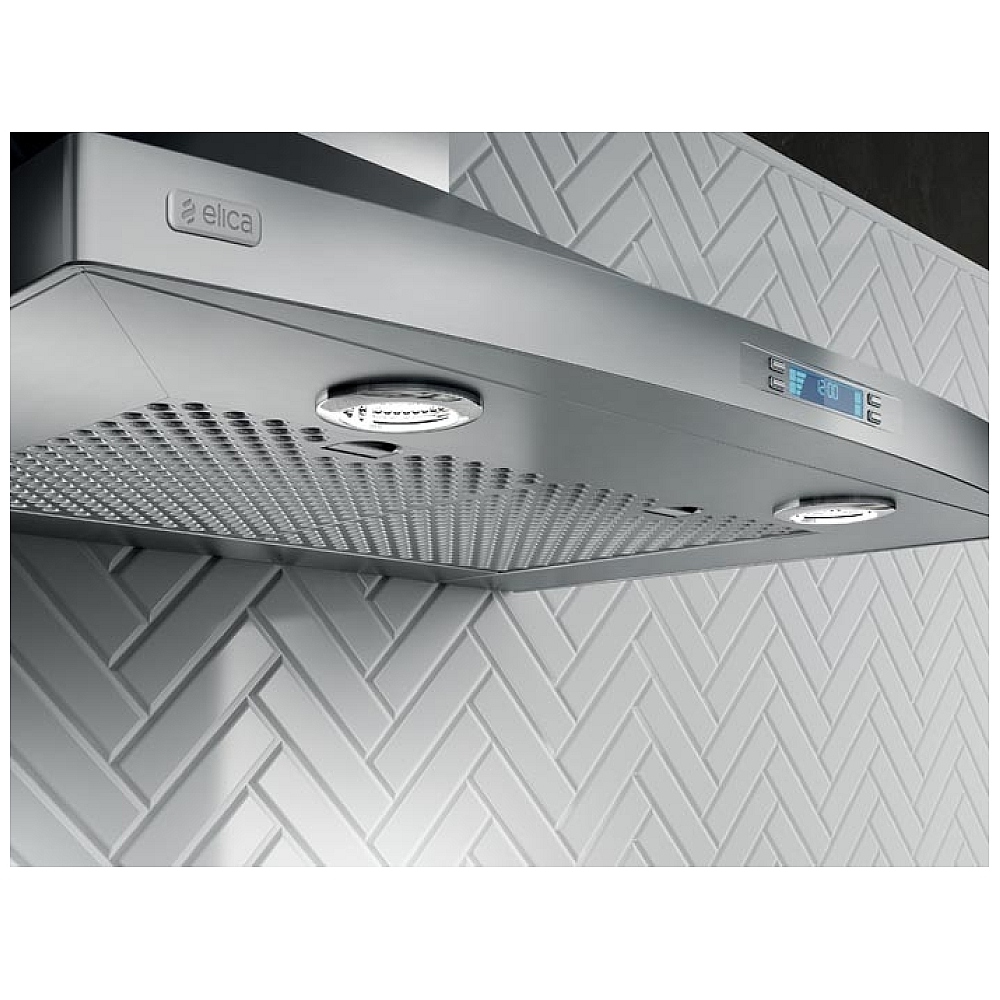

Available in 30"or 36" widths, Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety.Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.

30'' (W) x 21 1/2'' (D) x 10 1/4'' (H)



Selected Model
Model number EPL630S1
Dimensions
Dimensions 30'' (W) X 19 11/16'' (D) X 10 1/4'' (H)
Exterior Appearence
Stainless Steel grade 430
Features
Controls Multi-Function Electronic Touch Controls with LCD display
Illumination 2, 40 Watt Halogen Lamps (Bulbs Included), 2 Intensities
Blower Type 4-speed, 600 CFM
CRS CFM Reduction (< 300 CFM) Included Function
Blower Performance Speed 1, 160 CFM, 1.7 Sones
Speed 2, 280 CFM, 3.3 Sones
Speed 3, 475 CFM, 6.0 Sones
Speed 4, 600 CFM, 8.2 Sones
Filter Type Dishwasher-Safe, Stainless Steel Micro Hole Filters (X2)
Ducting Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition 6” Round with Back Draft Damper (top)
Chimney (ducted out) For ceiling height 7'5'' to 9'2''
Chimney (recirculating) For ceiling height 7'5'' to 9'5''
Electrical Requirements
Electrical requirements 120V-60 HZ / 490 Watt at 4.1 Amps
Accessories (optionnal)
Extension Chimney Kit (ducted out) KIT0140998 | For ceiling height 8.5'' à 11'3'' (with appropriate accessories)
Extension Chimney Kit (recirculating) KIT02762 | For ceiling height 8'7'' à 11'7'' (with appropriate accessories))
Recirculating Kit KIT02766 (For 30'' &36'' includes 6 deflectors and 2 carbon filters)
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour

Manufacturer's Warranty: 2 years

Canadian model: EPL630S1

Canadian UPC: 190603000559

EAN: 0190603000559

Specs
Technical features
Width 30'', 36''
Sones 7
Extraction capacity 600 CFM
