Elica EVI648S1
Discontinued
ADXF1K
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $184.50 for 18 months
Ratings & Reviews
KIT0153054
KIT0153054
Blowers
$2,329
ADXF1K
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $184.50 for 18 months
Description & Features

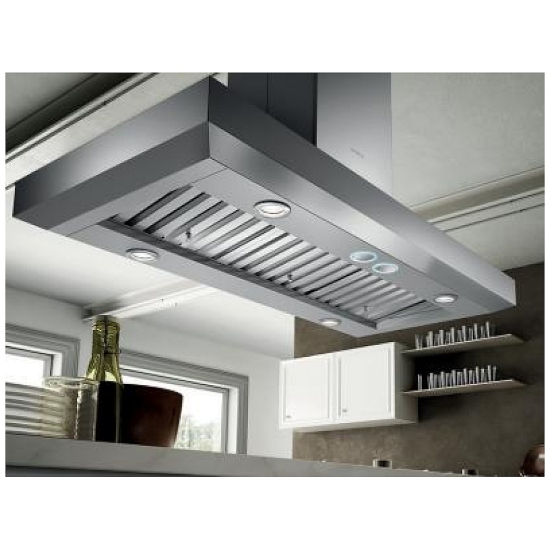

Designed to be suspended above a kitchen island, Vavano's crisp lines, beveled rim and gleaming stainless steel deliver professional cooking with a sense of style. Give your kitchen a splash of Italian design with a box style island hood that has the extra depth and power required to support professional ranges and cooktops. Available in 42" and 48" widths, Vavano Island comes equipped with a powerful 600 CFM internal blower and backlit hidden metallic in/out knobs, which operate the 4 speed blower and LED lighting.
  • Grease Collector
  • Professional grade, heavy gauge stainless steel baffle filters are the perfect choice for those with top chef dreams. Designed for high airflow cooking, the S shape design traps volumes of grease (for a cleaner kitchen), which is collected in trays for easy removal and cleaning.
  • Heat Guard
  • A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
  • Hush System
  • An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • Professional Performance
  • Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
  • Seamless Look
  • Elica Professional grade hoods feature heavy gauge stainless steel Seamless construction that delivers refined elegance and reflects the superior quality and Italian craftsmanship invested into each range hood.

Manufacturer's Warranty: 2 years

Canadian model: EVI648S1

Canadian UPC: 190603002348

EAN: 0190603002348

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 54.70
NET WEIGHT (kg) 45.80
CARTON LENGHT (mm) 1361.00
CARTON HEIGHT (mm) 645.00
CARTON WIDTH (mm) 840.00
VOLUMEN (M3) 0.70
SHIPPING WEIGHT 120.59
NET WEIGHT 100.97
CARTON LENGHT 53.58
CARTON HEIGHT 25.39
CARTON WIDTH 33.07
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Vented
HOODS FEATURES Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN) 48"
WIDTH (CM) 120.00
AIRFLOW (M3/H) 1020.00
CFM (MAX) 600.00
db (min) 36.00
db (max) 56.00
SONES 1.7 - 7.0
EXHAUST VERSION Ducted Only
EXHAUST SIZE Round 6"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 6"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 4A
HERTZ 60.00
WATTS 480.00
LIGHTING LED 4 x 6.5 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 4.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED NO
CFM REDUCTION Yes w/kit
DIMENSIONS 120 x 62 x 76
DIMENSIONSinches 48" x 24 x 30 - 51
ADJUSTABLE HEIGHT YES
Minimum Overall Height - Top to Bottom 30"
Maximum Overall Height - Top to Bottom 51"
Overall Height - Top to Bottom 30 - 51
Overall Width - Side to Side2 48"
Overall Depth - Front to Back 24
Hood Height 5 1/32"
Minimum Compatible Ceiling Height 7'6"
Maximum Compatible Ceiling Height 10'1"
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side 13 5/64"
Chimney Depth - Front to Back 10 5/8"
Chimney Height - Top to Bottom 46"
RECIRCULATION KIT NUMBER NA
CHIMNEY EXTENSION NUMBER KIT0145610
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT KIT0185752
BACKSPLASH KIT -
INTERNAL BLOWER -
INLINE BLOWER KIT0154387
EXTERNAL BLOWER KIT0153054
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR YES
CHAROCAL FILTER NO
CERTIFICADO NOM -
GENERAL
Series Name Vavano
Blower Included Yes
Airflow 600 CFM
Style Island
Color Stainless Steel
Manufacturer Color Stainless Steel
Installation Ceiling Mount
FEATURES
Dishwasher-Proof Filters Yes
Ducting Information 6" Round with Back Draft Damper (top only)
Speeds • 4 Speed Motor:
• Speed 1, 205 CFMs
• Speed 2, 350 CFMs
• Speed 3, 510 CFMs
• Speed 4, 600 CFMs
Additional Information • 2 LED 7.5 Watts LED Light, Replaceable Lamps (1 Intensity)
• Ducted Installation Only
• IN/OUT Backlit Knob
• Professional Stainless Steel, Angled Baffe Filters 3
• Noise (sones): Min: 3.21, Max: 7.7 Sones
BLOWERS AND ACCESSORIES
Optional 1200 CFM with External Blower Kit
ELECTRICAL INFORMATION
Information • 120 V
• 60 Hz
