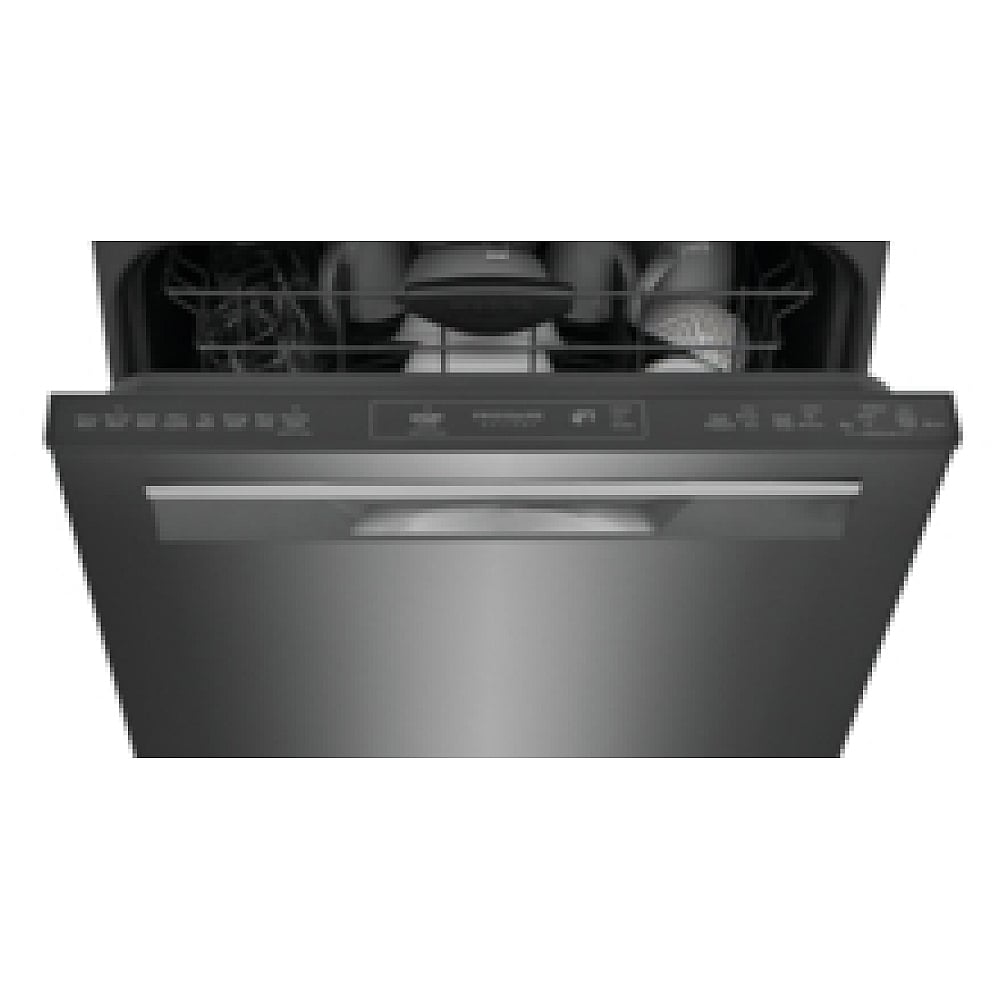

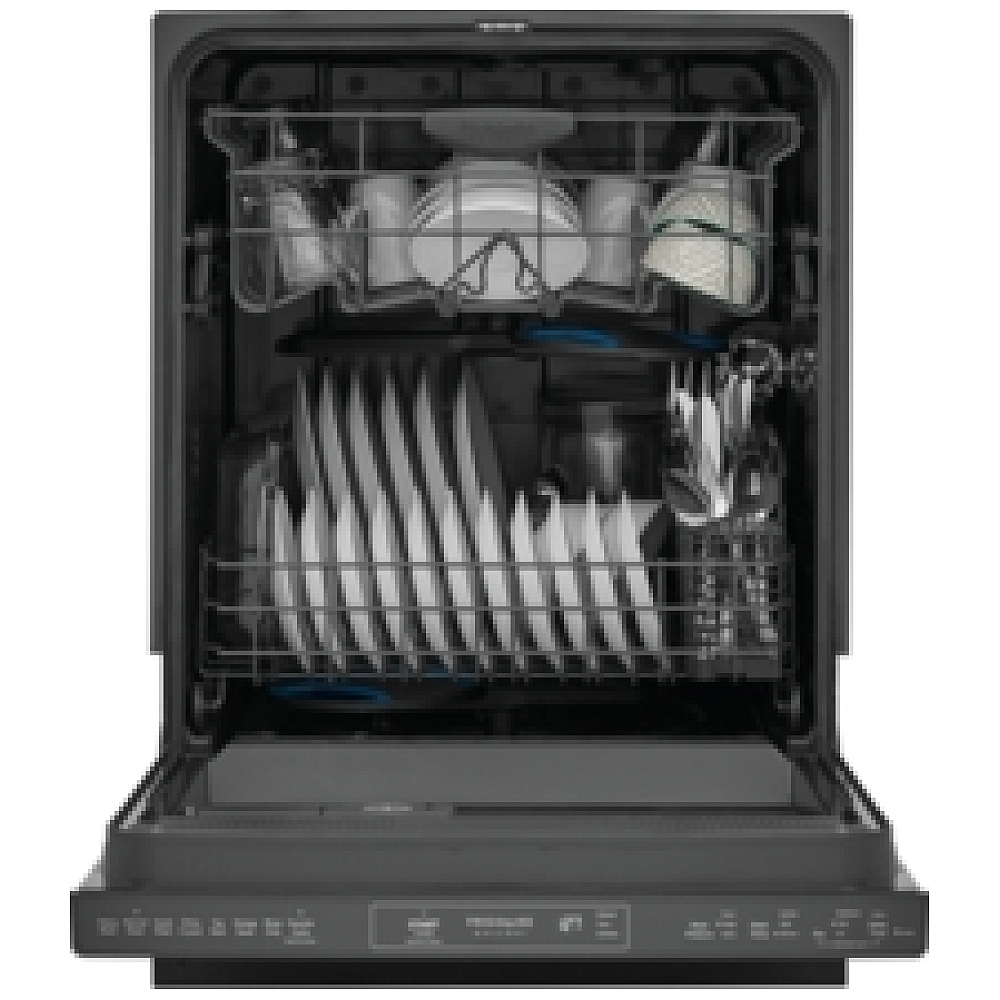

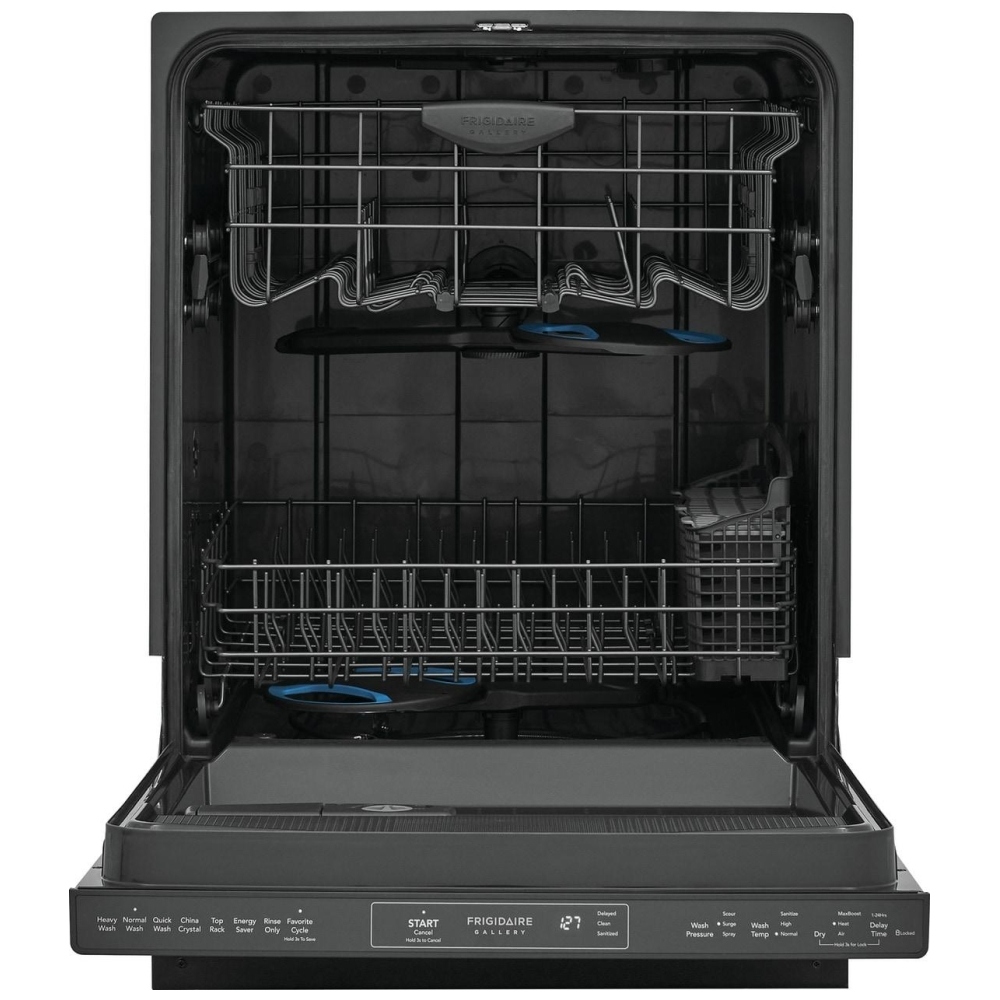

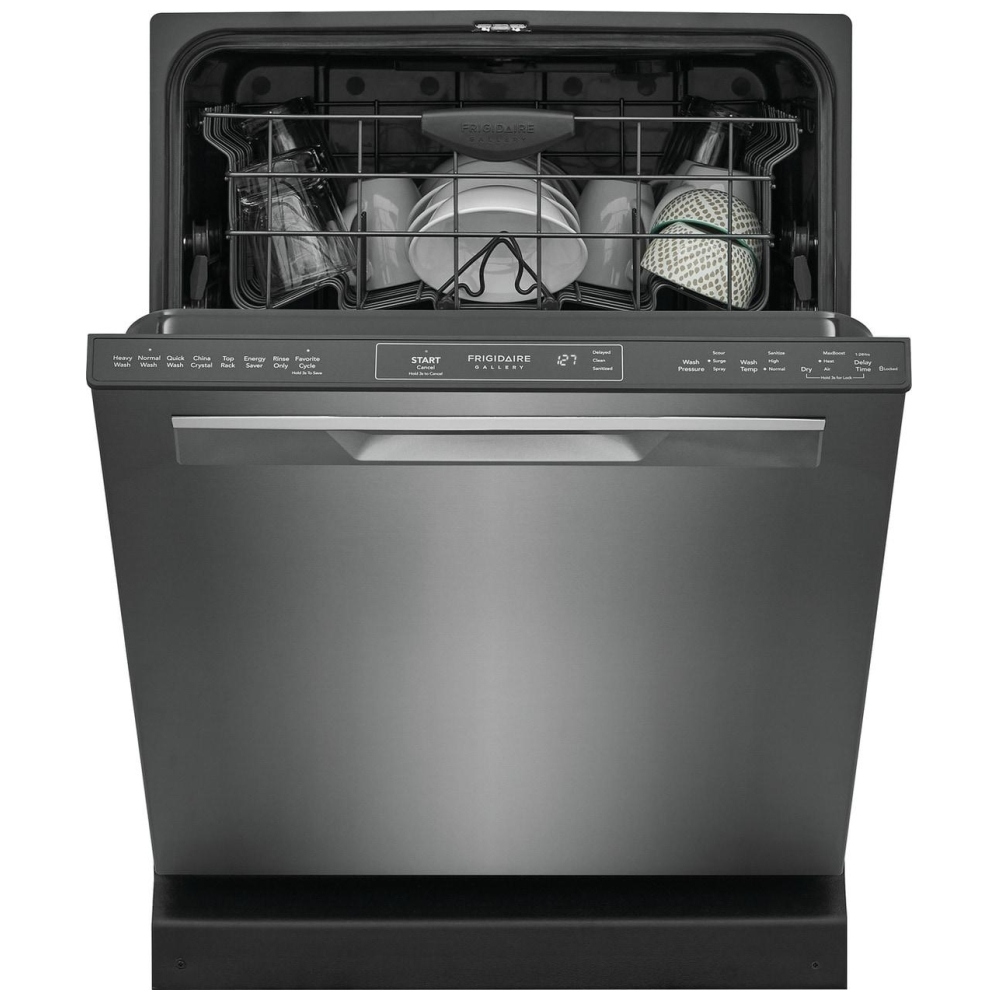

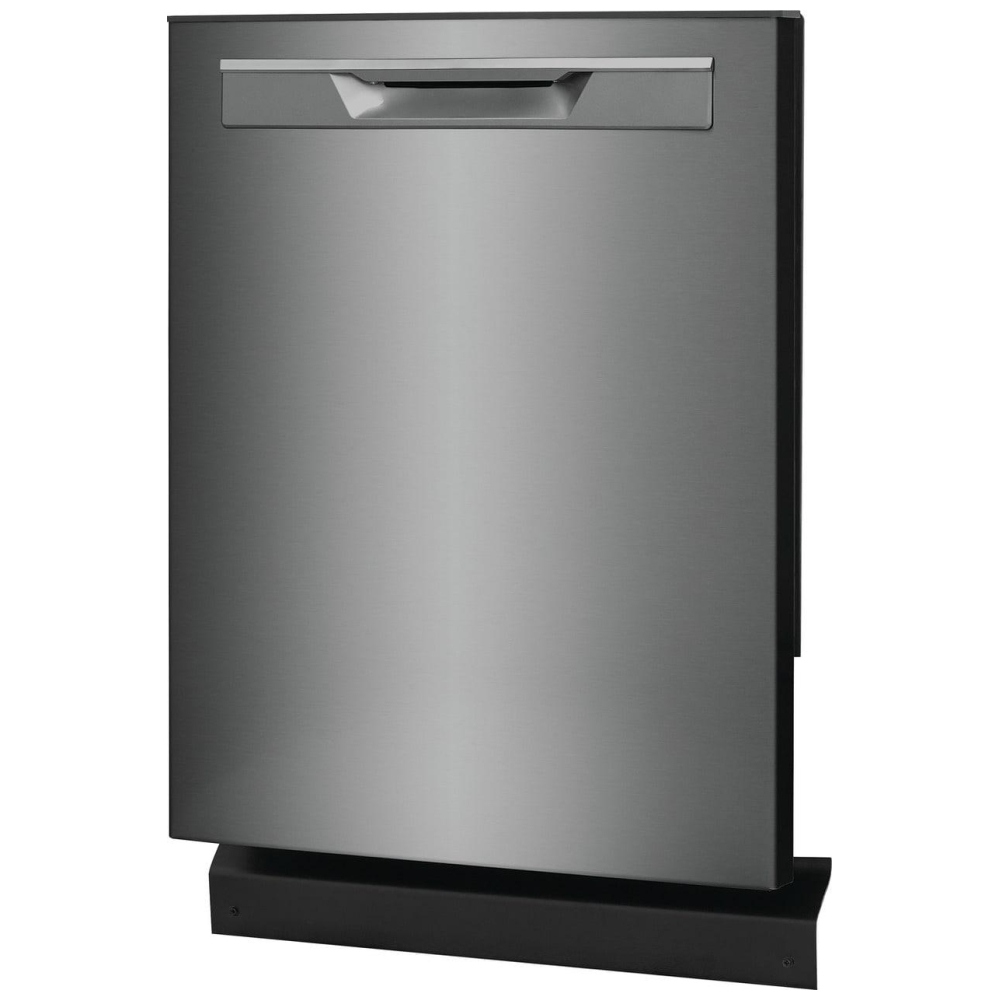

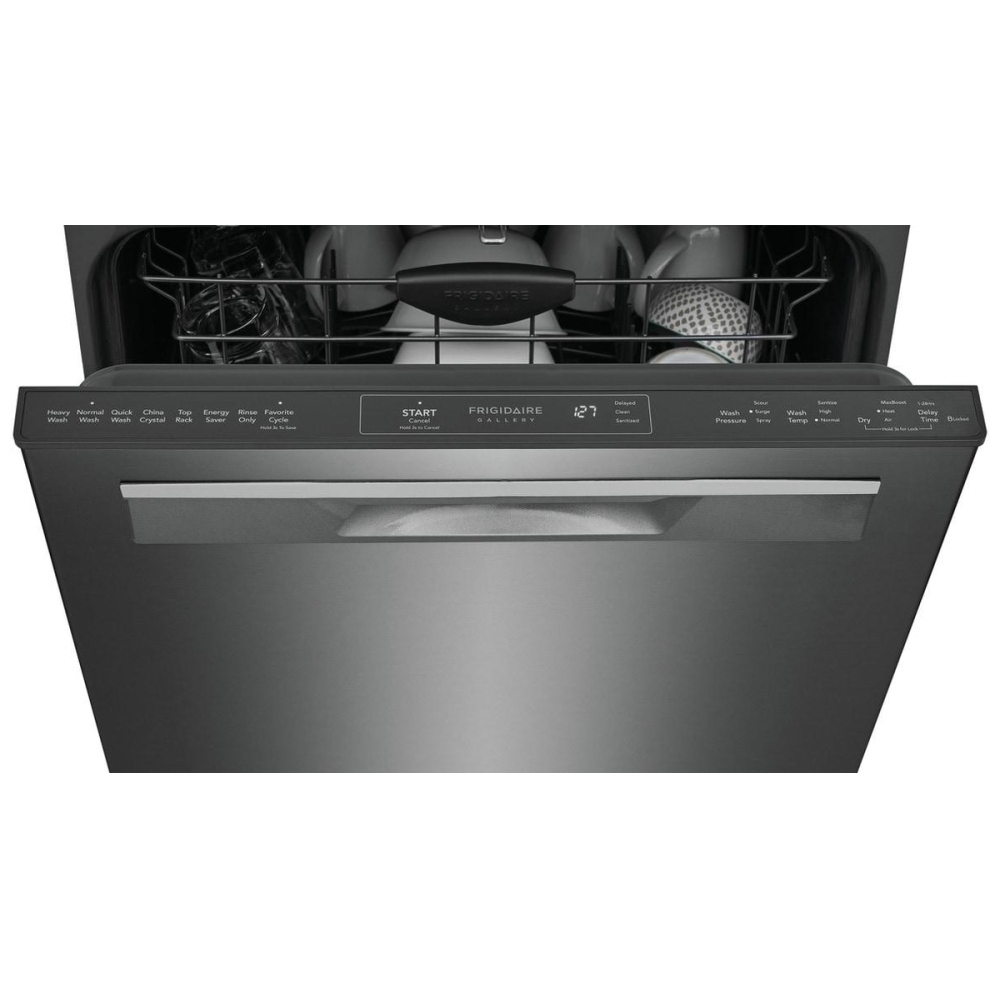

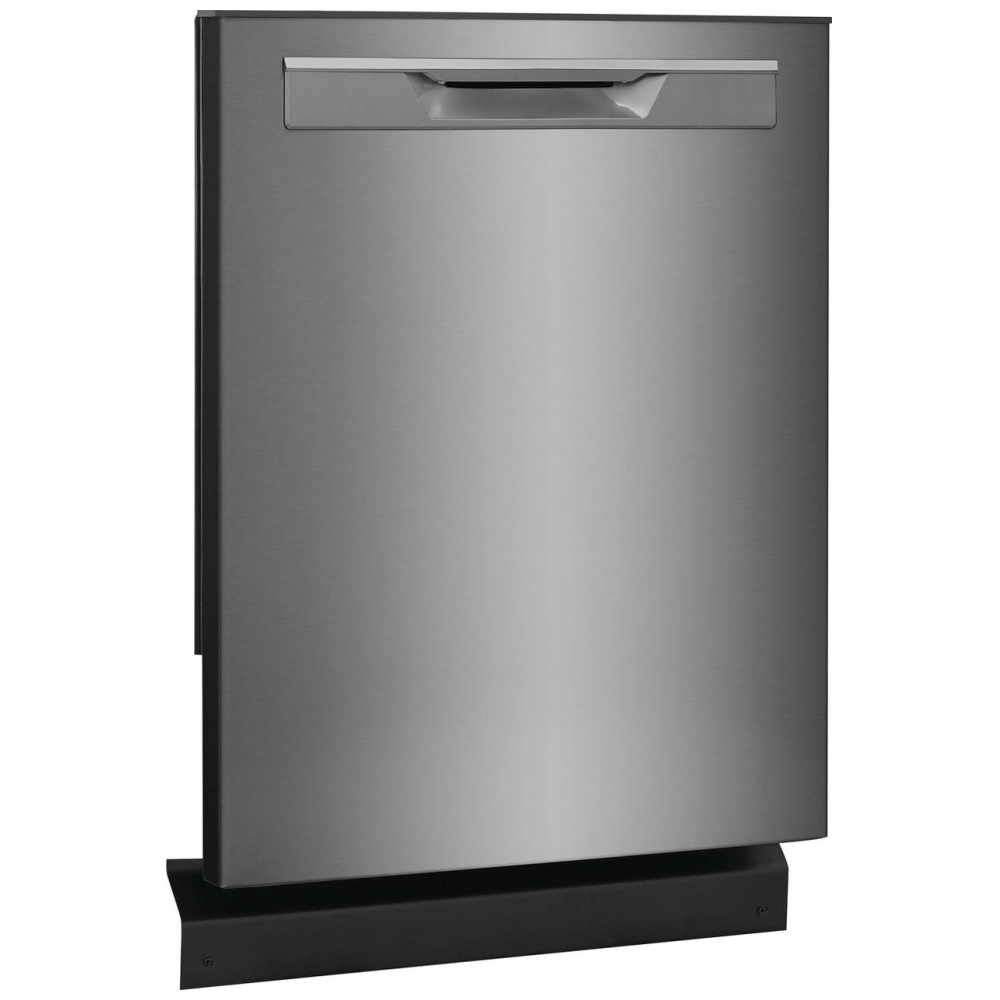

The Frigidaire Gallery 24" Built-In Dishwasher features the Dual OrbitClean® Wash System that easily removes even tough, dried and baked on food due to its multi-directional spray pattern and sensor technology that adjusts cleaning performance based on the soil level of the dishes. Forget the hand towel with the MaxBoost™ Dry system. This quiet dishwasher (49 dBA) also offers a sanitize option, adjustable racks to fit more dish sizes, and LED floor indicator light, a 34 minute quick wash, and is Energy Star® certified.
Manufacturer's Warranty: 1 year
Canadian model: GDPP4517AD
Canadian UPC: 012505116025
EAN: 0012505116025

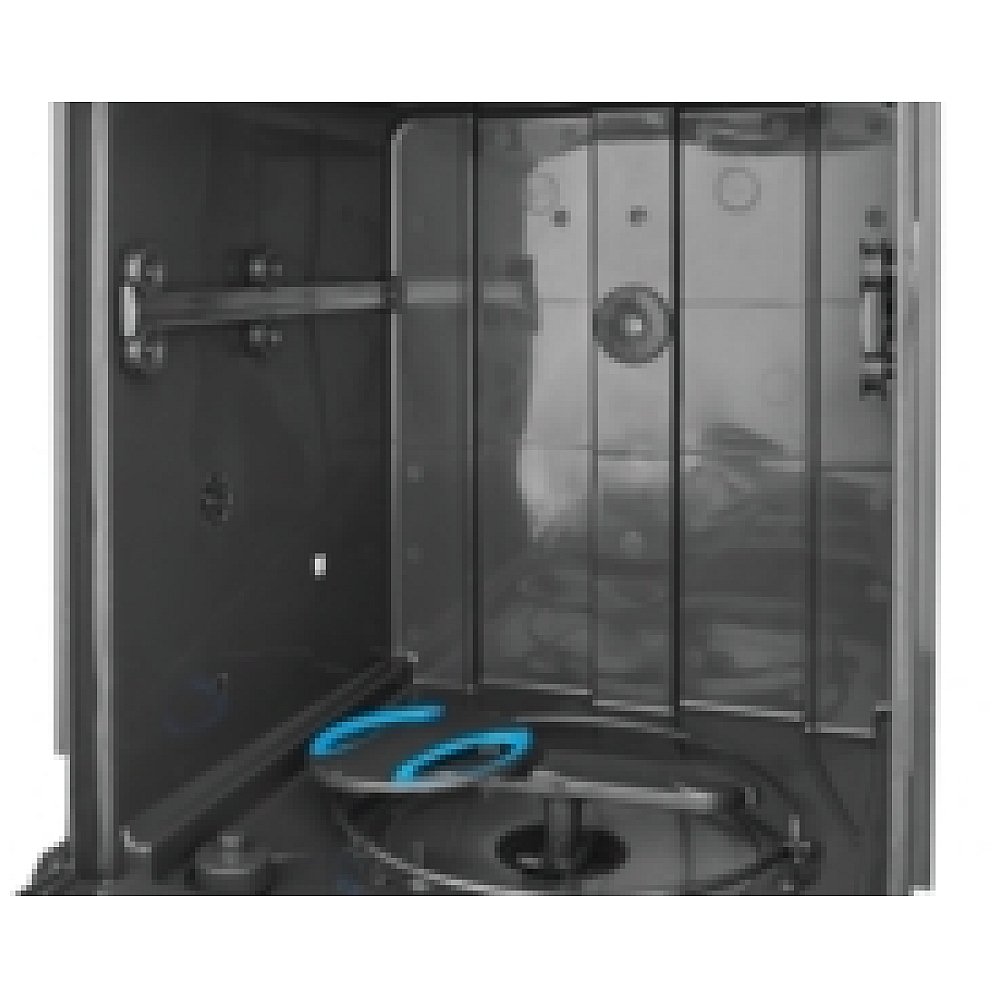

Dual OrbitClean® Wash System
The Dual OrbitClean® Wash System has two rotating wash arms with multi-directional spray patterns to remove tough, dried and baked on food.
DishSense® Sensor Technology
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Enhanced Drying with MaxBoost Dry™
MaxBoost™ Dry technology uses heating and a fan to push out moist air and pull in fresh, dry air so you don't have to hand dry.
NSF® Certified Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
ENERGY STAR® Certified
Save money and maximize energy efficiency.
Keep your Kitchen Quiet with 49 dBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.
| Product Line | Dishwasher |
| Power Type | Electric 120v |
| Size | 24" |
| Installation Type | Built-In |
| Factory | Kinston |
| Color | Black Stainless Steel |
| Dishwasher | |
| Detergent Dispenser | Yes |
| Filter Material | Stainless Steel |
| Filter Trap | Removable |
| Filtered Water | 100 % |
| Hard Food Disposer or Filtration | Yes |
| Interior Light | No |
| Motor Speeds | Multi-Speed |
| Place Setting Capacity | 14 |
| Rinse Aid Dispenser | Yes |
| Smart Soil Sensor | Yes |
| Lower Spray Arm | Dual Orbit |
| Middle Spray Arm | Dual Orbit |
| Upper Spray Arm | Spray Arm |
| Status Indicator Floor Beam | Yes |
| Tub Color | Midnight Ink |
| Tub Design | Tall Tub |
| Tub Material | Plastic |
| Wash Levels | 5 |
| Wash System | Direct Feed |
| Water Pressure | 120 psi |
| Dishwasher Cycles | |
| China Crystal | Yes |
| Energy Saver | Yes |
| Favorite | Yes |
| Heavy | Yes |
| Normal | Yes |
| Number of Cycles | 8 |
| Quick | Yes |
| Rinse Only | Yes |
| Upper Rack | Yes |
| Dishwasher Options | |
| Air Dry | Yes |
| Drying System | MaxBoost |
| Heated Dry | Yes |
| High Temperature | Yes |
| Start/Cancel | Yes |

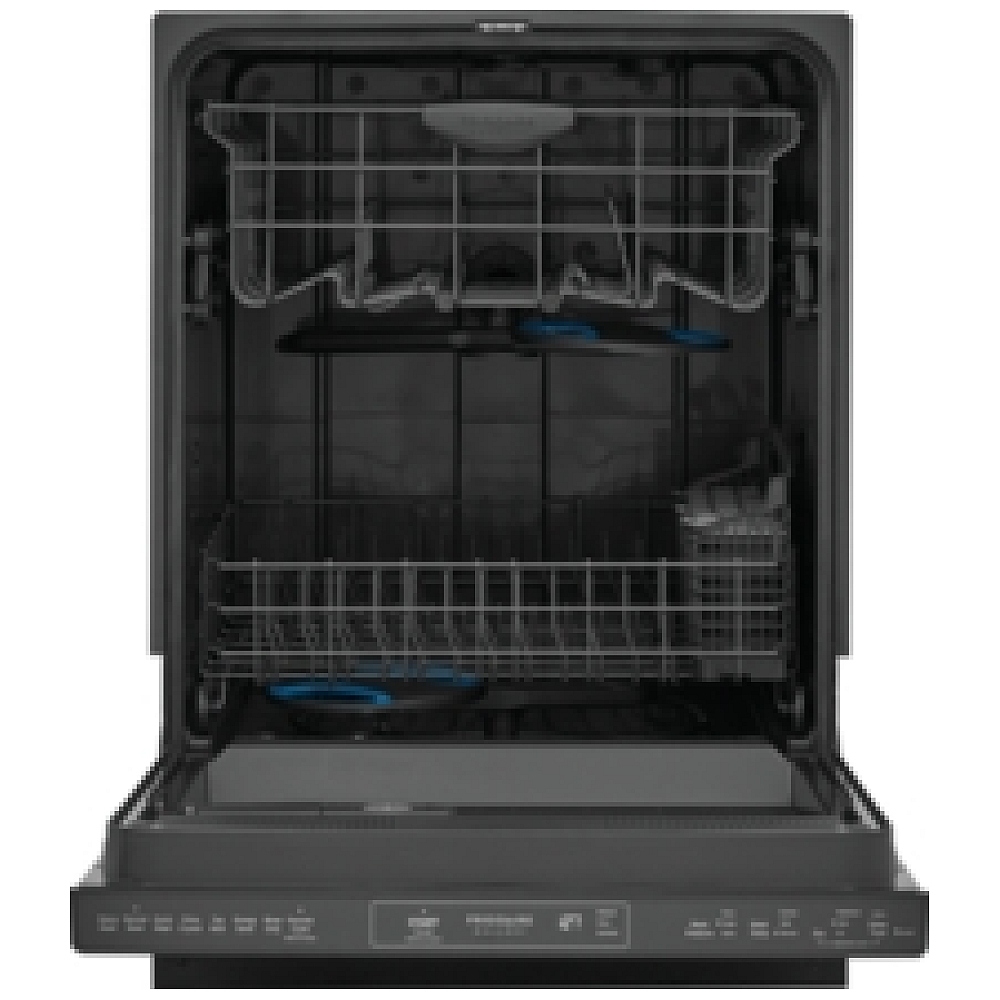

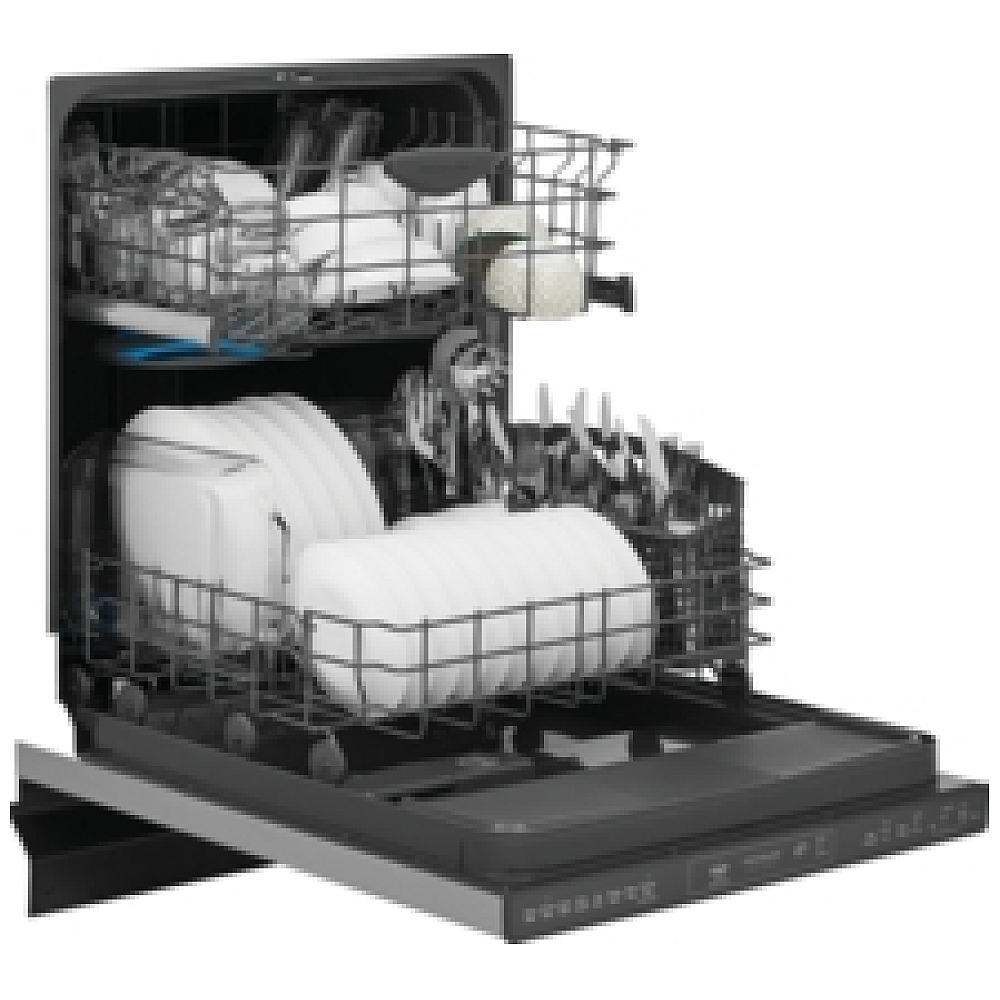

| Lower Rack | |
| Fold-Down | Yes |
| Maximum Height Clearance | 13" |
| Minimum Height Clearance | 11" |
| Number of Silverware Basket | 1 |
| Number of Silverware Basket Lids | 3 |
| Rack Type | Deluxe |
| Upper Rack | |
| Cup Shelf | Yes |
| Fold-Down | Yes |
| Minimum Height Clearance | 8" |
| Rack Handles | Yes |
| Rack Type | Adjustable |
| Stemware Holder | Yes |
| General Specifications | |
| Sound Level | 49 dBA |
| Annual Energy | 240 kWh |
| Product Weight | 56 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |

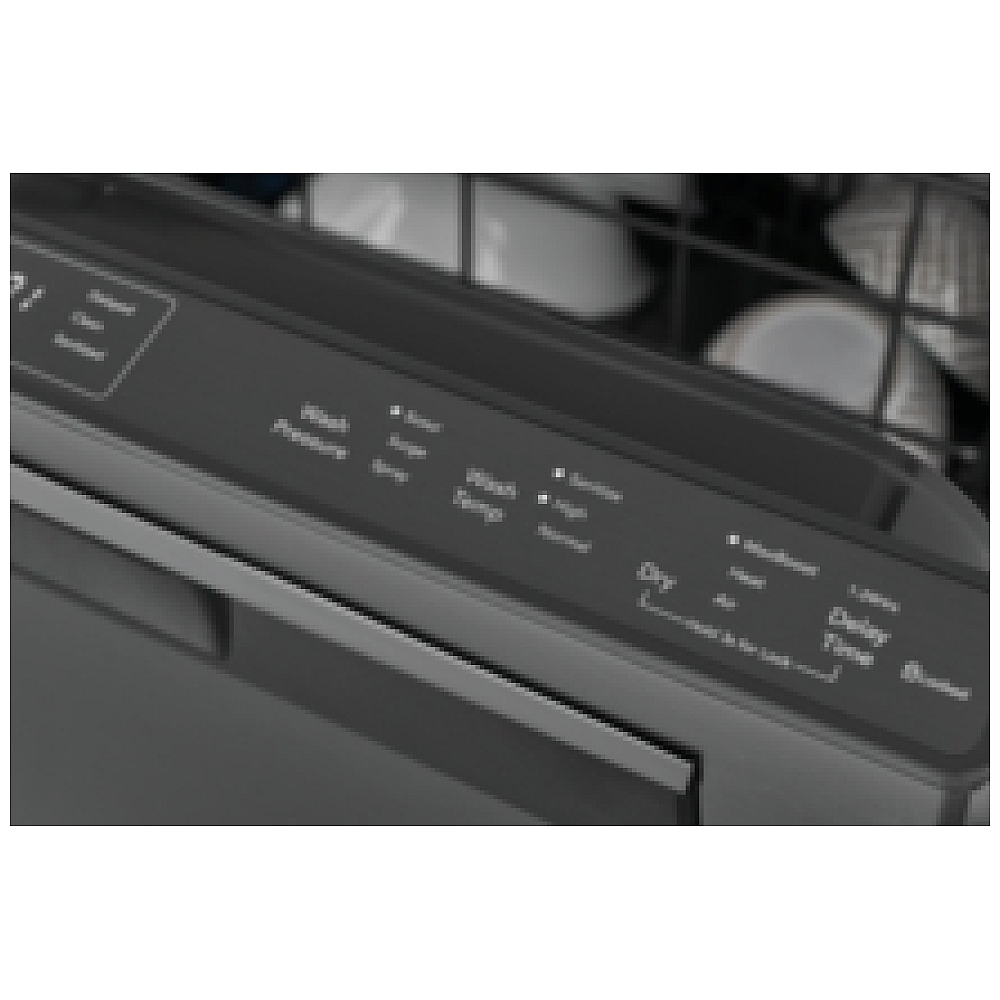

| Controls | |
| Control Color | Black |
| Control Location | Top |
| Control Lock | Yes |
| Delay Start Hours | 1-24 Hours |
| Digital Display | Yes |
| Rinse Aid Indicator | Yes |
| Exterior | |
| Door and Handle Design | Wide Pocket |
| Door Latch | Pull |
| Door Type | StayPut |
| Exterior Finish | Smudge-Proof® Black Stainless Steel |

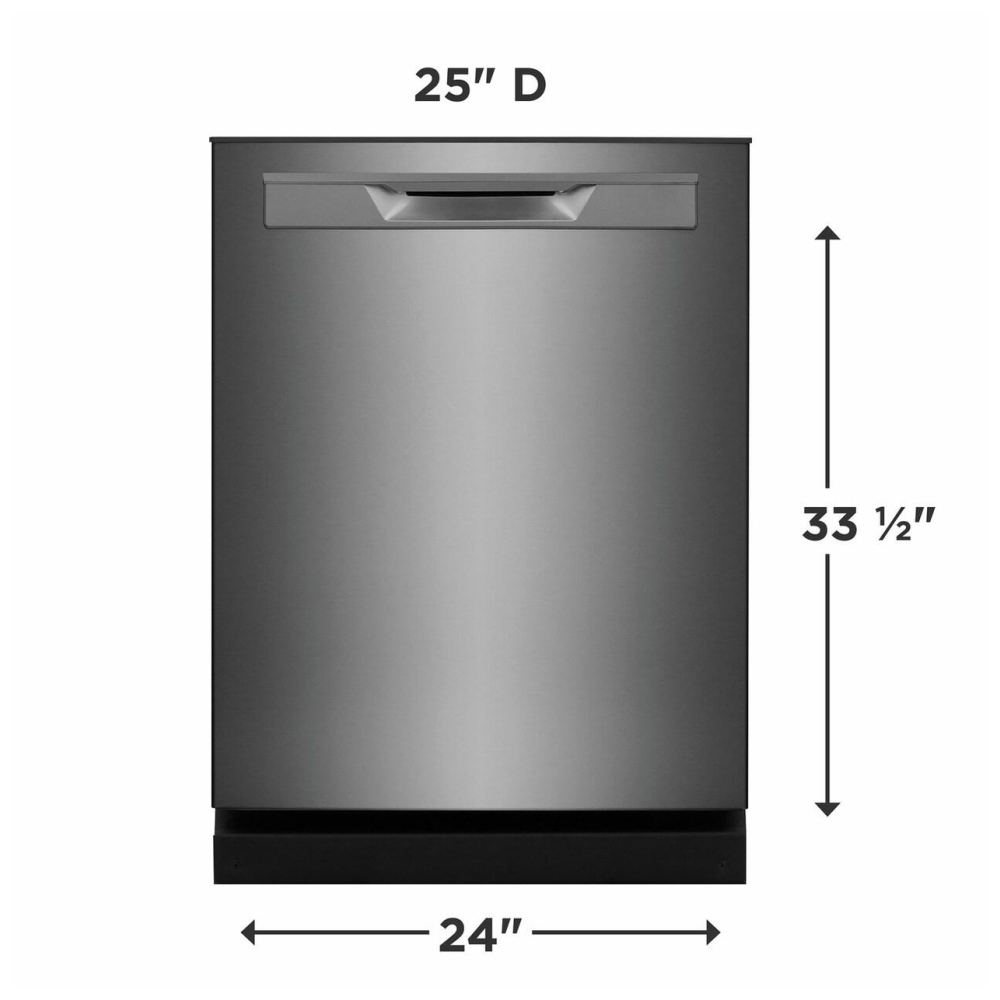

| Dimensions and Volume | |
| Minimum Height | 33 1/2" |
| Maximum Height | 35" |
| Width | 24" |
| Depth | 25" |
| Depth With Door Open | 49 1/4" |
| Electrical Specifications | |
| Amps @ 120 Volts | 10 Amps |
| Connected Load @ 120V | 1.2 kW |
| Voltage Rating | 120 V |
| Installation | |
| Connection Location | Right Bottom |
| Number of Leveling Legs | 4 |
| Water Inlet Location | Left Bottom Front |
| Performance Certifications and Approvals | |
| CEE Tier | Tier 1 |
| cUL Listed | Yes |
| ENERGY STAR Certified | Yes |
| Meets ASSE 1006 Requirements | Yes |
| NSF Certified | Yes |
| UL Listed | Yes |
