JCGB750EEFES GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

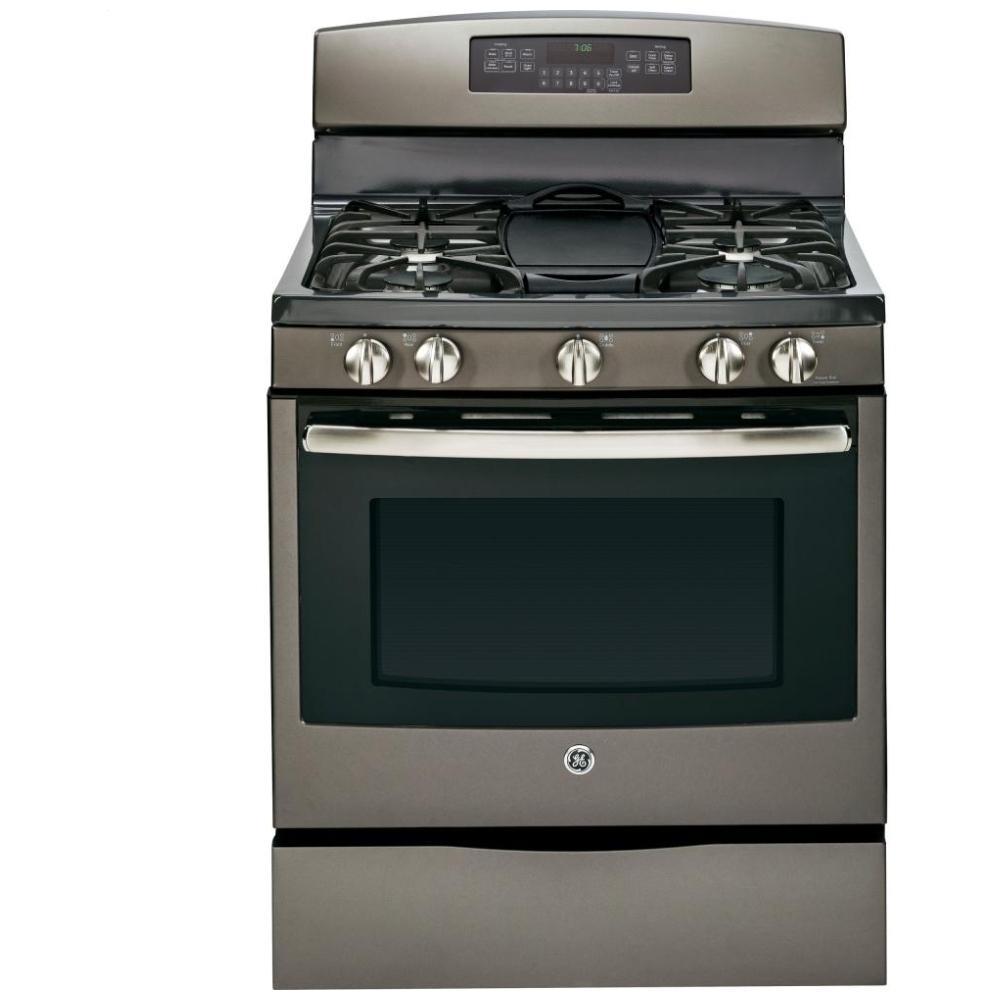

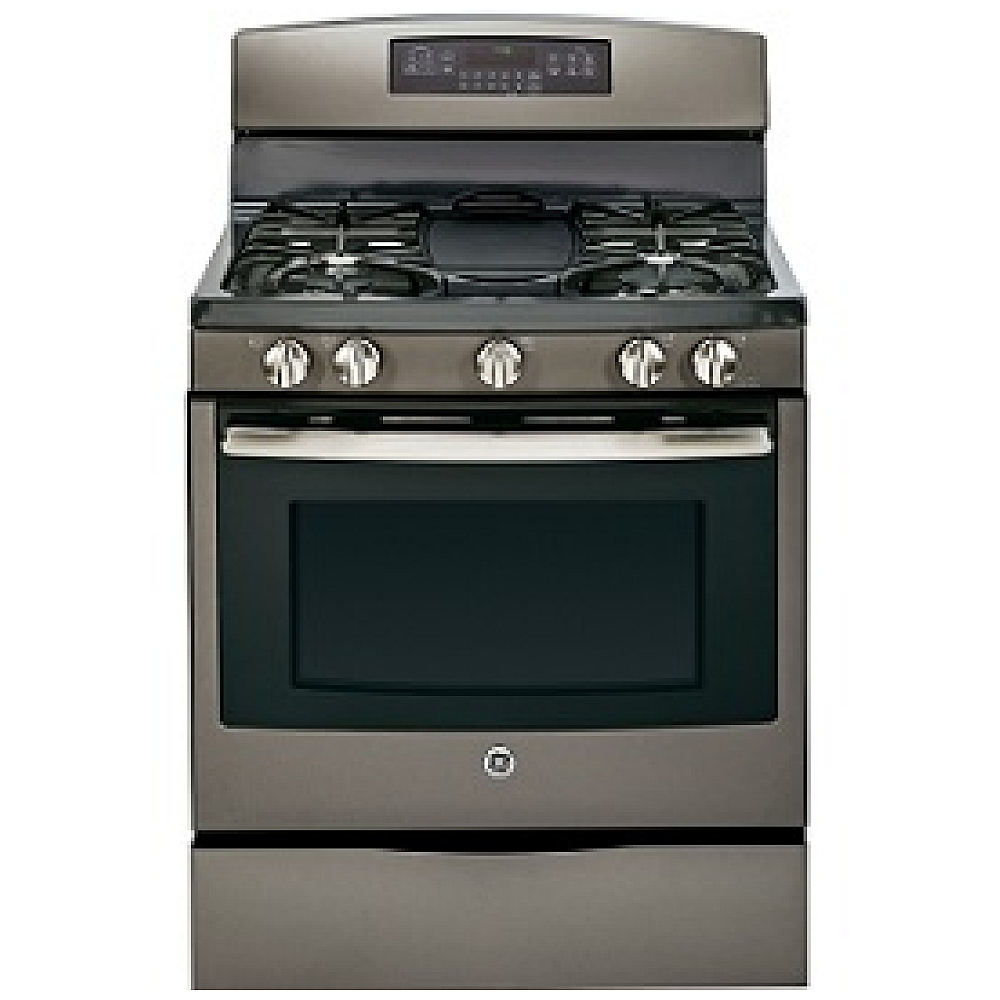

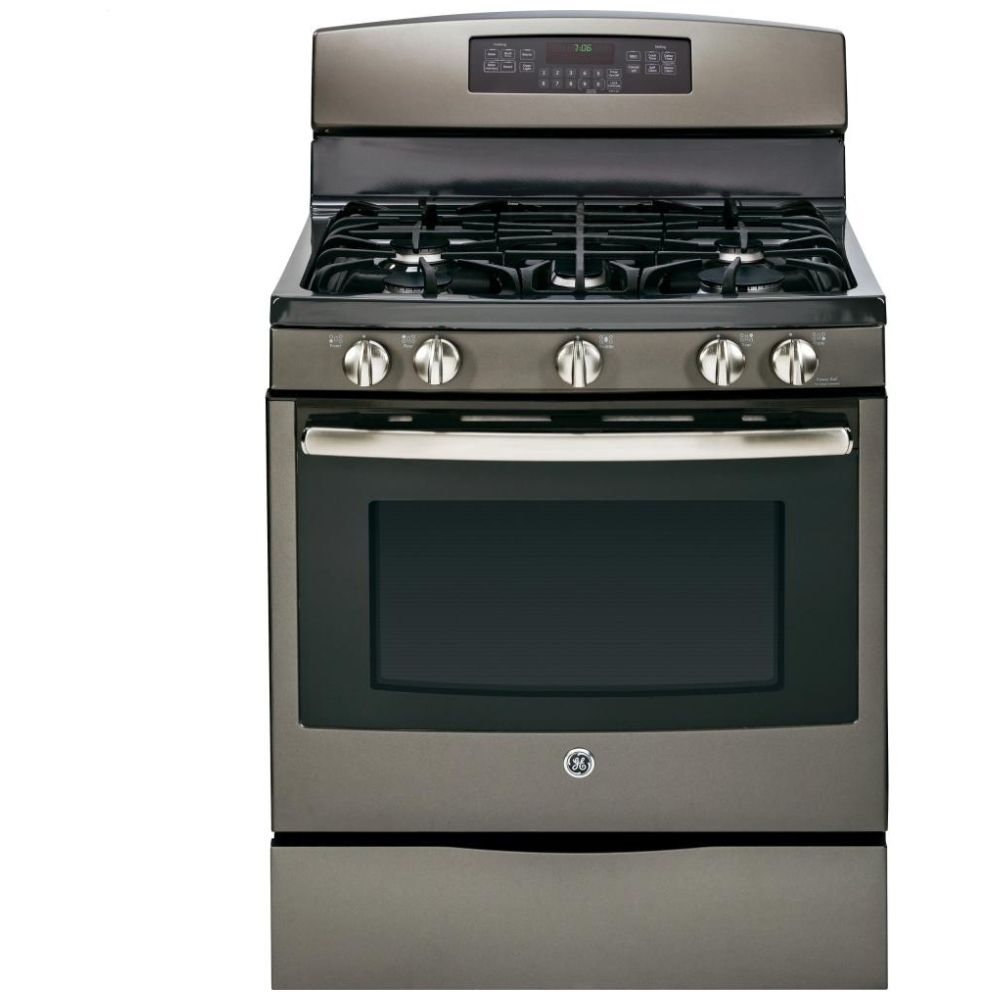

The high-performance GE JCGB750EEFES freestanding gas range is an outstanding piece of cooking equipment for any home kitchen. This powerful range features an extra-large 5.4 cubic-foot capacity convection oven and five-burner cooktops. Its TrueTemp™ air convection oven deliver mouth-watering results for every roast, casserole, or dessert you prepare in your GE oven.

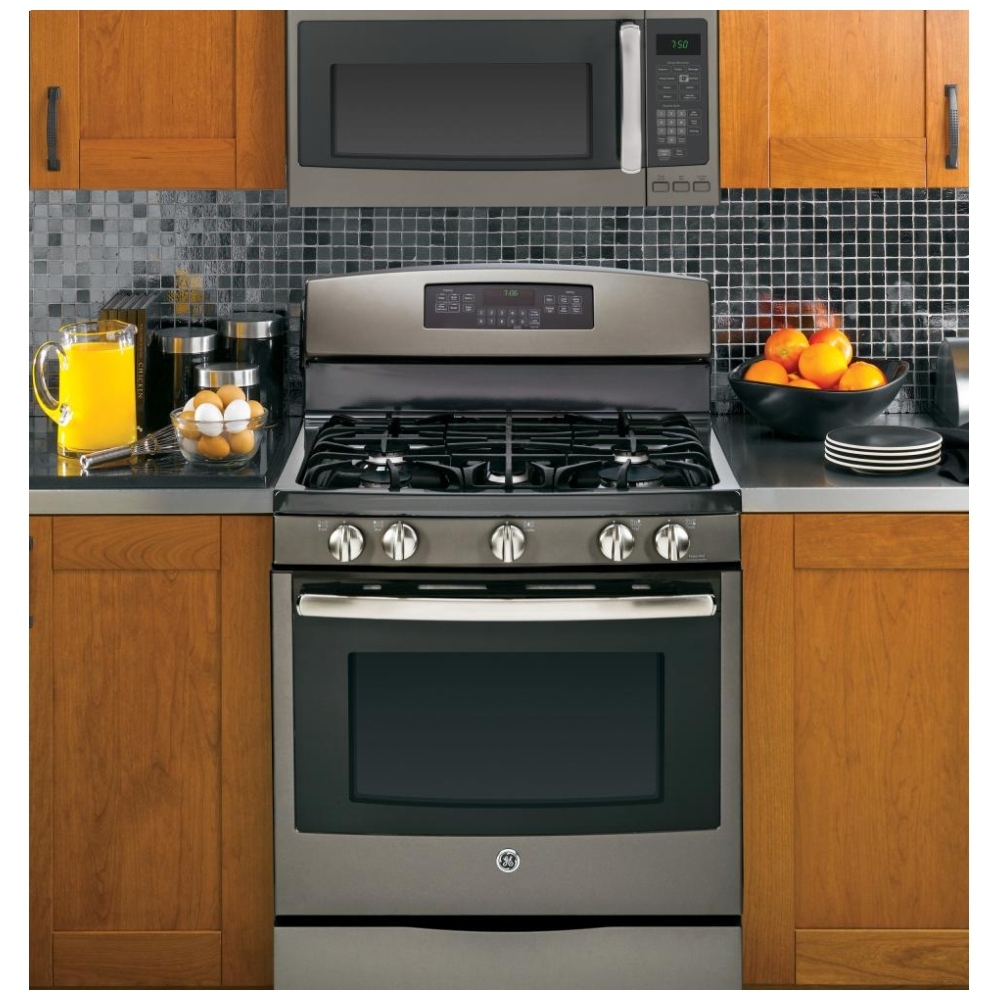

This freestanding GE range provides yours kitchen with a modern, heavy-duty look. You can install it as a standalone unit, or into a cabinetry cutout to create an upscale, seamless look in your kitchen.

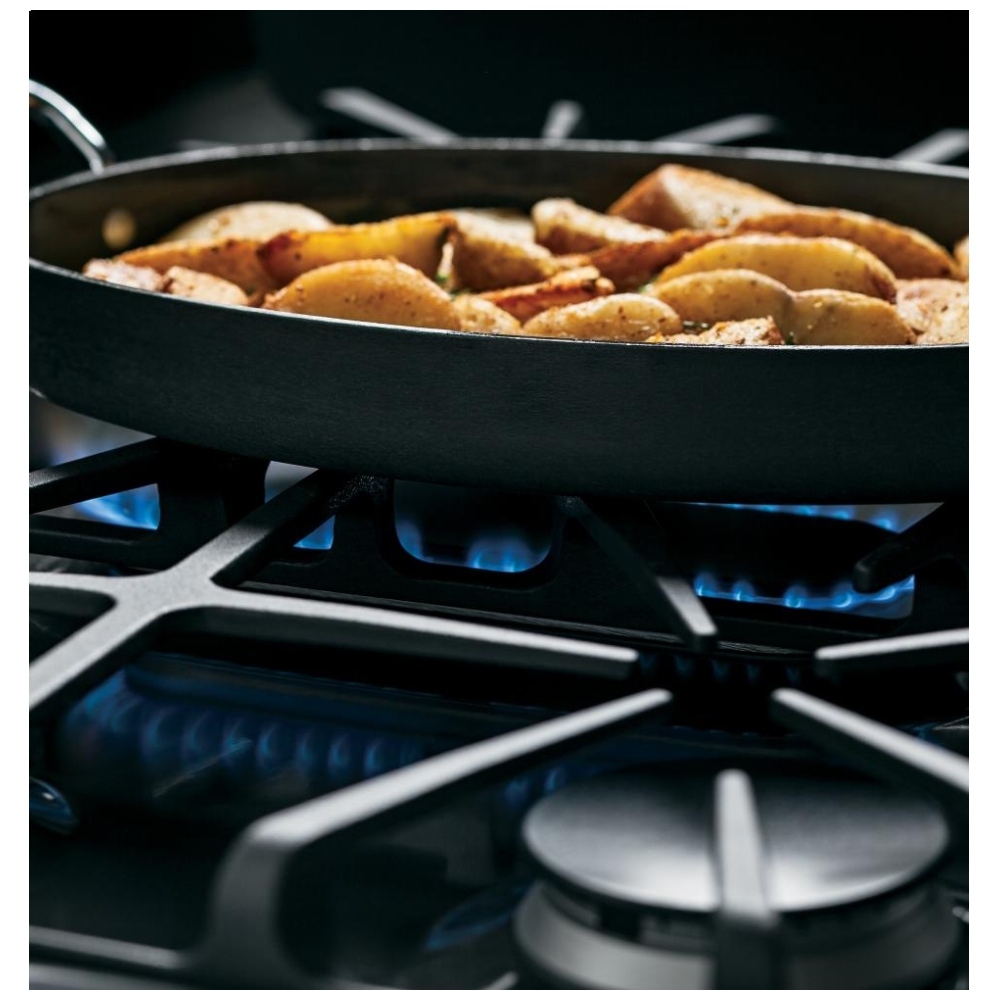

Its heavy-duty deep recessed porcelain cooktop with continuous aluminum griddle features five sealed burners. The porcelain cap on burner keeps spills and food particles from clogging the burner elements, and negatively impacting your cooking performance. For a versatile cooking experience with all the power and flexibility you need, the cooktop of the GE JCGB750EEFES features:

• All-purpose burner with 9,500 BTU heat output

• Center oval burner with 8,000 BTU heat output

• High output burner with 12,000 BTU heat output

• Power Boil™ burner with 17,000 BTU heat output

• Precision Simmer burner with 5,000 BTU heat output

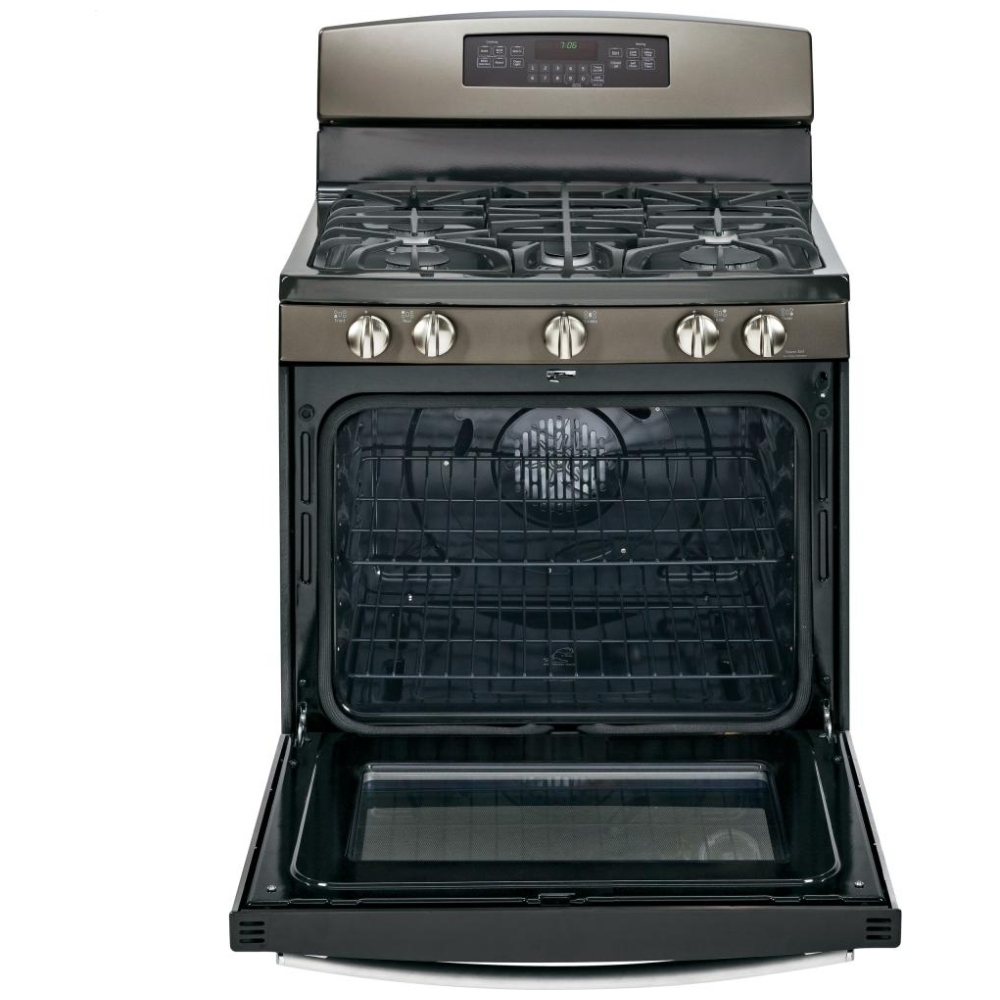

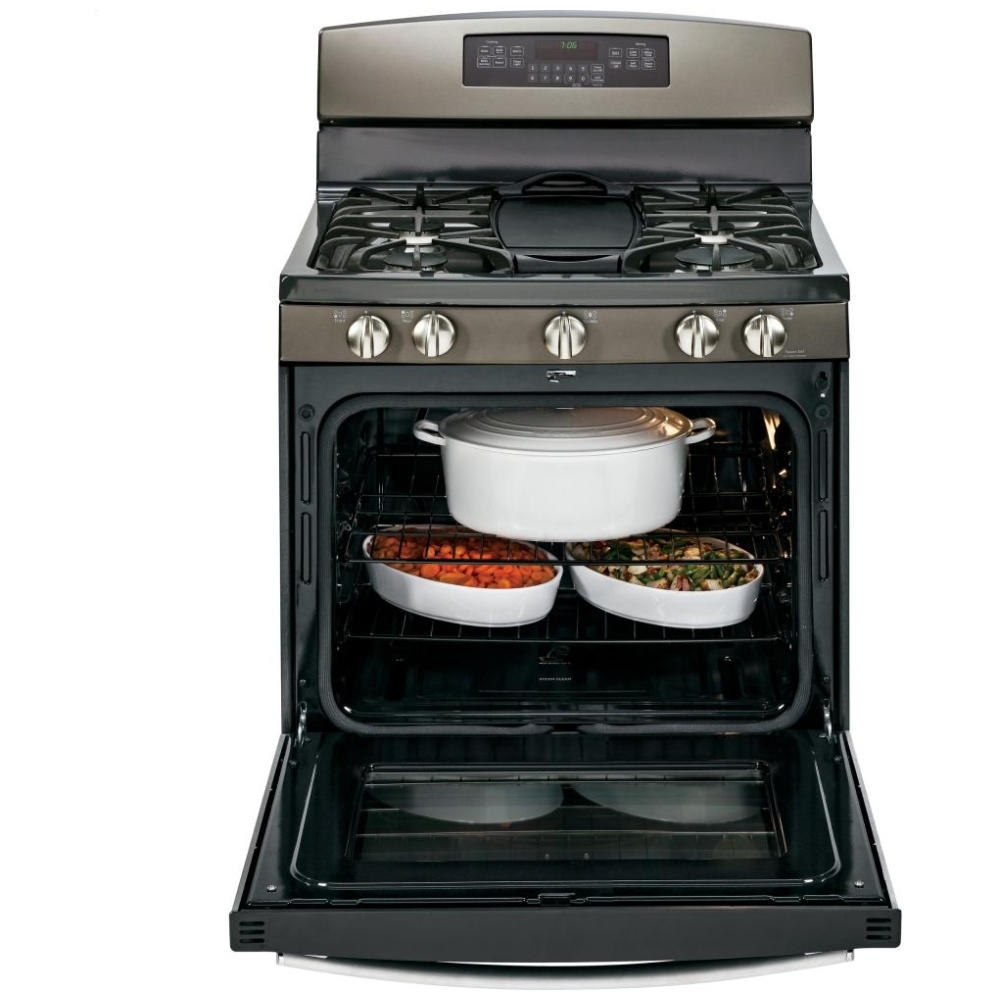

The GE JCGB750EEFES features an extra-large 5.4 cubic-foot capacity air convection oven. This large oven cavity is equipped with two self-clean oven racks and six embossed rack positions, allowing you to completely customize the interior configuration of your oven. By rearranging your oven racks, you can prepare multiple pies or casseroles or large roasts with ease.

This GE oven combines the True Temp™ temperature management system and air convection system to deliver exception baking, roasting, and broiling results. The True Temp™ temperature management system alternates heat between the bake element and broil element to deliver even heating from the top and bottom. When you combine this with a fan in the rear of the oven, the heated air is distributed evenly throughout the oven cavity, thoroughly heating each rack, walls, floors, and door.

For your convenience, this oven features a delay bake and self-cleaning functions. The delay bake function allows you prepare meals around your schedule, and start the cooking time when it is most convenient for you. So if you have time to prepare you meal at 4 o’clock in the afternoon, but do not want the cook time to start until 6 o’clock in evening, you can prepare you mean and you desired cook time.

The self-cleaning function makes cleanup quick and easy. You can kiss harsh oven cleaners good-bye with the GE JCGB750EEFES range. This oven uses high-heat temperatures to turns food particles and spillovers into ash, so you can wipe the oven cavity with a damp cloth when the cleaning cycle is over.

If you are looking for a high-performance gas range for your home, take a close look at the GE JCGB750EEFES freestanding range. This powerful range features a versatile five-burner cooktop and extra-large 5.4 cubic-foot capacity convection oven. Thanks to GE you can transform an ordinary meal into an extraordinary meal in no time.

Edge-to-edge cooktop
A large, seamless surface makes it easy to wipe away messes

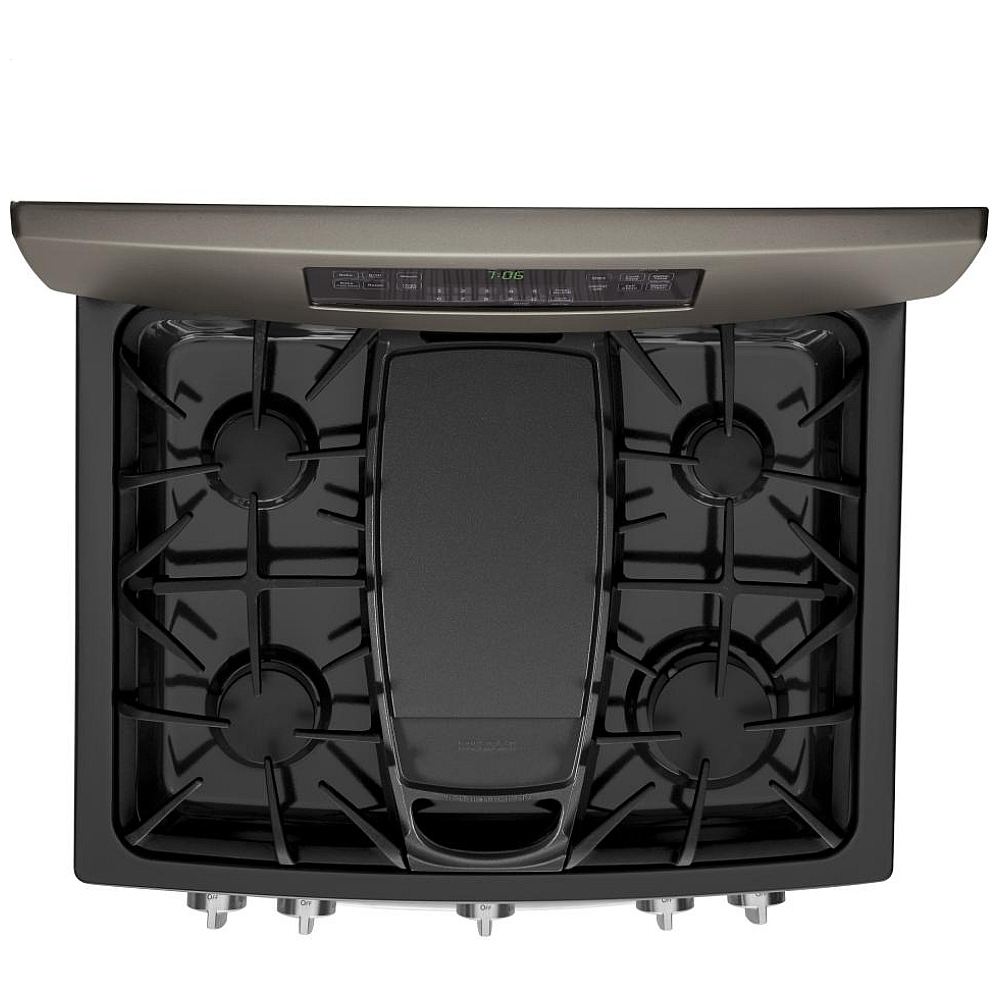

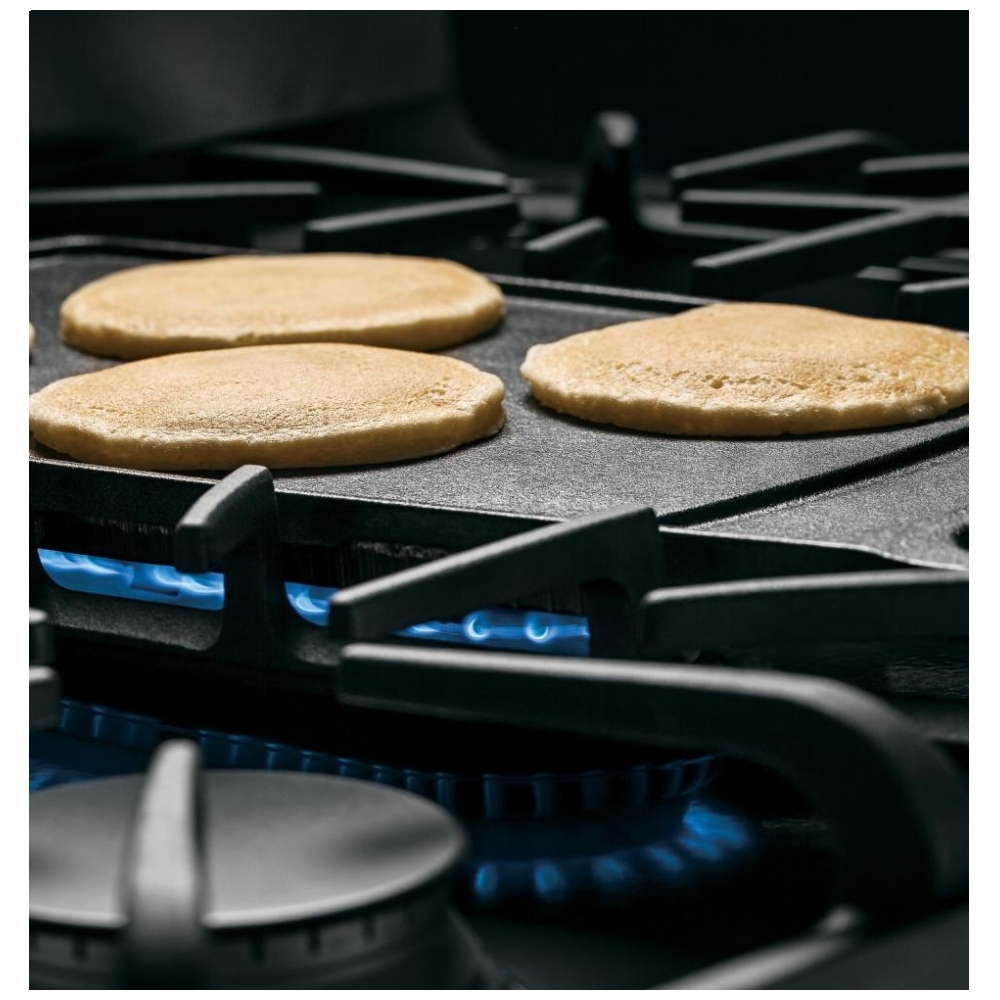

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

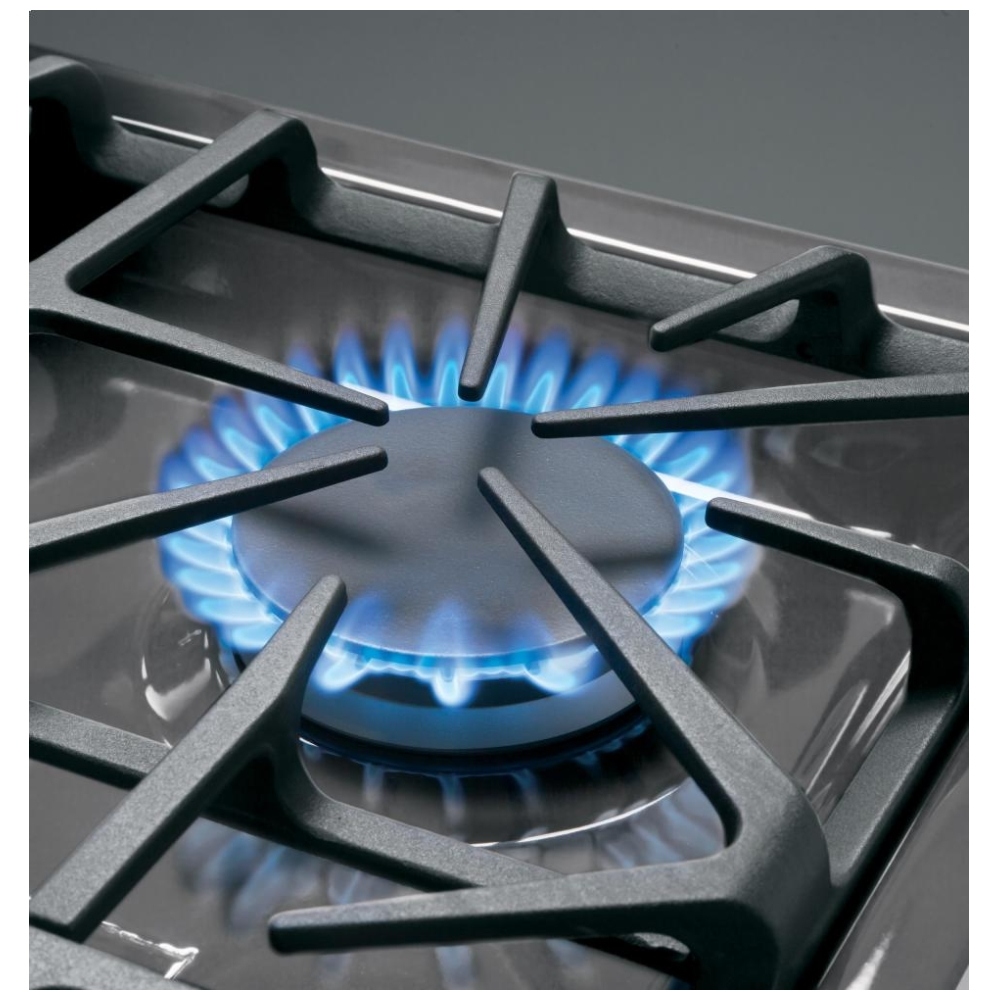

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher

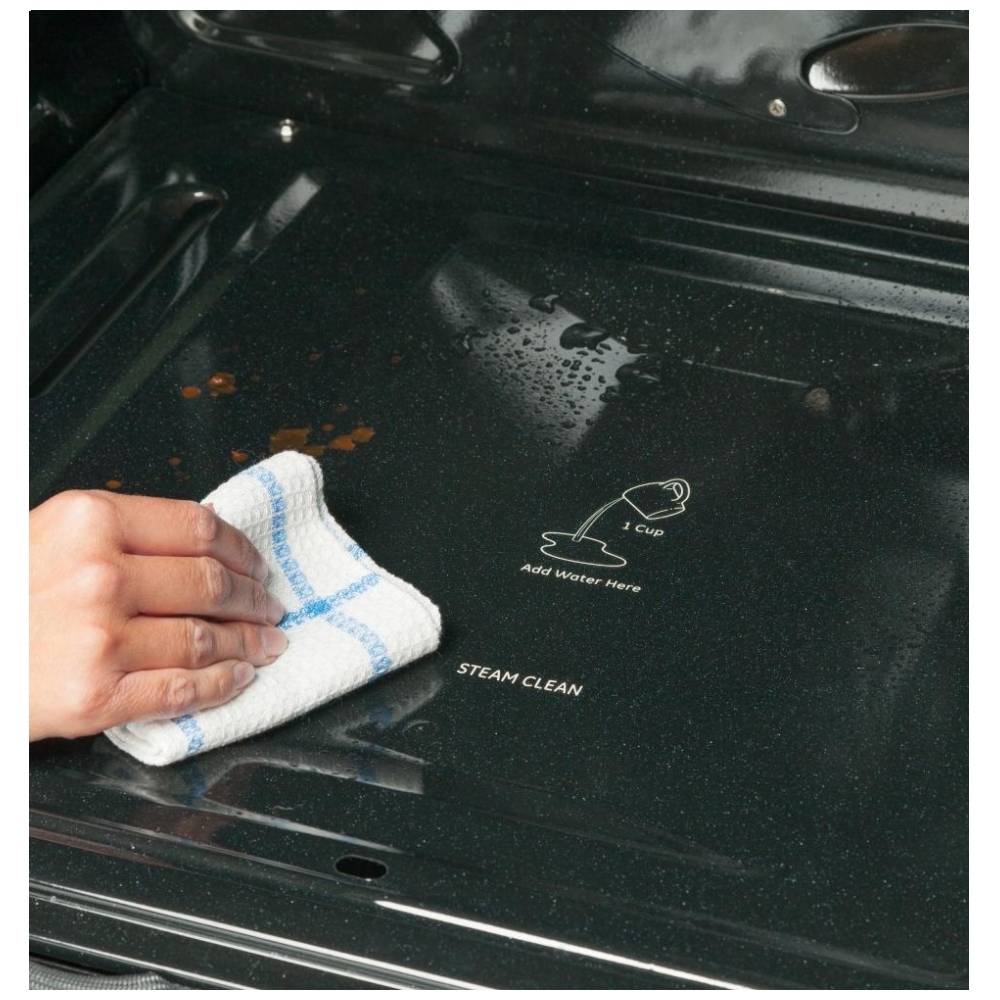

Self-clean with Steam Clean option
Clean your oven the way you want

18,000 BTU Power Boil burner

Boil water fast with intense heat from this 18,000 BTU burner

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

5.6 cu. ft. oven capacity

Enough room to cook an entire meal at once

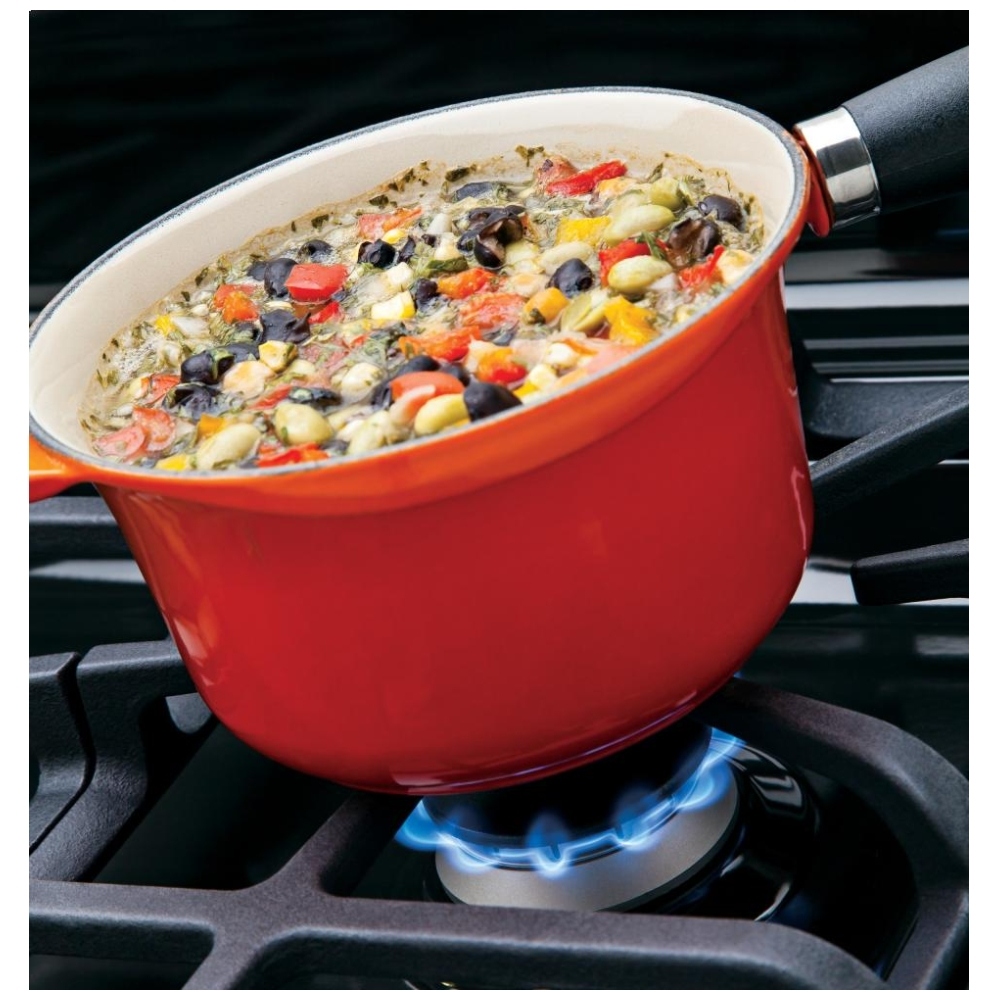

Precise Simmer burner

Delicate foods don't burn with low, even heat

Gas convection oven

Circulates heat for high-quality results

Precise Simmer Burner
True Temp TM System
Deep Recessed Cooktop
Heavy Duty Self-Clean Oven Racks
Air Convection
Steam Clean

Manufacturer's Warranty: 1 year

Canadian model: JCGB750EEFES

Similar to USA model: JGB750EEFES

Canadian UPC: 067732083022

EAN: 0067732083022

Specs

APPEARANCE
Color Appearance	Slate
Control Knobs	Weighted Stainless Steel Appearance
Cooktop Burner Grate Color	Black Matte
Handle	Stainless SteelDesigner-Style
Oven Door Features	Big View Oven Window
CAPACITY
Total Capacity (cubic feet)	5.6
FEATURES
Configuration	Range with Storage Drawer
Ignition System	Electronic
Oven Cleaning Type	Self-Clean with Steam Clean Option
Cooktop Burner Type	Sealed
Cooktop Surface	Deep RecessedOne-Piece UpsweptPorcelain-EnamelGray
Burner - Left Front	11,000 BTU
Burner - Left Rear	9,500 BTU
Burner - Right Front	17,000 BTU Power Boil
Burner - Right Rear	5,000 BTU Precise Simmer
Burner - Center	8,000 BTU Oval
Cooktop Burner Grate Features	Continuous Grates
Cooktop Burner Grate Material	Heavy Cast Iron
Control Type	Electronic Touch
Oven Control Features	Auto Self CleanCertified Sabbath ModeAudible Preheat Signal
Cooking Technology	Convection
Fuel Type	Natural Gas (factory set)
Interior Oven Light	1 Auto Incandescent
Oven Cooking Modes	Convection BakeConvection Roast
Oven Rack Features	2 Self-Clean Oven Racks
Griddle	Non-Stick
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)	16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Bake / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)	(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 17.0; (1) 11.0; (1) 9.5; (1) 8.0; (1) 5.0
Volts/Hertz/Amps	120v; 60Hz; 15A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Depth Without Handle	27.75
Approximate Shipping Weight	225.0
Cabinet Width	30.0
Net Weight	205.0
Oven Interior Dimensions (W x H x D) (in.)	24 x 19-1/2 x 20-5/8
Overall Depth	29.5
Overall Height	47.25
Height to Cooking Surface (in.)	36 - 36 1/2
Overall Width	30.0
Depth with Door Open	47.625

Capacity
Oven Capacity	5.4
Controls
Auto Oven Shut-Off With Override	Yes
Auto Self-Clean	Yes
Automatic Oven Timer (Time Bake)	Yes
Convection Bake	Yes
Delay Self-Clean	Yes
Hi / Low Broil	Yes
QuickSet Controls	QuickSet VI
Self-Clean Cool Down Time Display	Yes
Steam Clean	Yes
TrueTemp TM System	Yes
Features
All-Purpose Burners	(1) 9500 BTU - 150° Simmer
Automatic Self-Clean Oven Door Lock	Yes
Backguard Type	Porcelain-Enameled
Center Oval Burner	(1) 10,000 BTU
Control Lock Capability	Yes
Cooktop Burners	Sealed Burners
Cooktop Type	Deep recessed contoured front cooktop
Digital Temperature Display	Yes
Dishwasher Safe Grates	Yes
Fuel Type	Natural Gas
High Output Burner	(1) 12,000 BTU - 150° Simmer
Oven Interior	Self-Clean
Oven Racks	2 Heavy Duty Self Clean
Power Boil TM Burner	(1) 17,000 BTU - - 160° Simmer
Precise Simmer Burner	(1) 5000 BTU - 140° Simmer
Variable Cleaning time	Yes
Cooktop	Deep Recessed Porcelain
Embossed Rack Positions	6
Ignition System	Electronic
In - Oven Broiling	Yes
One-Piece Upswept Cooktop	Yes
Oven "ON" Light	Yes
Oven Cycle Light	Yes
Oven Racks	2 Self Clean

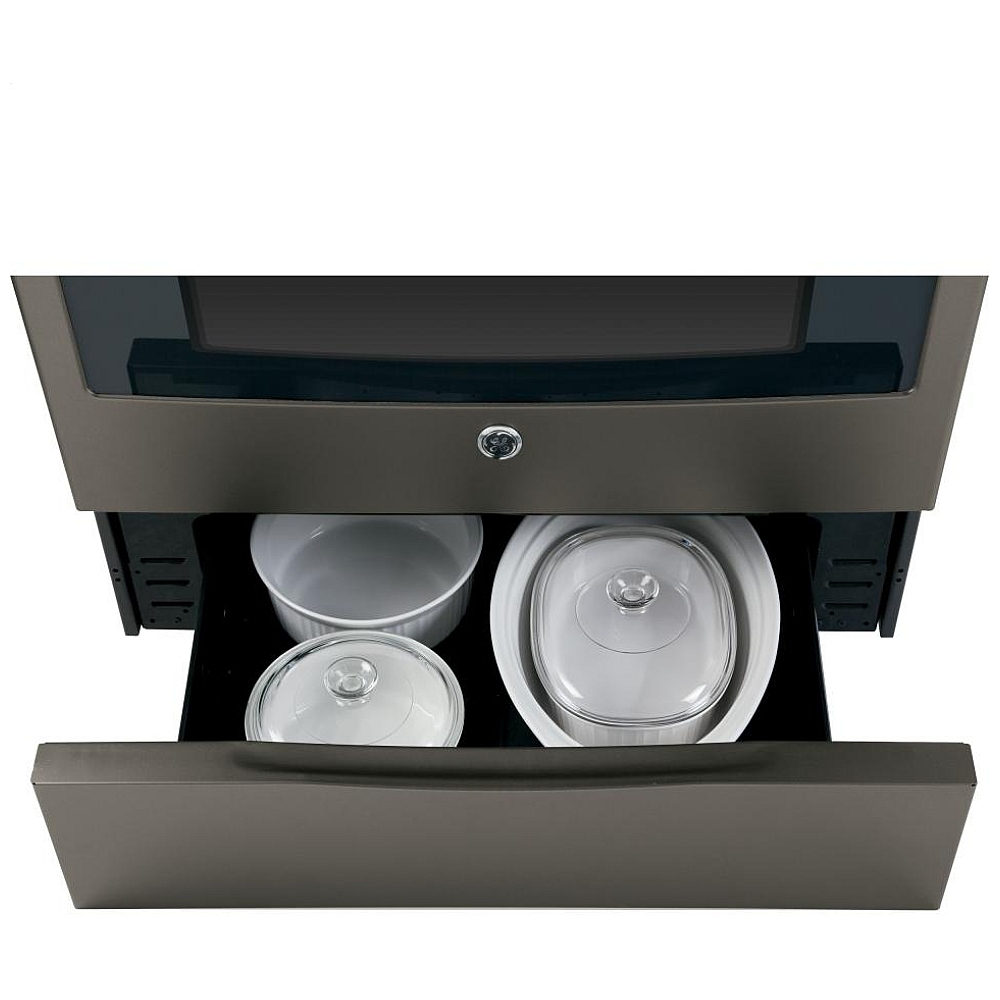

Storage Drawer	Yes
Valves (Degree of Turn)	270
Indicator Lights
Oven Interior Light	Yes
Oven Controls
Audible Preheat Signal	Yes
Delay Bake Option With Cook & Hold	Yes
Digipad	Yes
Electronic Clock & Kitchen Timer	Yes
Certified Sabbath Mode	Yes
Appearance
4 Leveling Legs	Yes
Colour Appearance	Black on Black
Control Location	Upfront
Designer-Style Control Knobs	Yes
Frameless Lift-off Oven Door	Black Glass
Handle Style	D-Handle
Heavy cast-iron continuous matte grates	Back
Knob Colour	Glossy White
New GE Badge	Yes
Other Colours Available	WW: SS
Oven Door with Window	Big ClearView TM
Scratch-Resistant Backguard	Porcelain-Enameled
Weights & Dimensions
Approximate Shipping Weight (lbs.)	220
Depth With Oven Door Open 90 Degrees (in.)	46-3/8
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Interior Dimensions - Upper Oven (w x h x d) (in.)	24 x 19 x 19
Overall Depth (excluding handle)	26-5/8
Overall Depth (in.)	26 1/4
Overall Height (in.)	47
Overall Width (in.)	30
BTU Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)	16.0 Oven / 12.0 Broil
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Oven / 13.5 Broiler
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz ; 15A
Accessories
LP Conversion Kit	Included
Warranty
Limited 1-year	Entire Appliance; In Home; Parts & Labour
