JGBP28DEMWW GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

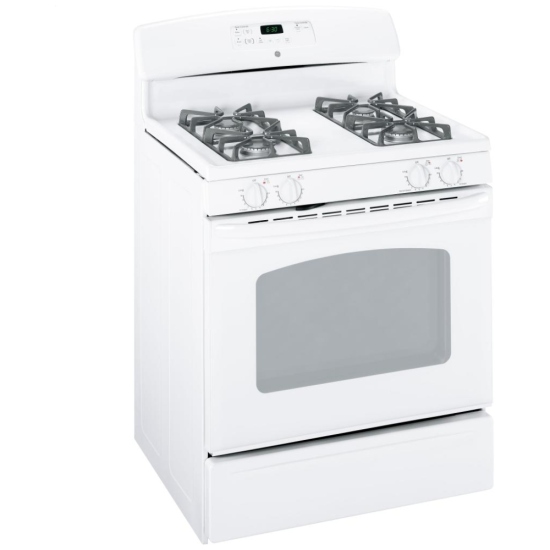

GE JGBP28DEMWW Freestanding Gas Range, 30in, 4.8 cu.ft, with Sealed Cooktop Burner, True Temp System, Electronic Oven Controls and One-Piece Upswept Cooktop

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

Self - Clean Oven — Conveniently cleans the oven cavity without need of scrubbing
Extra-Large Oven Capacity — Provides a large oven interior ideal for cooking more items at once
TrueTemp System — Delivers even heat distribution and maximum oven control
QuickSet III Oven Controls — Feature an easy to use design that lets you set precise cooking temperatures
All Purpose Burners — Deliver a wide range of heat output ideal for most cooking requirements
Sealed Cooktop Burners — Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Cast-Iron Grates; Square

Manufacturer's Warranty: 1 year

Canadian model: JGBP28DEMWW

Specs

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
FEATURES
Configuration	Range with Storage Drawer
Ignition System	Electronic
Oven Cleaning Type	Self-Clean
Temperature Management System	TrueTemp System
Cleaning Time	Variable
Cooktop Burner Type	Sealed
Cooktop Surface	One-Piece Upswept Porcelain-Enamel
All-Purpose Burners	(1) 9,500/850 BTU
Cooktop Burner Grate Material	Cast-Iron Square
High Output Burner	(2) 12,000/1,000 BTU
Precise Simmer Burner	(1) 5,000/600 BTU
Valves (Degree of Turn)	270
Control Type	Digital Temperature Display Electronic Oven Controls QuickSet III
Oven Control Features	Audible Preheat Signal Auto Oven Shut-Off Auto Self Clean Certified Sabbath Mode Electronic Clock and Timer Hi / Low Broil In-Oven Broiling Oven Cycle Light Oven "ON" Light Self-Clean Cool Down Time Display
Fuel Type	Natural Gas (factory set)
Leveling System	4 Leveling Legs
One-Piece Drip Pans	Optional Accessory
Oven Rack Features	2 Oven Racks 6 Embossed Rack Positions
Scratch-Resistant Backguard	Porcelain-Enameled
Oven Interior	Oven Interior Light
APPEARANCE
Color Appearance	White on White
Control Knobs	Designer-Style
Cooktop Burner Grate Color	Grey
Frameless Oven Door(s)	White Glass
Handle	Color-Matched Sculptured
Oven Door Features	Big Hearth Oven Window
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	210 lb
Cabinet Width	30 in
Net Weight	190 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Overall Depth	26 1/4 in
Overall Height	46 1/8 in
Height to Cooking Surface (in.)	36 +/- 1/4
Overall Width	30 in
Depth with Door Open 90°	46 3/8 in
POWER / RATINGS
Oven/Broiler BTU Rating - LP (000's BTU's)	16.0 Oven / 12.0 Broiler
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Oven / 12.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)	(2) 11.0; (1) 9.5; (1) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(2) 12.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps	120V; 60Hz; 5A
ACCESSORIES
LP Conversion Kit	Included
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Capacity
Extra Large Oven	Yes
Oven Capacity	4.8
Controls
Audible Preheat Signal	Yes
Temperature Display	Yes
Auto Oven Shut-Off With Override	Yes
Auto Self-Clean	Yes
Certified Sabbath Mode	Yes
Electronic Clock & Timer	Yes
Electronic Oven Control	Yes
QuickSet Controls	QuickSet III
Self-Clean Cool Down Time Display	Yes
TrueTemp^TM System	Yes
Variable Cleaning Time	Yes
Features
All-Purpose Burners	(1) 9500 BTU - 150° Simmer
Cooktop Burners	Sealed Burners
Fuel Type	Natural Gas
High Output Burner	(2) 12000/1000 BTU
Oven Interior Light	Yes
Oven Type / Cleaning	Self-Clean
Precise Simmer Burner	(1) 5000 BTU - 140° Simmer
Burner Grate Type / Style	Medium Cast; Square
Cooktop	Porcelain-Enamel
Cooktop Grate/Burner Cap Colour	Glossy Grey
Embossed Rack Positions	6
Ignition System	Electronic
In - Oven Broiling	Yes
One-Piece Drip Pans	Optional Accessory
One-Piece Upswept Cooktop	Yes
Oven Racks	2
Storage Drawer	Yes
Valves (Degree of Turn)	270
Appearance
4 Leveling Legs	Yes
Colour Appearance	White on White
Frameless Lift-off Oven Door	White Glass
Handle Style	White, high gloss
Knob Colour	Glossy White
Other Colours Available	BB, BS, SS
Oven Door with Window	Big Hearth-Shaped Window
Scratch-Resistant Backguard	Porcelain-Enameled
Weights & Dimensions
Approximate Shipping Weight (lbs.)	215
Cabinet Width Required (in.)	30
Depth With Oven Door Open 90 Degrees (in.)	46-3/8
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Overall Depth (in.)	26 1/4
Overall Height (in.)	46 7/8
Overall Width (in.)	30
BTU Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)	16.0 Oven / 12.0 Broil
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	16.0 Oven / 12.5 Broiler
Top Burner BTU Rating - LP (000	(2) 11.0, (1) 9.5, (1) 6.0
Top Burner BTU Rating - Nat. Gas / LP (000's BTU's)	(2) 12.0, (1) 9.5, (1) 6.0
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz; 5A
Accessories
LP Conversion Kit	Included
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

Manuals

GE & Profile Electric Range 2024

GE & Profile Gas Range 2024

Download Warranty/Use and Care/Installation (JGBP28DEMWW-warranty-use-and-care-installation-canada.pdf)

Download Anti-Tip Bracket Installation (JGBP28DEMWW-anti-tip-bracket-installation-canada.pdf)
