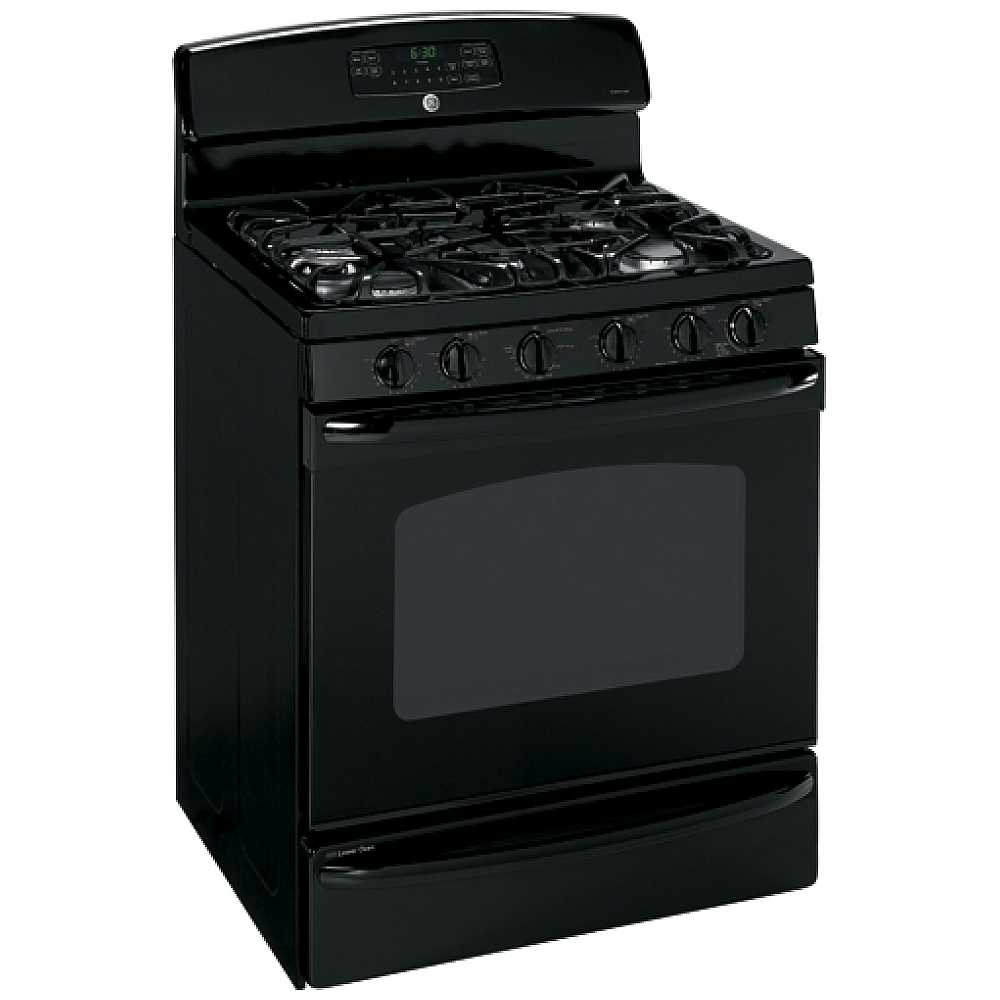

This super-large capacity oven provides the impressively large oven interior for cooking more dishes and large meals at one time. Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless. A convenient digital clock and an easy-to-use timer help coordinate cooking times in the kitchen. Plus an elegant shaped window makes it easy to monitor the progress of food.
Manufacturer's Warranty: 1 year
Canadian model: JGBP89DEMBB
| CAPACITY | |
| Total Capacity (cubic feet) | 6 cu ft |
| Unit Capacity | Extra-Large Oven |
| Capacity (Cu. Ft.) | 5.0 Upper / 1.0 Lower |
| FEATURES | |
| Cooktop Burner Type | Sealed |
| Baking Drawer Features | Electronic Control 140-450 Degrees F Temperature Settings |
| Center Oval Burner | (1) 6000 BTU |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Griddle | Non-Stick |
| High Output Burner | (1) 11000 BTU/150F degree simmer |
| Precise Simmer Burner | (1) 5000 BTU/140F degree simmer |
| Leveling System | 4 Leveling Legs |
| Interior Oven Light | Yes |
| Oven Control Features | Delay Bake Option (Time Bake) Audible Preheat Signal Auto Self Clean Electronic Clock and Timer Automatic Oven Timer (Time Bake) Certified Sabbath Mode Control Lock Capability Delay Clean Option Hi / Low Broil In-Oven Broiling Digipad Numeric Entry |
| Temperature Management System | TrueTemp System |
| Power Boil Burner | (1) 17,000 BTU |
| Ignition System | Electronic |
| Oven Cleaning Type | Self-Clean |
| Fuel Type | Natural Gas (factory set) |
| Configuration | Range with Baking Drawer |
| Cleaning Time | Variable |
| All-Purpose Burners | (1) 9100 BTU/150F degree simmer |
| Valves (Degree of Turn) | 270 |
| Cooktop Surface | Porcelain-Enamel Recessed One-Piece Upswept |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Oven Rack Features | 2 Oven Racks 6 Embossed Rack Positions |
| Cooktop Burner Grate Material | Heavy Cast |
| Control Type | QuickSet V Digital Temperature Display |
| APPEARANCE | |
| Handle | Color-Matched Sculptured |
| Color Appearance | Black on Black |
| Control Knobs | Designer-Style |
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Big Hearth-Shaped Oven Window |
| Frameless Oven Door(s) | Black Glass |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 220 lb |
| Depth With Oven Door Open 90 Degrees (in.) | 46-3/8 |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Net Weight (lbs.) | 200 lb |
| Overall Height | 47 in |
| Overall Width | 30 in |
| Height to Cooking Surface (in.) | 36 +/- 1/4 |
| Overall Depth | 26 1/4 in |
| POWER / RATINGS | |
| Warming Drawer Wattage | 450 |
| Volts/Hertz/Amps | 120V; 60Hz ; 15A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0: (1) 9.1; (1) 8.0; (1) 6.0; (1) 4.0 |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broiler |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
