JGBS07DEMWW GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

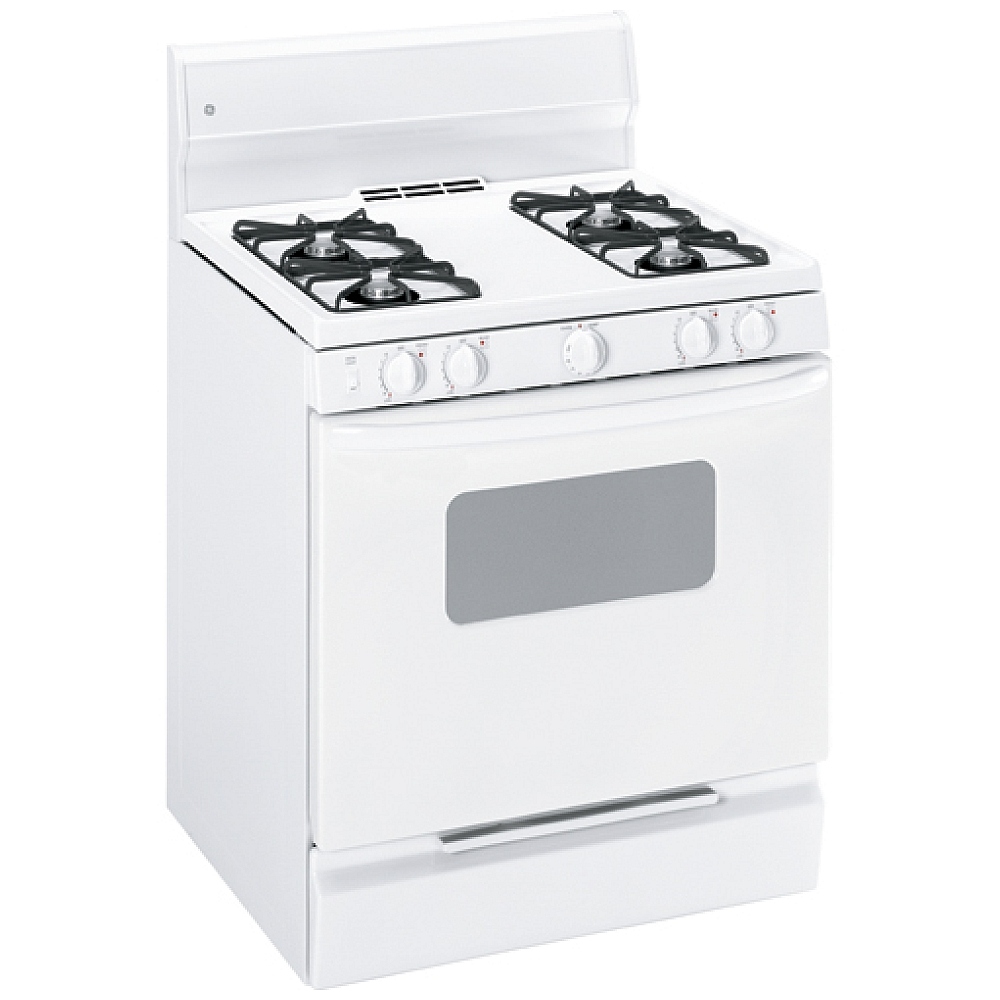

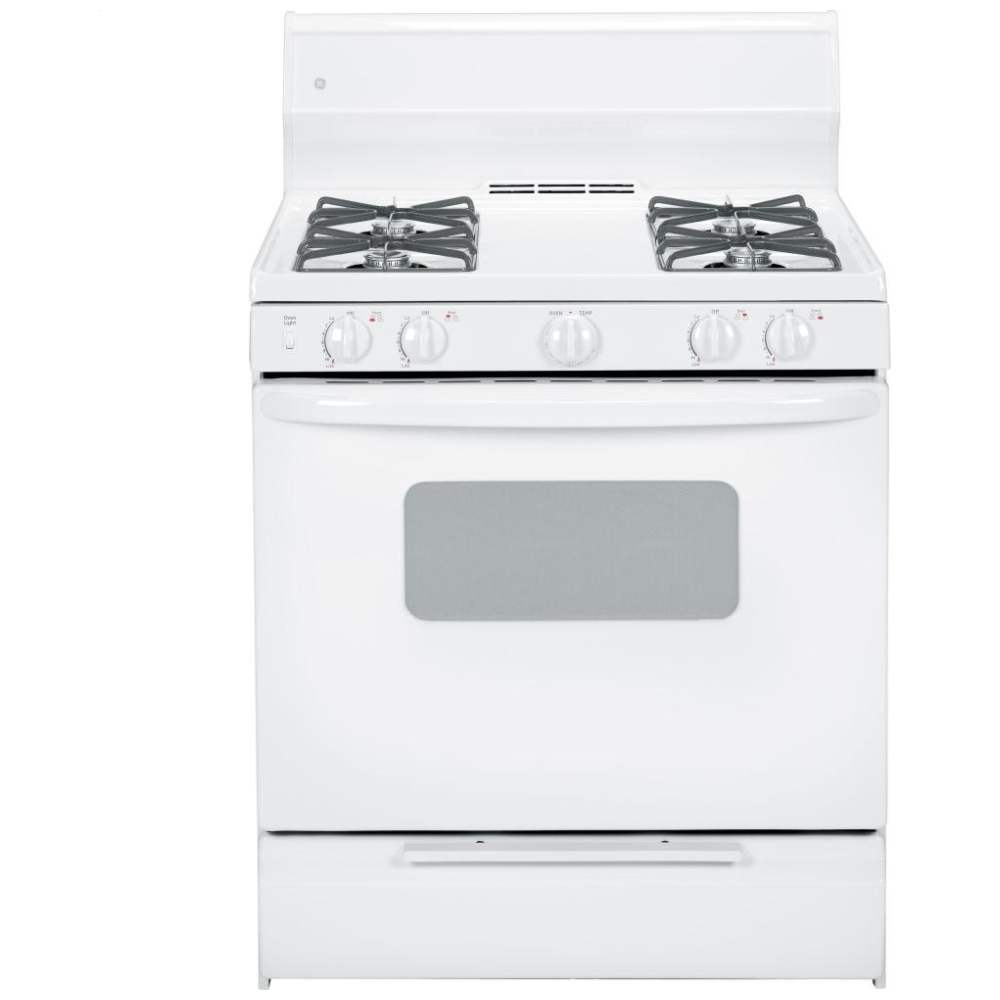

GE JGBS07DEMWW Freestanding Gas Range, 30in, 4.8 cu.ft, with Standard Grates, Lift-Up Cooktop, Porcelain-Enameled Cooktop and All Purpose Burners

Extra-large oven capacity

Enough room to cook an entire meal at once

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Standard grates

Quality grates keep pots and pans securely in place over the burners

ClearView™ window

No more opening the oven door to check on food. The clear window makes it easy to see inside.

Two oven racks

Includes two oven racks that are sturdy and reliable

Extra-Large Oven Capacity — Provides a large oven interior ideal for cooking more items at once
Standard Clean Oven — Offers a traditional oven design that requires hand cleaning
All Purpose Burners — Deliver a wide range of heat output ideal for most cooking requirements
Standard Grates — Provide a sturdy and convenient cookware surface for everyday cooking
ClearView™ Window — Features a convenient viewing area to check the progress of food
Two Oven Racks — Feature a durable construction to help accommodate any size or type of cookware
Six Rack Positions — Provides flexibility and allows consumers to make the most of available oven capacity

Manufacturer's Warranty: 1 year

Canadian model: JGBS07DEMWW

Specs

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
Unit Capacity	Extra Large Oven
FEATURES
Ignition System	Electronic
Oven Cleaning Type	Standard Clean
Cooktop Burner Type	Standard
Cooktop Surface	Porcelain-Enamel Lift-Up
All-Purpose Burners	(4) 9,100/850 BTU
Cooktop Burner Grate Material	Standard Porcelain Steel Square
Valves (Degree of Turn)	140
Broiler Pan and Grid	Yes
Fuel Type	Natural Gas (factory set)
Interior Oven Light	Yes
Leveling System	4 Leveling Legs
One-Piece Drip Pans	Optional Accessory
Oven Rack Features	2 Oven Racks 6 Embossed Rack Positions
Porcelain-Enameled Backguard	Yes
Porcelain-Enameled Subtop	Yes
Slide - Out Broiler Drawer	Yes
CLAIMS & CERTIFICATIONS
APPEARANCE
Color Appearance	White on White
Control Knobs	Designer-Style
Cooktop Burner Grate Color	Grey
Frameless Oven Door(s)	White Porcelain-Enameled
Handle	Color-Matched Sculptured
Oven Door Features	ClearView™ Oven Window
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	165 lb
Cabinet Width	30 in
Net Weight	145 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Overall Depth	26 1/4 in
Overall Height	45 1/2 in
Overall Width	30 in
POWER / RATINGS
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000's BTU's)	(4) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(4) 9.1
Volts/Hertz/Amps	120V; 60Hz; 5A
ACCESSORIES
LP Conversion Kit	Included
Optional One-Piece Drip Pans	WB35K1001 black; WB35K1002 chrome
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Capacity
Extra Large Oven	Yes
Oven Capacity	4.8
Features
All-Purpose Burners	(4) 9,100 / 850 BTU
Backguard Type	Porcelain-Enameled
Cooktop Burners	Std. / Twin Burners
Fuel Type	Natural Gas
Oven Interior	Standard Clean
Oven Interior Light	Yes
Burner Grate Type / Style	Standard Porcelain Steel; Square
Cooktop	Porcelain-Enamel
Cooktop Grates	Glossy Grey
Embossed Rack Positions	6
Ignition System	Electronic
Lift-Up Cooktop	Yes
One-Piece Drip Pans	Optional Accessory
Oven Racks	2
Porcelain-Enameled Subtop	Yes
Slide - Out Broiler Drawer	Yes
Valves (Degree of Turn)	140
Appearance
4 Leveling Legs	Yes
Colour Appearance	White on White
Frameless Lift-off Oven Door	White Glass
Handle Style	White, high gloss
Knob Colour	Glossy White
Oven Door with Window	Regular
Weights & Dimensions
Approximate Shipping Weight (lbs.)	165
Cabinet Width Required (in.)	30
Depth With Oven Door Open 90 Degrees (in.)	46 1/4
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Overall Depth (in.)	26 1/4
Overall Height (in.)	46 7/8
Overall Width (in.)	30
BTU Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000	(4) 8.0
Top Burner BTU Rating - Nat. Gas / LP (000's BTU's)	(4) 9.1
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz; 5A
Accessories
LP Conversion Kit	Included
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

Manuals

GE & Profile Electric Range 2024

GE & Profile Gas Range 2024

Quick Specs (JGBS07DEMWW-quick-specs-canada.pdf)

Use and Care Manual (JGBS07DEMWW-use-and-care-manual-canada.pdf)

Installation Instructions (JGBS07DEMWW-installation-instructions-canada.pdf)
