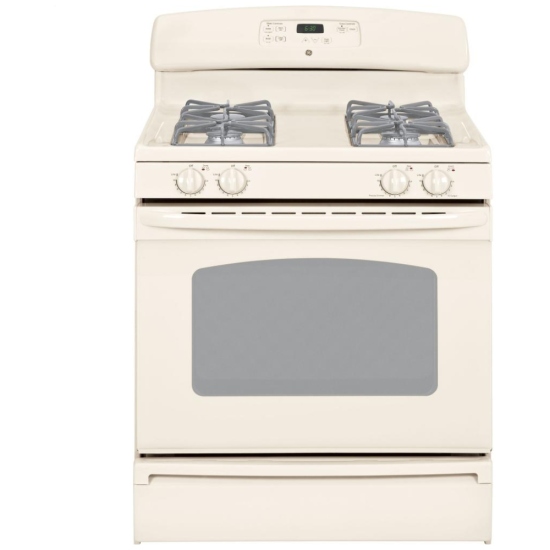

JGBS23DEMCC GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

GE JGBS23DEMCC Freestanding Gas Range, 30in, 4.8 cu.ft, with Sealed Cooktop Burners, Precise Simmer Burner, Frameless Lift-off Oven Door, Big View Oven Door and Maximum Output Burner

Extra-large oven capacity

Enough room to cook an entire meal at once

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

Electronic clock and timer

Convenient clock and timer helps you coordinate meal preparation and cooking

Extra-Large Oven Capacity — Provides a large oven interior ideal for cooking more items at once
Standard Clean Oven — Offers a traditional oven design that requires hand cleaning
Precise Simmer Burner — Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
All Purpose Burners — Deliver a wide range of heat output ideal for most cooking requirements
Sealed Cooktop Burners — Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Electronic Clock And Timer — Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen
Deluxe Grates — Provide a sturdy and durable cookware surface for everyday cooking

Manufacturer's Warranty: 1 year

Canadian model: JGBS23DEMCC

Specs

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
FEATURES
Ignition System	Electronic
Oven Cleaning Type	Standard Clean
Cooktop Burner Type	Sealed
Cooktop Surface	One-Piece Upswept Porcelain-Enamel
All-Purpose Burners	(2) 9,500/850 BTU
Cooktop Burner Grate Material	Deluxe Porcelain Steel Square
High Output Burner	(1) 12,000/1,000 BTU
Precise Simmer Burner	(1) 5,000/600 BTU
Valves (Degree of Turn)	270
Control Type	Electronic Oven Controls QuickSet III
Broiler Pan and Grid	Yes
Clock and Minute Timer	Electronic
Fuel Type	Natural Gas (factory set)
Leveling System	4 Leveling Legs
One-Piece Drip Pans	Grey Porcelain-Enameled
Oven Rack Features	2 Oven Racks 6 Embossed Rack Positions
Scratch-Resistant Backguard	Porcelain-Enameled
Slide - Out Broiler Drawer	Yes
Oven Interior	Oven Interior Light
APPEARANCE
Color Appearance	Bisque on Bisque
Control Knobs	Designer-Style
Cooktop Burner Grate Color	Taupe
Frameless Oven Door(s)	White Glass
Handle	Color-Matched Gloss
Oven Door Features	Big Hearth Oven Window
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	180 lb
Cabinet Width	30 in
Net Weight	160 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Overall Depth	26 1/4 in
Overall Height	46 1/2 in
Overall Width	30 in
POWER / RATINGS
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000's BTU's)	(1) 11.0; (2) 9.5; (1) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps	120V; 60Hz; 5A
ACCESSORIES
LP Conversion Kit	Included
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Capacity
Extra Large Oven	Yes
Oven Capacity	4.8
Controls
QuickSet Controls	QuickSet II Electronic Timer
Features
All-Purpose Burners	(2) 9500/850 BTU
Cooktop Burners	Sealed Burners
Fuel Type	Natural Gas
High Output Burner	(1) 12000/1000 BTU
Oven Interior	Standard Clean
Oven Interior Light	Yes
Precise Simmer Burner	(1) 5000/600 BTU
Burner Grate Type / Style	Black Deluxe Porcelain Steel; Square
Cooktop	Porcelain-Enameled Upswept
Embossed Rack Positions	6
Ignition System	Electronic
One-Piece Drip Pans	Black Porcelain-Enameled
One-Piece Upswept Cooktop	Yes
Oven Racks	2
Slide - Out Broiler Drawer	Yes
Valves (Degree of Turn)	270
Appearance
4 Leveling Legs	Yes
Colour Appearance	Black on Black
Cooktop Grate/Burner Cap Colour	Glossy Black
Frameless Lift-off Oven Door	Black Glass
Handle Style	Black, high gloss
Knob Colour	Glossy Black
Other Colours Available	WW
Oven Door with Window	Big View
Scratch-Resistant Backguard	Porcelain-Enameled
Weights & Dimensions
Approximate Shipping Weight (lbs.)	180
Cabinet Width Required (in.)	30
Depth With Oven Door Open 90 Degrees (in.)	46-3/8
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Overall Depth (in.)	26 1/4
Overall Height (in.)	46 7/8
Overall Width (in.)	30
BTU Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000	(1) 11.0, (2) 9.5, (1) 5.0
Top Burner BTU Rating - Nat. Gas / LP (000's BTU's)	(1) 12.0; (2) 9.5; (1) 5.0
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz; 5A
Accessories
LP Conversion Kit	Included
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour
