FILTER
App Filter - Control Type	Rotary knobs
App Filter - Cooktop Type	Continuous Grates
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Fuel Type	Gas
APPEARANCE
Color Appearance	Black on Black
POWER / RATINGS
Burner BTU Ratings (000's/BTU) - LP Gas	(1) 13.0; (2) 9.1; (1) 6.0
Burner BTU Ratings (000's/BTU) - Natural Gas	(1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0
Volts/Hertz/Amps	120V; 60Hz; 5A
WARRANTY
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
ACCESSORIES
Cooktop Cleaning	Cream (WB64X5027)
LP Conversion Kit	Included
WEIGHTS & DIMENSIONS
Net Weight	44.0
Overall Depth	21.4375
Cutout Dimensions (Width x Depth) (In.)	28-1/2 x 19-5/8
Overall Width	29.75
Overall Height	3.1875
Approximate Shipping Weight	49.0
Cabinet Width	30.0
FEATURES
Burner - Right Front	15,000 BTU Power Boil
Burner - Left Rear	9,100 BTU
Cooktop Burner Type	4 Sealed
Cooktop Burner Grate Features	Continuous Grates Dishwasher Safe
Burner - Right Rear	6,000 BTU Precise Simmer
Valves (Degree of Turn)	270
Cooktop Control Features	Child Lock
Fuel Type	Natural Gas (factory set)
Cooktop Surface	Gas-On-Glass Ceramic
Burner - Left Front	11,000 BTU
Cooktop Burner Grate Material	Deluxe Cast
Ignition System	Electronic
Control Location	Right Side

Features
All-Purpose Burners	(1) 11,000 & (1) 9,100 BTU - 150° Simmer
Control Panel	Integrated
Cooktop Burners	4 Sealed Burners
Cooktop Surface	Ceramic Glass
Dishwasher Safe Grates	Yes
Electronic Pilotless Ignition	Yes
Fuel Type	Natural Gas
Glass-Ceramic Cooktop	Black
Power Boil ^TMBurner	(1) 15,000 BTU - 180° Simmer
Precise Simmer Burner	(1) 6000 BTU - 140° Simmer
Cooktop Lock-Out Capability	Yes
Burner Grate Type / Style	Two Continuous Heavy Cast
Cooktop Grate/Burner Cap Colour	Matte (Dull) Black
Appearance
Colour Appearance	Stainless Steel
Control Location	Right Side
Cooktop Front	Curved
Knob Colour	Stainless
Other Colours Available	BB, TW
Weights & Dimensions
Approximate Shipping Weight (lbs.)	49
Cutout Dimensions (w x d) (in.)	28-1/2 x 19-5/8
Overall Depth (in.)	21-7/16
Overall Height (in.)	3-3/16
Overall Width (in.)	29-3/4
Space Required Below Cooktop (In.)	7/16
Burner BTU Ratings (000's/BTU)
LP Gas	(1) 14.0; (1) 10.0; (1) 8.1; (1) 6.0
Natural Gas	(1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz; 5A
Accessories
Cooktop Cleaning Cream	CeramaBryte ®
LP Conversion Kit	Included
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

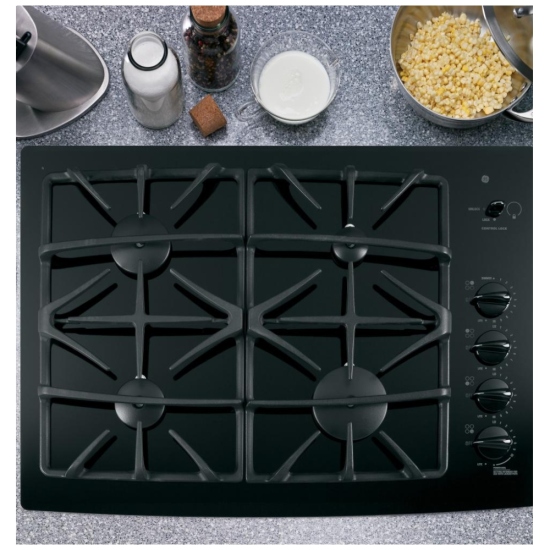

GE JGP940BEKBB

GE JGP940BEKBB Gas Cooktop, 30 inch Exterior Width, 4 Burners, Black on Black colour
