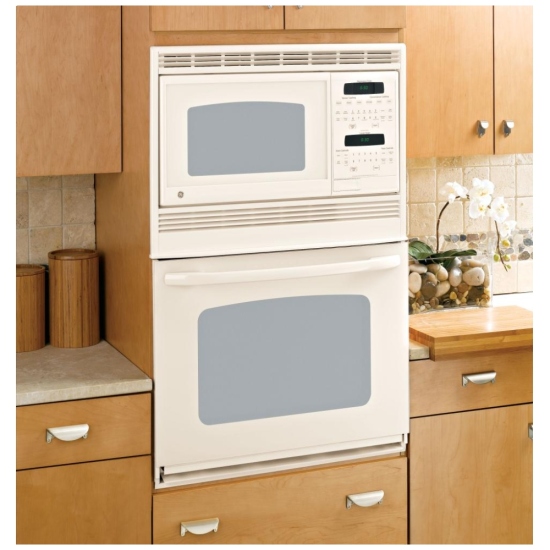

JTP90CMCC GE Microwave Wall Oven Combo 30 inch Canada Parts

With an extra-large self-clean oven, the JTP90CMCC incorporates a 1.6 cu. ft. microwave on the upper level and a thermal oven on the lower level. The lower oven features a TrueTemp system, which provides even heat distribution and maximum oven control. The Hidden Bake Oven Interior hides previously exposed bottom element to deliver a clean interior appearance. A microwave feature is Sensor Cooking Control which provides a built-in sensor for automatically calculating and adjusting cooking times and power levels for your favorite foods.

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

Electronic oven controls

Electronic pads on the control panel are easy to operate with just a touch

TrueTemp™ oven system

Even heat distribution and maximum oven control

1.6 Cu. Ft. Capacity (Upper Oven Only)

Provides a large interior to accommodate a variety of cookware, dinnerware and food containers

Sensor cooking controls (upper oven only)

Automatically adjusts time and power for delicious cooking results

Self-Clean Oven — Conveniently cleans the oven cavity without need of scrubbing
Extra-Large Oven Capacity — Provides a large oven interior ideal for cooking more items at once
Electronic Oven Controls — One-touch electronic pads are easy-to-use and allow for simple oven operation
TrueTemp™ System — Delivers even heat distribution and maximum oven control
1.6 Cu. Ft. Capacity (Upper Oven Only) — Provides a large interior to accommodate a variety of cookware, dinnerware and food containers
Sensor Cooking Control (Upper Oven Only) — Provides a built-in sensor in the upper microwave that automatically calculates and adjusts cooking times and power levels for your favorite foods
Turntable (Upper Oven Only) — Steadily rotates your food and ensures even cooking with no cold spots

Manufacturer's Warranty: 1 year

Canadian model: JTP90CMCC

Specs

Configuration	Double Oven
Cooking Technology	Microwave Combination
Cooking System	Turntable - Microwave
Oven Cleaning Type	Self-Clean Lower
Style	Built-In
Temperature Management System	TrueTemp™ System Lower
Cleaning Time	Variable with Delay Clean Option Lower
Control Type	SmartSet (Lower) Electronic Microwave Touch Controls
Oven Cooking Modes	Thermal Bake / Thermal Roast Lower
Self-Clean Oven Door Lock	Automatic (Lower)
Oven Features	6-Pass Broil Element 8-Pass Bake Element Closed Door Broiling
Oven Rack Features	2 Heavy Duty Oven Racks 7 Embossed Rack Positions Lower
Interior Oven Light	2 (Lower)
Oven Control Features	Delay Bake Option With Cook & Hold Lower C° or F° Programmable Lower Audible Preheat Signal Lower Auto Oven Shut-Off with Override Lower Electronic Clock & Kitchen Timer Oven Light Pad Lower Start Pad Certified Sabbath Mode Lower Control Lock Capability Lower Digipad Numeric Entry Variable Broil Lower Optional Clock Display Temperature Display
Microwave Sensor Cooking Controls	Auto Cook Popcorn Potatoes Reheat
Microwave Convenience Cooking Controls	Beverage Cook Reheat Snacks
Microwave Watts (IEC-705)	1000.0 W
Power Levels	10
Turntable Size	15.5 in
Control Features	Auto Defrost 99 Min. / 99 Sec. Kitchen Timer
Oven Interior	Hidden Bake
CAPACITY
Capacity (Cu. Ft.)	1.6 Upper / 4.4 Lower
APPEARANCE
Color Appearance	Bisque on Bisque
Frameless Oven Door(s)	Color-Matched
Oven Door Features	Big ClearView™ Oven Window (Lower)
Handle	Color-Matched Gloss
Installation	Flush Appearance
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	205 lb
Net Weight	185 lb
Overall Height	43 1/2 in
Overall Width	29 3/4 in
Overall Depth	23 1/2 in
Cabinet Width	30 in
Cutout Dimensions (w x h x d) (in.)	28 1/2 x 42 3/16 x 23 1/2
Oven Interior Dimensions (lower)	24 x 17 1/2 x 18 1/4
Oven Interior Dimensions (upper)	16 1/4 x 9 5/8 x 15 3/4
POWER / RATINGS
Amp Rating at 208V	30
Amp Rating at 240V	30
Bake Wattage	2100W
Broiler Wattage	3400W
KW Rating at 208V	5.6
KW Rating at 240V	6.4
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details

Manuals

Owner's Manual (JTP90CMCC-owners-manual-canada.pdf)

Installation Instructions (JTP90CMCC-installation-instructions-canada.pdf)

Quick Specs (JTP90CMCC-quick-specs-canada.pdf)
