JennAir
Buy 1 Save 10%; Buy 2 or 3 Save 15%
Buy 4 or more Save 20%
Save additional $250 on select units
JennAir JB36NXFXRW
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
ACZJUL
Why Buy This at CAS?
Free Delivery & Set Up* - Free Water Line Connection Included
Haul Away Included - Free Water Line Disconnection Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $424.50 for 18 months
Ratings & Reviews
ACZJUL
When will I get this?

Why Buy This at CAS?
Free Delivery & Set Up* - Free Water Line Connection Included
Haul Away Included - Free Water Line Disconnection Included
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $424.50 for 18 months
Description & Features
Overview

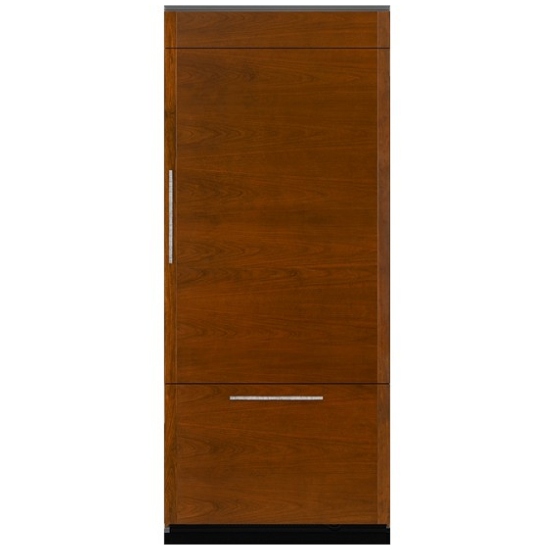

This Jenn-Air® luxury integrated built-in refrigerator achieves a sleek, seamless look (with optional custom panels that blend into cabinetry), while maintaining an optimal environment to keep ingredients exquisitely fresh.

Specifications
Configuration and Overview
  • Refrigerator Type: Bottom Freezer
  • Total Capacity: 20.4 Cu. Ft.
  • Refrigerator Capacity: 15.20 Cu. Ft.
  • Freezer Capacity: 5.20 Cu. Ft.
  • Energy Star® Qualified: No
  • CEE Tier: Not Rated

Dimensions
  • Height: 83 1/8
  • Width: 35
  • Depth: 27 3/8
  • Cutout Height (in): 83 1/2
  • Cutout Width (in): 36
  • Cutout Depth (in): 25
  • Height To Top Of Cabinet: 83 1/8
  • Depth Excluding Doors: 23 1/2
  • Depth Closed Excluding Handles: 24
  • Width of Cabinet Only: 35
  • Width with Doors Closed: 35 3/4

Energy and Eco-Friendly
  • Energy Star® Qualified: No

Filtration and Dispensing
  • Ice Maker: Factory Installed
  • Dispenser Type: No Dispenser
  • Filtered Water: No
  • Measured Fill: No

Freezer Features
  • Number of Freezer Shelves: 0
  • Interior Shelves: No
  • Lower Freezer Drawer: No
  • Upper Freezer Drawer: No
  • Slide-Out Freezer Basket: Upper Plastic and Lower Metal
  • Door Bins: No

Refrigerator Features
  • Number of Interior Shelves: 5
  • Spill-Proof Glass Shelves: No
  • Conventional Shelves: 1 Fixed Full-Width Glass, 4 Adjustable Half-Width Glass
  • Temperature-Controlled Drawers: No
  • Humidity-Controlled Drawers: 1 Full-Width
  • Non Climate-Control Drawers: 1 Full-Width
  • Door Bins: 1 Adjustable Full-Width, 2 Dairy, 4 Adjustable Half-Width

Style and Extras
  • Number of Freezer Shelves: 0
  • Door Swing: Right
  • Reversible Door: No
  • Number of Interior Shelves: 5
  • LCD Touch Screen: No

  • Signature Features
  • Requires Custom Overlay Panels or Suite-Coordinating Panel Kit, Not Included
  • Precision Temperature Management™ System
  • Gallon door storage bin
  • Glass-touch electronic controls with LCD display
  • Advanced Climate Control Drawer(s)
  • Fully Integrated and Flush Design
  • Performance Features
  • Pulsed Defrost
  • Quiet Operation
  • Sabbath Mode
  • Control Features
  • Over Temp alarm
  • Door Open Alarm
  • Max Cold
  • Water Filter Indicator and Reset
  • Freezer Features
  • Automatic Ice Maker with Storage Bin
  • Glide-Out Drawer with SmoothClose™ Drawer Track System
  • Covered Light(s)
  • Grille/Exterior Design Features
  • 4-Point Front Leveling
  • Removable Base-Grille Water Filter
  • Easy Panel Installation
  • Refrigerator Features
  • Crisper Drawer(s)
  • Deli Drawer(s)
  • Adjustable Door Bin(s)
  • Covered Light(s)
  • Adjustable Elegance Shelving
  • Dairy Compartment with Magnetic Sealing Gasket

 Requires Custom Overlay Panels or Suite-Coordinating Panel Kit, Not Included

Fully Integrated and Flush Design
Precision Temperature Management™ System
Advanced Climate Control Drawer(s)
Gallon door storage bin
Glass-touch electronic controls with LCD display
Pulsed Defrost
Quiet Operation
Sabbath Mode
Max Cold
Over Temp alarm
Door Open Alarm
Water Filter Indicator and Reset
Deli Drawer(s)
Crisper Drawer(s)
Adjustable Elegance Shelving
Dairy Compartment with Magnetic Sealing Gasket
Adjustable Door Bin(s)
Covered Light(s)
Glide-Out Drawer with SmoothClose™ Drawer Track System
Automatic Ice Maker with Storage Bin
Covered Light(s)
Removable Base-Grille Water Filter
Easy Panel Installation
4-Point Front Leveling

Manufacturer's Warranty: 2 years

Canadian model: JB36NXFXRW

Specs
Configuration and Overview
Freezer Capacity 5.20 Cu. Ft.
Refrigerator Capacity 15.20 Cu. Ft.
Total Capacity 20.4 Cu. Ft.
Refrigerator Type Bottom Freezer
CEE Tier Not Rated
Capacity
Total Capacity 20.4 Cu. Ft.
Refrigerator Capacity 15.20 Cu. Ft.
Freezer Capacity 5.20 Cu. Ft.
Refrigerator Features
Door Bins 4 Adjustable Half-Width; 1 Adjustable Full-Width; 2 Dairy
Humidity-Controlled Drawers 1 Full-Width
Non Climate-Control Drawers 1 Full-Width
Temperature-Controlled Drawers No
Freezer Features
Number of Freezer Shelves 0
Interior Shelves No
Lower Freezer Drawer No
Upper Freezer Drawer No
Slide-Out Freezer Basket Upper Plastic and Lower Metal
Door Bins No
Light Appliance Bulb
Ice Maker Factory Installed
Filtration and Dispensing
Ice Maker Factory Installed
Style and Extras
Door Style Flat
Door Swing Right
Reversible Door No



Performance
Freezer Capacity 5.2 Cu. Ft.
Refrigerator Capacity 15.2 Cu. Ft.
Total Capacity 20.4 Cu. Ft.
Filter Features
Water Filter Type Removable Water Filter - Filtered by PUR®
Water Filter Location Base Grille
Controls
Control Type Gemini Flash Capacitance
Max Cool Yes
Door Alarm Yes
Water Filter Indicator/Reset R/Y/G LED (3 LEDs)
Star K Certified Yes
On Demand Pulsed Defrost System Defrost on Demand
Temperature Controlled Drawer Advanced Climate Control™ Technology Storage Bin
Freezer Features
Number of Baskets 1
Basket 1 Description Drawer
Basket 2 Quantity 1
Basket 2 Description Drawer
Icemaker Type Automatic Ice Maker
Ice Bucket T-Line Ice Drawer
Refrigerator Features
Door Bin Description Adjustable Refrigerator Door Storage
Door Bin Quantity 4
Door Bin 2 Description Gallon Door Storage
Door Bin 2 Quantity 1
Shelf Type JA Glass
Drawer 1 Crisper Drawer
Drawer 2 Deli Drawer
Exterior
Door Style Integrated Trim
Dimensions
Cutout Depth 25 Inches
Cutout Height 83 1/2 Inches
Cutout Width 36 Inches
Height To Top Of Cabinet 83 1/8 Inches
