JennAir JCD2292KTB
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AD1P9U
Description & Features

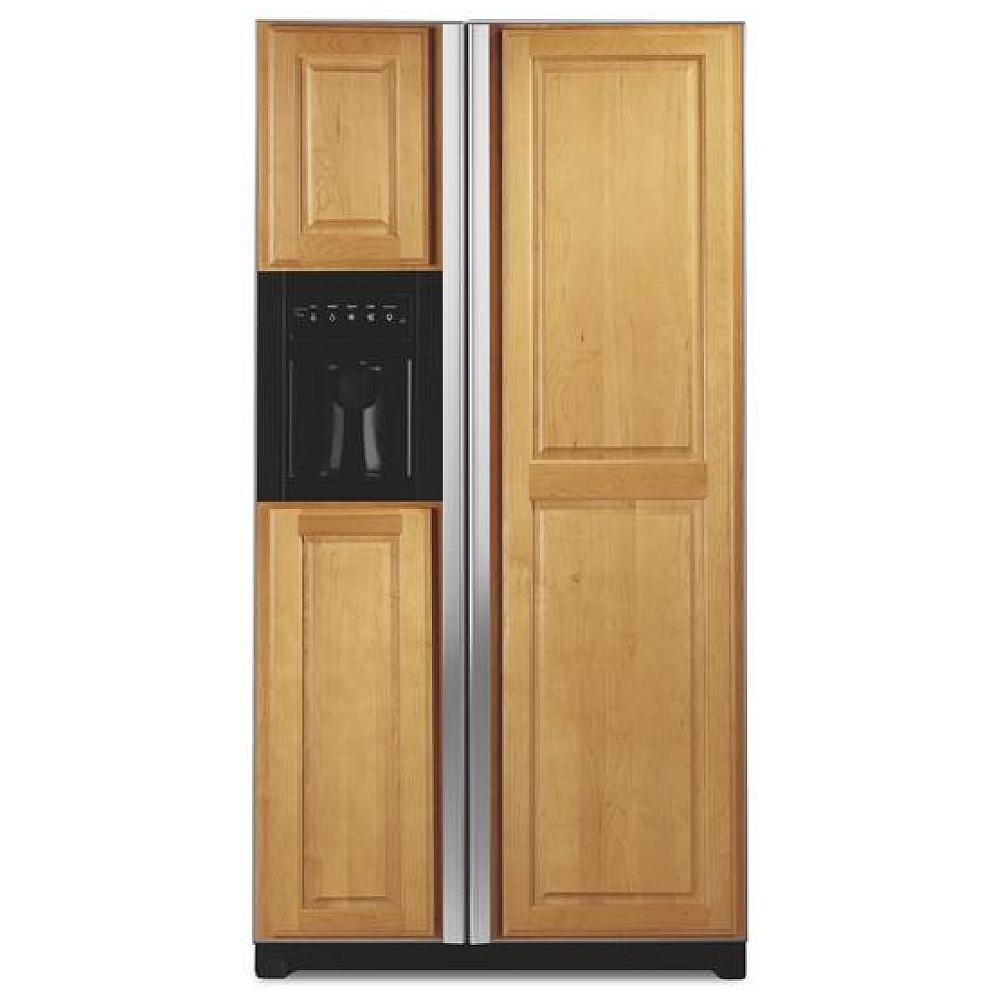

This side-by-side refrigerator offers a cabinet-depth design with silver etched handles and trim for custom panels (panels not included). TriSensor® electronic climate control provides superb food preservation. Also features an ExpressFill™ through-the-door dispenser that provides filtered ice and water simultaneously.


  • Available in black or white with silver etched full-length handles.
  • Convenience center also includes touch pads for the light and lockout features.
  • Electronic convenience center adds subtle sophistication and can be used as a night light.
  • Three lights in freezer make it easy to see items in all areas.
  • Fully extendable wire freezer baskets roll out easily so you can reach items stored in back.
  • Tilt & Store(TM) door baskets keep bags of vegetables in place and tilt out for easy access.
  • Wire freezer shelves provide convenient, accessible storage.
  • Automatic ice maker with storage bucket keeps a continual supply of ice on hand.
  • ConvectCool airflow provides consistent cooling and even temperatures throughout the fresh food compartment.
  • TriSensor(TM) Electronic Climate Control features three sensors that help maintain consistent temperatures.
  • Electronic ExpressFill dispenser with PuriClean(R) II filter dispenses cubed or crushed ice and water quickly and easily.
  • Pre-emptive, adaptive defrost feature defrosts only when needed and at the time of lowest use.
  • Electronic touch pads on convenience center make it easy to get ice or water, or both simultaneously.
  • Ultimate Quiet Series II sound package provides exceptionally quiet performance.
  • Our unique defrost system helps protect food from freezer burn and saves energy.
  • MaxCool feature lowers temperatures to the minimum then returns them to the pre-set level to help keep food fresh longer.
  • Speed Ice(TM) feature is convenient when an additional supply of ice is needed for a period of time.
  • Temperature Alert feature lets you know if a power outage has occurred that compromised temperatures.
  • Vacation Mode option sets the defrost cycle interval to the maximum 96 hours, reducing energy usage while you're away from home.
  • Sleek, electronic touch pad controls make it easy to adjust and view temperature settings.
  • PuriClean(R) II filtration system has our highest performing, longest lasting water filter ever.
  • PuriClean(R) II filtration system removes impurities, tastes and odors that may be present in the water supply.
  • Retractable water filter makes it easy to change the cartridge when needed (filters 750 gallons of water/one year of use).
  • Control panel includes filter indicator, door alarm, temperature alert, speed ice and max cool.
  • Ultimate BrightSeries(TM) lighting package with three refrigerator and three freezer lights let you find items easily.
  • Two Elevator(TM) shelves raise and lower to adjust storage space by simply turning a handle.
  • The fully extendable crisper drawers and deli drawer open fully for easier access to their contents.
  • Crispers feature automatic humidity control to help keep produce stored inside fresh and crisp.
  • A unique material at the top of the crispers intuitively allows excessive vapor to escape.
  • Adjusti-Temp(TM) deli drawer provides controlled storage for premium food like gourmet meats and cheese.
  • Spill proof shelves have sealed edges to keep spills contained for easy cleanup.
  • Slide-out shelves make it easy to reach the smallest item, even if it's stored in back.
  • ChillKeeper(TM) door compartment stores infused oils, keeps milk and other drinks cold.
  • Adjustable, lift-off door buckets offer storage flexibility and convenience.
  • One-button ExpressFill feature is quick and convenient for filling containers with narrow opening such as carafes and sports bottles.
  • Covered dairy compartment provides accessible storage for butter, margarine and more.
  • Three lights in the refrigerator make it easy to see items on shelves and in drawers.
  • Upfront electronic control panel displays temperatures that can be adjusted with a touch.
  • Energy Star label signals performance that exceeds federal energy efficiency standards by 15%.
  • Cabinet-depth design aligns with cabinets smoothly for a customized, built-in look.
  • Factory installed silver etched door trim requires installation of custom panels (purchase panels separately).
  • Full-length silver etched extruded handles complement the trim from top to bottom.

Manufacturer's Warranty: 2 years

Canadian model: JCD2292KTB

Specs
Controls
Control Location Upfront
Control Type Utah Electronics
Door Open Alarm Yes
Holiday Mode Yes
Dispenser
Dispenser Lockout Yes
Ice (Crushed/Cubed/Shaved) Cubed/Crushed/Water
Light (On/ , / Off) Off/On/Auto Sense Dim
Number of Buttons 6
Energy
Annual Energy Usage ($/Year) 47
Annual Energy Usage (kWh) 572
Exterior
Cabinet Leveling 4 point
Door Stop Positions DT115/DS160
Handle Style Extruded Soft Touch
FC Door Bin-1
FC Door Bin Type Pick-Off Bin
Quantity 1
FC Door Bin-2
FC Door Bin Type Tilt-Out Wire
Quantity 3
FC Shelf-1
FC Shelf Type Wire w/trim
Shelf Quantity 2
FC Shelf-2
FC Shelf Type Wire w/trim
Shelf Quantity 2
Filter
Water Filter Type Pentapure-Puriclean II
Freezer Compartment
Lighting 2 - 40 Watt Blue
Ice Storage
Bucket Type Interior Ice Cube Bin
Pan 1
Pan Description Crisper Pan
Pan Quantity 1
Pan Style 1/2 Ht. Framed Flat Faced Pan
Pan 2
Pan Description Crisper Pan
Pan Quantity 1
Pan Style Full Ht. Framed Flat Faced Pan
Pan 3
Pan Description Meat Pan
Pan Style Full Ht. Framed Flat Faced Pan
RC Door Bin-1
Door Bin Type Gallon Storage
Quantity 1
RC Door Bin-2
Quantity 2
RC Door Dairy/Utility Compart
Quantity 1
Utility Compartment Type Covered Dairy Compartment
RC Door Specialty Compartment-
Quantity 1
RC Shelf-1
Shelf Quantity 2
Shelf Type S/O Spill Proof Elevator
RC Shelf-2
Shelf Quantity 1
Shelf Type S/O Spill Proof Cantilever
Refrigerator Compartment
Lighting 3- 40 Watt Blue
Total Quantity of Shelves 4
Sales Model
Base Grille Color Black
Cabinet Color Black
Door Color Black
Handle Color Black
Sound
Sound Package Level 2
Specialty Shelf-1
Specialty Shelf Description Crisper Pan Cover/ Shelf
