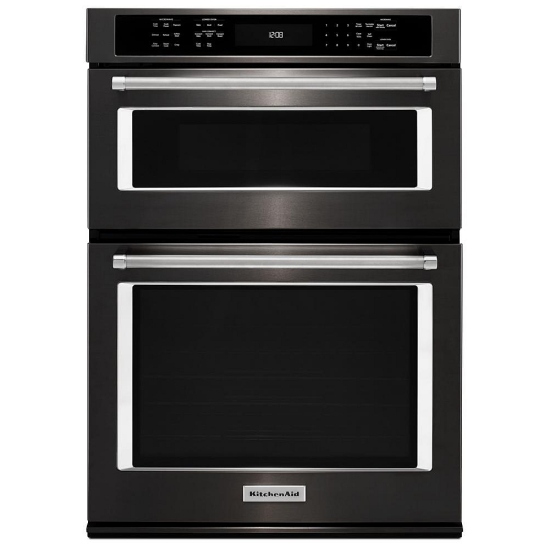

KOCE507EBS KitchenAid 27 inch Microwave Wall Oven Combo Canada Parts

Description & Features

KitchenAid KOCE507EBS Microwave Wall Oven Combo, 27 inch Exterior Width, Convection, Self Clean, 5.7 cu. ft. Capacity, Temperature Probe, Black Stainless Steel colour

This 27" Combination Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. Its upper Microwave Convection Cooking Oven combines a 900 watt microwave with a 1200 watt convection element for high speed cooking. Bold design details are the perfect balance of elegance and functionality.

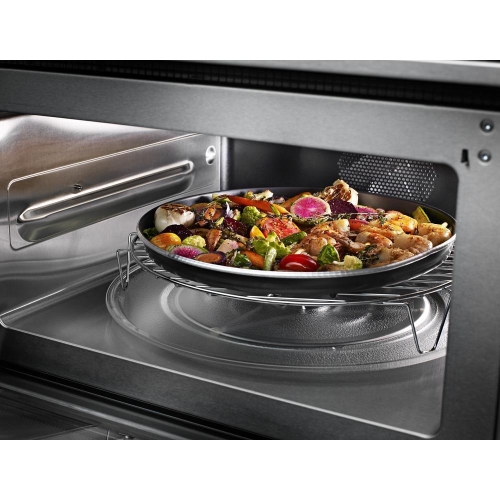

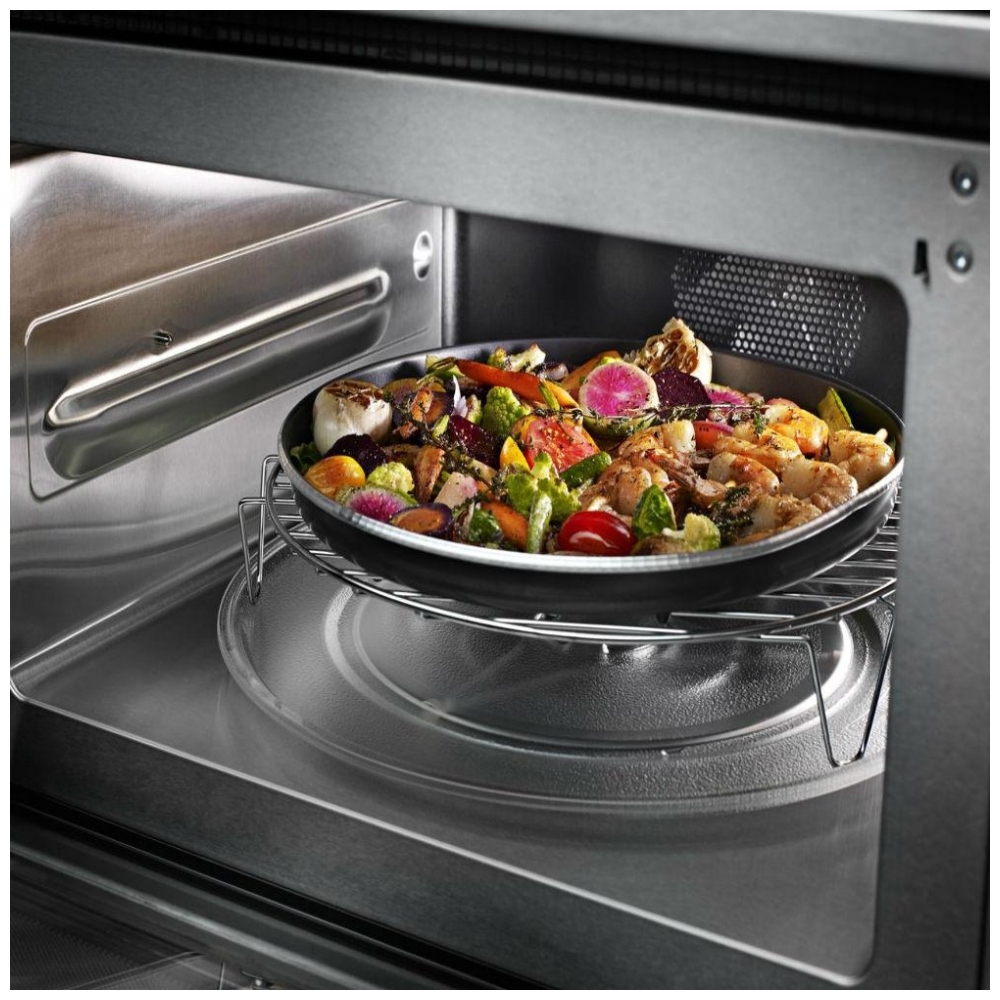

Crispwave™ Microwave Technology and Crisper Pan (upper oven)
Allows the microwave oven to be used for grilling, frying, and convection cooking. The specially designed crisper pan can be used to brown, crisp, and pan-fry foods.

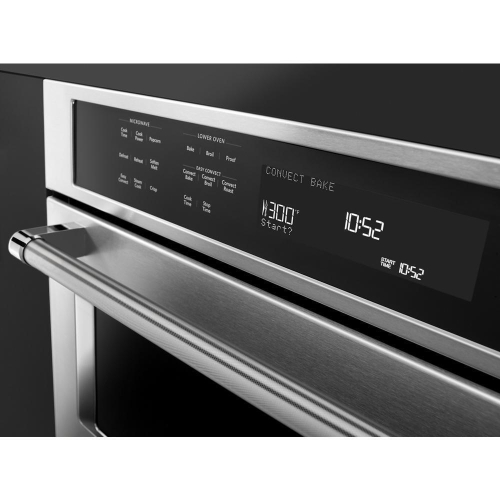

EasyConvect™ Conversion System
automatically adjusts conventional baking temperatures to their convection equivalents, making it effortless to use convection with recipes of all kinds.

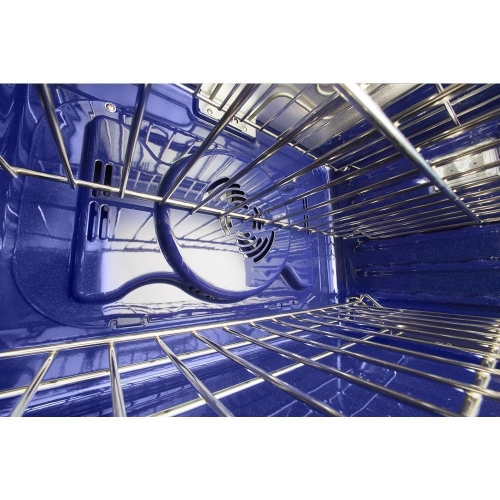

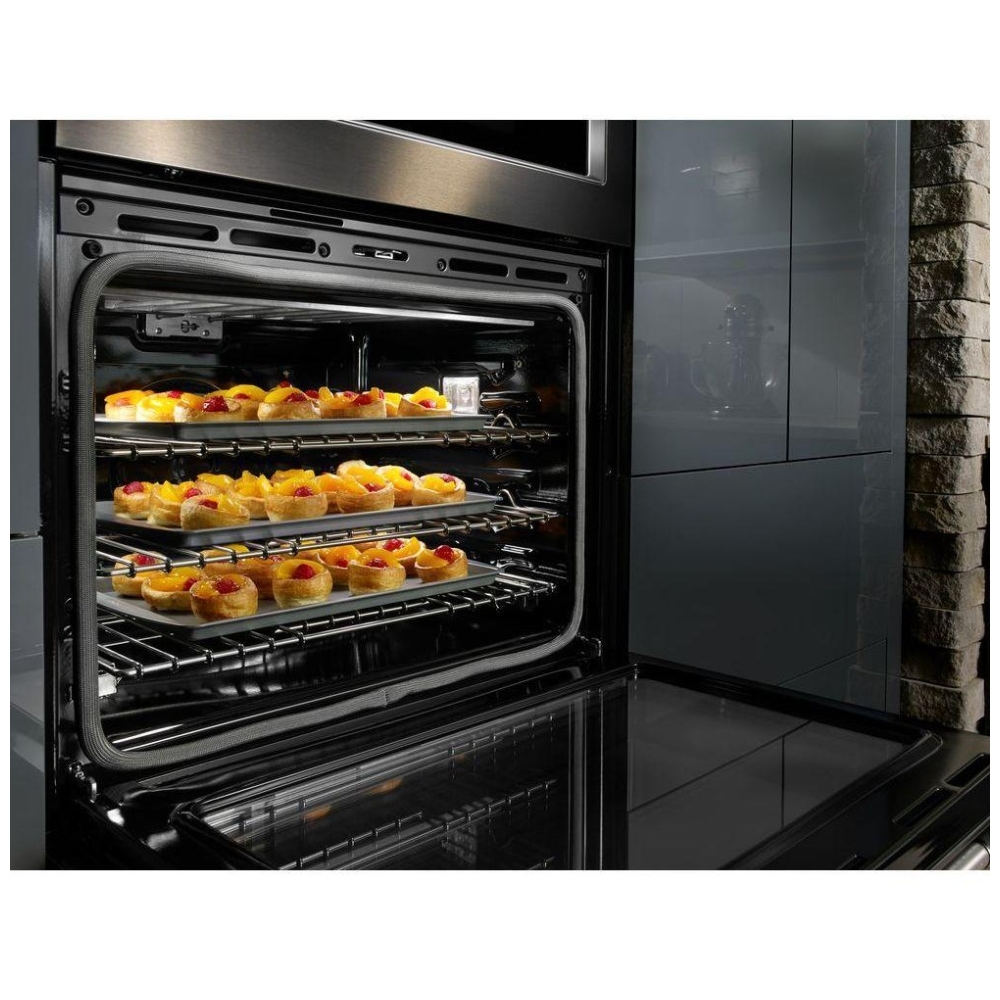

Even-Heat™ True Convection Oven (lower oven)
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.

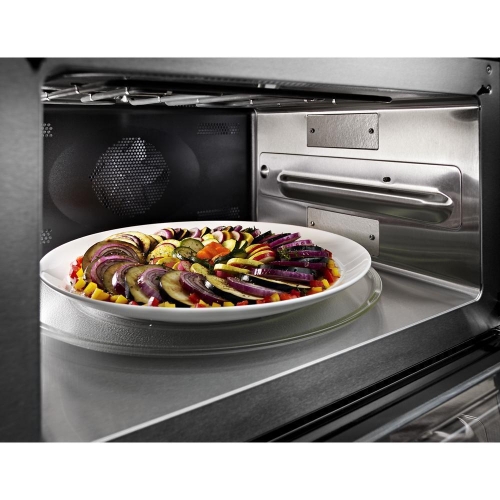

Microwave Convection Cooking (upper oven)
Increases the speed of cooking and provides a secondary convection cooking option.

1.4 Cu. Ft. Capacity (upper oven)

The upper microwave oven gives you family-size capacity that complements the lower convection oven.

4.3 Cu. Ft. Capacity (lower oven)

Gives you an extra-large capacity for holding your largest turkeys and roasts. It also lets you prepare multiple dishes at the same time.

Crispwave™ Microwave Technology and Crisper Pan (upper oven)

Allows the microwave oven to be used for grilling, frying, and convection cooking. The specially designed crisper pan can be used to brown, crisp, and pan-fry foods.

EasyConvect™ Conversion System

automatically adjusts conventional baking temperatures to their convection equivalents, making it effortless to use convection with recipes of all kinds.

Even-Heat™ True Convection Oven (lower oven)

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.

Microwave Convection Cooking (upper oven)

Increases the speed of cooking and provides a secondary convection cooking option.

Product Overview

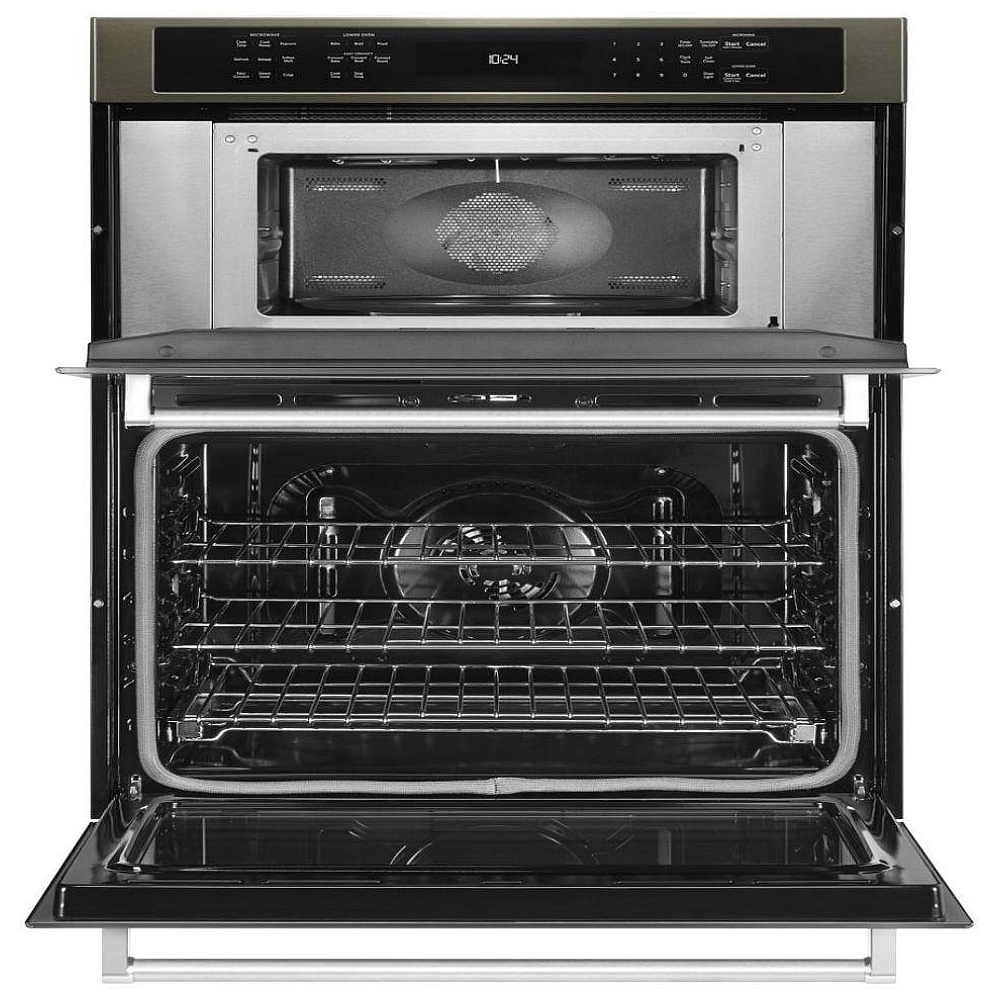

Learn more about the KitchenAid® Combination Wall Oven

SatinGlide™ Roll-Out Extension Rack (lower oven)

Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.

Temperature Probe

Allows accurate measurement of internal temperatures of meats, poultry, and casseroles without having to open the oven so that food can be cooked perfectly.

Top 3 Features

Even-Heat™ True Convection Oven (lower oven)

Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.

Microwave Convection Cooking (upper oven)

Combines the power of a 900 watt microwave with a 1600 watt convection element to increase the speed of cooking and provide a secondary convection option.

Professionally-Inspired Design (VBL Light)

Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

Additional Features

Temperature Probe

Allows accurate measurement of internal temperatures of meats, poultry, and casseroles without having to open the oven so that food can be cooked perfectly.

EasyConvect™ Conversion System

Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

1.4 Cu. Ft. Capacity (upper oven)

Provides spacious cooking capacity while complementing your lower convection oven.

4.3 Cu. Ft. Capacity (lower oven)

Provides spacious cooking capacity that can comfortably fit multiple dishes at the same time.

Crispwave™ Microwave Technology and Crisper Pan (upper oven)

Allows grilling, frying and convection cooking in the microwave. The specially designed crisper pan can be used to brown, crisp, and pan-fry foods.

SatinGlide™ Roll-Out Extension Rack (lower oven)

Allows easy roll-out for loading and unloading and features an easy-grip handle, giving confidence to cook with large or heavy dishes.

Manufacturer's Warranty: 1 year

UPC: 883049416045

EAN: 0883049416045

Specs

Certifications
Ada Compliant	No
Cul	Yes
Energy Rating	333
Prop65	Standard
Ul	Yes

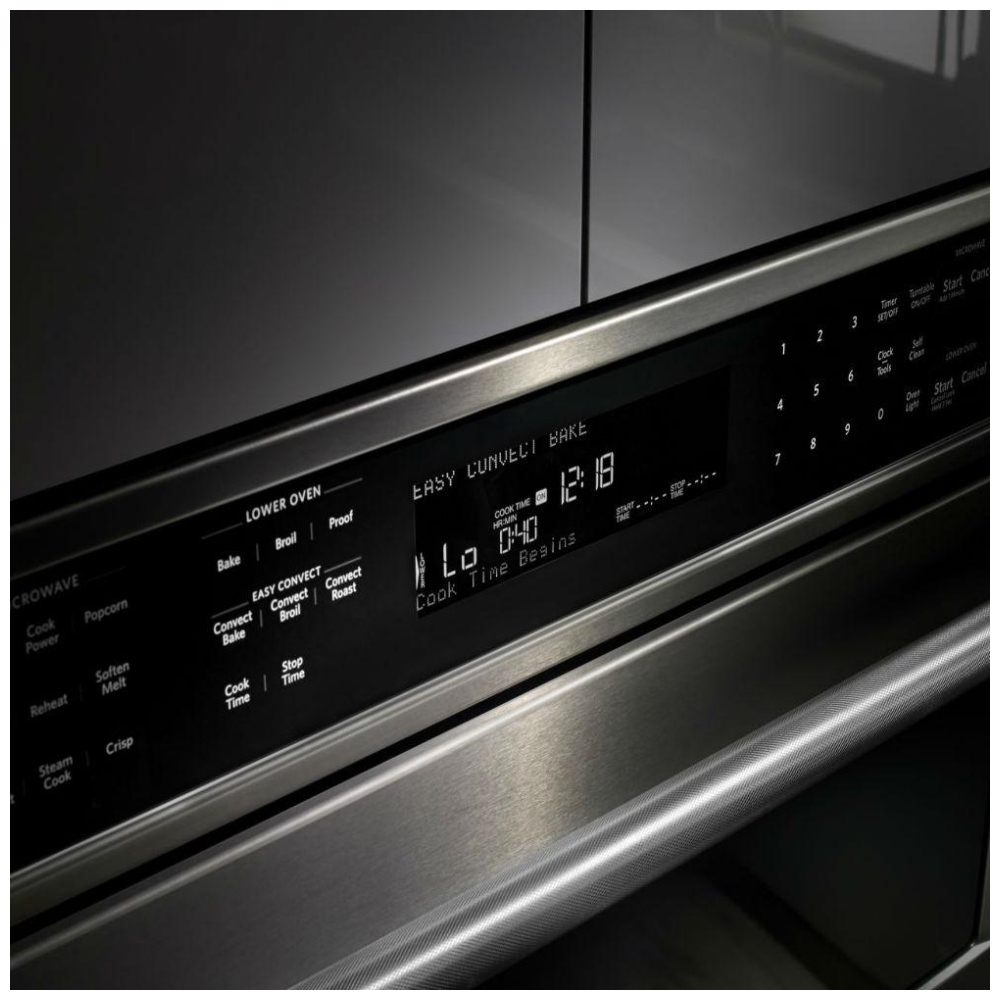

Controls
Control Type	Glass Touch Digital Display
Display Color	White
Electronic Display Type	Digital
Microwave Selections	Add A Minute; Cook Power; Cook Time; Crisp; Defrost; Easy Convect; Popcorn; Reheat; Soften/Melt; Steam; Steam Accessory
Details
Flush Installation Approved	Yes
Fuel Type	Electric
Grill	Yes
Grill Power	1,600
Oven Automatic Shut-off	Yes
Oven Configuration	Microwave Combination
Oven Selections	Clock; Control Lock; Delay Start; Proofing; Sabbath Mode; Temperature Conversion; Temperature Probe; Time Bake; Timer
Oven Type	Combination
Turntable	Yes
Dimensions
Product Height	42.5
Carton Height	45.5
Gross Weight	246
Oven Interior Height	18
Carton Width	31.5
Product Depth	27.125
Oven Interior Depth	19
Depth With Door Open 90 Degree	46.75
Cutout Depth	24
Cutout Height	41.313
Carton Depth	30.5
Cutout Width	25.5
Oven Capacity	4.3
Oven Interior Width	22
Net Weight	241
Product Width	27.0
Electrical
Power Cord Included	No
Exterior Details
Door Type	Metal & Glass
Handle Color	Stainless Steel
Handle Material	Stainless Steel
Oven Window Size	Extra Large
General
Microwave Door Swing	Drop Down
Microwave Interior Light	Halogen
Microwave Details
Door Release	Handle
Language Conversion	English/French
Microwave Capacity	1.4
Number of Microwave Racks	1
Sensor Cooking	Yes - Microwave
Turntable Diameter Size	14.125
Oven Details
Bake Element Power	2,800 W
Broiler Element Power	4,000 W
Broiler Location	Top of Oven
Convection	Yes
Convection Element Power	3,200
Convection Element Type	True - Oven
Convection Functions	Bake; Broil; Roast
Convection Power	1,200
Cooking Power	900
Door Broil Position	Closed
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Yes
Interior Color	Black
Number of Oven Lights	2
Number of Oven Racks	3
Number of Rack Guides	6
Oven Cleaning Type	Adjustable Self Cleaning
Oven Cooking System	Convection
Oven Light Type	Halogen
Oven Rack Guide Type	Molded
Self-cleaning Oven Racks	No

Dimensions

CAPACITY

5-7/10

CUTOUT DEPTH

60.96 cm, 24.0 in

CUTOUT HEIGHT

104.93 cm, 41-5/16 in

CUTOUT WIDTH

64.77 cm, 25-1/2 in

DEPTH

68.90 cm, 27-1/8 in

DEPTH WITH DOOR OPEN 90 DEGREE

118.74 cm, 46-3/4 in

HEIGHT

107.95 cm, 42-1/2 in

MICROWAVE CAPACITY

39.62 l, 1.4 cu. ft.

OVEN CAPACITY

121.69 l, 4.3 cu. ft.

WIDTH

68.58 cm, 27.0 in

Configuration and Overview

CUL

Yes

FUEL TYPE

Electric

OVEN TYPE

Combination

SIZE

68.58 cm, 27 in

Oven Details

AUTOMATIC SHUT-OFF

Yes

BAKE ELEMENT POWER

2800W

BROILER LOCATION

Top of Oven

CONVECTION FUNCTIONS

Bake, Broil, Roast

DOOR BROIL POSITION

Closed

DOOR LOCK

Yes

DOOR REMOVABLE

Yes

HIDDEN BAKE ELEMENT

Yes

INTERIOR COLOR

Black

LANGUAGE CONVERSION

English/French

NUMBER OF OVEN LIGHTS

NUMBER OF OVEN RACKS

NUMBER OF RACK GUIDES

OVEN COOKING SYSTEM

Convection

OVEN INTERIOR DEPTH

48.26 cm, 19.0 in

OVEN INTERIOR HEIGHT

45.72 cm, 18.0 in

OVEN INTERIOR WIDTH

55.88 cm, 22.0 in

OVEN LIGHT TYPE

Halogen

OVEN RACK 1 TYPE

Standard

OVEN RACK 2 TYPE

Standard

OVEN RACK 3 TYPE

Gliding Roll-Out

SELF-CLEANING OVEN RACKS

Appearance

DOOR TYPE

Metal & Glass

FLUSH INSTALLATION APPROVED

Yes

HANDLE COLOR

Stainless Steel

HANDLE MATERIAL

Stainless Steel

Microwave Details

CONVECTION

Yes

CONVECTION POWER

1600 W, 1600 W, 1600 W, 1600 W

COOKING POWER

900 W, 900 W, 900 W, 900 W

DOOR SWING

Drop Down

GRILL

Yes

GRILL POWER

1600.0 W, 1600.0 W, 1600.0 W, 1600.0 W

INTERIOR LIGHT

Halogen

MICROWAVE SELECTIONS

Baking Rack, Add A Minute, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, Popcorn, Reheat, Soften/Melt, Steam, Steam Accessory

SENSOR COOKING

Yes - Microwave

TURNTABLE

Yes

TURNTABLE DIAMETER SIZE

35.88 cm, 14-1/8 in

Details

BAKE ELEMENT POWER

2800W

BROILER ELEMENT POWER

4000W

CONVECTION ELEMENT POWER

3200

CONVECTION ELEMENT TYPE

True - Oven

NUMBER OF OVEN LIGHTS

NUMBER OF OVEN RACKS

NUMBER OF RACK GUIDES

OVEN CLEANING TYPE

Adjustable Self Cleaning

OVEN LIGHT TYPE

Halogen

OVEN RACK 1 TYPE

Standard

OVEN RACK 2 TYPE

Standard

OVEN RACK 3 TYPE

Gliding Roll-Out

RACK GUIDE TYPE

Molded

Certifications

ADA COMPLIANT

ENERGY RATING

410

PROP 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Electrical

POWER CORD INCLUDED

VOLTS

240

Controls

DISPLAY COLOR

White

ELECTRONIC DISPLAY TYPE

Digital

Exterior

DOOR RELEASE

Handle

OVEN DOOR

Metal & Glass

OVEN WINDOW SIZE

Extra Large

Configuration

OVEN CONFIGURATION

Microwave Combination

EndecaProps

PRODUCTOUTLETCATEGORIES

Cooking

Features

OVEN SELECTIONS

Clock, Control Lock, Delay Start, Proofing, Temperature Probe, Time Bake, Timer, Temperature Conversion, Sabbath Mode

Microwave

MICROWAVE SELECTIONS

Baking Rack, Add A Minute, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, Popcorn, Reheat, Soften/Melt, Steam, Steam Accessory

Manuals

>> View & Compare KitchenAid Built In Cooking Line Up <<

>> View & Compare KitchenAid Wall Oven Line Up <<

Installation Guide (KOCE507EBS-installation-guide-canada.pdf)

Warranty Information (KOCE507EBS-warranty-information-1.pdf)

Use & Care Guide (KOCE507EBS-use-care-guide-canada.pdf)

Dimension Guide (KOCE507EBS-dimension-guide-1.pdf)

Microwave Use and Care (KOCE507EBS-microwave-use-and-care-1.pdf)
