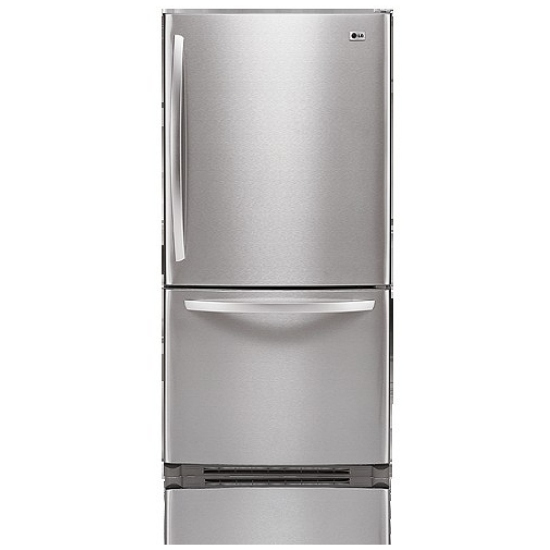

LBC22520TT LG Bottom Freezer Refrigerator 22.4 cu. ft. Canada Parts

The LG brand is composed of four basic elements: values, promise, benefits, and personality. It is this brand identity that turns the consumer's decision of purchasing an LG product into a form of self-expression and self-satisfaction.

Bottom Freezer refrigerators provide easy access to the foods you reach for the most by placing them at eye level. Plus, every new LG model is Energy Star rated, which means they are 20% more efficient than federal standards.

This LG refrigerator gives you convenient access to the fresh foods you use every day, and keeps your frozen foods organized behind a swing-door below. Plus, with its ENERGY STAR rating, it uses 20% less energy saving money and the environment.

Easy access

By keeping the freezer on the bottom, this LG refrigerator gives you easy, eye-level access to all of your favorite fresh foods.

Save money. Save energy.

When your refrigerator uses at least 20% less energy than required by federal standards, you re going to make an impact on your energy bill, your energy consumption, and most importantly, the environment.

Traditional looks

Enjoy the traditional swing freezer door style of this LG refrigerator. It keeps your frozen foods neatly organized in a full-width, wire drawer and freezer shelf.

More ice when you need it.

Having a party? Have a lot of leftovers? This freezer feature s got you covered. Enjoy accelerated freezing for up to 24 hours to produce 6 lbs. of ice, and lock in freshness by freezing food fast.

22.4 Cu.ft Total capacity
Swing freezer drawer
Premium finishes in stainless steel, titanium and smooth white
Contour doors
Commercial metal handles
5 Gallon size design-a-door bins
4 Split-tempered glass shelves
1 freezer drawer
1 Wire freezer shelf
Snack bin
Upfront digital temperature controls
2 Clear humidity crispers
Multi-air flow cooling
Iceplus accelerated freezing function
Customcube ice maker
LoDecibal quiet operation

Manufacturer's Warranty: 1 year

Canadian model: LBC22520TT

Specs

SUMMARY
Door Type	Bottom Freezer
Freezer Type	Bottom Drawer / Swing
Refrigerator Capacity	15.5 cu. ft.
Freezer Capacity	6.9 cu. ft
Total Capacity	22.4 cu. ft.
Size (W x H x D with door open)	34" x 68 1/2" x 34 1/4"
Counter Depth (in.)	no
Color	Titanium
Water Filtration System	no
Multi-Air Flow Cooling	Yes
Temperature Controls	Yes
Temperature Sensors	3
LoDecibel™ Operation	Yes
Door Alarm	Yes
LED Interior Light	no
Child Lock	no
Warranty	1 Year Parts and Labor, 7 Years on the Sealed System
REFRIGERATOR
No. of Shelves	4 Split
Cantilevered Shelves	Yes
Shelf Construction	Tempered Glass
Crisper Bins	2 Humidity Crispers
Utility Bin	no
Snack Pan	no
Refrigerator Light	2 x 60W
REFRIGERATOR DOOR
No. of Shelves/Bin	5
Dairy Corner/Bin	Yes
FREEZER
Drawers	1 Full-Width Wire Basket
Freezer Shelves	1 Wire
DuraBase™ Solid Drawer Base	no
Divider	no
IcePlus™	Yes
CustomCube™ Ice Maker	Yes
Ice Bin	Yes
Freezer Light	40W
MATERIALS AND FINISHES
Foam Door Insulation	Yes
Contour Door	Yes
Hidden Hinges	no
Reversible Doors	no
Toe Grille	Yes
Surface	Coated Metal, Stainless Steel
Back	Flush & Metal Cover Over Mechanical Parts
Handles	Matching Commercial Handles
Other Available Colors	Smooth White, Stainless Steel
SIZE AND WEIGHT
Depth with Handles	34 1/4"
Depth without Handles	31 3/4"
Depth without Door	28 1/4"
Depth (Total with Door Open)	62"
Height to Top of Case	67 7/8"
Height to Top of Door Hinge	68 1/2"
Width	32 7/8"
Width (Door Open 90° without Handle)	34"
Installation Clearance	Sides 1/8", Top 1", Back 1"
Weight (Product)	237 lbs.
Weight (Shipping)	264 lbs.
Carton Dimensions (WxHxD)	35 1/8" x 72 1/2"x 36"

Manuals

LG Fridges 2026

Download Measurement Sheet (LBC22520TT-measurement-sheet-canada.pdf)

Energy Guide (LBC22520TT-energy-guide-canada.pdf)
