Name: Product Highlights Video for Monogram ZISB480DNII Refrigerator
Uploaded: 2024-05-17
Description: Monogram ZISB480DNII Built In Refrigerator, 48 inch Width, Counter Depth, 28.8 cu. ft. Capacity, Panel Ready

Accessories

Add:

ZKPN Monogram ZKPN Mounting Handle Stud Kit

$119.00 CAD

Add:

ZKSS2H2PNSS Monogram ZKSS2H2PNSS Statement Handle Kit

$279.00 CAD

Add:

ZKSS2H2CNSS Monogram ZKSS2H2CNSS Minimalist Handle Kit

$279.00 CAD

Add:

ZKFN Monogram ZKFN Flush Inset Installtion Kit

$799.00 CAD

Description & Features

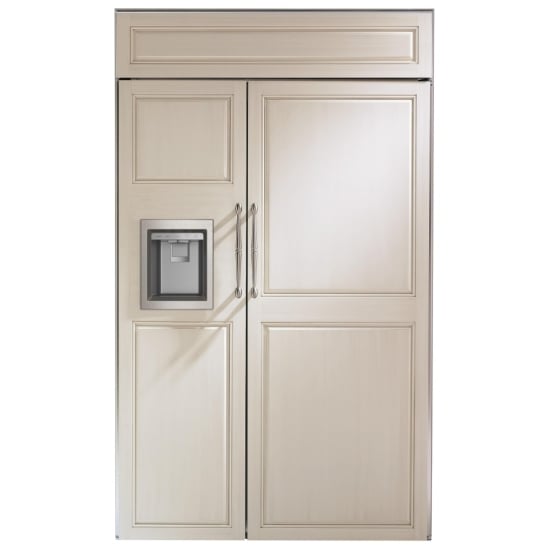

Monogram ZISB480DNII Built In Refrigerator, 48 inch Width, Counter Depth, 28.8 cu. ft. Capacity, Panel Ready

48" Built-In Side-By-Side Refrigerator with Dispenser

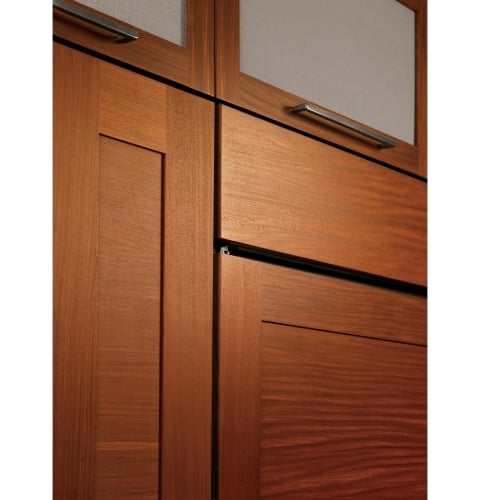

Flush inset installation
Allows the refrigerator to be installed flush with adjacent cabinetry

Advanced temperature management system with multi-shelf air tower
Provides even distribution of air throughout the refrigerator

Climate-control drawer
Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods

WiFi powered by SmartHQ™
Enjoy the convenience and freedom of wirelessly controlling functions from your smartphone

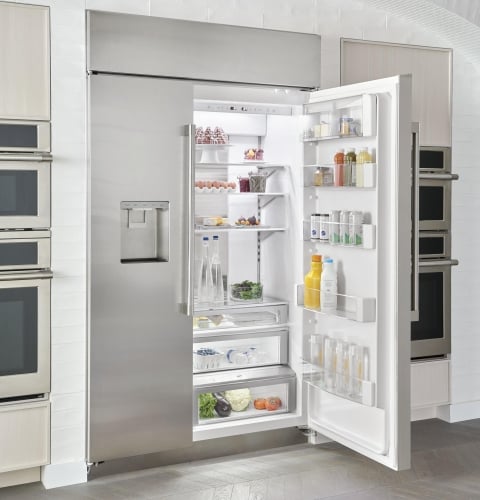

LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space

Color-matched dispenser with Proximity Sensor
Designed to accommodate glassware of all sizes, from pitchers to tumblers; control graphics light up as you approach and automatically switch off when you walk away

GE® water filter
Has been moved from the fresh food compartment to the overhead cabinet, where it is discreetly out of sight

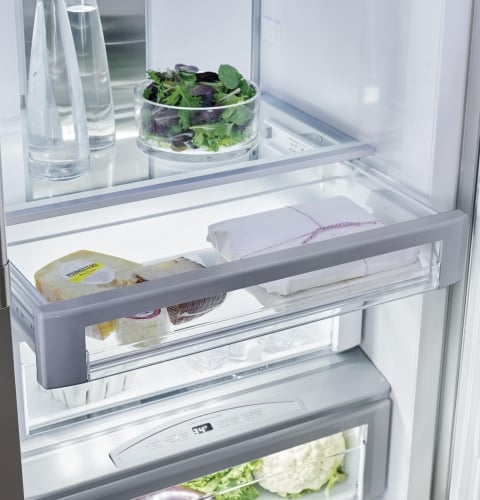

Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach

Sealed vegetable drawer
Helps preserve the freshness of foods

Adjustable glass shelves
Easily accommodate party trays and platters

Gallon-size door bin
Holds milk containers, two-liter bottles and pitchers

Adjustable door bins
Can be moved to one of two positions in seven locations

Dairy bin with center divider
Has a unique magnetic seal that locks in freshness

Filter-change indicator light
Located on the upfront control panel, provides a visual reminder when it's time to replace the filter for the water dispenser

Sabbath mode
Designed to disable functions in accordance with Sabbath-observing practice

Advanced temperature management system with multi-shelf air tower

Provides even distribution of air throughout the refrigerator

Climate-control drawer

Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods

LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space

Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach

Manufacturer's Warranty: 2 years

UPC: 084691845157

EAN: 0084691845157

Specs

CAPACITY
Fresh Food Capacity	17.18 cu ft
Total Capacity (cubic feet)	28.6 cu ft
Freezer Capacity	11.44 cu ft
FILTER
App Filter - WiFi Connect	Built-In
APPEARANCE
Panel Capability	Flush Inset (with ZKFN kit) Standard Install with 3/4" Overlay or 1/4" Framed
Adjustable Rollers	4
Dispenser Color	Stainless Steel
Master Light Control Switch	Yes
Door Stops	90 Degree and 130 Degree
Design Style	Custom Panel
Easy Access Hinged Grille	Yes
Door Panels Required	Yes
Color Appearance	Custom Panels Required
Handle	Custom Handle Compatible Order ZKLN for Full-Length Visor Handle Kit
Hidden Door Hinge(s)	Yes
WARRANTY
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance Limited lifetime full extension slides
POWER / RATINGS
Electrical Requirements	115V; 60Hz; 20A
ECONOMICAL / QUIET
Quiet Features	Black Sealed Adjustable Toe Kick
WEIGHTS & DIMENSIONS
Overall Depth	25.375 in
Height to Top of Hinge	84 in
Net Weight	738 lb
Overall Width	48 in
Approximate Shipping Weight	775 lb
Overall Height	84 in
FEATURES
Temperature Management Features	Independent Temperature Controls Multi-Shelf Air Management Tower
Deli Drawer	Adjustable Sealed w/ Full Extension Slides
Control Type	Upfront Electronic Digital Temperature Display
Dispenser Features	Child Lock Disappearing Electronic Glass Touch with Proximity Sensor Dispenser Light Door Alarm Extra-Tall w/ Cubes, Crushed Ice & Chilled Water Water Filter Indicator Light
Custom Panel Ready	1/4-Inch Framed Panels 3/4-Inch Overlay Panels Flush Inset Panels
Icemaker	Factory-Installed
Freezer Cabinet Shelves	4 Adjustable 4 Total Wire
WiFi Connect	Built-In
Sabbath Mode	Optional
Filter Location	Upper right corner
Clear Lexan Bins, Drawers and Pans	Yes
Interior Lighting	LED Light Towers, Top LED and Pan LED Lighting
Short Description	48" Built-In Side-By-Side Refrigerator with Dispenser
Connected Capabilities	IFTTT
Freezer Door Bins	3 Total
Defrost Type	Auto
Fresh Food Door Features	Adjustable Gallon Storage
Leveling System	4 Point
Fresh Food Cabinet Shelves	3 Slide-Out 5 Total Spill-Resistant
Fresh Food Door Bins	1 with Gallon Storage 4 Adjustable
Freezer Utility Baskets	2
Exterior Style	Built-In
Produce Drawer	High-Humidity Sealed w/ Full Extension Slides
Climate Control Drawer	Express Chill, Express Thaw, Select Temp
Fresh Food Features	Dairy Compartment - Sealed
Refrigerant Type	R600a
Dispenser	External Dispenser
Fresh Food Cabinet Shelf Features	Adjustable
Water Filtration	GE Water Filtration 1 Year MWFP
Product Type	Built-In Refrigerator Side-by-Side Refrigerator
OU Certified	OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately

CAPACITY

Total Capacity (cubic feet)

28.8

Fresh Food Capacity

17.17

Freezer Capacity

11.64

FEATURES

WiFi Connect

Built-In

Connected Capabilities

Amazon Alexa, IFTTT, The Google Assistant

Temperature Management Features

Independent Temperature Controls, Multi-Shelf Air Management Tower

Control Type

Upfront Electronic Digital Temperature Display

Defrost Type

Auto

Icemaker

Factory-Installed

Dispenser

Extra-Tall w/ Cubes, Crushed Ice & Chilled Water

Dispenser Features

Child Lock, Disappearing Electronic Glass Touch with Proximity Sensor, Dispenser Light, Door Alarm, Water Filter Indicator Light

Water Filtration

GE Water Filtration 1 Year, MWFP

Filter Location

Upper right corner

Fresh Food Cabinet Shelves

3 Slide-Out, 5 Total, Spill-Resistant

Fresh Food Cabinet Shelf Features

Adjustable

Fresh Food Door Bins

1 with Gallon Storage, 4 Adjustable

Fresh Food Door Features

Adjustable, Gallon Storage

Fresh Food Features

Dairy Compartment - Sealed

Climate Control Drawer

Express Chill, Express Thaw, Select Temp

Deli Drawer

Adjustable Sealed w/ Full Extension Slides

Produce Drawer

High-Humidity Sealed w/ Full Extension Slides

Freezer Cabinet Shelves

4 Adjustable, 4 Total, Wire

Freezer Door Bins

3 Total

Freezer Utility Baskets

Clear Lexan Bins, Drawers and Pans

Yes

Interior Lighting

LED Light Towers, Top LED and Pan LED Lighting

Leveling System

4 Point

Exterior Style

Built-In

Custom Panel Ready

1/4-Inch Framed Panels, 3/4-Inch Overlay Panels, Flush Inset Panels

Product Type

Built-In Refrigerator, Side-by-Side Refrigerator

ECONOMICAL / QUIET

Quiet Features

Black Sealed Adjustable Toe Kick

APPEARANCE

Color Appearance

Custom Panels Required

Design Style

Custom Panel

Dispenser Color

Stainless Steel

Handle

Custom Handle Compatible, Factory-Installed Full-Length Visor Handle

Door Panels Required

Yes

Door Stops

90 Degree and 130 Degree

Hidden Door Hinge(s)

Yes

Adjustable Rollers

Easy Access Hinged Grille

Yes

Installation

Standard or Flush-inset Installation

Master Light Control Switch

Yes

Panel Capability

1/4" Framed Panels, 3/4" Overlay Panels, Flush Inset Panels

WEIGHTS & DIMENSIONS

Approximate Shipping Weight

775.0

Net Weight

738.0

Overall Depth

25.375

Overall Height

84.0

Overall Width

48.0

POWER / RATINGS

Volts/Hertz/Amps

115V; 60Hz; 20A

WARRANTY

Parts Warranty

Limited 12-year sealed refrigerating system parts, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system, Limited lifetime full extension slides

Labor Warranty

Limited 2-year entire appliance, Limited 5-year sealed refrigerating system

Warranty Notes

See written warranty for full details

FILTER

App Filter - WiFi Connect

Built-In

Manuals

Owner's Manual (ZISB480DNII-owners-manual-canada.pdf)

ZISS480NN ZISS420DN ZISP420DN ZISB480DN ZISS360 ZIS480NN ZIS420NN ZISB420DN ZISS420NN ZISS480DN ZISP480DN ZISB360DN (ZISB480DNII-ziss480nn-ziss420dn-zisp420dn-zisb480dn-ziss360-zis480nn-zis420nn-zisb420dn-ziss420nn-ziss480dn-zisp480dn-zisb360dn-canada.pdf)

Quick Specs (ZISB480DNII-quick-specs-canada.pdf)

Energy Guide (ZISB480DNII-energy-guide-canada.pdf)
