General information
Product family	Range
Range size	30"
Range type	Dual fuel
Cooktop	Gas
N. of ovens	1
Main oven	Thermo-ventilated
EAN code	8017709256692
General information
Installation positioning of the appliance	Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Aesthetic
Color	Red
Design	Flush mounted
Aesthetics	Portofino
Control panel finish	Metal enameled
Material	Painted metal
Upstand	Yes
Cooktop color	Stainless steel
Grates	Cast Iron
Control setting type	Control knobs
Control knobs	Portofino
Controls color	Stainless steel
No. of controls	7
Display	Touch
Door	With frame
Door glass type	Gray
Handle	Portofino
Handle color	Colored
Storage compartment	Storage drawer
Feet	Stainless steel
Plinth	Black
Main oven options
Timer	Yes
End-of-cooking alarm	Yes
Minimum Temperature	120 °F
Maximum temperature	500 °F
Cooktop technical features
Cooking zones	4
Zone 1 - Position	Left
Zone 2 - Position	Front-center
Zone 3 - Position	Rear-center
Zone 4 - Position	Right
Zone 1 - Type	Gas - Dual ultra-rapid
Zone 2 - Type	Gas - Semi-rapid
Zone 3 - Type	AUX
Zone 4 - Type	Gas - Ultra-rapid
Zone 1 - Power	5860 W
Zone 2 - Power	2340 W
Zone 3 - Power	1310 W
Zone 4 - Power	5860 W
Burners type	Standard
Burner caps	Enameled matte black
Automatic gas ignition	Yes
Gas safety valves	Yes
Main Oven Technical Features
Volume	0.13 cu. ft.
Cavity material	EverClean enamel
No. of shelves	4
Shelves type	Metal racks
No. of lights	2
Light type	Halogen
Light Power	40 W
Fan number	1
Time setting	Start and end
Door opening	Drop-down
Light on when door is open	Yes
Removable door	Yes
Full-glass inner door	Yes
Removable inner door	Yes
Total no. of door glasses	3
No.of thermo-reflective door glasses	2
Safety thermostat	Yes
Cooling system	Tangential
Grill type	Electric
Grill power	1700 W
Large grill - Power	2900 W
Bottom heating element - Power	1700 W
Upper heating element - Power	1200 W
Circular heating element - Power	2700 W
Soft Close system	Yes
Temperature control	Electro-mechanical
Electrical Connection
Electrical connection rating	3700 W
Current	20 A
Circuit breaker	20 A
Voltage	240/208 V
Frequency	60 Hz
Power cord length	47 1/4 "
Type of electric cable installed	Yes, Double phase
Gas Connection
Gas Type	G20/G25 - 20/25 mbar
Logistic Information
Dimensions	915x762x635 mm
Width	30 1/16 "
Height	36 1/16 "
Depth	25 1/16 "
Packaged dimensions	1010X870X750 mm
Gross weight	259 lbs
Net weight	233 lbs
Packaged width	34 1/4 "
Packaged depth	29 1/2 "
Packaged height	39 3/4 "
Packaging	Cardboard box
Packaging composition - Paper	9 lbs
Packaging composition - Polystyrene	11 lbs
Packaging composition - Wood	5 lbs
Packaging composition - Plastics	1 lbs
Included accessories
Cast iron wok support	1
Wide baking tray	1
Oven wire rack	1
TOP Oven grid with back stop	1
Grill mesh	1
0.8"-deep tray	1
Telescopic Guide rails, partial Extraction	1
Accessories Included
Other gas nozzles included	G30 LPG liquid gas

Smeg CPF30UGMR

Smeg CPF30UGMR

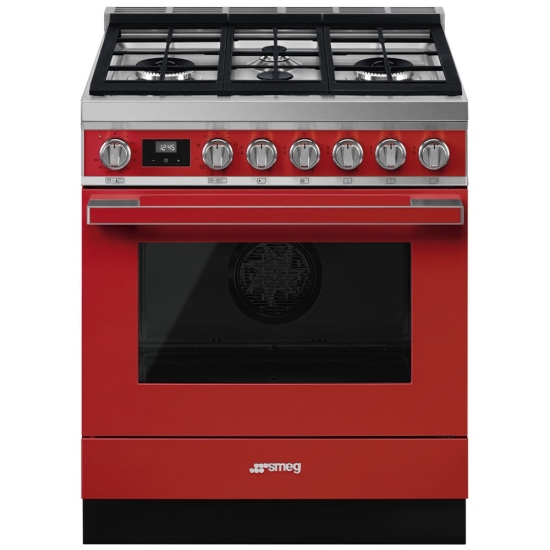

Smeg CPF30UGMR Dual Fuel Range, 3.6 cu. ft. Capacity, 30 inch Exterior Width, Convection, 4 Burners, Storage Drawer, Manual Clean, Red colour
