Thermador HDDW36FS
Discontinued
ATE22L
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $217.95 for 18 months
Ratings & Reviews
ATE22L
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $217.95 for 18 months
Description & Features

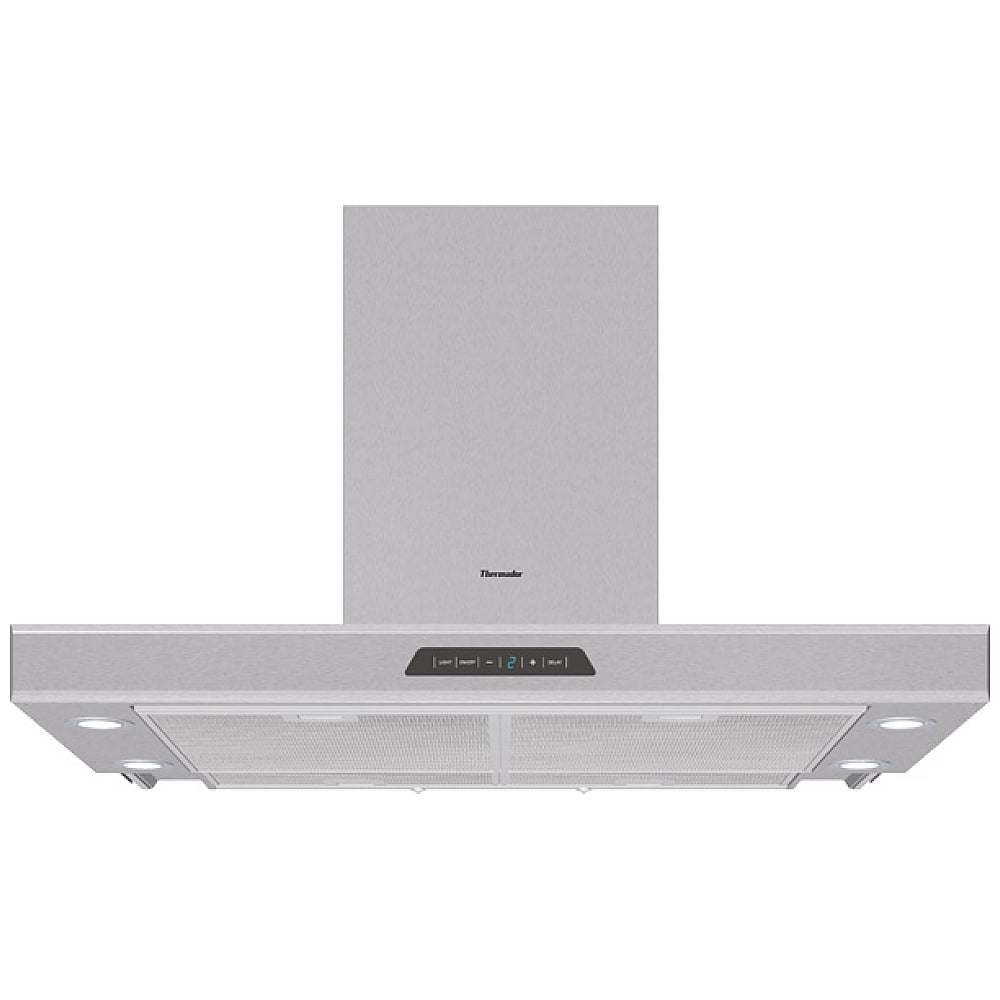

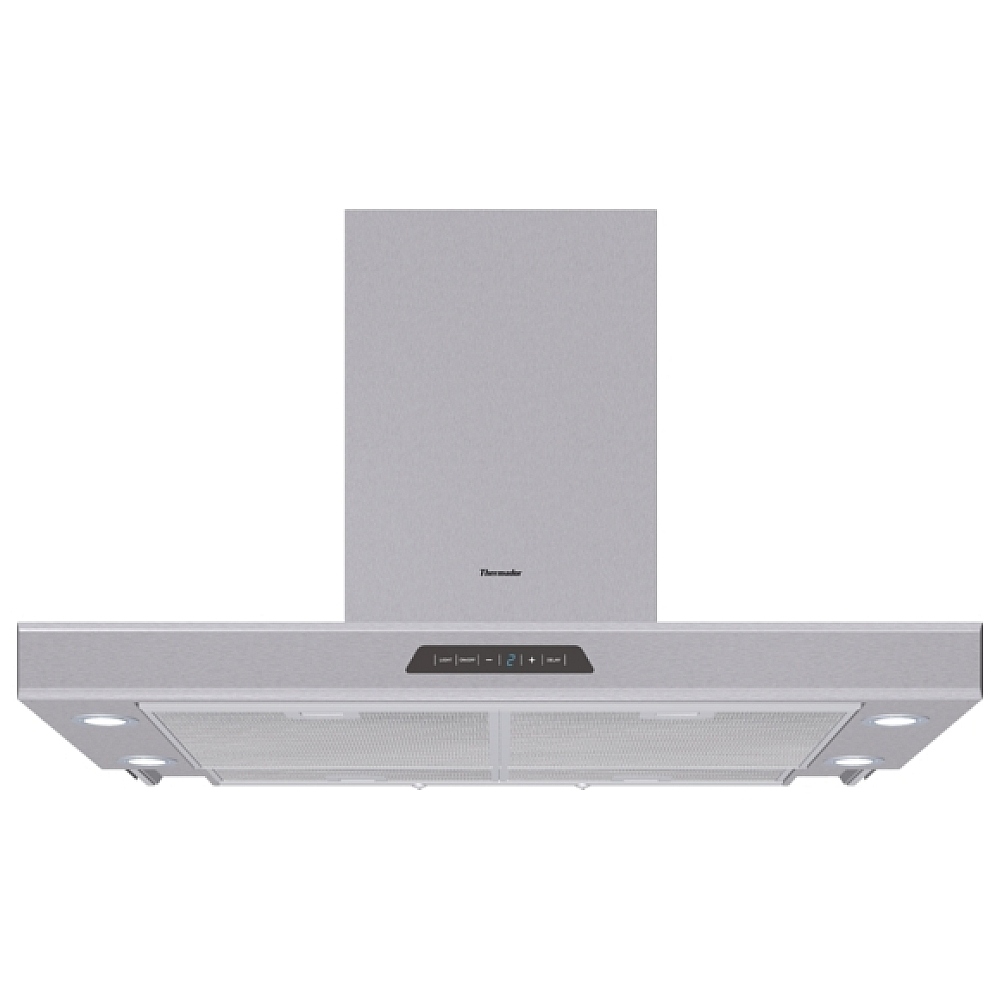

Thermador Masterpiece Series HDDW36FS Wall Mount Chimney Range Hood 36 in with 600 CFM Internal Blower, Halogen Lights, 4-Speed Touch Controls and Pull-Out Canopy Design

A beautiful Masterpiece Series kitchen deserves Masterpiece Ventilation. Our stainless steel Chimney Wall Drawer Hood includes a 600 CFM integrated blower and an unique slide-out canopy design.
  • Halogen Lights
  • Bright halogen lighting spotlights your best recipes by brilliantly illuminating the cooking surface.
  • Electronic Touch Control
  • The sleek electronic touch control panel is easy to use and easy to clean.
  • Pull Out Stainless Steel Canopy
  • Slide-out stainless steel canopy increases head room when not in use and extends out to increase capture area by 45%.
  • All Features
  • Innovation
  • Unique sliding stainless canopy can be pushed back against the wall for increased head room
  • 45% increase in capture area when hood is extended
  • Performance
  • 600 CFM Integrated Blower included
  • Three fan speeds plus 10 minute high-power operation mode
  • Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
  • Delayed shut off tackles lingering odors for up to 10 minutes
  • Dimmer lighting - for those hours after a late meal
  • Dishwasher safe stainless-frame mesh filters
  • Filter systems are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Sound insulation mats make this hood barely audible
  • 6" Round duct size
  • Vertical ducting direction
  • Telescopic chimney - adjustable at installation
  • Hood includes filters, backdraft damper and transition
  • Design
  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls
  • Halogen lighting spotlights your best recipes

Performance

  • 3 fan speeds plus 10 minute high-power operation mode
  • 45% increase in capture area when hood is extended
  • Filter systems are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Sound insulation mats make this hood barely audible

Design

  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls

Capacity

  • 600 CFM Integrated Blower included
  • 6" Round duct size
  • Vertical ducting direction

Convenience

  • Halogen lighting spotlights your best recipes
  • Dishwasher safe stainless-frame mesh filters
  • Dimmer lighting - for those hours after a late meal
  • Unique sliding stainless canopy can be pushed back against the wall for increased head room
  • Built-in Clean Filter Reminder light
  • Telescopic chimney - adjustable at installation
  • Delayed shut off tackles lingering odors for up to 10 minutes
  • Hood includes filters, backdraft damper and transition




Manufacturer's Warranty: 2 years

Canadian model: HDDW36FS

Canadian UPC: 825225861744

EAN: 0825225861744

Specs
Technical Specifications
Frequency (Hz) 60
Approval certificates ETL
Plug type 120V-3 prong
Height of the chimney (in) 23 7/8'' - 39 5/8''
Net weight (lbs) 64
Gross weight (lbs) 82
Required distance above range/rangetop/cooktop 30''/30''
Motor location Integrated motor in hood chimney
Diameter of air duct (in) top 6
No-return airflow flap No
Product Features
Operating mode Ducted
Delay shut off modes 10
Optional accessories CHIMXHDD
Number of lights 4
Type of lamps used Halogen
Total power of the lamps (W) 80
Grease filter material Washable aluminium
Grease filter type Multilayer cassette



Technical Specifications

Frequency (Hz)

60

Approval certificates

ETL

Plug type

120V-3 prong

Height of the chimney (in)

23 7/8'' - 39 5/8''

Net weight (lbs)

64

Gross weight (lbs)

82

Required distance above range/rangetop/cooktop

30''/30''

Diameter of air duct (in) top

6

No-return airflow flap

No









Product Features

Operating mode

Ducted

Delay shut off modes

10

Optional accessories

CHIMXHDD

Number of lights

4

Type of lamps used

Halogen

Total power of the lamps (W)

80

Grease filter material

aluminium

Grease filter type

Multilayer cassette

Clean filter reminders

Electronic
