Thermador HMWN30FS
Discontinued
BGC1AK
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $79.12 for 18 months
Ratings & Reviews
BGC1AK
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $79.12 for 18 months
Description & Features

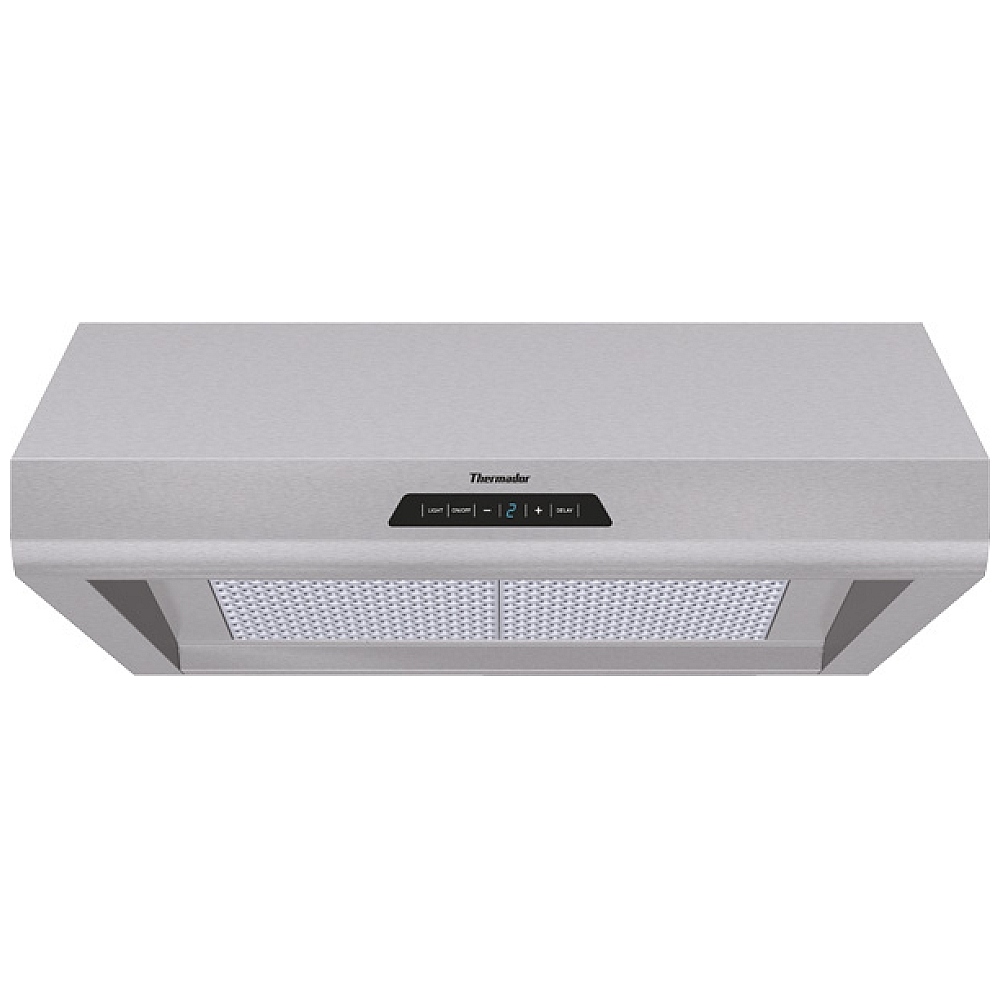

Thermador Masterpiece Series HMWN30FS Canopy Wall Mount Range Hood 30 in with Multiple Blower Options, Halogen Lights, 4-Speed Touch Controls and Dishwasher Safe Stainless Steel Filters( BLOWERS NOT INCLUDED)

A beautiful Masterpiece Series kitchen deserves Masterpiece Ventilation. Our stainless steel Wall Hood can be ordered with any of seven different blower options.
  • All Features
  • Performance
  • Recirculation possible with kit RECIRC_ _FS (max 600CFM)
  • Three fan speeds plus 10 minute high-power operation mode
  • Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
  • Delayed shut off tackles lingering odors for up to 10 minutes
  • Dishwasher safe hybrid mesh filters
  • Filter systems are highly efficient at capturing grease
  • Powerfully Quiet® ventilation systems
  • 10" Round duct size
  • Vertical ducting direction
  • Hood includes filters, lights, backdraft damper and transition
  • Blowers sold separately
  • Choose from Inline, Remote or Integrated Blowers
  • Accessories include: Stainless steel duct covers in 6" or 12" heights
  • Replacement charcoal filters available (CHFILT3036)
  • Design
  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls
  • Halogen lighting spotlights your best recipes

Performance

  • 3 fan speeds plus 10 minute high-power operation mode
  • Filter systems are highly efficient at capturing grease
  • Powerfully quiet ventilation systems
  • Extended capture area ensures removal of smoke and odor

Design

  • Brushed stainless steel finish
  • Welded, polished seams for a flawless design
  • Premium electronic touch controls

Capacity

  • 600 CFM Integrated Blower option VTN600F
  • Inline Blowers: VTI610D (600 CFM) or VTI1010D (1000 CFM)
  • Remote Blowers: VTR630D (600CFM), VTR1030D (1000CFM), or VTR1330E (1300CFM)
  • Remote Blower requires Roof Plate RFPLT600 for roof installations (600 CFM)
  • Remote Blowers require Roof Plate RFPLT1000 for roof installations (1000/1300 CFM)
  • VTR1330E or VTN1000F Blowers are not recommended to be used with 30" models
  • 10" Round duct size
  • Vertical ducting direction
  • Recirculation possible with kit RECIRC_ _FS (max 600CFM)
  • Replacement charcoal filters available (CHFILT3036)

Convenience

  • Halogen lighting spotlights your best recipes
  • Dishwasher safe low-profile baffle filters
  • Grease collection trays are easily removed and dishwasher safe
  • Built-in Clean Filter Reminder light
  • Delayed shut off tackles lingering odors for up to 10 minutes
  • Blowers sold separately
  • Choose from Inline, Remote or Integrated Blowers
  • Hood includes filters, lights, backdraft damper and transition






Manufacturer's Warranty: 2 years

Canadian model: HMWN30FS

Canadian UPC: 825225863182

EAN: 0825225863182

Specs
Technical Specifications
Amps (A) 15
Frequency (Hz) 60
Approval certificates CSA, UL
Plug type fixed connection
Net weight (lbs) 35
Gross weight (lbs) 48
Required distance above range/rangetop/cooktop 30''/30''
Motor location without motor
Diameter of air duct (in) top 10
Discharge direction vertical
No-return airflow flap No
Product Features
Operating mode Convertable: Ducted / Recirculating
Delay shut off modes 15M
Optional accessories CHFILT3036, DC30US, DCT30US, PA30JBS, RECIRC30FS, RFPLT1000, RFPLT600
Number of lights 2
Type of lamps used Halogen
Total power of the lamps (W) 100
Grease filter material Washable stainless steel
Grease filter type Multilayer cassette



Technical Specifications

Amps (A)

15

Frequency (Hz)

60

Approval certificates

CSA, UL

Plug type

Fixed connection

Net weight (lbs)

35

Gross weight (lbs)

48

Required distance above range/rangetop/cooktop

30''/30''

Diameter of air duct (in) top

10

Discharge direction

vertical

No-return airflow flap

No









Product Features





Operating mode

Convertable: Ducted / Recirculating

Delay shut off modes

15

Optional accessories

CHFILT3036, DC30US, DCT30US, PA30JBS, RECIRC30FS, RFPLT1000, RFPLT600

Number of lights

2

Type of lamps used

Halogen

Total power of the lamps (W)

100

Grease filter material

Washable stainless steel

Grease filter type

Multilayer cassette

Clean filter reminders

Electronic
