The ThermadorSGS305TS gas cooktop brings professional‑level performance to a compact kitchen footprint, delivering the power and precision serious home cooks expect in a refined 30‑inch design. With an overall width of 31 inches, this Masterpiece® series cooktop is engineered to offer the cooking flexibility you’d normally associate with a larger 36‑inch model, thanks to its thoughtfully arranged five‑burner layout that maximizes usable cooking space. At the heart of the unit are Star® Burners, a patented five‑point design that sets this cooktop apart from typical round burners by providing more flame ports and broader flame coverage, helping to eliminate cold spots and promote faster, more even pan heating across a wide variety of cookware. The powerful 16,000 BTU center burner gives you an extra boost of heat for rapid boiling, intense searing, and high‑heat stir‑frying, while the surrounding burners offer a range of outputs ideal for everything from gentle simmering to everyday sautéing. Continuous cast‑iron grates span the full cooking surface so you can slide heavy pots and pans smoothly from one burner to another without lifting, making multi‑course meals and large family dinners easier to manage. For everyday convenience, the sealed burner design helps keep spills and splatters on the surface where they’re easy to wipe away, instead of dripping into the burner box, and the electronic re‑ignition system automatically reignites the flame if it goes out, adding peace of mind as well as consistent performance. Finished in sleek stainless steel with robust metal control knobs, the ThermadorSGS305TS blends seamlessly into both contemporary and transitional kitchen styles, offering a premium look that matches its high‑end capabilities. Whether you’re outfitting a new build or upgrading an existing space, this cooktop delivers a compelling combination of distinctive Star® Burner technology, high‑output center power, space‑saving five‑burner configuration, and easy‑clean construction that distinguishes it from many standard 30‑inch gas cooktops on the market.
• Patented Star® Burners – unique five-point burner design provides superior flame coverage and more even heat distribution across the pan for consistent cooking results.
• Masterpiece® design collection – coordinates with Thermador Masterpiece® ovens and ventilation for a unified, premium built‑in kitchen look.
• Star-K Sabbath compliant – certified for STAR-K Sabbath use so the cooktop can be used in accordance with Sabbath and holiday requirements.
• 30" cooktop with 36" cooktop functionality – compact 30-inch width with five burners delivers the cooking flexibility typically found on larger 36-inch models, ideal for smaller kitchens.
• Five sealed gas burners – full array of 5 burners supports everything from gentle simmering to high-heat searing while keeping spills out of the burner box for easier cleanup.
• Powerful 16,000 BTU center burner – high-output center burner is optimized for rapid boiling, stir-frying, and intense searing.
• Versatile burner layout – combination of 8,000 BTU and 10,000 BTU burners around the perimeter lets you match burner size to pan size for efficient cooking.
• Continuous cast-iron grates – heavy-duty, edge-to-edge grates allow you to slide pots and pans smoothly across the surface without lifting.
• Sealed burner design – sealed burner wells prevent spills from entering the burner box, simplifying wipe-down and helping protect internal components.
• Electronic re-ignition system – automatically re-ignites the burner if the flame is accidentally extinguished, helping maintain consistent cooking and safety.
• Burner “On” indicator light – visual indicator confirms when any burner is in use, helping prevent accidental gas or heat left on.
• Front-mounted metal control knobs – ergonomic, die-cast metal knobs at the front provide easy access and precise flame adjustment without reaching over hot pots.
• Push-to-turn knob safety – knobs require an inward push before turning, helping prevent unintentional gas activation.
• Stainless steel cooktop surface – durable stainless steel finish resists everyday wear and is easy to wipe clean.
• Seamless stainless steel burner pan – smooth, one-piece pan minimizes crevices where food can collect, making surface cleaning faster.
• Cast-iron grates with rubber feet – sturdy grates with protective feet help prevent scratching of the stainless surface and keep grates stable during cooking.
• Natural gas preset with LP conversion option – factory-configured for natural gas and includes LP nozzle set for conversion to propane where needed.
• Standard 120V power connection – plugs into a typical 120V, 3-prong household outlet for ignition and indicator lights, simplifying installation.
• Compact cutout requirements – designed to fit a 28 15/16" x 19 1/8" (approx.) cutout, making it suitable for many existing 30" cooktop openings.
• Total output up to 52,000 BTU (NG) – high combined BTU capacity supports multi-pot cooking, large family meals, and entertaining.
• Non-ADA design – standard-height installation and control placement tailored for typical counter configurations (not ADA-compliant when installed normally).
• Indoor residential use – engineered for indoor, residential kitchens rather than outdoor or commercial environments.
• 2-year parts and labor warranty (typical) – manufacturer-backed coverage provides peace of mind on parts and labor for a defined initial period (check retailer or Thermador for exact terms).
Manufacturer's Warranty: 2 years
Canadian model: SGS305TS
Canadian UPC: 825225933069
EAN: 0825225933069

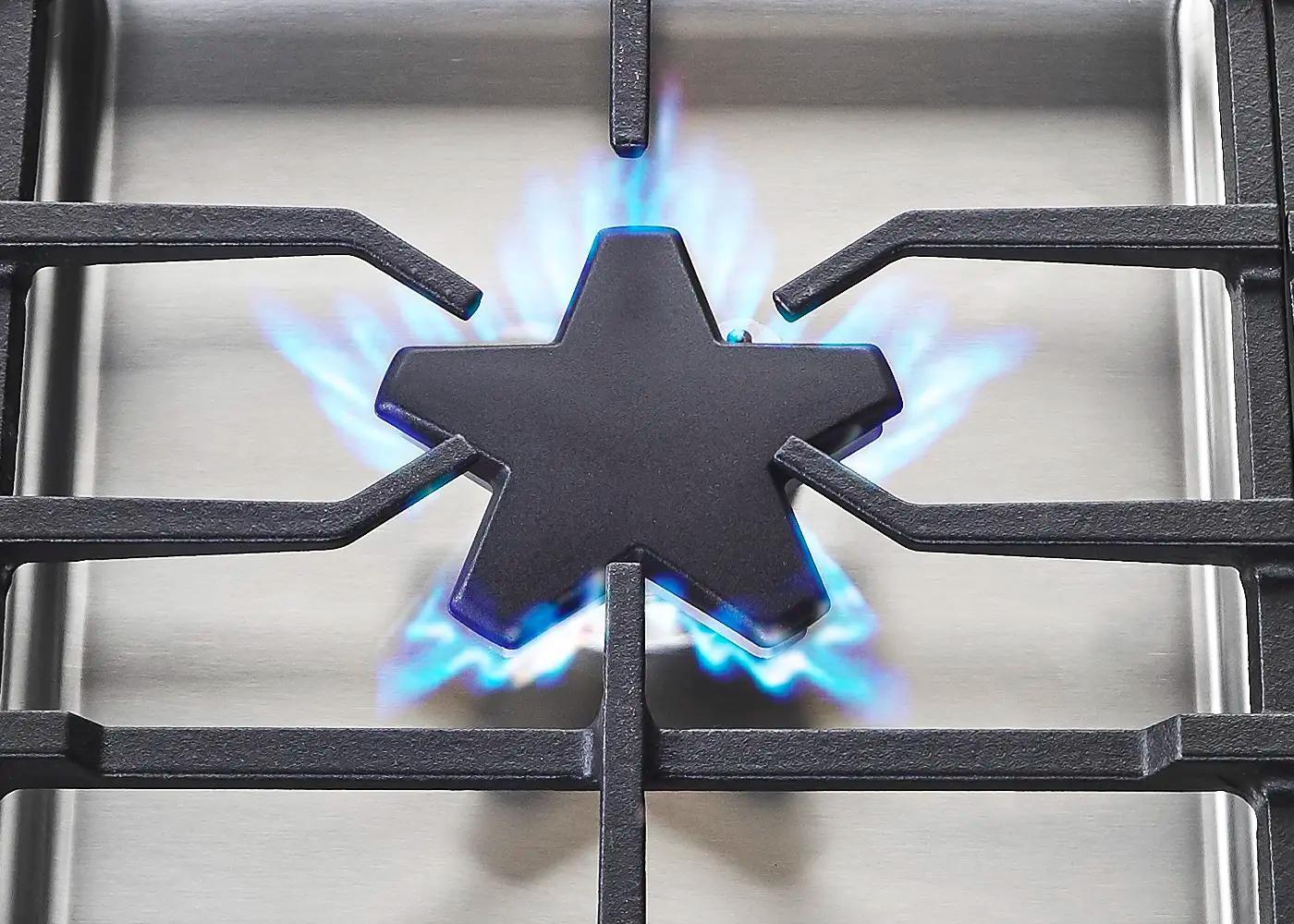

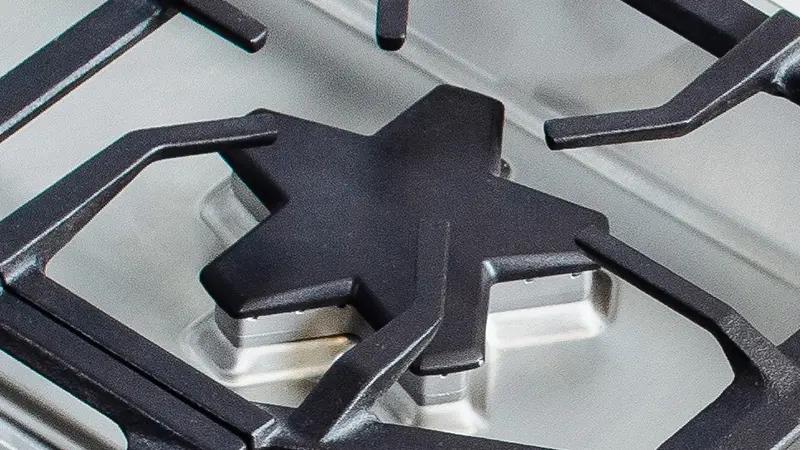

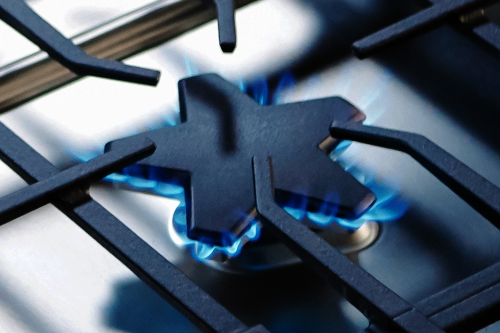

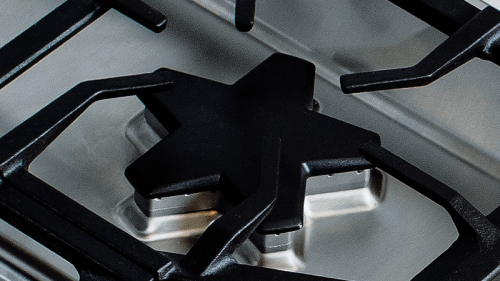

Our Star® Burner provides equal flame distribution
SGS305TS - Our Star® Burner provides equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
30-inch cooktop with functionality of a 36-inch cooktop
SGS305TS - 30-inch cooktop with functionality of a 36-inch cooktop
30-inch 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment.

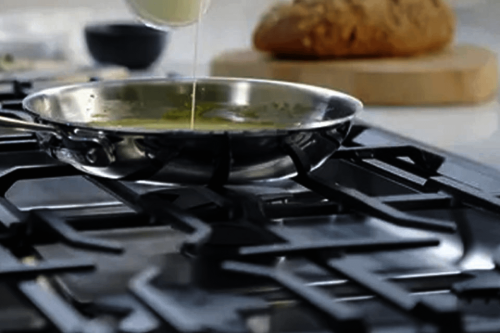

Continuous Grates make it easy to move pans
SGS305TS - Continuous Grates make it easy to move pans
The connected gridwork allows for moving pots and pans effortlessly across the cooktop.
Electronic Re-ignition keeps your flame ignited
SGS305TS - Electronic Re-ignition keeps your flame ignited
Your burners will automatically re-ignite in case the flame goes out.
Star-K Sabbath Compliant
SGS305TS - Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.
Sealed burners make clean up easier
SGS305TS - Sealed burners make clean up easier
The burner box is covered and safe from spills, making clean up easier.
