Manufacturer's Warranty: 2 years
Canadian model: SGS365TS
Canadian UPC: 825225933045
EAN: 0825225933045




| Specification | Value |
|---|---|

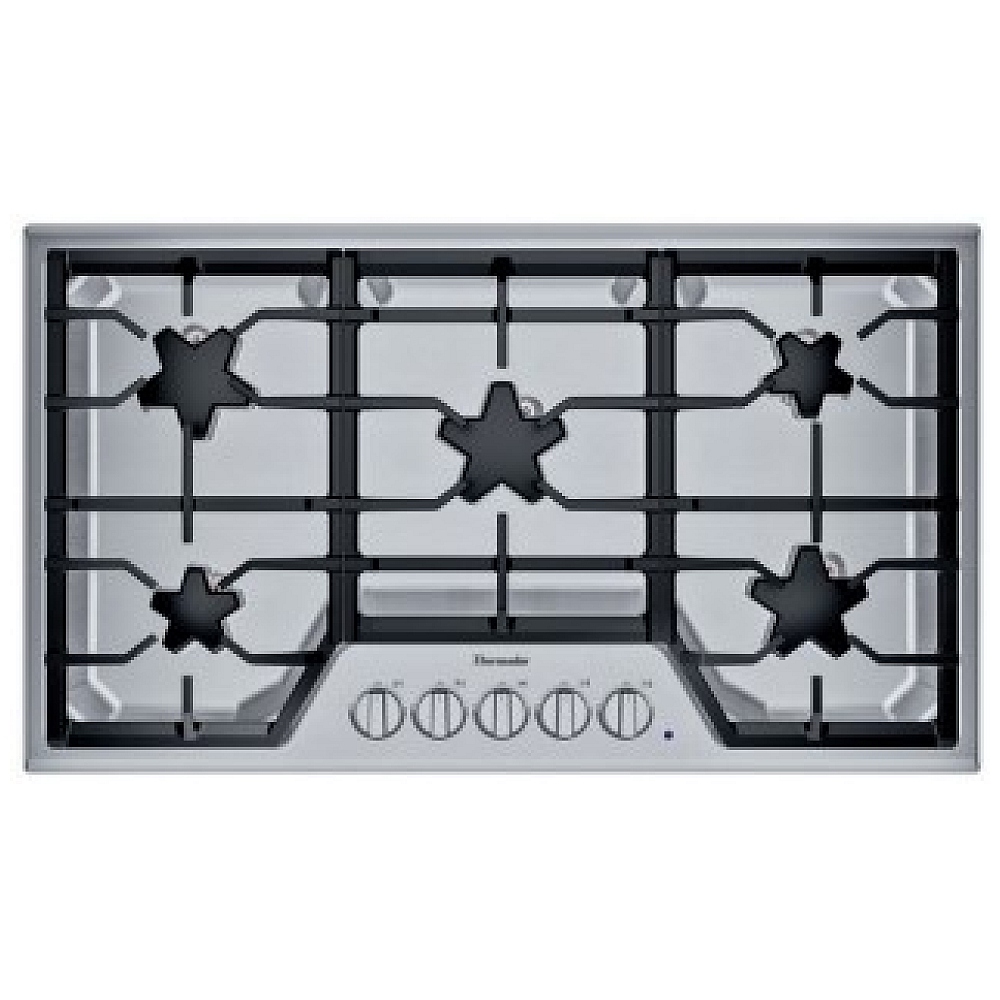

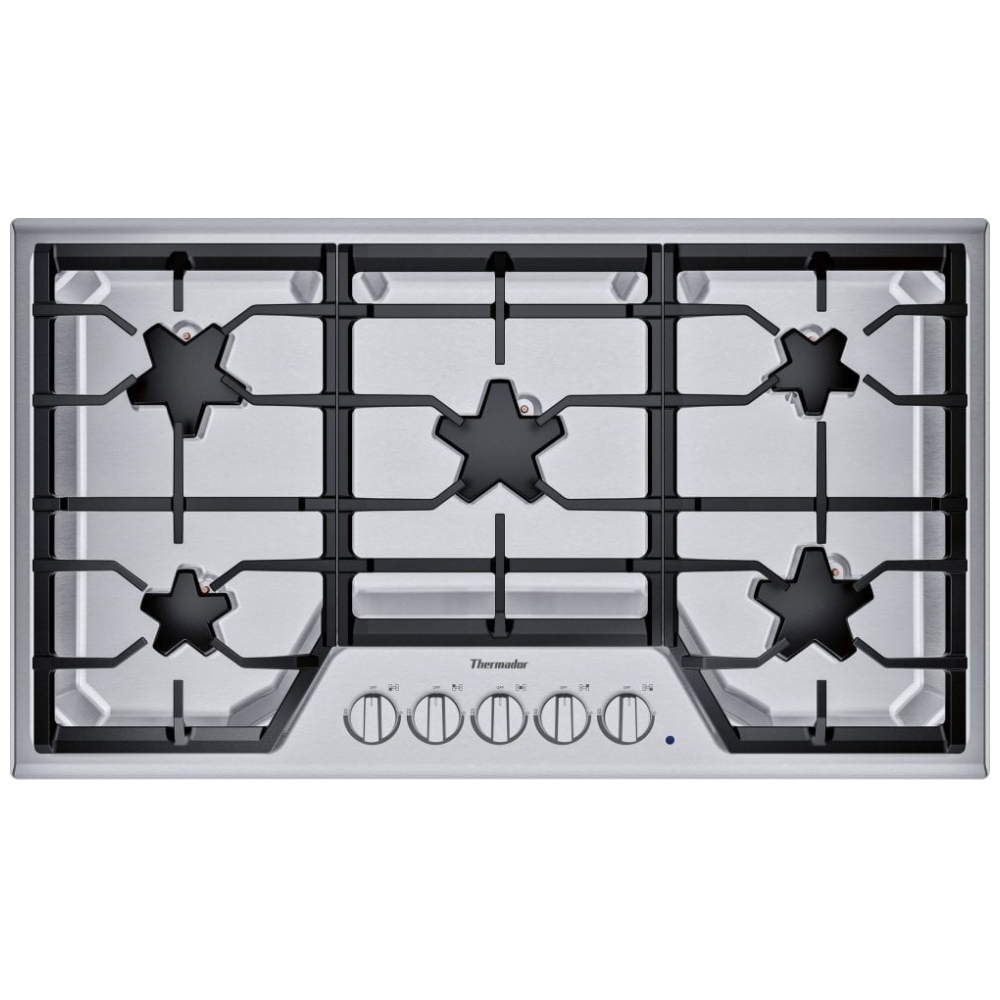

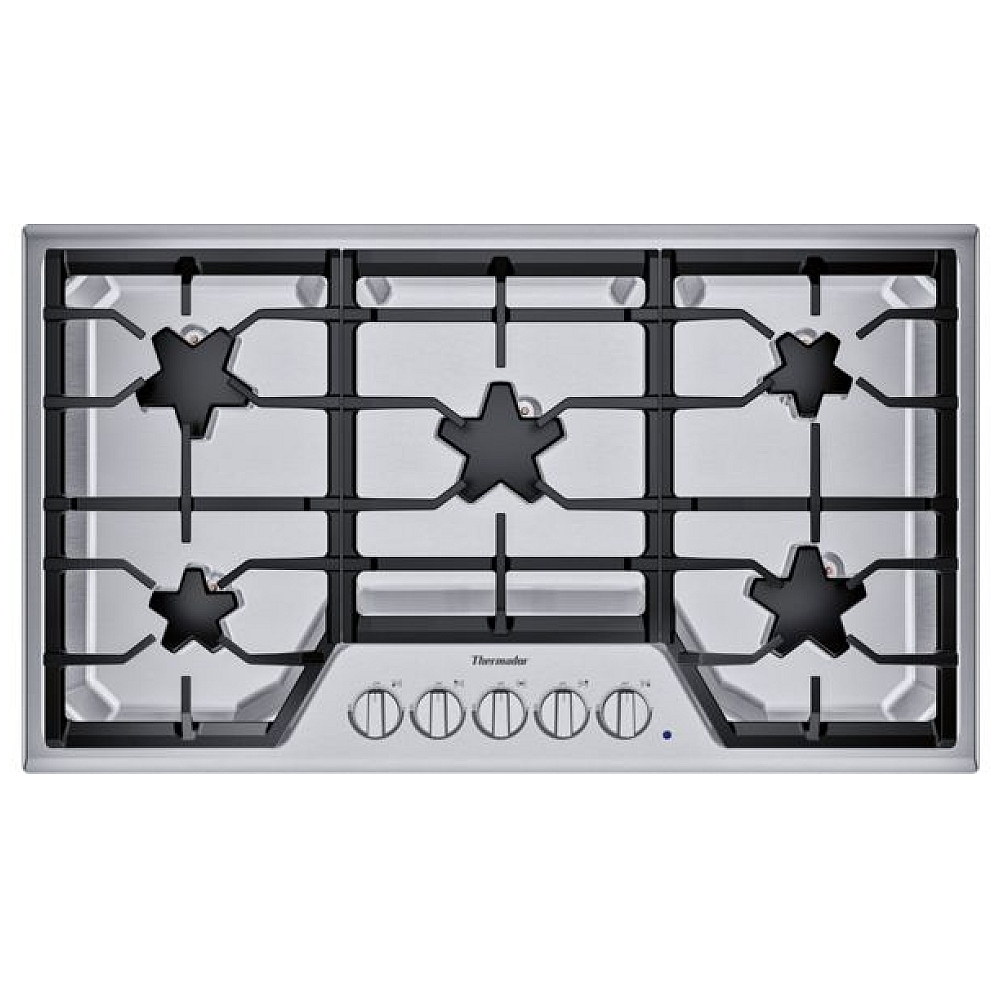

| Product Type | Built-in Gas Cooktop |
| Series | Masterpiece® Star® Burner |
| Model | SGS365TS |
| Fuel Type | Natural Gas (LP Convertible) |
| Number of Burners | 5 Sealed Star® Burners |
| Total BTU Load (NG) | 58,200 BTU |
| Total BTU Load (LP) | 45,200 BTU |
| Front Left Burner (NG / LP) | 9,100 / 6,000 BTU |
| Back Left Burner (NG / LP) | 12,000 / 9,100 BTU |
| Center Burner (NG / LP) | 16,000 / 15,000 BTU |
| Back Right Burner (NG / LP) | 9,100 / 6,000 BTU |
| Front Right Burner (NG / LP) | 12,000 / 9,100 BTU |
| Nominal Width | 36 inches |
| Width | 37 inches |
| Depth | 21.25 inches |
| Height | 5.37 inches |

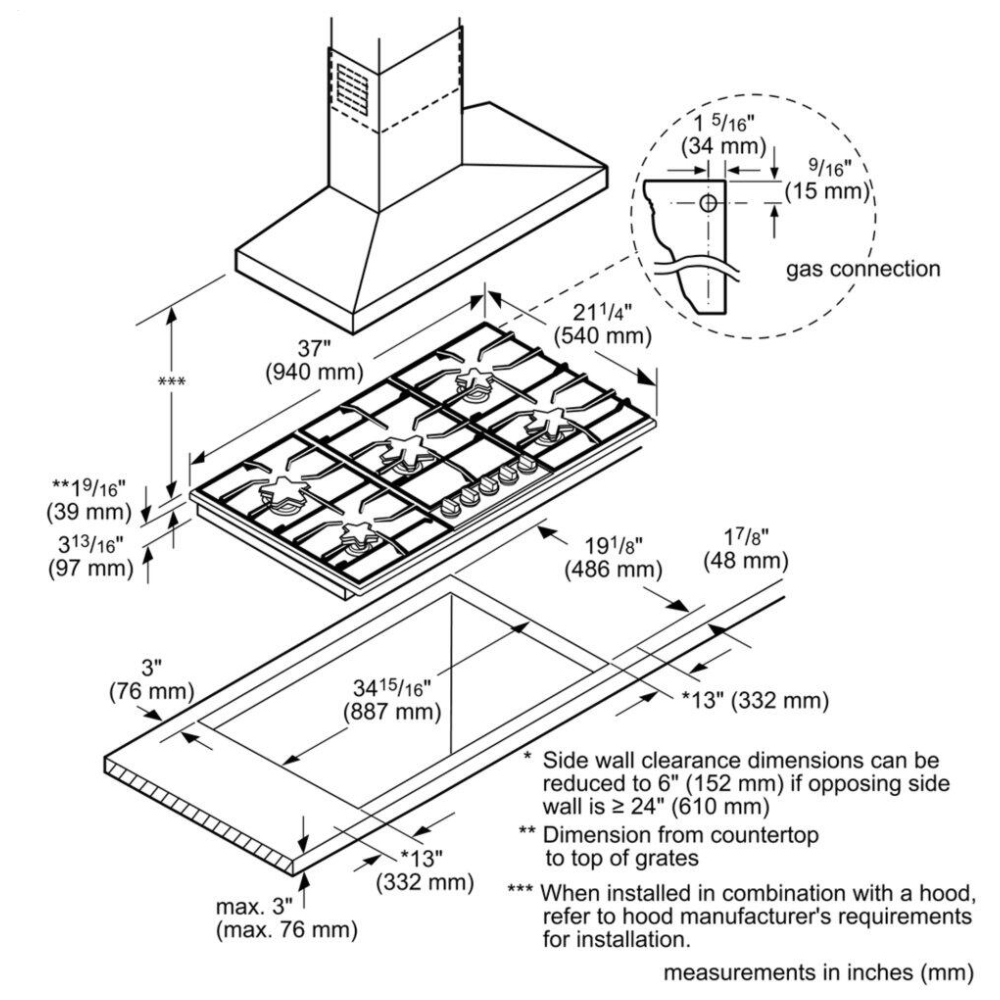

| Overall Dimensions (HxWxD) | 3 13/16" x 37" x 21 1/4" |
| Cutout Width | 34 15/16 inches |
| Cutout Depth | 19 1/8 inches |
| Cutout Height | 3 13/16 inches |

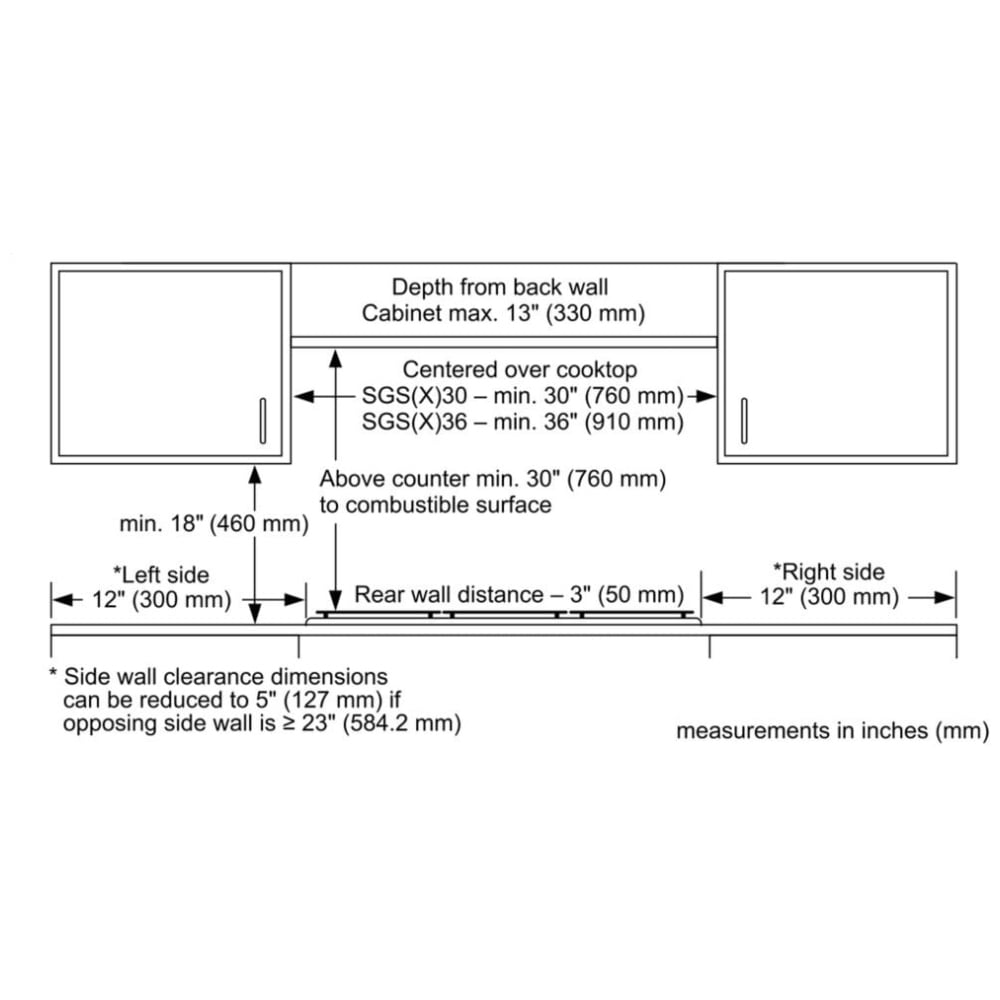

| Minimum Distance from Counter Front | 1 1/2–1 7/8 inches (varies slightly by guide) |
| Minimum Distance from Rear Wall | 3 inches |
| Grate Material | Cast Iron with Rubber Feet |
| Surface Material | Stainless Steel |
| Control Type | Front Mechanical Metal Knobs |
| Ignition | Electronic Re-ignition (Automatic) |
| ExtraLow® Burners | No |
| Continuous Grates | Yes |
| Sealed Burners | Yes |
| LP Conversion Kit | Available (LP nozzle set included / SLPKITW referenced as accessory) |
| Optional Accessories | Wok Ring (SWOKRINGW), Griddle (SGRIDDLEW), LP Conversion Kit (SLPKITW) |
| Gas Type Preset | Natural Gas 15 mbar (USA) |
| Alternative Gas Type | Liquid Propane 27.5 mbar (USA) |
| Gas Connection Rating | 17,050 W (approx. 58,200 BTU) |
| Location of Gas Connection | Bottom, Rear, Right |
| Electrical Requirements | 120 V / 60 Hz / 15 A |
| Power Cord Length | 60 inches (152 cm) |
| Plug Type | 120 V, 3-prong |
| Product Weight | 39 lb (approx. 17.7 kg) |
| Net Weight | 20.4 kg |
| Gross Weight | 23.1 kg |
| Packaging Dimensions (HxWxD) | 8 3/8" x 43 1/8" x 24 3/4" |
| Star-K Sabbath Compliant | Yes |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Smart / Wi-Fi | No (not Home Connect® enabled) |

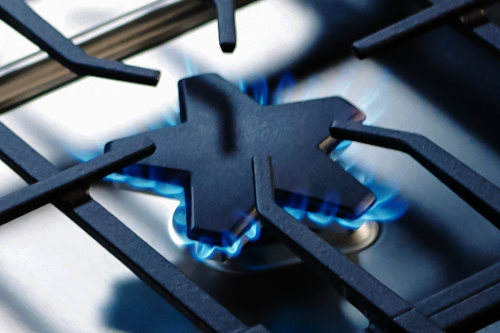

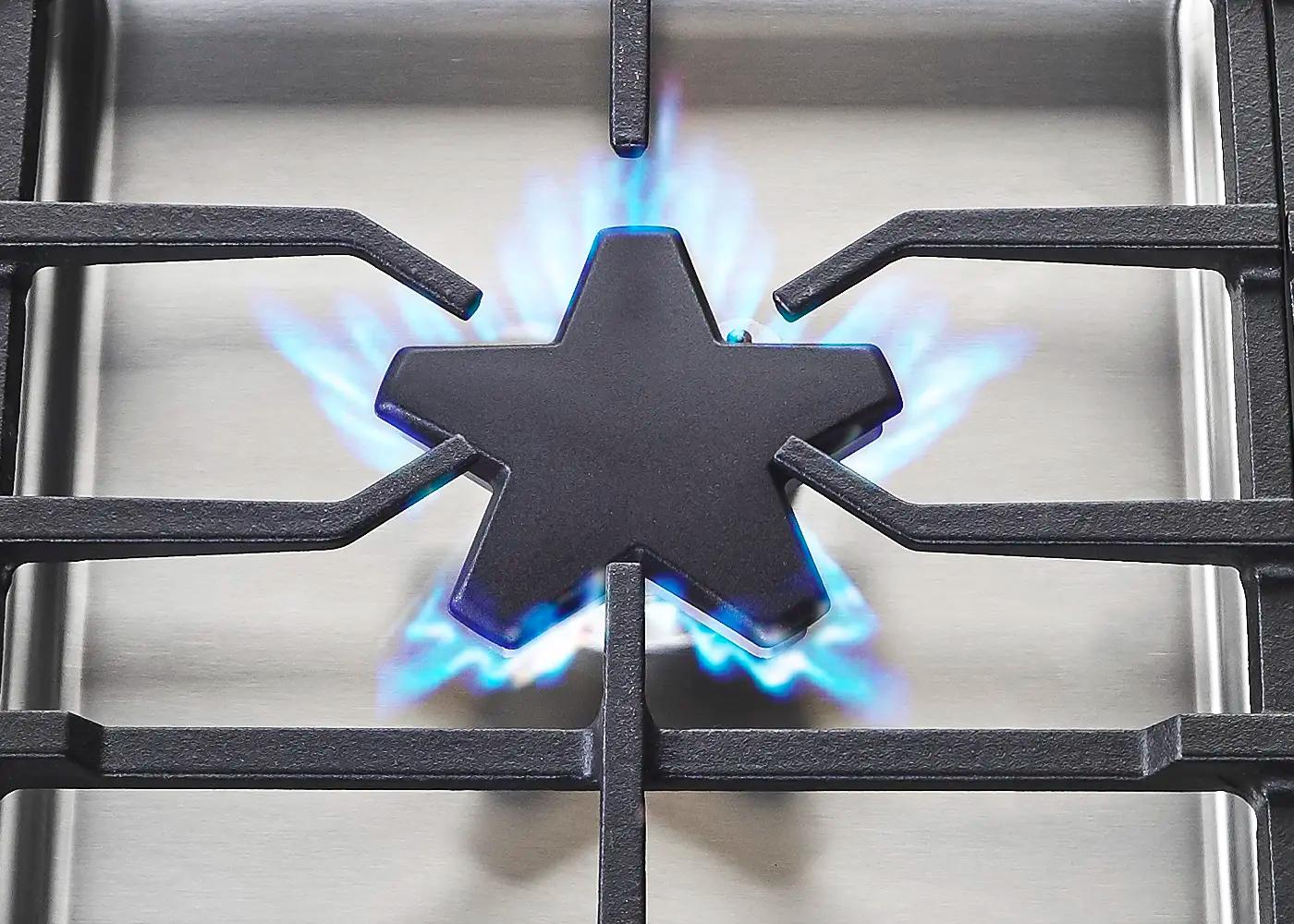

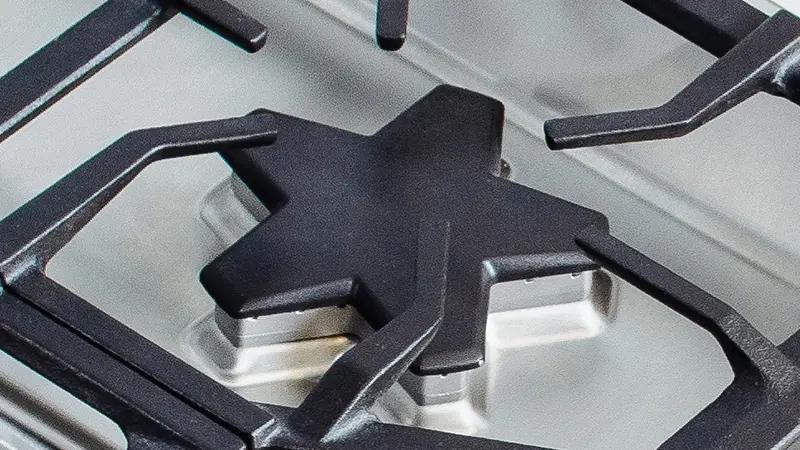

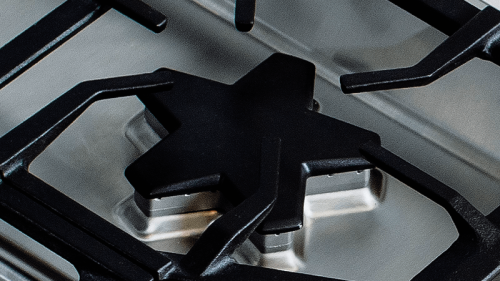

| Burner Type | Sealed Star® Burners |
| Special Features | Patented Star® Burner design, Electronic Re-ignition, Continuous Grates |
| Included Grates | 3 Cast Iron Pan Supports (2 Double Grates, 1 Single Grate) |
| Dishwasher-Safe Pan Supports | No |
| Construction Type | Built-in Hob with Integrated Controls |
| Country of Manufacture | Not Made in Canada |
| Warranty | Limited 2 Years Parts and Labor |
| UPC / EAN | UPC/EAN: 825225933045 |
