Manufacturer's Warranty: 2 years
Canadian model: SGSX365TS
Canadian UPC: 825225933038
EAN: 0825225933038




| Specification | Value |
|---|---|
| Brand | Thermador |
| Series | Masterpiece® Star® Burner |
| Model | SGSX365TS |

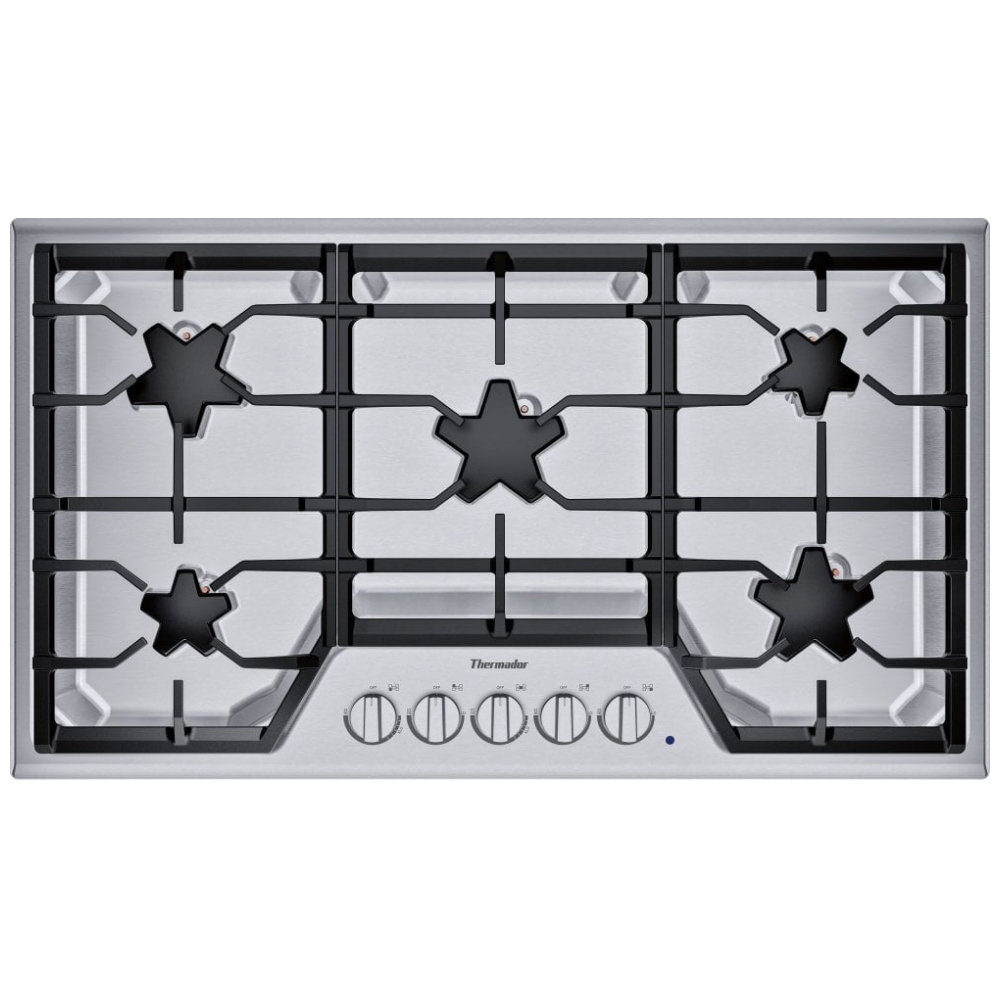

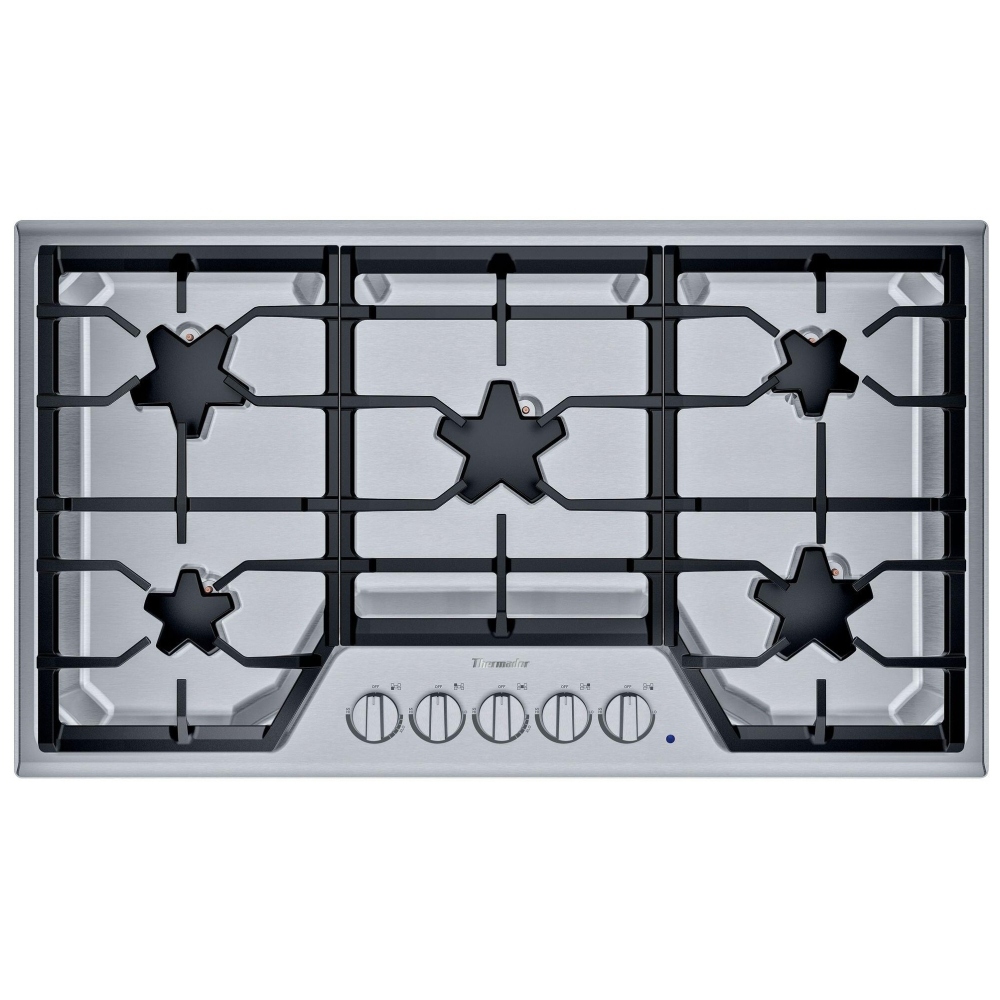

| Product Type | Built-in Gas Cooktop |
| Fuel Type | Natural Gas (LP Convertible) |
| Energy Source | Gas |
| Number of Burners / Cooking Zones | 5 |

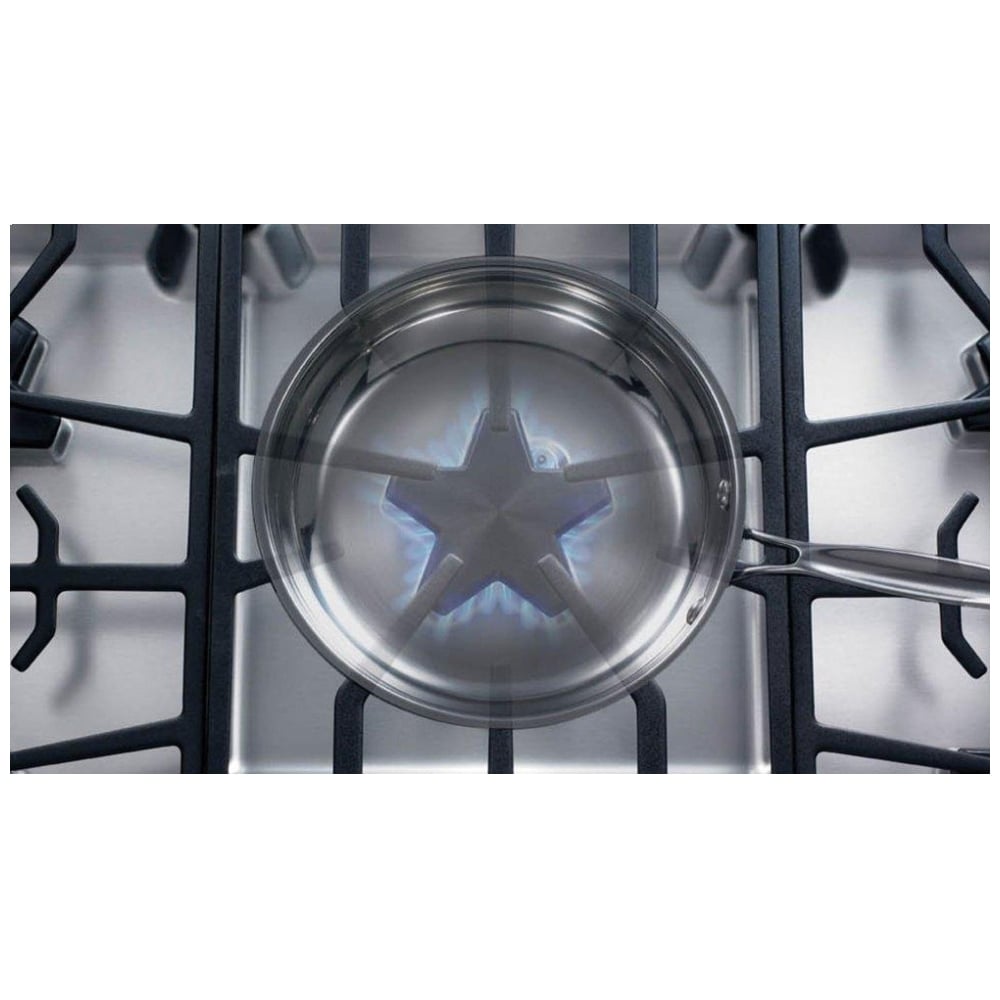

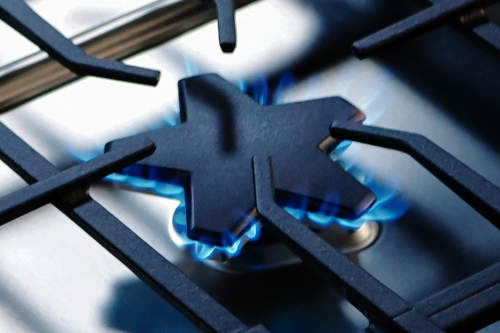

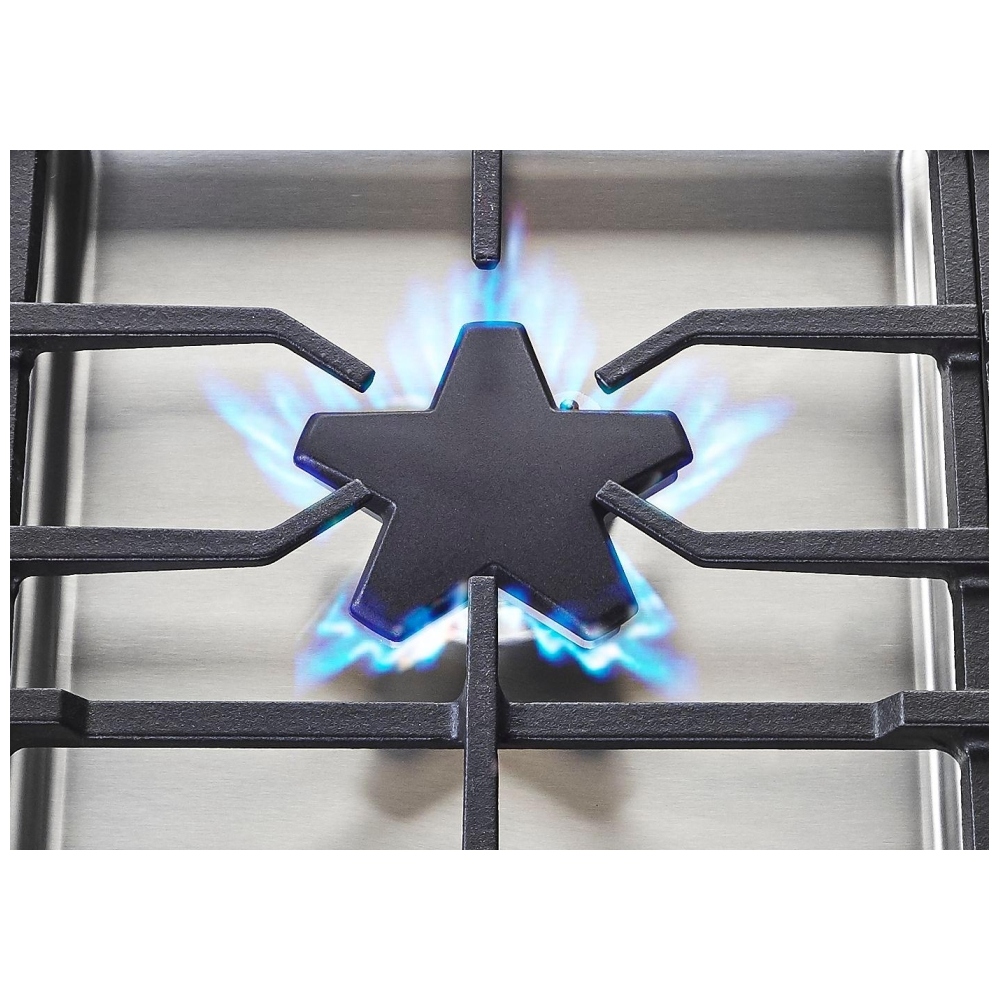

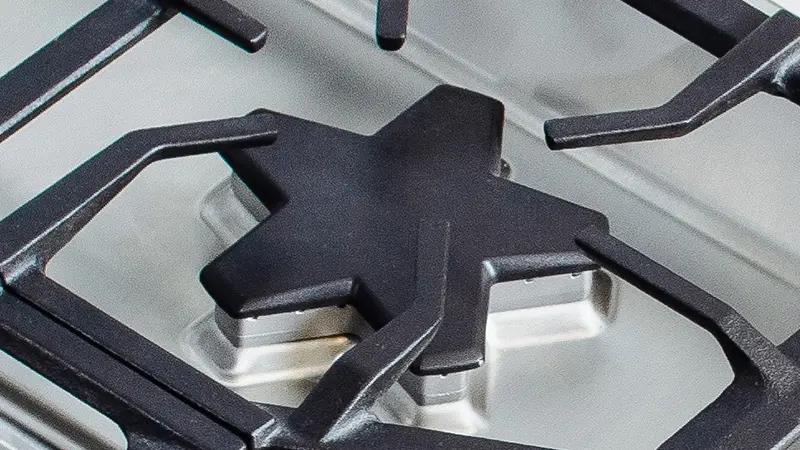

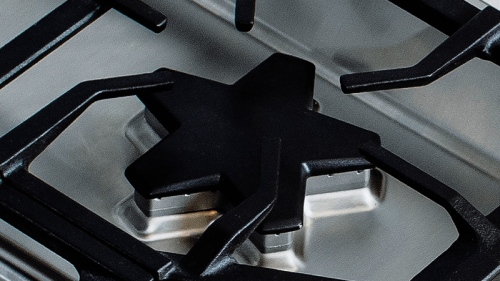

| Burner Type | Sealed Star® Burners |
| ExtraLow® Burners | Yes (2 ExtraLow® Select burners with 5 precise settings) |
| Total BTU Load (Natural Gas) | 58,200 BTU |
| Total BTU Load (LP) | 45,200 BTU |
| Front Left Burner (NG / LP) | 9,100 / 6,000 BTU |
| Back Left Burner (NG / LP) | 12,000 / 9,100 BTU |
| Center Burner (NG / LP) | 16,000 / 15,000 BTU |
| Back Right Burner (NG / LP) | 9,100 / 6,000 BTU |
| Front Right Burner (NG / LP) | 12,000 / 9,100 BTU |
| Electronic Re-ignition | Yes (automatic re-ignition if flame goes out) |
| Ignition Type | Automatic electronic re-ignition |
| Star-K Sabbath Compliant | Yes |
| Control Type | Mechanical knob / rotary control (“sword” style metal knobs) |
| Location of Controls | Front |
| Knob Material | High-grade die-cast full metal knobs |
| Safety Feature | Automatic re-ignition; “push-to-turn” knob system |
| Burner “On” Indicator Light | Yes |
| Surface Material | Seamless stainless steel burner pan |
| Grate Material | Cast iron grates with rubber feet |
| Number of Grates | 3 cast iron pan supports (2 double grates, 1 single grate) |
| Cooktop Surface Style | Continuous grate |
| Color / Finish | Stainless Steel |
| Outdoor Approved | No |
| ADA Compliant | No (when installed to ADA requirements) |
| Smart / WiFi Enabled | No (no Home Connect®) |
| Commercial Use Approved | No |
| Downdraft Ventilation | No (hood recommended) |
| Overall Width | 37 inches |
| Overall Depth | 21.25 inches |
| Overall Height (to top of grates) | 5.37–5.38 inches |
| Overall Appliance Dimensions (HxWxD) | 3 13/16" x 37" x 21 1/4" |
| Nominal Width Class | 36" |
| Required Cutout Size (HxWxD) | 3 13/16" x 34 15/16" x 19 1/8" |
| Cutout Width | 34.94 inches |
| Cutout Depth | 19.13 inches |
| Cutout Height | 3.81 inches |

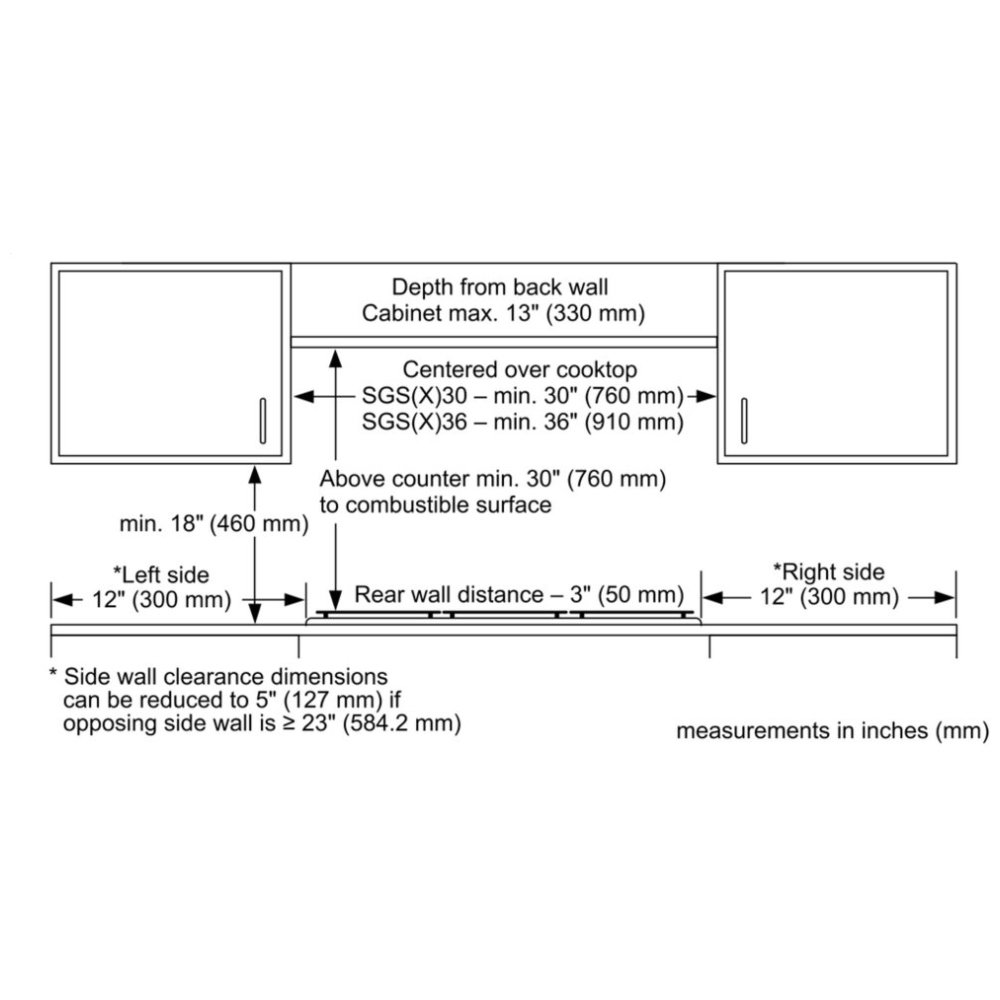

| Minimum Distance from Counter Front | 1 1/2"–1 7/8" (varies slightly by spec sheet; use 1 7/8" minimum) |
| Minimum Distance from Rear Wall | 3 inches |
| Location of Gas Connection | Bottom, rear, right |
| Gas Type (Preset) | Natural gas 15 mbar (USA) |
| Alternative Gas Type | Liquid propane 27.5 mbar (USA), conversion kit available |
| Gas Connection Rating | 17,050 W equivalent |
| Electrical Requirements | 120 V / 60 Hz / 15 A |
| Connected Load | Approx. 1,800 W |
| Power Cord Length | 60 inches (152–152.4 cm) |
| Plug Type | 120 V, 3-prong |
| Product Weight | Approx. 41 lb (18.6 kg) |
| Net Weight | Approx. 21.3 kg |
| Gross / Shipping Weight | Approx. 24.0 kg |
| Product Packaging Dimensions (HxWxD) | 8 3/8" x 43 1/8" x 24 3/4" |
| Installation Type | Built-in |
| Construction Type | Hob with integrated controls |
| Made in Canada | No |
| Cooktop Surface Type | Stainless steel with grate surface |
| Cooktop Features | LP convertible, continuous grates, sealed burners, ExtraLow® simmer |
| Included Accessories | 3 x cast iron pan supports (grates) |
| Optional Accessories | Wok ring (SWOKRINGW), griddle (SGRIDDLEW), LP conversion kit (SLPKITW) |
| Warranty | Limited 2-year parts and labor |
| UPC / EAN | 825225933038 |
