Manufacturer's Warranty: 1 year
Technical Details | |
---|---|
Fuel Type | Natural Gas |
Construction | Freestanding |
Burner Type | Sealed Burners |
Type of Grate | Continuous |
Watts (W) / Max BTU | 18000 |
Amperage | 15A |
Volts (V) | 120V |
Frequency (Hz) | 60Hz |

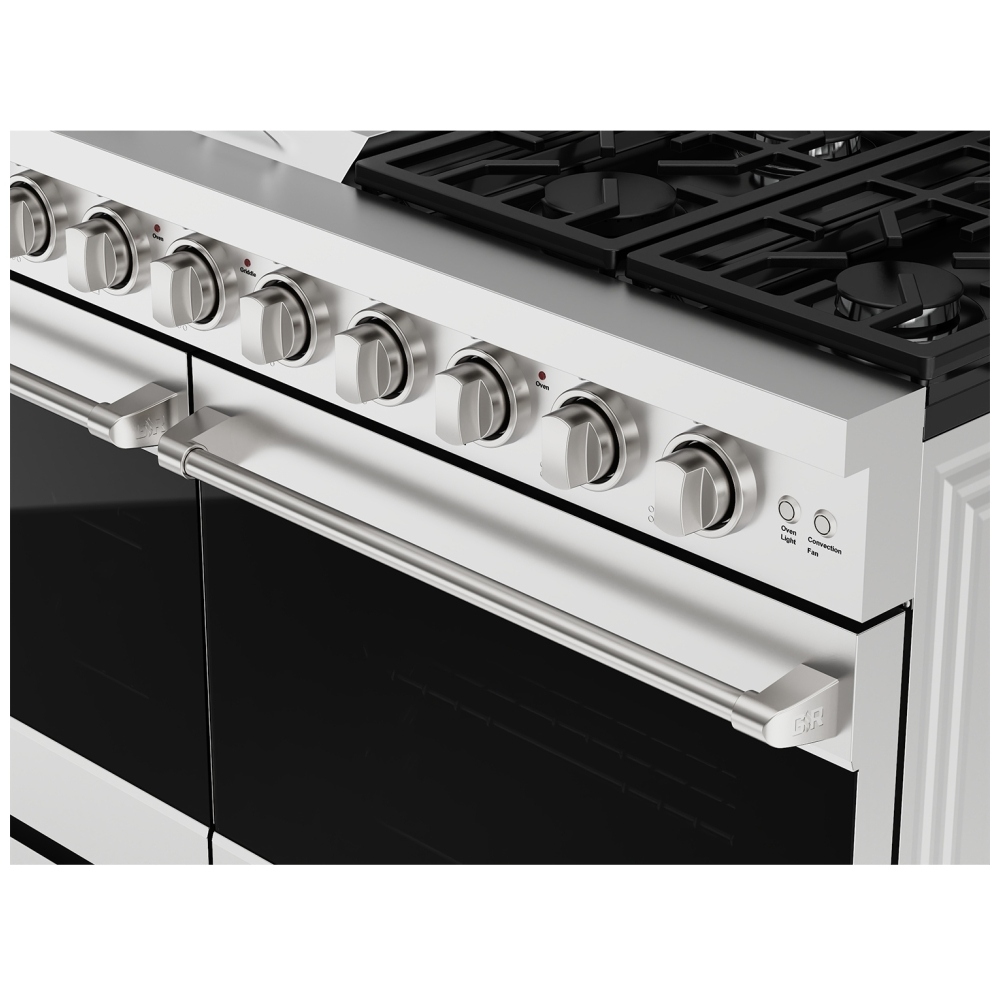

Control Type | Knob |
Panel light | Yes |
Plug Type | US 3 Prong |
Power Cord Length (in.) | 59 in. |
Color | Stainless Steel |
Certification | CSA |
Oven Performance | |
---|---|
Oven Capacity (cu. Ft.) | 4.8 cu. ft. and 2.2 cu. ft. |
Oven Control Features: | Light On/ Off, Convection Fan On / Off |
Oven Cooking Modes | Bake, Conv Bake, Roast, Conv Roast, Broil |
Bake Element Power | 22000BTU |
Broil Element Power | 10000 BTU |
Convection | Commerical convection |
Oven Lights | Yes |
Oven Racks (Standard) | 2 |
Oven Racks (telescopic) | 2 |
Baking Sheet Size | 30″:Fits 29” x 16” Baking sheet 18′:Fits 16x 12 1/2”Baking sheet |
Self Clean (Y/N) | N |
Sabbath Mode (Y/N) | N |
Air Fry | N |

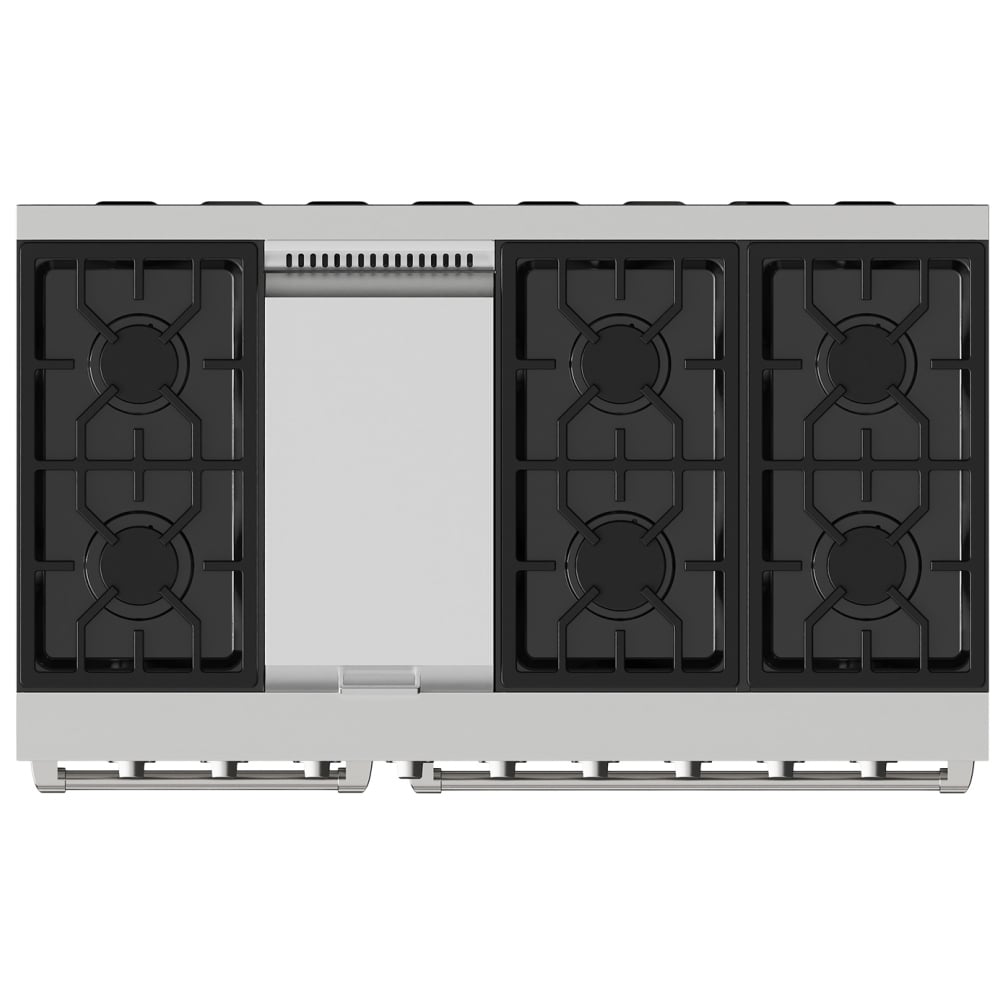

Cooktop Performance | |
---|---|
Total Burners | 7 |
Front Left Burner | 12000 BTU |
Front Center Burner | 18000 BTU |
Front Right Burner | 12000 BTU |
Rear Left Burner | 12000 BTU |
Rear Center Burner | 12000 BTU |
Rear Right Burner | 12000 BTU |
Griddle Burner | 15000 BTU |
Product Dimensions | |
Rubber Spacer Depth (install on back panel) | 3/4 (in.) |
Product Height (from bottom to top of back splash) (in.) | 40 (in.) |
Product Height (from bottom to top of side panel) (in.) | 36 (in.) |
Product Depth (from back panel to handle) (in.) | 29 (in.) |
Product Depth (from back panel to bullnose) (in.) | 27-1/2 (in.) |
Product Depth (from back panel to control panel) (in.) | 26-3/8 (in.) |
Product Depth (from back panel to side panel front) (in.) | 24 (in.) |
Product Dimensions | |
---|---|
Rubber Spacer Depth (install on back panel) | 3/4 (in.) |
Product Height (from bottom to top of back splash) (in.) | 40 (in.) |
Product Height (from bottom to top of side panel) (in.) | 36 (in.) |
Product Depth (from back panel to handle) (in.) | 29 (in.) |
Product Depth (from back panel to bullnose) (in.) | 27-1/2 (in.) |
Product Depth (from back panel to control panel) (in.) | 26-3/8 (in.) |
Product Depth (from back panel to side panel front) (in.) | 24 (in.) |
Adjustable Height | 1 (in.) |
Oven Dimensions | |
---|---|
Oven Internal Width | 30 in. Oven: 23-3/4″ 18 in. Oven: 12-5/8″ |
Oven Internal Depth | 19-1/2′ (in) |
Oven Internal Height | 18 (in) |
Weight | |
---|---|
Net weight | 328 (lbs.) |
Gross weight | 390 (lbs.) |
CUTOUT | |
---|---|
Cutout Height | 36 (min.) to 37 (max.) (in.) |
Cutout Width | 48 (in.) |
Cutout Depth | 24-3/4 (in.) |
Accessories Included | |
---|---|
2 | Standard Oven Rack |
2 | Telescope Rack |
2 | Broiler Pan Set |
