Manufacturer's Warranty: 1 year
Canadian model: RVEC3305BSB
Canadian UPC: 800284003205
EAN: 0800284003205
| Specification | Value |
|---|---|
| Brand | Viking |
| Series | 3 Series |
| Model Number | RVEC3305BSB |
| Product Type | Built-In Electric Cooktop |
| Cooktop Size | 30 inches |
| Overall Width | 30 3/4 inches |
| Overall Depth | 21 inches |
| Overall Height (from bottom) | 4 1/2 inches |
| Cutout Width (Minimum) | 28 7/8 inches |
| Cutout Width (Maximum) | 29 7/8 inches |
| Cutout Depth (Minimum) | 20 inches |
| Cutout Depth (Maximum) | 20 1/4 inches |
| Cutout Height | 3 1/8 inches |
| Cutout Height (with conduit) | 4 1/8 inches |
| Number of Elements | 5 |
| Left Front Element Size | 8 1/2 inches |
| Left Front Element Type | Dual element |
| Left Front Element Power | 2,000 watts |
| Left Rear Element Size | 6 1/2 inches |
| Left Rear Element Type | Single element |
| Left Rear Element Power | 1,200 watts |
| Center Element Size | 12 inches |
| Center Element Type | Triple element |
| Center Element Power | 3,200 watts |
| Right Front Element Size | 8 1/2 inches |
| Right Front Element Type | Dual element |
| Right Front Element Power | 2,000 watts |
| Right Rear Element Size | 6 1/2 inches |
| Right Rear Element Type | Single element |
| Right Rear Element Power | 1,200 watts |

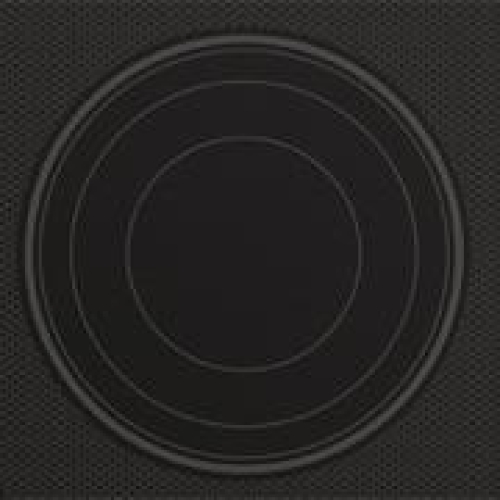

| Element Technology | QuickCook™ surface elements (ribbon technology) |
| Full-Power Heat-Up (claimed) | About 3 seconds |

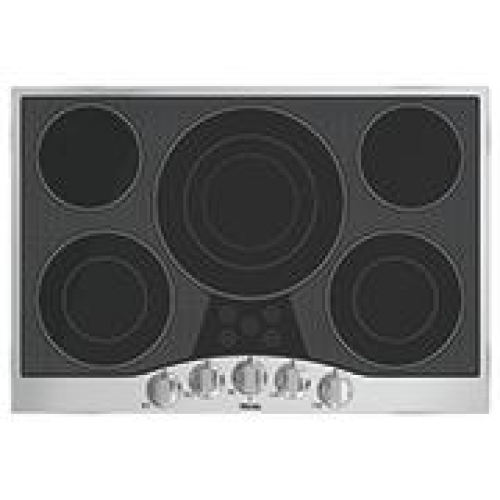

| Cooktop Surface Material | Glass ceramic |
| Frame | Stainless steel frame |

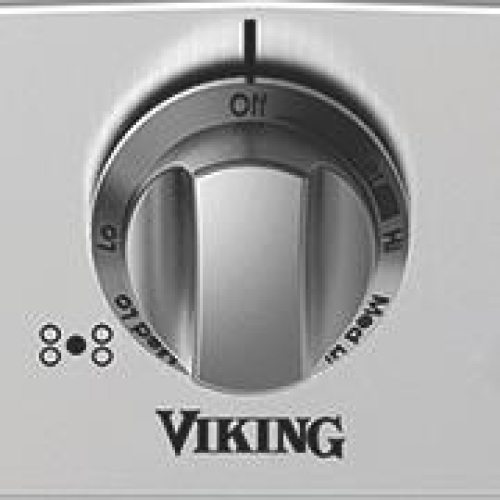

| Knob Material | Metal die-cast |
| Knob Safety Feature | Child-proof push-to-turn |
| Knobs | Customer-removable |
| Hot Surface Indicator | Yes |
| Finish / Color | Stainless Steel / Black (SB) with black glass |
| Electrical Requirements | 240/208V, 50/60Hz |
| Electrical System | 3-wire A.C. 208Y/120V or 120/240V, 60Hz (neutral not required) |
| Factory-Installed Conduit | Flexible steel conduit |
| Conduit Length | 4 ft |
| Conduit / Connection Notes | 3-wire with ground included; rated 60-amp 125–250VAC minimum |
| Maximum Amp Usage @ 240V | 40.0 amps |
| Maximum Amp Usage @ 208V | 34.6 amps |
| Approximate Shipping Weight | 52 lb |
