Whirlpool

UXT5230BDS

• FIT System™ installation – reduces measuring, cutting and trim work so the hood fits standard 30" cabinet openings quickly and cleanly.
• Hidden vent design – conceals the venting components for a sleek, built‑in look and a smoother surface that’s easier to wipe clean.

• Powerful three‑speed, 350 CFM fan – provides strong ventilation to help clear steam, grease, smoke and cooking odors from the cooktop area.
• 3 fan speed settings – lets you match ventilation power to what you’re cooking, from gentle simmering to high‑heat searing.

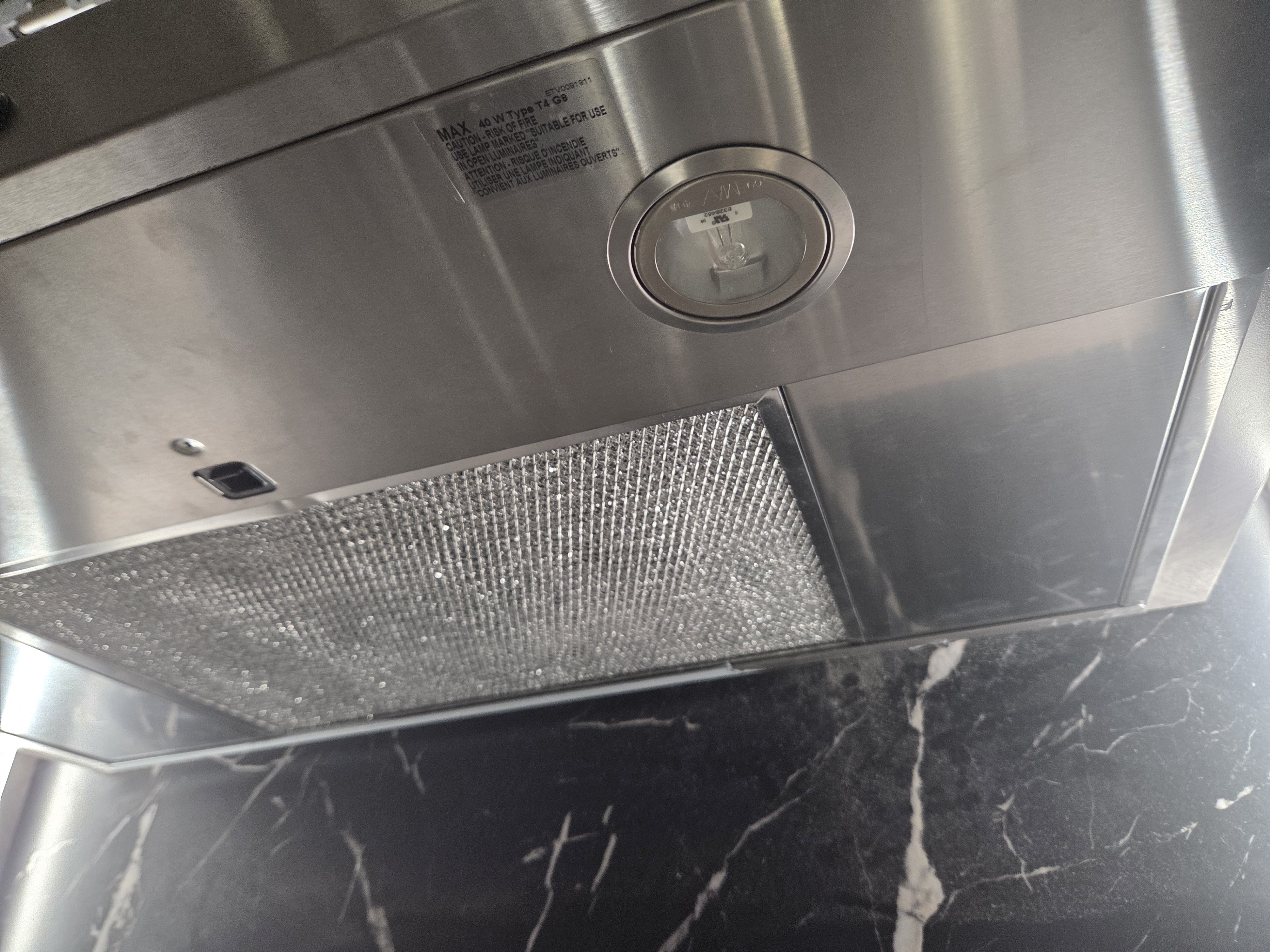

• Halogen task lighting – bright halogen bulbs illuminate the cooking surface so you can clearly see food color and doneness.
• Two lighting levels – choose brighter light for cooking or a softer level for evening or accent lighting.
• Grease filter system – traps airborne grease particles to help keep the range hood interior and surrounding kitchen surfaces cleaner.
• Charcoal odor‑removing filter – helps absorb lingering cooking smells, especially useful when using the hood in recirculating mode.
• Recirculation (non‑vented/duct‑free) option – allows installation without an outside vent; air is filtered and returned to the kitchen, ideal for condos or interior walls.
• Convertible venting (exterior or recirculating) – supports both ducted and duct‑free setups so you can match the installation to your home’s layout.
• Flexible ventilation options – works with vertical or horizontal duct runs to simplify connection to existing ductwork.
• 7" round damper included – connects easily to 7" round vertical ducting for standard up‑draft installations.
• 3‑1/4" x 10" damper included – accommodates common rectangular ducting for horizontal or vertical venting.

• Under‑cabinet range hood design – mounts neatly beneath a 30" cabinet, saving space while providing full‑width coverage over most standard cooktops.
• Approx. 30" width (29‑15/16") – sized to align with typical 30" ranges and cooktops for effective capture of smoke and steam.
• Low‑profile 4‑15/16" height – slim body maintains headroom over the cooktop and fits under many standard cabinet heights.
• 18‑5/8" depth – projects far enough to cover front burners while remaining compact for smaller kitchens.

• Push‑button controls – simple, clearly marked buttons make it easy to adjust fan speeds and lighting.
• Axial blower type – designed to move air efficiently through the hood and duct system.

• Painted steel construction – durable metal body resists everyday wear and is easy to wipe down.
• Stainless steel finish – coordinates with other stainless Whirlpool kitchen appliances for a cohesive look.

• 560 CFM motor class rating – motor is rated to handle higher airflow needs, supporting a wide range of cooking styles.
• BTU threshold up to 50,000 BTU – suitable for many standard gas and electric cooktops within this output range.
• Premium sound levels – designed to keep noise to a manageable level so conversations and family activities can continue while the hood is running.

• Two halogen bulbs – dual‑lamp setup spreads light more evenly across multiple burners.
• Task lighting on/off control – lets you use the hood lights independently of the fan for extra counter or night lighting.

• Easy‑clean surfaces – smooth exterior and hidden vent areas reduce crevices where grease and dust can collect.
• Removable filters – filters can be taken out for cleaning or replacement to maintain airflow and performance.

• ADA compliant design – meets applicable accessibility guidelines when installed and controlled according to manufacturer instructions.
• Star‑K certified – suitable for use on the Sabbath and Jewish holidays when installed and used with Star‑K guidelines.

• Standard 120V connection – works with typical household electrical circuits for straightforward installation.
• Designed for quick installation – bracket system and included dampers help reduce installation time for professionals or experienced DIYers.

• Ideal for small to medium kitchens – compact under‑cabinet footprint with strong ventilation makes it a good fit for apartments, condos and standard family kitchens.
