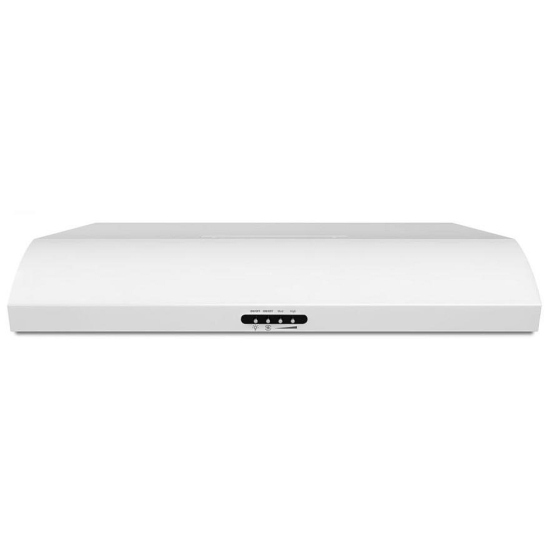

Whirlpool UXT5230BDW
Discontinued
>> View & Compare Whirlpool Ventilation Line Up << >> View & Compare Whirlpool Ventilation Line Up <<
AJ1ELA
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $21.34 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Ratings & Reviews
AJ1ELA
When will I get this?

Why Buy This at CAS?
In Home Delivery
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $21.34 for 18 months
Price Match & Beat Guarantee: We beat any competitor’s price!*
Description & Features
Installing this stove hood is quick and easy. The FIT system eliminates measuring, cutting and filler strips for a smooth fit every time. Once installed, the hood vent kitchen fan operates at a quiet 57 dBA (1.9 sones) at its lowest of three fan speeds so it won't disturb family time in the kitchen. Plus, halogen lighting helps you keep a close eye on food so each dish turns out the way you want it to. And when cooking introduces steam, grease, smoke or odors into the surrounding air, a powerful 350 CFM motor class takes care of it.
  • FIT System
  • The FIT system eliminates measuring, cutting and trim for a perfect fit every time.
  • 57 dBA (1.9 sones) at Low Speed
  • Keep noise down in the kitchen with the quiet operation of 73 dBA (7 sones) at the hood's highest speed with a recirculation option.
  • Hidden Vent
  • Powerful Three-speed, 350 CFM Motor Class
  • Three fan speeds provide the right amount of ventilation for every meal you prepare.
  • Halogen Lighting
  • 7" Round Damper
  • 3-1/4" x 10" Damper
  • Recirculation (Non-Vented/Duct-Free)
  • By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
  • #1 Selling Appliance Brand in the U.S.A.



APPEARANCE

  • Under-Cabinet Hood Design
  • Stainless Steel

VENTHOOD FEATURES

  • 350 CFM Ventilation System
  • 3-Speed Push Button Control

CONVENIENCE FEATURES

  • Hidden Vent
  • Removable Grease Filters
  • Halogen Work Surface Lighting

DIMENSIONS

  • 4 15/16" H x 18 5/8" D x 29 15/16" W

ADDITIONAL FEATURES

  • 3 1/4" x 10" Rectangular Duct
  • Convertible to Recirculating
  • FIT System, Easy Install
  • Premium Hood Sound Levels

MANUFACTURERS WARRANTY

  • 1 Year Limited Parts & Labor

Manufacturer's Warranty: 1 year

Canadian model: UXT5230BDW

Canadian UPC: 883049326528

EAN: 0883049326528

Specs
Dimensions
Depth 18-5/8 in
Height 4-15/16 in
Width 29-15/16 in
Configuration and Overview
Hood Type Under-the-Cabinet
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Size 30 in
UL UL
Details
Number of Task Light Settings 2
Task Light Type Halogen
Task Lighting Yes
Ventilation System
Blower Type Axial
Duct Direction Vertical or Horizontal
Duct Outlet Size 3 1/4 x 10
Duct Type Rectangular
Filters Charcoal Odor Removing Filter, Dishwasher-Safe Grease Filters
Number of Speeds 3
Sound Max Speed Sones 7-1/2
Certifications
Kosher Consumer Friendly Yes
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov



Configuration and Overview
Hood Type: Under Cabinet
Venting Type: Exterior or Recirculating
Fan CFM: 350
Style and Extras
Control Type: Push Button
Number of Fan Speeds: 3
Removable Grease Filter: Yes
Task Light: Halogen
Dimensions and Weight
Width: 29 15/16"
Depth: 18 5/8"
Height: 4 15/16"
Weight: 17 lbs.
