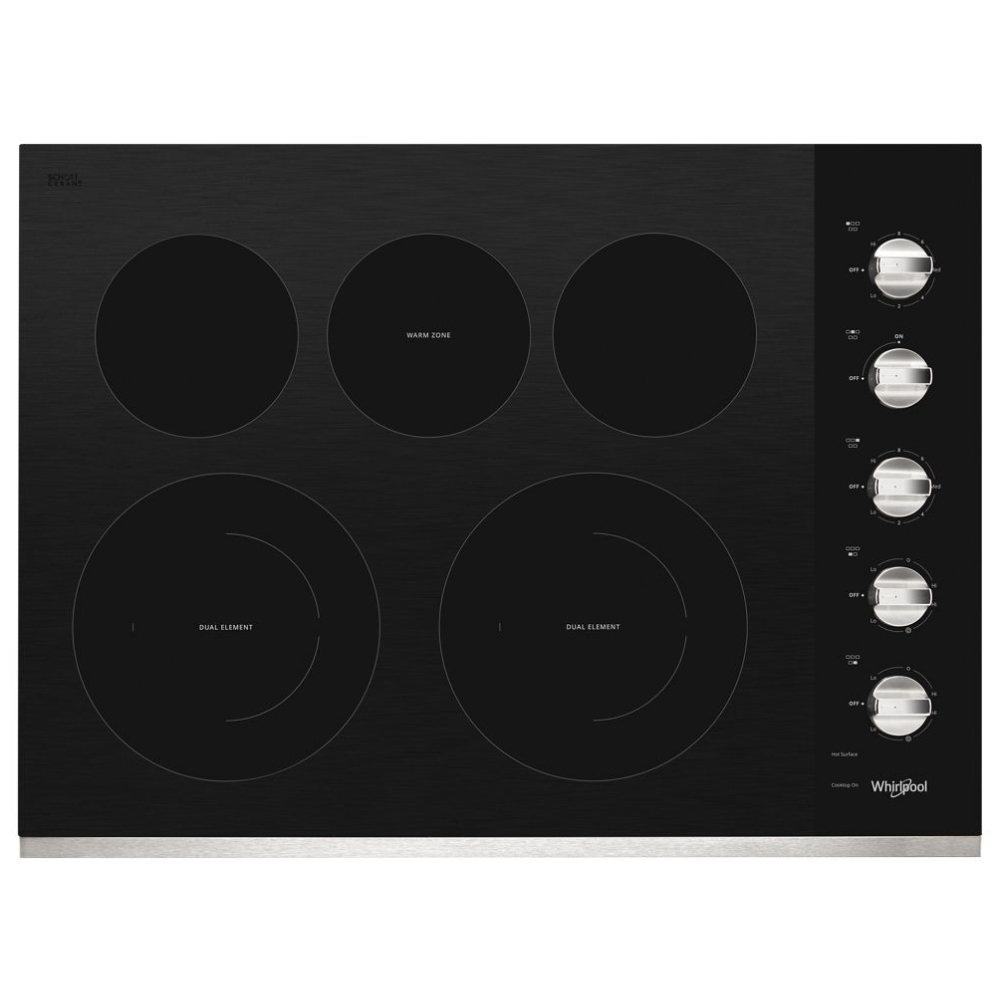

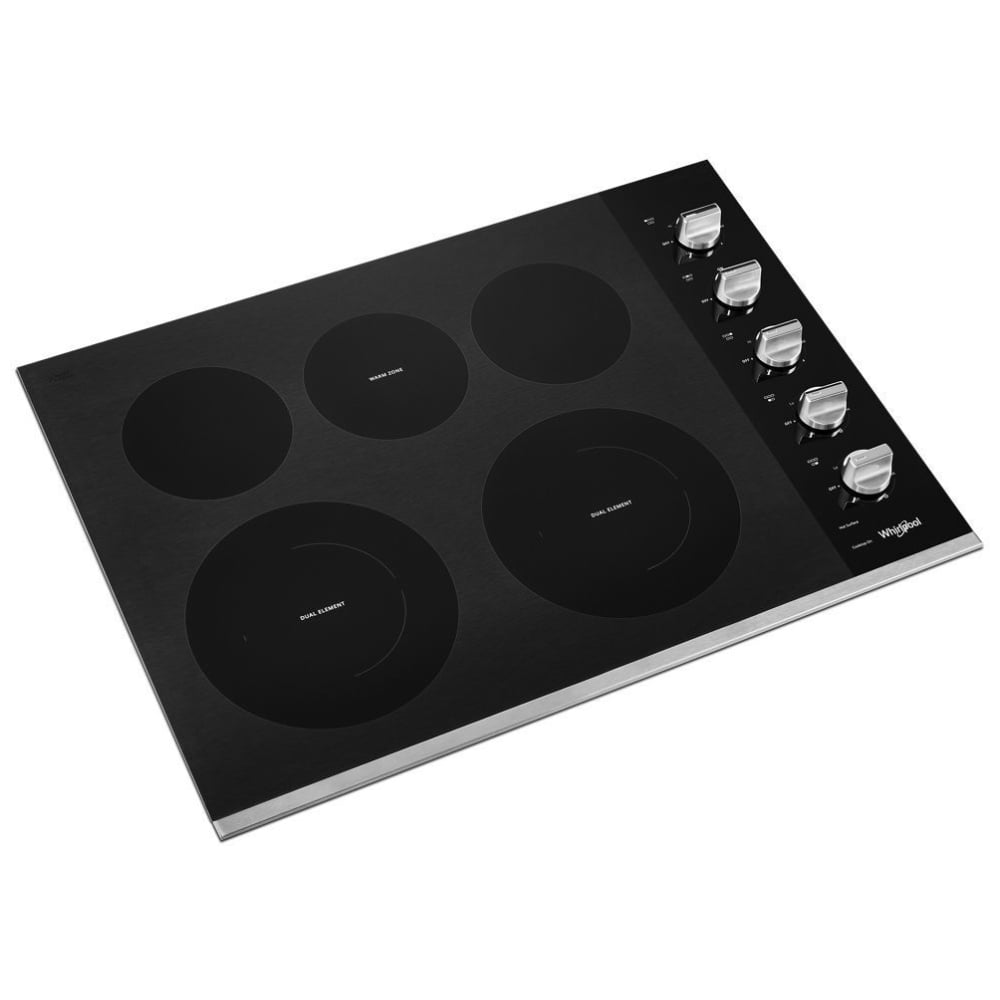

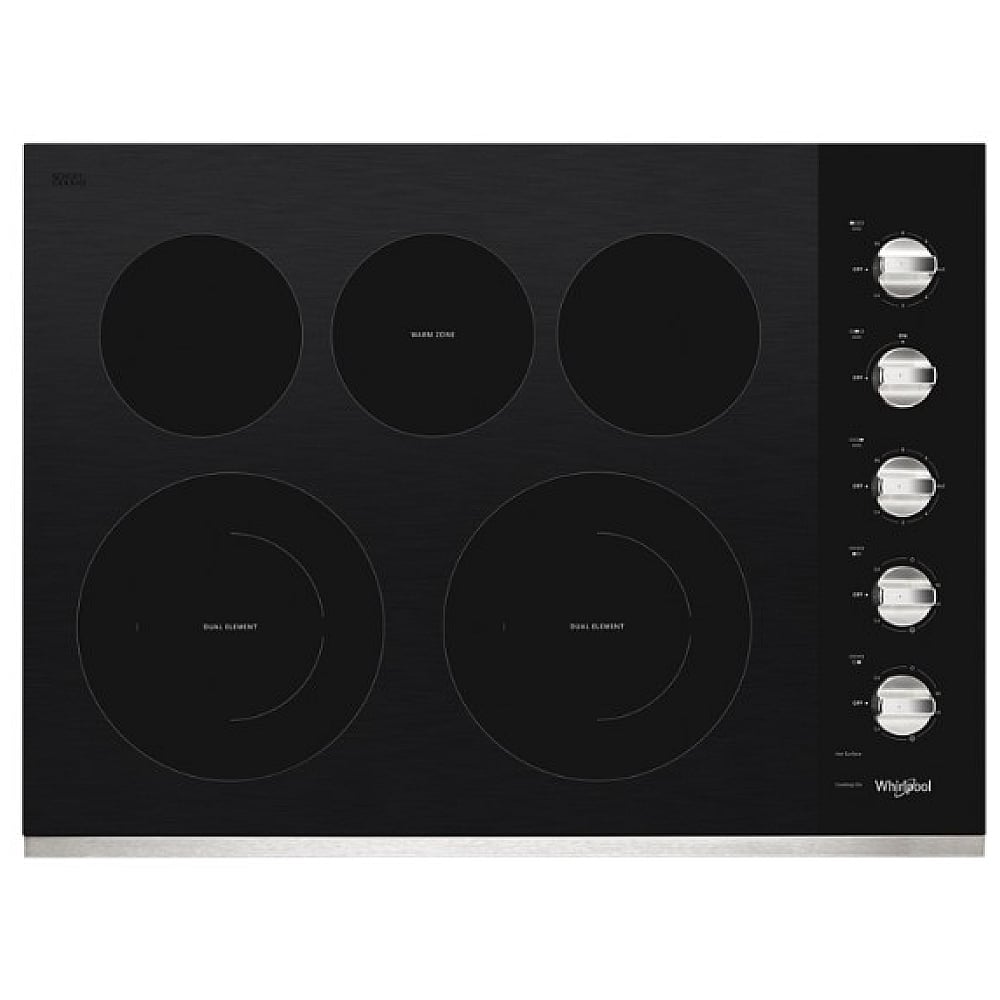

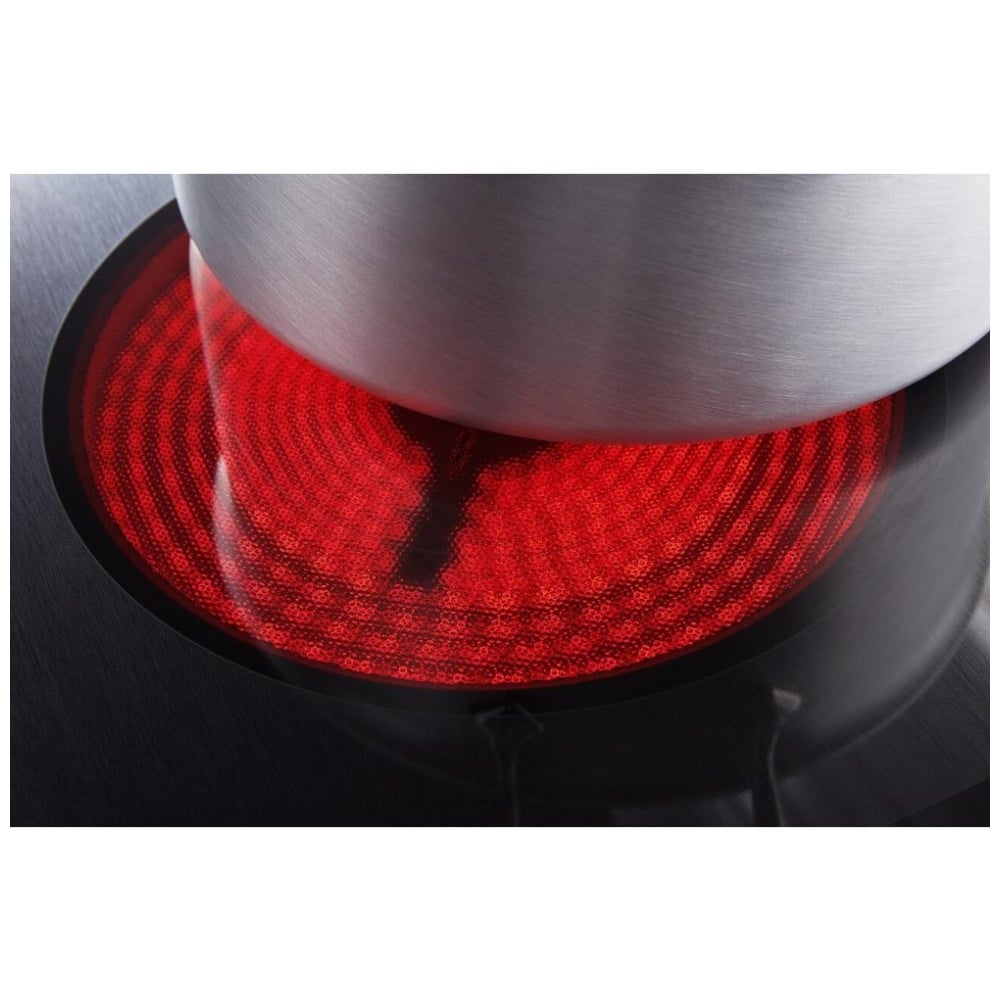

The Whirlpool WCE77US0HS Cooktop is a top-of-the-line appliance that is perfect for anyone who loves to cook. This electric cooktop has a 30" exterior width and 5 burners, giving you plenty of space to cook multiple dishes at once. The FlexHeat™ dual radiant element is a standout feature of this cooktop. It allows you to switch between a 6" inner ring for smaller pots and pans and a 10" outer ring for larger cookware, providing flexibility and versatility in your cooking.

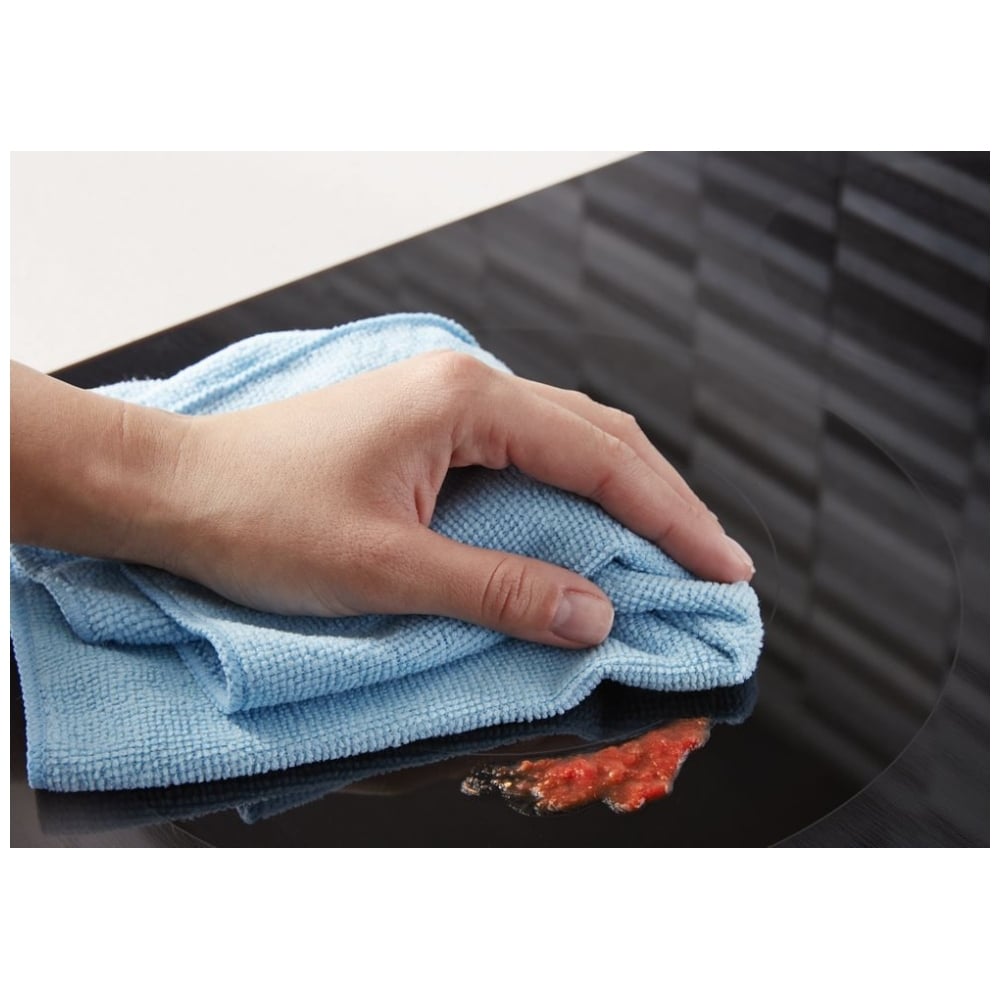

The Easy-Wipe ceramic glass cooktop of the Whirlpool WCE77US0HS Cooktop is a great feature for those who value easy cleaning. The smooth surface makes it easy to wipe away spills and splatters, and the cooktop is resistant to scratches and staining. The warm zone element is another great feature, providing a low-heat option for keeping food warm while you finish cooking other dishes.
The Whirlpool WCE77US0HS Cooktop also features a 5 element cooktop, giving you plenty of space to cook a variety of dishes at once. The cooktop features four radiant elements and a center warming zone, allowing you to cook multiple dishes simultaneously. The Hot Surface Indicator Light is another great feature of this cooktop. It alerts you when the cooktop is hot, helping to prevent accidental burns or fires.
Overall, the Whirlpool WCE77US0HS Cooktop is an excellent choice for anyone who wants a high-quality electric cooktop with plenty of features. With its FlexHeat™ dual radiant element, Easy-Wipe ceramic glass cooktop, warm zone element, 5 element cooktop, and Hot Surface Indicator Light, this cooktop provides versatility, ease of use, and safety. Whether you're cooking for a large family or just for yourself, the Whirlpool WCE77US0HS Cooktop is an excellent appliance that will make your cooking experience more enjoyable and efficient.
- Cook more of your family's favorites and enjoy added versatility with a fifth element.
- Provides five independent cooking surface areas.
- Cook small dishes like sides and sauces on the 6" Extra Element.
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Wiping up spills is simple with the easy-to-clean cooktop.
- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

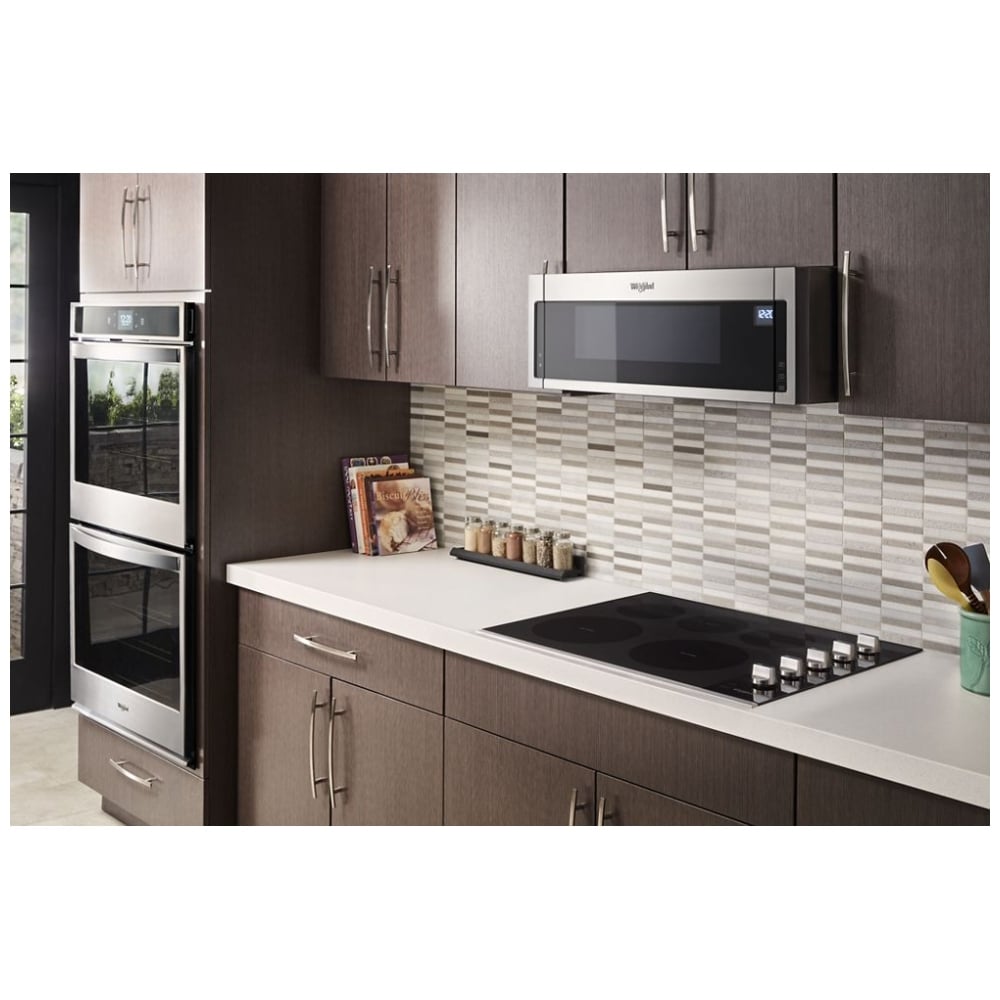

- Install this cooktop to work with a wall oven or on its own for more flexibility.
- Keep food warm while you're finishing the rest of the meal using this low-powered element.
UPC: 883049472799
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Controls | |
Control Location | Right |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | No |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Combinations With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |
Dimensions | |
Product Height | 5.25 |
Carton Height | 9.25 |
Gross Weight | 46 |
Carton Width | 35 |
Product Depth | 22.875 |
Cutout Depth Max | 20.563 |
Cutout Width Min | 29.063 |
Cutout Depth | 20.375 |
Carton Depth | 25 |
Cutout Width | 29.063 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 29.563 |
Net Weight | 41 |
Product Width | 30.8125 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 100W |
Center Rear Element-burner Size | 6in. |
Center Rear Element-burner Type | Warming |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 3000W/1900W |
Left Front Element-burner Size | 10in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,200W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 3000W/1900W |
Right Front Element-burner Size | 10in./6in. |
Right Front Element-burner Type | Dual |
Right Rear Element-burner Power | 1,200W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Standard |
Exterior Details | |
Knob Color | Stainless Steel |
Knob Type | Dishwasher-Safe Plastic |
Ventilation Details | |
Downdraft Vent | No |
Dimensions | |
---|---|
Depth | 22 7/8 |
Width | 30 13/16 |
Height | 5 1/4 |
Carton Depth | 25 |
Carton Height | 9 1/4 |
Carton Width | 35 |
Cutout Depth | 20 3/8 |
Cutout Width | 29 1/16 |
Gross Weight | 46 |
Maximum Height | 5 1/4 |
Net Weight | 41.0 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
Description | |
Combinations with Oven | WOS11EM4,WOS51EC0,WOS51EC7,WOS51ES4,WOS72EC0,WOS72EC7,WOS92EC0,WOS92EC7,WOS97EC0,WOS97ES0,WOSA2EC0 |
Configuration and Overview | |
Cooktop Type | Standard |
Fuel Type | Electric |
Size (IN,inches) | 30 |
Installs Over Built-In Oven | Yes |
LP Convertible | No |
Power Boost | No |
Cooktop Details | |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Center Rear Element-Burner Size | 6" |
Cooktop Surface Material | Glass |
Number of Open Bays | NA |
Right Rear Element-Burner Size | 6" |
Left Front Element-Burner Power | 3000W/1900W |
Left Rear Element-Burner Size | 6" |
Left Front Element-Burner Size | 10"/6" |
Left Rear Element-Burner Power | 1200W |
Left Rear Element-Burner Type | Standard |
Right Front Element-Burner Power | 3000W/1900W |
Right Front Element-Burner Size | 10"/6" |
Right Rear Element-Burner Power | 1200W |
Right Rear Element-Burner Type | Standard |
Cooktop Configuration | All Burners |
Center Rear Element-Burner Power | 100W |
Center Rear Element-Burner Type | Warming |
Left Front Element-Burner Type | Dual |
Right Front Element-Burner Type | Dual |

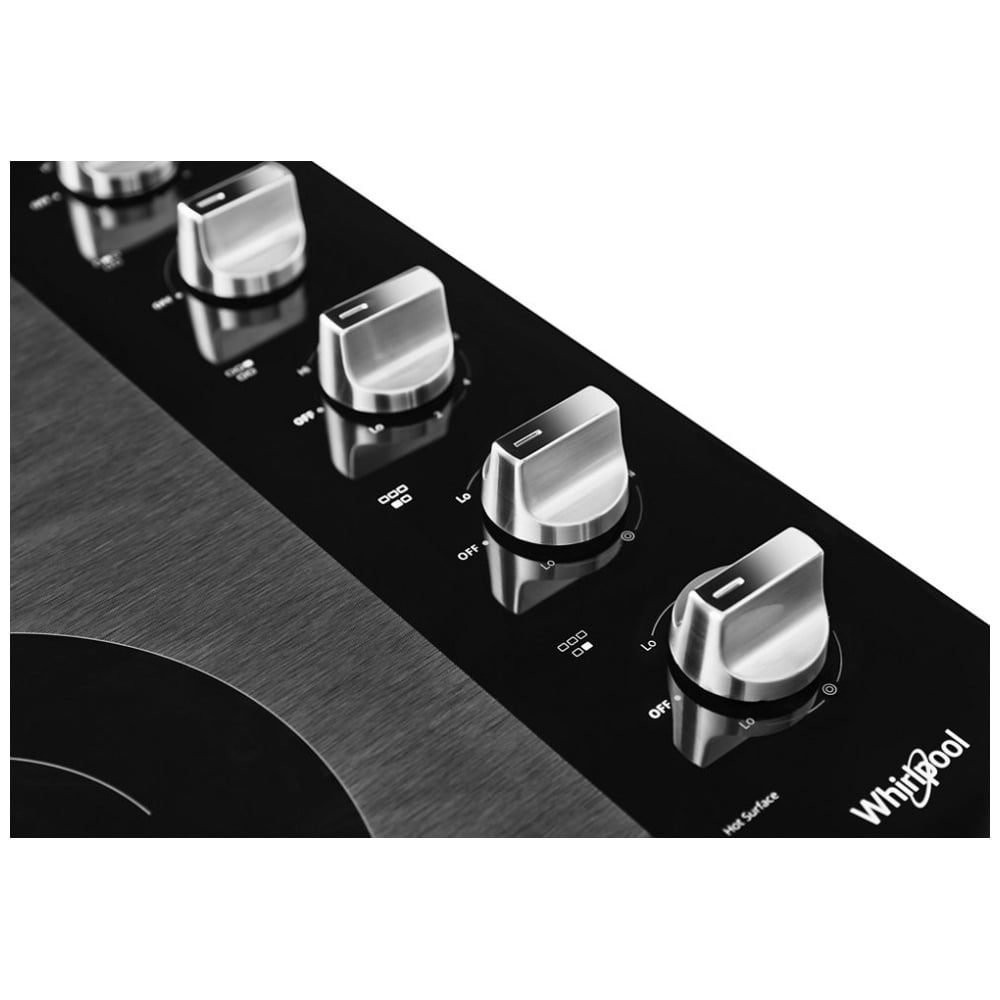

Controls | |
Control Type | Knobs |
Infinite Heat Controls | Yes |
Knob Color | Stainless Steel |
Knob Type | Dishwasher-Safe Plastic |
Control Location | Right |
Appearance | |
Digital Display | No |
Features | |
Griddle | NA |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Refinements | |
WHR Cooktop | ADA Compliant |
