MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
Protect your purchase with an extended warranty.
- Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- Cook more of your family's favorites and enjoy added versatility with a fifth element.
- Provides five independent cooking surface areas.
- Cook small dishes like sides and sauces on the 6" Extra Element.
- Cook small dishes like sides and sauces on the 8" Extra Element.
- This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
- Disable the control panel to avoid unintended use and easily clean controls.
- Wiping up spills is simple with the easy-to-clean cooktop.
- Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Get three elements in one with a 6" inner ring that's great for smaller pots and pans, and 9" and 12" outer rings that make room for larger cookware.
- See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Keep track of cook times with an easy-to-clean Kitchen Timer that s integrated into the Tap Touch Controls.
- Clean the controls as easily as you use them.
- Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.
- Keep food warm while you're finishing the rest of the meal using this low-powered element.
UPC: 883049599052
Certifications | |
Ada Compliant | ADA Height and Operation Compliant |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Location | Right Front |
Control Type | Tap Touch |
Infinite Heat Controls | No |
Cooktop Details | |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Digital Display | Yes |
Griddle Included | N/A |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Number of Open Bays | N/A |
Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Combinations With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
Cooktop Configuration | All Burners |
Fuel Type | Electric |
Installs Over Built-in Oven | Yes |
Lp Convertible | No |
Power Outage Compatible | No |

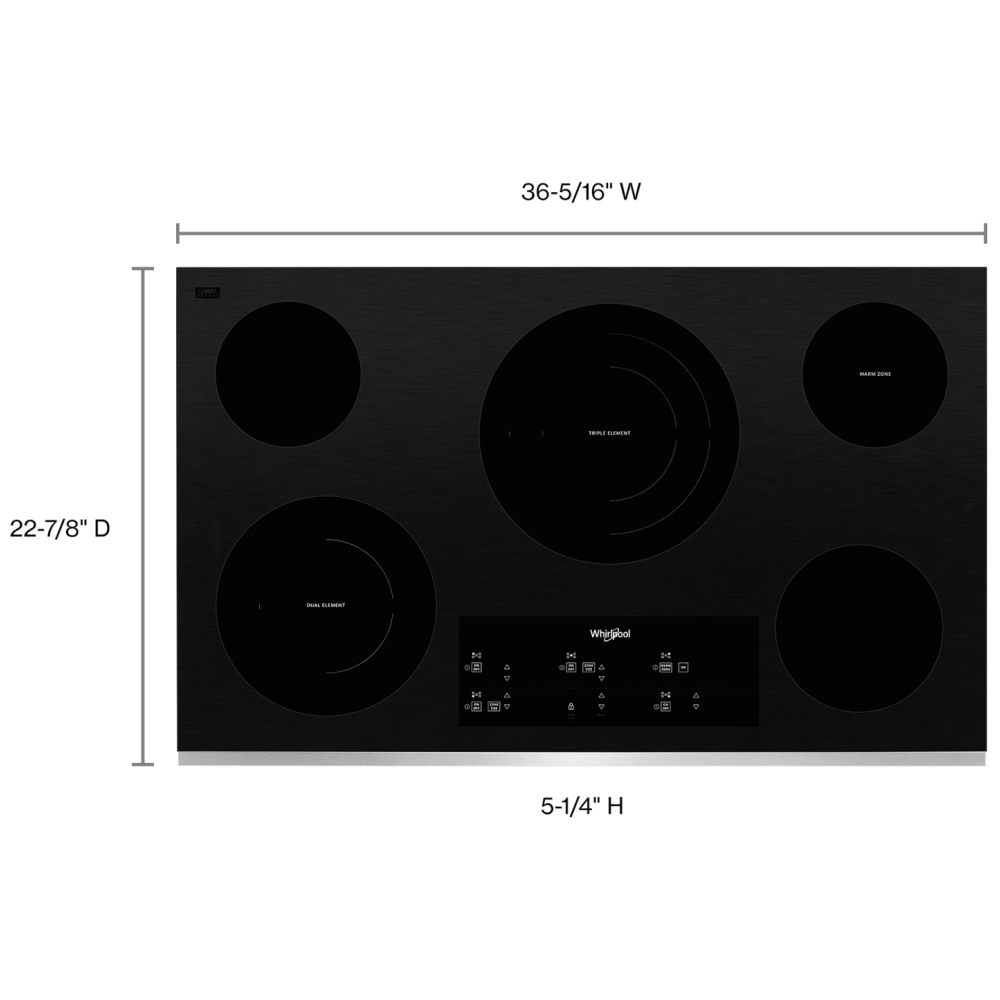

Dimensions | |
Carton Depth | 25 |
Carton Height | 9.25 |
Carton Width | 40.75 |
Cutout Depth Max | 20.563 |
Cutout Depth Min | 20.375 |
Cutout Width Max | 35.563 |
Cutout Width Min | 34.563 |
Gross Weight | 50 |
Net Weight | 44 |
Electrical | |
208v Compatible | Yes |
Power Cord Included | No |
Element/burner Details | |
Center Rear Element-burner Power | 3000/2200/1100W |
Center Rear Element-burner Size | 12in./9in./6in. |
Center Rear Element-burner Type | Triple |
Cooktop Element Style | Radiant |
Cooktop Type | Standard |
Left Front Element-burner Power | 3000W/1900W |
Left Front Element-burner Size | 10in./6in. |
Left Front Element-burner Type | Dual |
Left Rear Element-burner Power | 1,200W |
Left Rear Element-burner Size | 6in. |
Left Rear Element-burner Type | Standard |
Number of Cooking Element-burners | 5 |
Power Boost | No |
Right Front Element-burner Power | 1,800W |
Right Front Element-burner Size | 8in. |
Right Front Element-burner Type | Standard |
Right Rear Element-burner Power | 100W |
Right Rear Element-burner Size | 6in. |
Right Rear Element-burner Type | Round |
Ventilation Details | |
Downdraft Vent | No |
