Zephyr AK2500BW
Discontinued
AGEHL2
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $48.17 for 18 months
Ratings & Reviews
Similar Colours and Options
AK6500BW
AK6500BW
White
AGEHL2
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $48.17 for 18 months
Description & Features

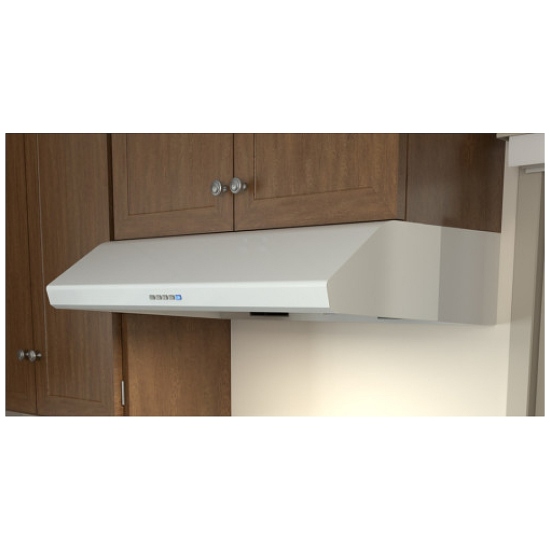

Hurricane, UC, 30", Wht, 695 CFM, ACT
Overview
  • Under Cabinet Ventilation
  • 695 CFM Blower
  • ACT Technology
  • Limits the maximum blower CFM to meet local code requirements.
Hood Highlights
  • Electronic Touch Controls
  • 3 Speed Levels
  • 5.5 max. Sone Level
  • Dual Level 35W Halogen Lighting

Manufacturer's Warranty: 1 year

Canadian model: AK2500BW

Canadian UPC: 646328004643

EAN: 0646328004643

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Under Cabinet
Vent Type Ducted
UPC 646328004643
GTIN 00646328004643
Country of Origin Taiwan
Model Group AK25-B
Model Name Hurricane Under-Cabinet
Collection Core Collection
Replacement Model AK2500CW
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 695
Internal Blower 1 Min. Sones 1.5
Internal Blower 1 Max Sones 5.5
Minimum CFM 290
Installation Type Under Cabinet
Installation Type Under Cabinet
For Outdoor Use No
Color White
Controls Type Electronic
Blower Speeds 3
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Filter-less
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 3.25 x 10
Duct Size; Vertical; IN 7, 3.25 x 10
Mounting Height Above Cooktop; IN 24 - 32
Voltage 120
Maximum Amperage 2.4
ADA Compliant No
Warranty Parts / Labor 10 / 1
Compatible Appliances MUA008A, Z0B0040
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Steel
Wattage 288
Certification UL
Nominal Width; IN 30
Net Width; IN 29.75
Net Depth; IN 22.125
Net Height; IN 7
Weight; LBS 29.9
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 9.76
Shipping Width; IN 32.68
Shipping Height; IN 26.97
Shipping Weight; LBS 36.6
Shipping Method Small Parcel
Freight Class 150
Duct Type Vertical
Duct Type Vertical
General Specifications
Blower CFM:
290 min. - 695 max.
Vertical Internal Blower:
7" Round, or 3 1/4" x 10"
Horizontal Internal Blower:
3 1/4" x 10"
Electrical Requirement:
120V/60Hz/15A
Hood Features
Controls:
Electronic Touch
Speed Levels:
3
Lighting:
35W Halogen; Dual Level Lighting
Sones:
1.5 min. - 5.5 max.
Warranty
Parts:
10 Years
Labor:
1 Year
Dimensions
Width:
29 3/4"
Depth:
22 1/8"
Height:
7"
Mounting Height Range:
24" - 32"
