Zephyr AK7036BS
Discontinued
APHUAQ
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $86.78 for 18 months
Ratings & Reviews
Similar Colours and Options
AK7836BS
AK7836BS
Stainless Steel
APHUAQ
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $86.78 for 18 months
Description & Features

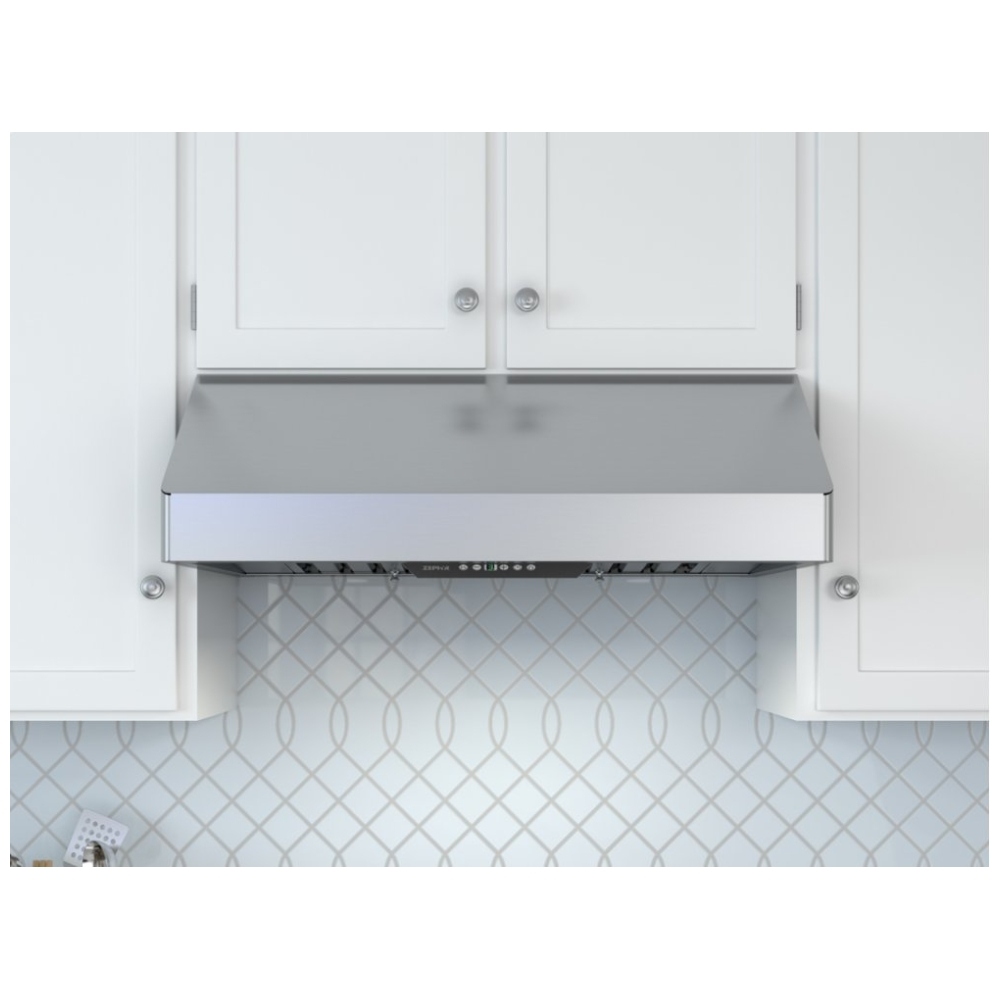

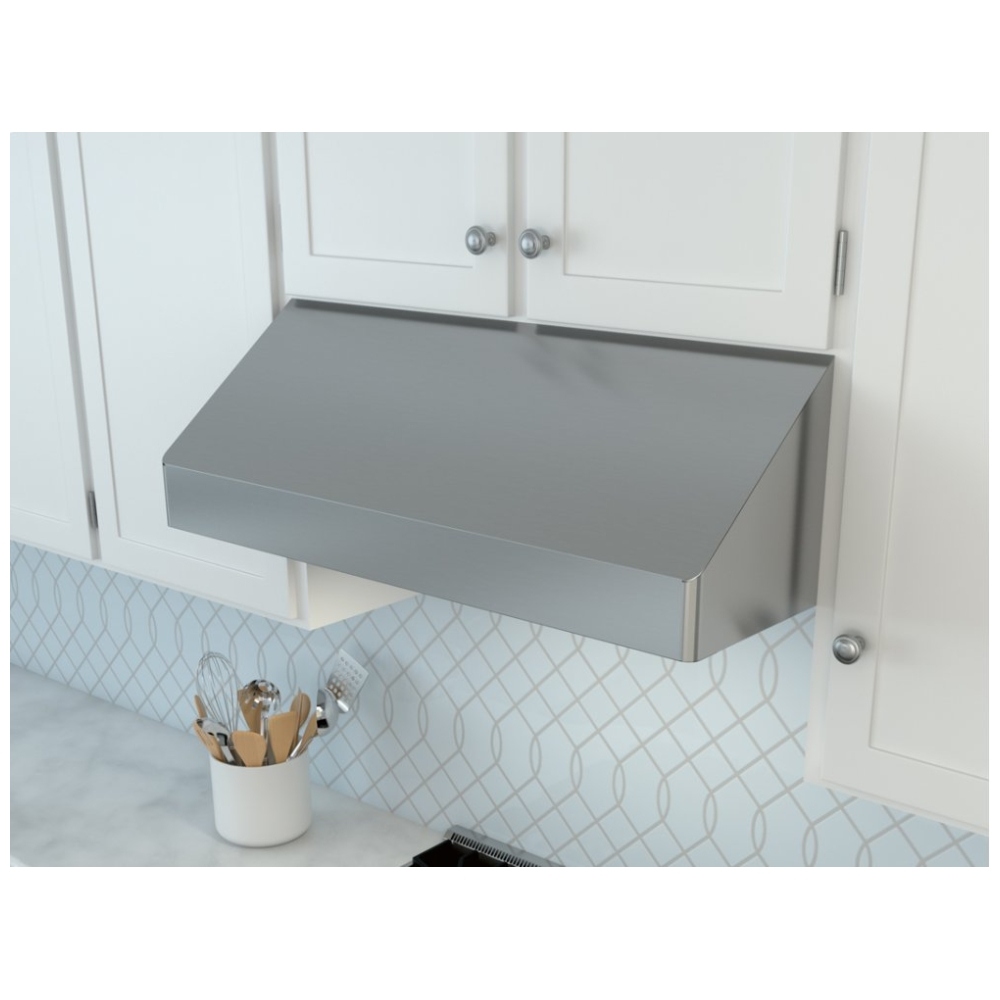

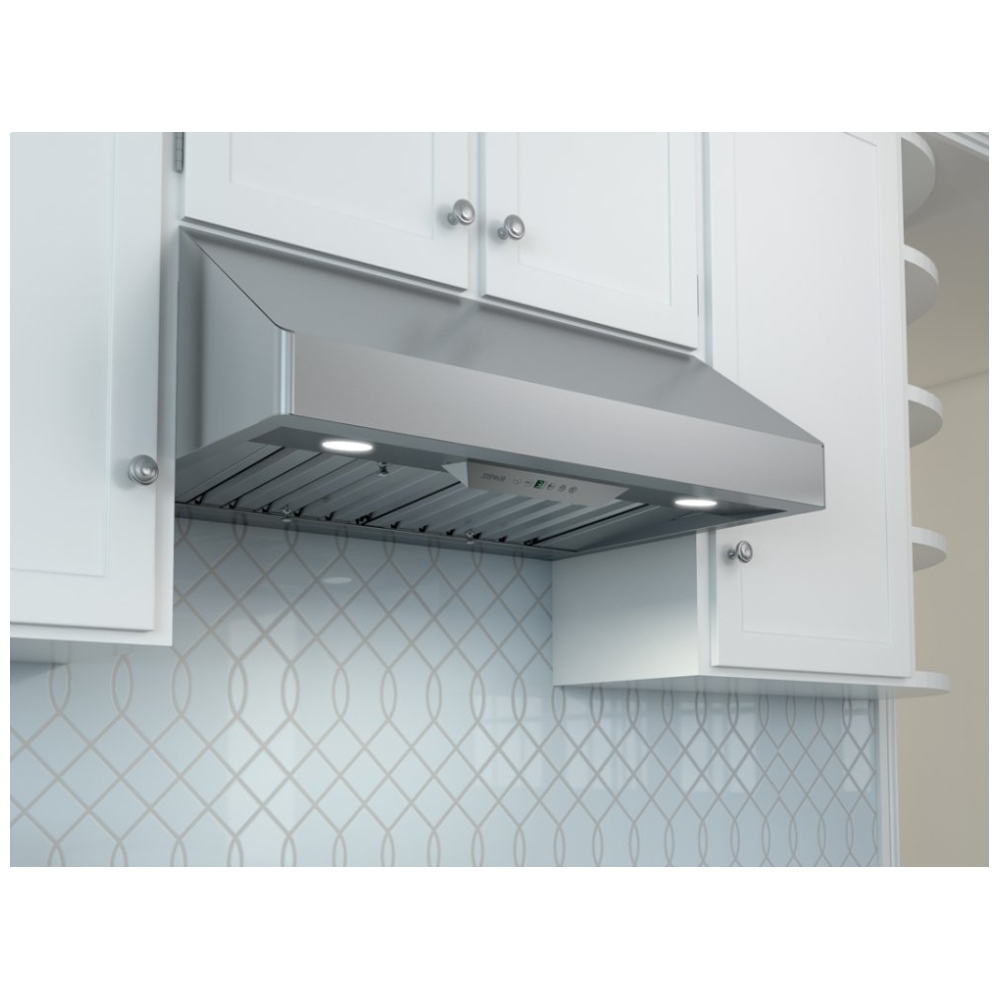

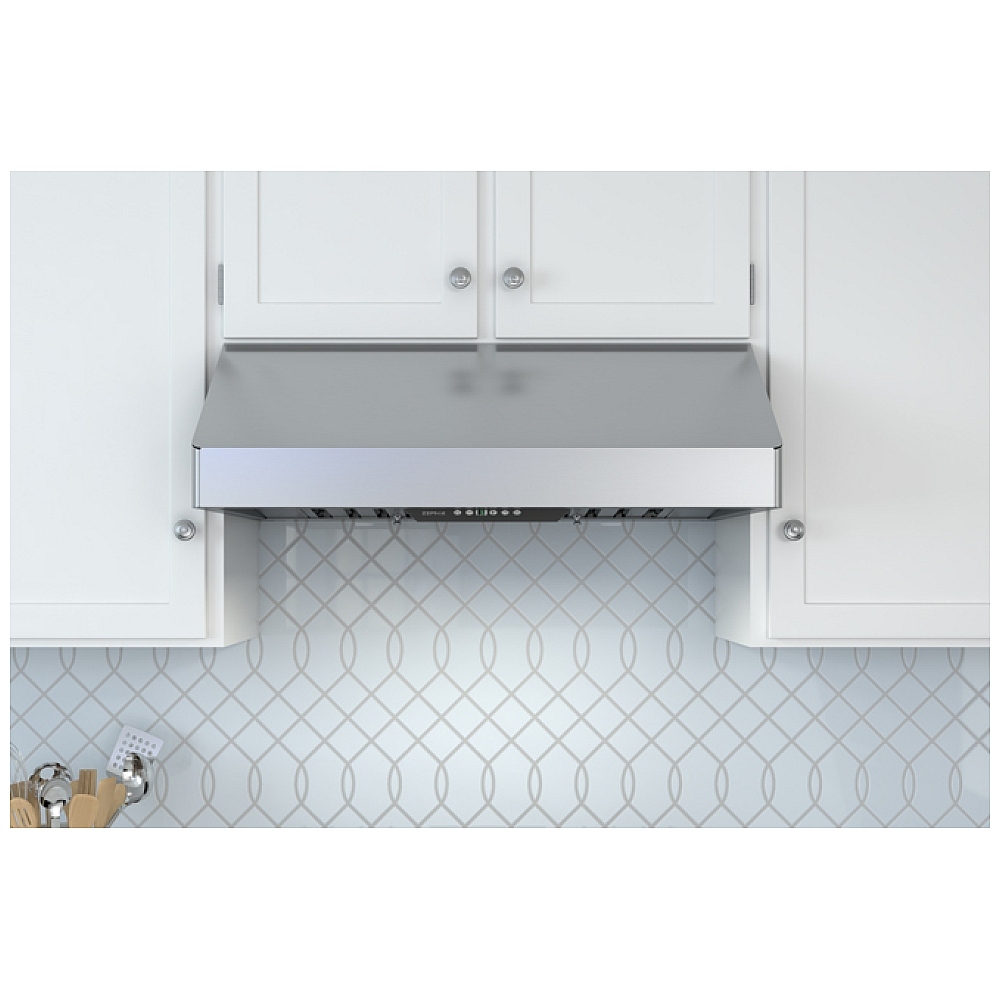

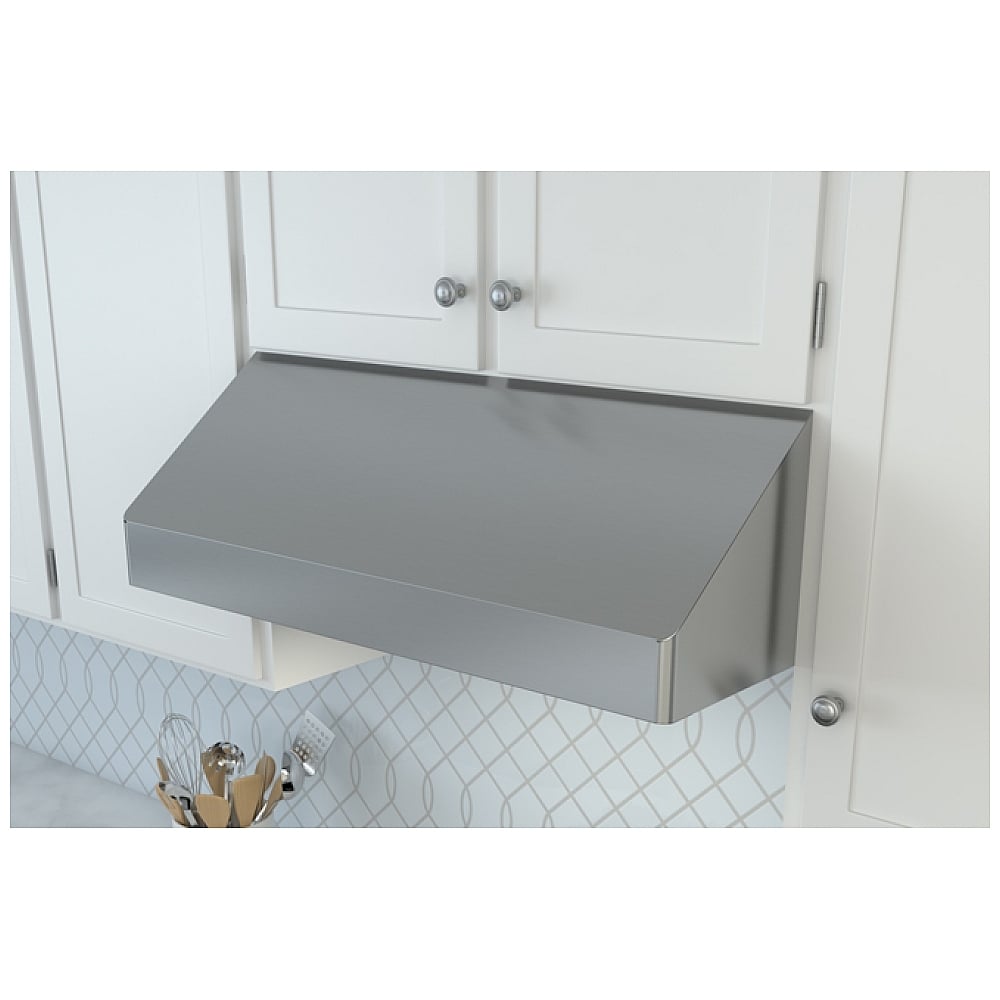

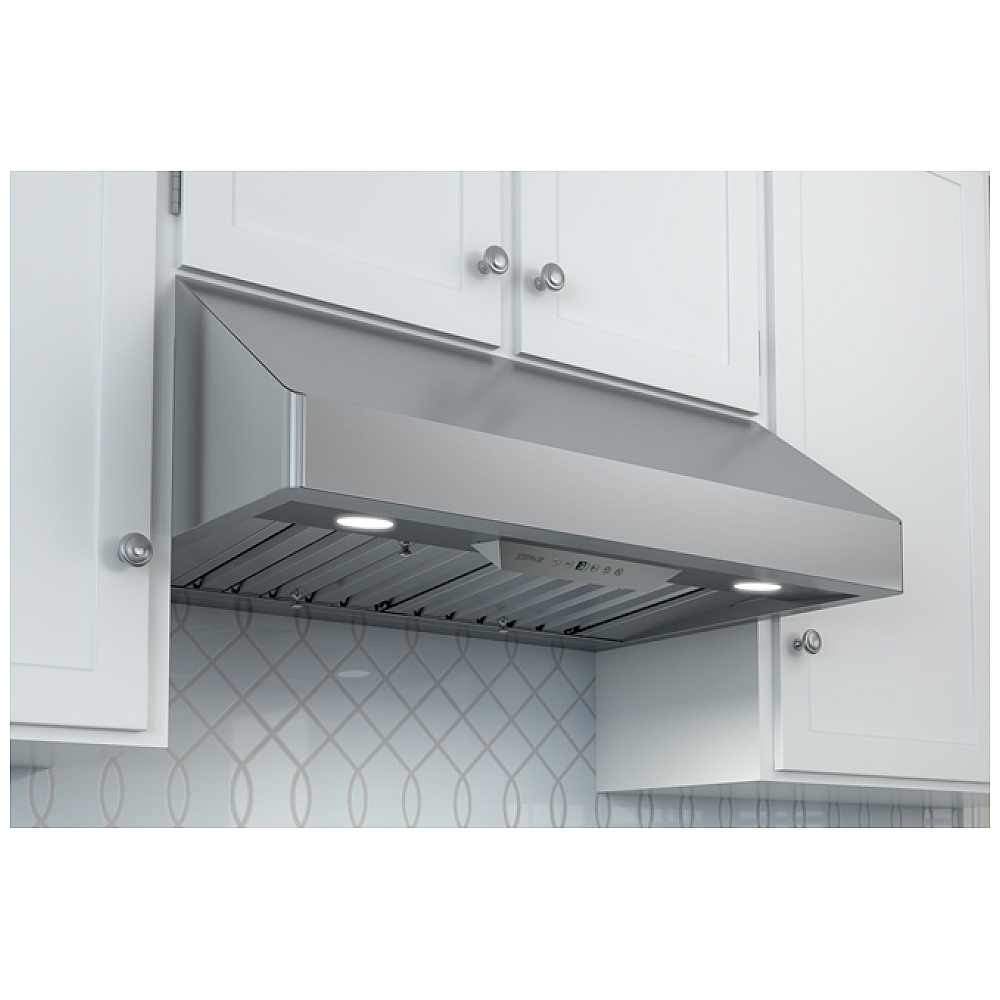

Zephyr Tempest I AK7036BS 36" Pro-Style Under Cabinet Range Hood with 650 CFM, ACT, Electronic Touch Controls, Dual Level Lighting, Auto Delay Off, Clean Air Mode and SS Pro Baffle Filters in Stainless Steel

Tempest I, 11in Pro, 36", SS, 650 CFM, ACT
  • Internal Blower with Airflow Control Technology (ACT)
  • ACT is a feature built into specific Zephyr hoods allowing you to limit the maximum blower CFM to meet local code requirements
  • Electronic Touch Controls
  • 6 Speed Levels
  • 35w x 2 Halogen Lights
  • Dual Level Lighting
  • 3 Professional Baffle Filters
  • Convertible to Recirculating
  • Optional Dual Internal Blower
  • Wireless Remote Control Option

Manufacturer's Warranty: 1 year

Canadian model: AK7036BS

Canadian UPC: 646328003097

EAN: 0646328003097

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Under Cabinet
Vent Type Convertible
UPC 646328003097
GTIN 00646328003097
Country of Origin Taiwan
Model Group AK70-B
Model Name Tempest I
Collection Pro Collection
Replacement Model AK7036CS
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 650
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Internal Blower 2 CFM 1200
Internal Blower 2 Max Sones 9
Minimum CFM 200
Installation Type Under Cabinet
Installation Type Under Cabinet
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210020
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 8, 3.25 x 10
Duct Size; Vertical; IN 8, 10
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 5
ADA Compliant Yes, with optional remote
Warranty Parts / Labor 3 / 1
Compatible Appliances PBD-1200A, ZRC-7036B, AK0726, 14000005, AK0716, Z0B0040, MUA008A, Z0F-C002
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional Yes
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.875
Net Depth; IN 22.5
Net Height; IN 11
Weight; LBS 50.6
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 16.54
Shipping Width; IN 40.94
Shipping Height; IN 30
Shipping Weight; LBS 62
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
Performance
Internal Blower CFM:
200 (min.) - 600 (max.)
Internal Sones:
1 (min.) - 6 (max.)
Features
ACT:
Yes
Controls:
Electronic Touch
Speed Levels:
6
Clean Air Mode:
Yes
Auto Delay-Off:
Yes
Lighting:
Halogen, 35W x 2
Dual Level Lighting:
Yes
Filters:
Pro-Baffle x 3
Recirculating Option:
Yes (For Single Blower Only)
Dual Internal Blower Option:
Yes
Wireless Remote Control Option:
Yes
Color:
Stainless Steel
Duct Specifications
Vertical - Internal:
8" Round
Horizontal - Internal:
3 1/4"x10" or 8" Round
AC Power:
120V, 60Hz at Max. 4A
Optional Accessories
Recirculating Kit:
ZRC7036B
Backsplash with Shelves:
AK0716
Universal Make-Up Air Kit:
MUA008A
Wireless Remote Control:
14000005
Warranty
Warranty:
3 Year Parts, 1 Year Labor
Dimensions
Overall Width:
35 7/8"
Overall Depth:
22 1/2"
Overall Height:
11"
Flue Width:
7 7/8""
Mounting Height:
26" - 36"
