Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Insert
Vent Type	Ducted
UPC	646328880032
GTIN	00646328880032
Country of Origin	Taiwan
Model Group	AK88
Model Name	Willow
Collection	Pro Collection
Blower Included	Yes
Internal Blower 1 CFM	1000
Internal Blower 1 Min. Sones	3.5
Internal Blower 1 Max Sones	8
Minimum CFM	500
Installation Type	Insert
Installation Type	Insert
For Outdoor Use	Yes
Color	Stainless Steel
Controls Type	Rocker
Blower Speeds	2
Automatic Delay-Off	No
Clean Air Function	No
Lighting Type	Halogen
Lights Quantity	2
Watts Per Bulb	35
Lights Levels	1
Grease Filter Type	Pro baffle
Compatible Mesh or Baffle Filter Part Number	50210010
Duct Discharge	Vertical
Duct Size; Horizontal; IN	N/A
Duct Size; Vertical; IN	8
Mounting Height Above Cooktop; IN	30 - 36
Voltage	120
Maximum Amperage	5.95
ADA Compliant	No
Warranty Parts / Labor	3 / 1
Compatible Appliances	AK0886AS, AK0886BS, AK0882AS, AK0882BS, AK0888AS, AK0888BS, Z0B0040
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	720
Certification	UL
Nominal Width; IN	30
Net Width; IN	29.8125
Net Depth; IN	15.8125
Net Height; IN	11.4375
Weight; LBS	39
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	34.25
Shipping Width; IN	16.54
Shipping Height; IN	21.26
Shipping Weight; LBS	46.3
Shipping Method	Small Parcel
Freight Class	150
Duct Type	Vertical
Duct Type	Vertical

Dimensions
Width:	29 13/16"
Height:	16 7/16"
Depth:	15 13/16"
Cutout Width:	26 1/16"
Cutout Depth:	14 3/4"
Performance
Dual Internal Blower:	1000 CFM
Sones:	8
Features
Marine Grade Controls:	Rocker Switch
Speed Levels:	2
Auto-Delay Off:	No
Lighting:	Halogen, 35W x 2
Dual-Level Lighting:	No
Filters:	Baffle x2
Recirculating:	No
Duct Specifications
Vertical:	8"
AC Input:	120V - 60Hz
AC Power (Hood Only):	Max 710W, 5.95 Amps
Optional Accessories
Liner, 36":	AK0886AS
Liner, 42":	AK0882AS
Liner, 48":	AK0888AS
Liner, 54":	AK0884AS
Liner, 60":	AK0880AS

Zephyr AK8800AS

Zephyr AK8800AS

Zephyr AK8800AS Cabinet Insert, 30 inch Exterior Width, 1,000 CFM, Halogen , Baffle Filter, Stainless Steel colour

Click here for more details.

Offered by Quick Contractors®

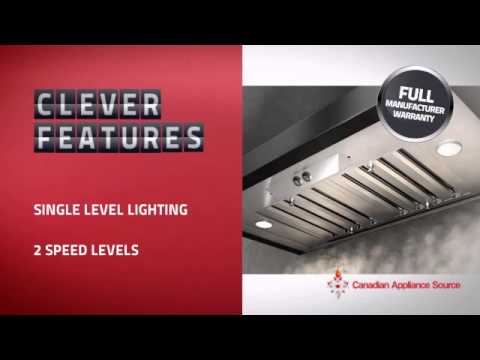

Videos
