Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Insert
Vent Type	Convertible
UPC	646328002588
GTIN	00646328002588
Country of Origin	Taiwan
Model Group	AK90
Model Name	Vortex
Collection	Core Collection
Replacement Model	AK9028BS
Blower Included	Yes
Internal Blower 1 CFM	390
Internal Blower 1 Min. Sones	1.4
Internal Blower 1 Max Sones	5
Minimum CFM	200
Installation Type	Insert
Installation Type	Insert
For Outdoor Use	No
Color	Stainless Steel
Controls Type	Mechanical Slide
Blower Speeds	3
Automatic Delay-Off	No
Clean Air Function	No
Lighting Type	Halogen
Lights Quantity	2
Watts Per Bulb	35
Lights Levels	2
Grease Filter Type	Hybrid Baffle
Compatible Mesh or Baffle Filter Part Number	50210016
Duct Discharge	Vertical
Duct Size; Horizontal; IN	N/A
Duct Size; Vertical; IN	6
Mounting Height Above Cooktop; IN	26 - 36
Voltage	120
Maximum Amperage	3
ADA Compliant	No
Warranty Parts / Labor	3 / 1
Compatible Appliances	ZRC-9000, Z0B0040, Z0F-C090
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	No
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	360
Certification	UL
Nominal Width; IN	30
Net Width; IN	28.375
Net Depth; IN	17.5 - 20.5
Net Height; IN	12.3125
Weight; LBS	24.4
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	12 ft.
Shipping Length; IN	22.64
Shipping Width; IN	35.91
Shipping Height; IN	19.06
Shipping Weight; LBS	36.6
Shipping Method	Small Parcel
Freight Class	200
Certification #	E127334
Clean Filter Alert	No
Duct Type	Vertical
Duct Type	Vertical

Performance
Internal Min-Max Blower CFM:	200 - 450
Internal Min-Max Sones:	1.4 - 5
Features
Controls:	Mechanical Slide
Speed Levels:	3
Auto Delay-Off:	No
Lighting:	(2) 35 Watt Halogen Bulbs
Dual Level Lighting:	Yes
Filters:	SS Baffle
Recirculating Option:	Yes
Adjustable Depth:	Yes
Mounting Height:	26 - 36"
Color:	Stainless Steel
Size:	30"
Duct Specifications
Internal Blower - Vertical:	6" Round
Internal Blower - Horizontal:	N/A
Warranty
Parts:	3 Years
Labor:	1 Year
Electrical Requirements
AC Input:	120 Volts
AC Power:	Max 315 W at 2.7 Amps
Dimension
Width:	28 3/8"
Depth:	17 1/2 - 20 1/2"
Height:	12 5/16"

Zephyr AK9028AS

Zephyr AK9028AS

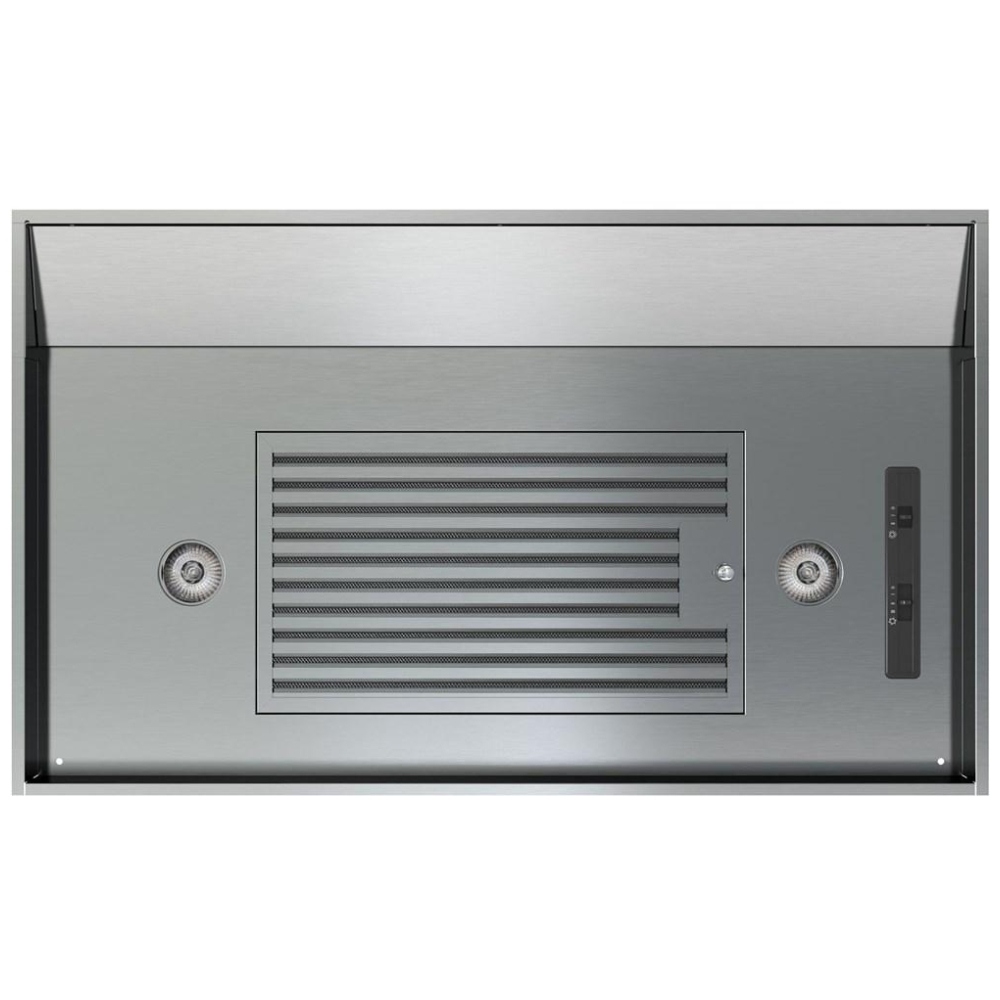

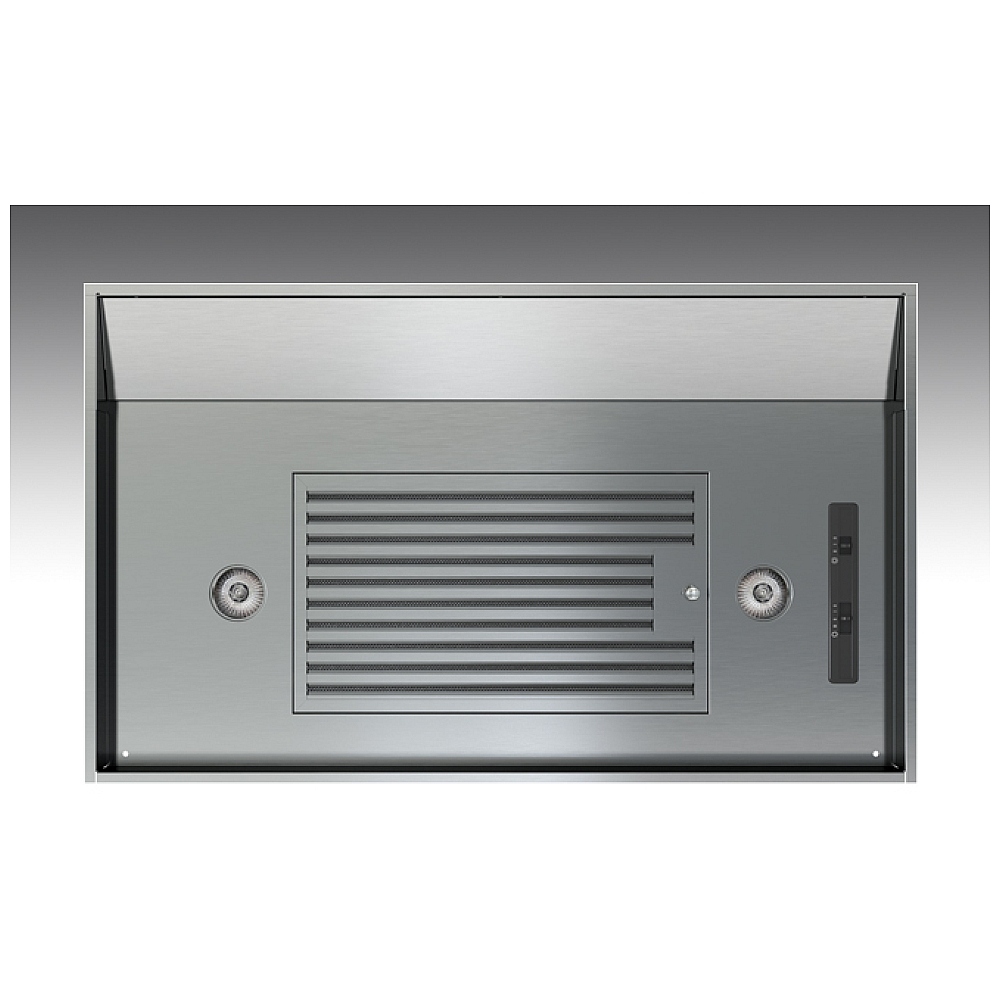

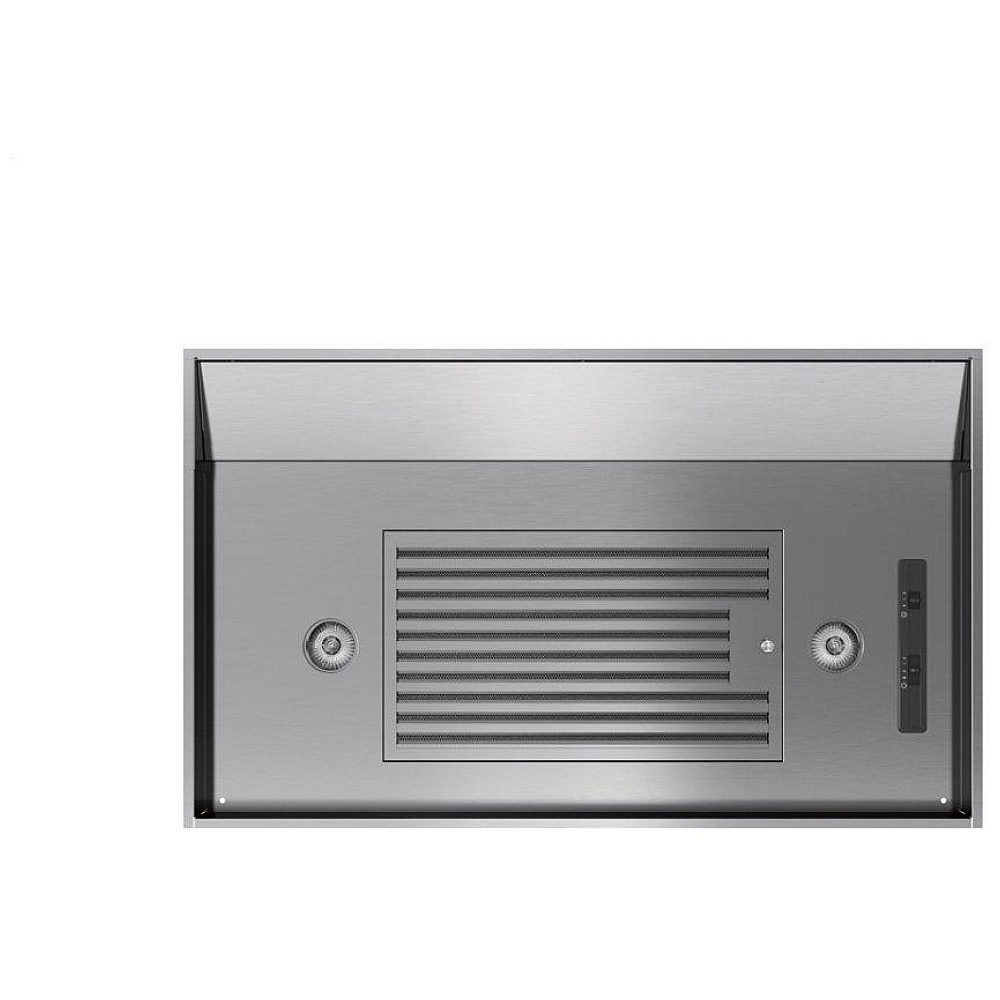

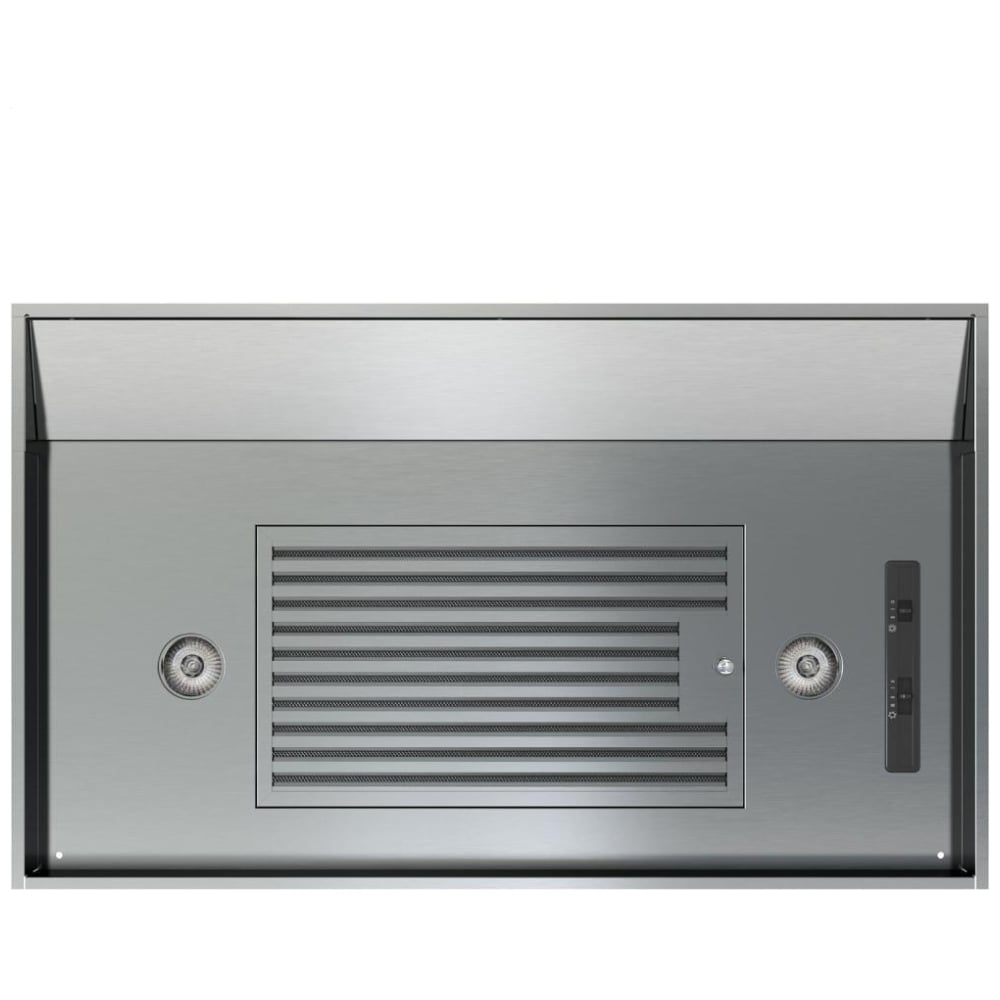

Zephyr AK9028AS Cabinet Insert, 30 inch Exterior Width, 450 CFM, Halogen , Baffle Filter, Stainless Steel colour
