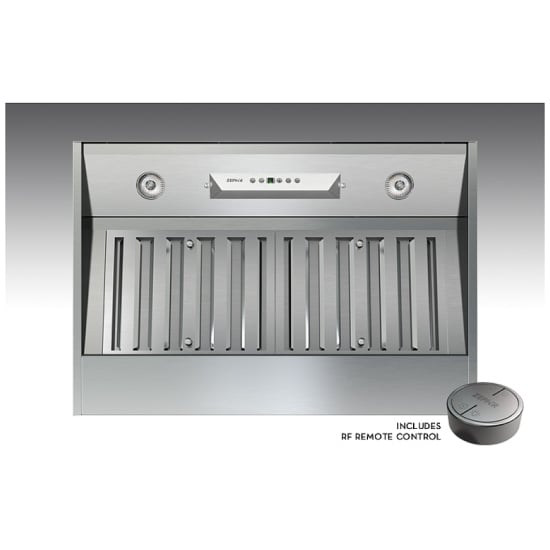

Zephyr AK9234AS
Discontinued
Replaced by AK9234BS
ALUSKS
Replaced by AK9234BS
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $79.95 for 18 months
Ratings & Reviews
Similar Colours and Options
AK9834AS
AK9834AS
Stainless Steel
ALUSKS
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $79.95 for 18 months
Description & Features
Monsoon I, One-Piece Liner 34-3/8", SS, 600 CFM, ACT
  • 19 1/4" Depth
  • Dual-Level Lighting
  • Halogen Lighting
  • Airflow Control Technology™ (ACT™)
  • CleanAir Function
  • Electronic Touch Controls
  • Includes Wireless Remote Control
  • Optional Make-Up Air Kit
  • Professional Baffle Filters
  • Vertical or Horizontal Ducting

Manufacturer's Warranty: 1 year

Canadian model: AK9234AS

Canadian UPC: 646328002618

EAN: 0646328002618

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Insert
Vent Type Ducted
UPC 646328002618
GTIN 00646328002618
Country of Origin Taiwan
Model Group AK92
Model Name Monsoon I
Collection Core Collection
Replacement Model AK9234BS
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 600
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Minimum CFM 200
Installation Type Insert
Installation Type Insert
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210013
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN 8, 3.25 x 10
Duct Size; Vertical; IN 8
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 5
ADA Compliant Yes
Warranty Parts / Labor 3 / 1
Compatible Appliances MUA006A, Z0B0040, 14000005
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 600
Certification UL
Nominal Width; IN 36
Net Width; IN 34.375
Net Depth; IN 19.25
Net Height; IN 12
Weight; LBS 42.2
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 17.32
Shipping Width; IN 37.99
Shipping Height; IN 25.87
Shipping Weight; LBS 53
Shipping Method Small Parcel
Freight Class 150
Duct Type Vertical
Duct Type Vertical
AK9234AS
36" Monsoon I Insert
290, 390, 600 CFM
Not Recirculating
Pro Baffle Filter
Stainless Steel
Vertical and Horizontal Ducting
Max Sones 6
