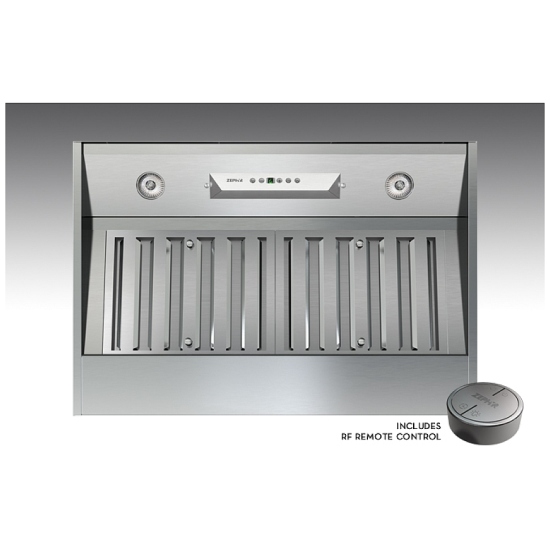

Zephyr AK9240AS
Discontinued
AZGNUM
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $122.73 for 18 months
Ratings & Reviews
Similar Colours and Options
AK9240BS
AK9240BS
LumiLight LED Lighting
Stainless Steel
AK9840AS
AK9840AS
Stainless Steel
AZGNUM
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $122.73 for 18 months
Description & Features
Monsoon I, One-Piece Liner 40-3/8", SS, 1200 CFM
Airflow Control Technology™
  • Airflow Control Technology™ (ACT™) is an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements.

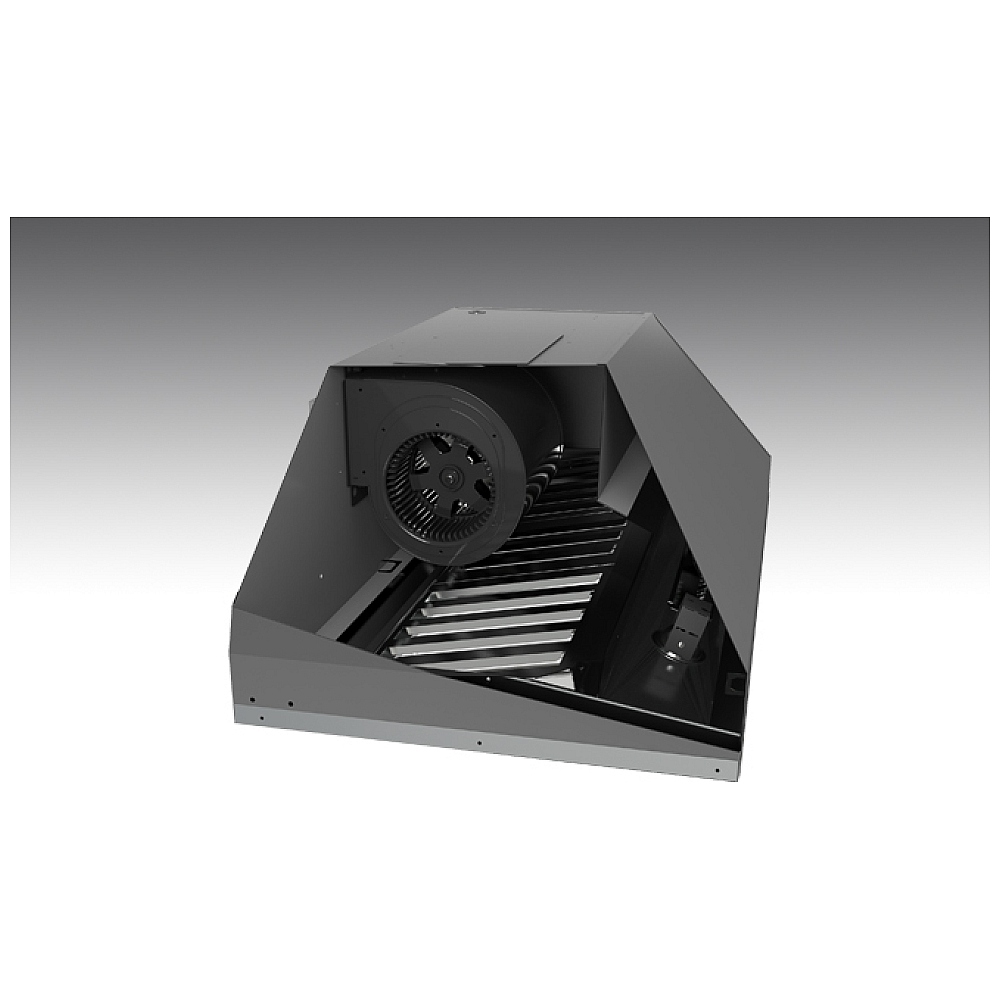

1,200 CFM Internal Blower
  • A powerful blower that is efficient and quiet.
6 Speed Levels & Electronic Touch Controls
  • 6-speed electronic controls for every cooking situation.
Halogen Lighting
  • Dual-level halogen lights for more illumination.
Wireless Remote Control
  • An ADA compliant wireless remote that you can easily control without ever reaching over a dangerous cooking surface.
Additional Features
  • CleanAir indoor-air quality function.
  • Matches the most commonly specified installation footprints.
  • 36" Mounting Height Maximum
  • Warranty: 3-year Parts, 1-year Labor
Optional Accessories
  • Make-Up Air Kit

Manufacturer's Warranty: 1 year

Canadian model: AK9240AS

Canadian UPC: 646328005107

EAN: 0646328005107

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Insert
Vent Type Ducted
UPC 646328005107
GTIN 00646328005107
Country of Origin Taiwan
Model Group AK92
Model Name Monsoon I
Collection Core Collection
Replacement Model AK9240BS
Blower Included Yes
Internal Blower 1 CFM 1200
Internal Blower 1 Min. Sones 3.5
Internal Blower 1 Max Sones 9
Minimum CFM 450
Installation Type Insert
Installation Type Insert
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210013
Duct Discharge Vertical or Horizontal
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 10
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 7
ADA Compliant Yes
Warranty Parts / Labor 3 / 1
Compatible Appliances MUA010A, Z0B0040, 14000005
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 840
Certification UL
Nominal Width; IN 42
Net Width; IN 40.375
Net Depth; IN 19.25
Net Height; IN 12
Weight; LBS 58.6
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 17.24
Shipping Width; IN 44.09
Shipping Height; IN 26.85
Shipping Weight; LBS 72.4
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
Performance
Internal Min-Max Blower CFM:
200 - 600
Internal Min-Max Sones:
1.2 - 6
Features
Controls:
Electronic Touch
Speed Levels:
6
Auto Delay-Off:
Yes
Clean Air Mode:
Yes
Lighting:
(2) 35 W Halogen Lights
Dual Level Lighting:
Yes
Filters:
SS Pro-Baffle
Removable Grease Tray:
Yes
RF Remote Control:
Yes
Recirculating Option:
No
Mounting Height:
26 - 36"
Duct Specifications
Internal Blower - Vertical:
8" Round
Internal Blower - Horizontal:
3 1/4 x 10" Rectangular, 8" Round
Electrical Requirements
AC Input:
120 V
AC Power:
Max 480 W at 3.9 A
Warranty
Pars:
3 Years
Labor:
1 Year
