Zephyr AK9334AS
Discontinued
AN8XX6
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $119.95 for 18 months
Ratings & Reviews
Similar Colours and Options
AK9334BS
AK9334BS
LumiLight LED Lighting
Stainless Steel
AK9834AS
AK9834AS
Stainless Steel
AN8XX6
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $119.95 for 18 months
Description & Features

Zephyr Monsoon II
Monsoon II delivers when all you need is raw power. It also comes in handy when you expect more features and technology from your one-piece liner.

Monsoon II, One-Piece Liner 34-3/8", SS, 1200 CFM
1200-CFM Motor and 6-Speed Electronic Controls
Pro-Style baffle filters with easy to clean removable grease tray
ADA compliant wireless remote control
Matches the most commonly specified installation footprints
36-inch mounting height maximum
Zephyr warranty: 3-year parts and 1-year labor

Manufacturer's Warranty: 1 year

Canadian model: AK9334AS

Canadian UPC: 646328002816

EAN: 0646328002816

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Insert
Vent Type Ducted
UPC 646328002816
GTIN 00646328002816
Country of Origin Taiwan
Model Group AK93
Model Name Monsoon II
Collection Pro Collection
Replacement Model AK9334BS
Blower Included Yes
Internal Blower 1 CFM 1200
Internal Blower 1 Min. Sones 3.5
Internal Blower 1 Max Sones 9
Minimum CFM 450
Installation Type Insert
Installation Type Insert
For Outdoor Use No
Color Stainless Steel
Controls Type Electronic
Blower Speeds 6
Automatic Delay-Off Yes
Clean Air Function Yes
Lighting Type Halogen
Lights Quantity 2
Watts Per Bulb 35
Lights Levels 2
Grease Filter Type Pro baffle
Compatible Mesh or Baffle Filter Part Number 50210017
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 10
Mounting Height Above Cooktop; IN 26 - 36
Voltage 120
Maximum Amperage 7
ADA Compliant Yes
Warranty Parts / Labor 3 / 1
Compatible Appliances MUA010A, Z0B0040, 14000005
Bluetooth Connected No
Wi-Fi Connected No
Remote Included Yes
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Stainless Steel
Wattage 840
Certification UL
Nominal Width; IN 36
Net Width; IN 34.375
Net Depth; IN 22.5
Net Height; IN 12
Weight; LBS 55.8
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 12 ft.
Shipping Length; IN 17.09
Shipping Width; IN 37.95
Shipping Height; IN 28.82
Shipping Weight; LBS 68.5
Shipping Method LTL
Freight Class 300
Duct Type Vertical
Duct Type Vertical
Performance
Internal Blower:
1,200 CFM
Internal Sones:
9
Electrical Requirements:
120V; 5.9A
Features
Controls:
Electronic Touch
Speed Levels:
6
Auto Delay-Off:
Yes
Clean Air Mode:
Yes
Lighting:
2 Halogen Bulbs
Dual Level Lighting:
Yes
Filters:
Stainless Steel Pro Baffle
Removable Grease Tray:
Yes
Remote Control:
Yes
Warranty
Parts Warranty:
3 Years
Labor Warranty:
1 Year
Dimensions and Weight
Product Width:
34 3/8"
Product Depth:
22 1/2"
Product Height:
12"
Mounting Height:
26" - 36"
Internal Blower (Vertical):
10" Round
Product Weight:
39 Lbs.


Manuals
Video
AK9334AS
Reviews
Rebates
Warranty
Financing
Install
Delivery and installation services are available from CAS
(Includes washers, dryers, and more.)
Click here for more details.
Custom advanced installation services (after delivery)
(Gas connections, ventilation, dishwashers, etc.)
Offered by Quick Contractors®
 1-877-694-3909
To book service online, please visit quicktask.com/cas
Delivery

Videos

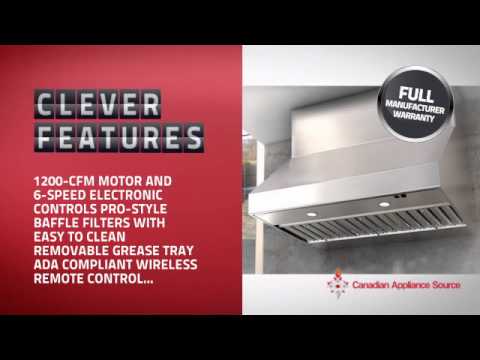

Zephyr AK9334AS Live Demonstration Video
