Brand	Zephyr
Manufacturer	Zephyr
Category	Range Hood
Sub-Category	Wall
Vent Type	Convertible
UPC	646328001901
GTIN	00646328001901
Country of Origin	Taiwan
Model Group	ZMI-B
Model Name	Milano
Collection	Core Collection
Replacement Model	ZMI-M90CG
Blower Included	Yes
Blower CFM w/ACT	590, 390, 290
Internal Blower 1 CFM	715
Internal Blower 1 Min. Sones	0.8
Internal Blower 1 Max Sones	5.8
Minimum CFM	250
Installation Type	Wall
Installation Type	Wall
For Outdoor Use	No
Color	Stainless Steel + Glass
Controls Type	Electronic LCD
Blower Speeds	6
Automatic Delay-Off	Yes
Clean Air Function	Yes
Lighting Type	LED
Lights Quantity	2
Watts Per Bulb	6
Lights Levels	2
Grease Filter Type	Mesh
Compatible Mesh or Baffle Filter Part Number	50200044
Duct Discharge	Vertical
Duct Size; Horizontal; IN	N/A
Duct Size; Vertical; IN	8
Mounting Height Above Cooktop; IN	26 - 34
Voltage	120
Maximum Amperage	4
ADA Compliant	Yes, with optional remote
Warranty Parts / Labor	3 / 1
Compatible Appliances	ZRC-00MI, Z1C-01MI, RC-0001, MUA008A, Z0F-C002
Bluetooth Connected	No
Wi-Fi Connected	No
Remote Included	No
Remote Optional	Yes
Energy Star Certified	No
Alexa & Google Home Compatible	No
CEC Title 20 Compliant	Yes
Primary Material	Stainless Steel
Wattage	480
Certification	UL
Nominal Width; IN	36
Net Width; IN	35.1875
Net Depth; IN	20.5
Net Height; IN	26.5 - 50
Weight; LBS	55.6
Ceiling Height Minimum	8 ft.
Ceiling Height Maximum	10 ft.
Chimney Height in.	22.5
Chimney Width in.	12.81
Chimney Depth in.	13.62
Shipping Length; IN	24.57
Shipping Width; IN	38.9
Shipping Height; IN	27.09
Shipping Weight; LBS	75
Shipping Method	LTL
Freight Class	300
Duct Type	Vertical
Duct Type	Vertical

Performance
Blower Type:	Internal
Blower CFM (Min. - Max.):	250 CFM - 715 CFM
Sones (Min. - Max.):	0.8 - 5.8 Sones
Features
Color:	Stainless Steel
Controls:	Electronics LCD
Speed Levels:	5 + Burst
Auto Delay-Off:	Yes
Lighting:	Bloom LED, 3W x 3
Dual Level Lighting:	Yes
Filters:	Aluminum Mesh
Recirculating Option:	Yes
Extension Duct Cover Option:	Yes, Up to 12 Ft. Ceiling
Duct Specifications
Vertical - Internal:	8"
Horizontal - Internal:	N/A
AC Input / Power
AC Input:	120V - 60Hz
AC Power:	Max. 212W at 3.5A
Dimensions
Width:	35 3/16"
Depth:	20 1/2"
Height:	26 1/2"

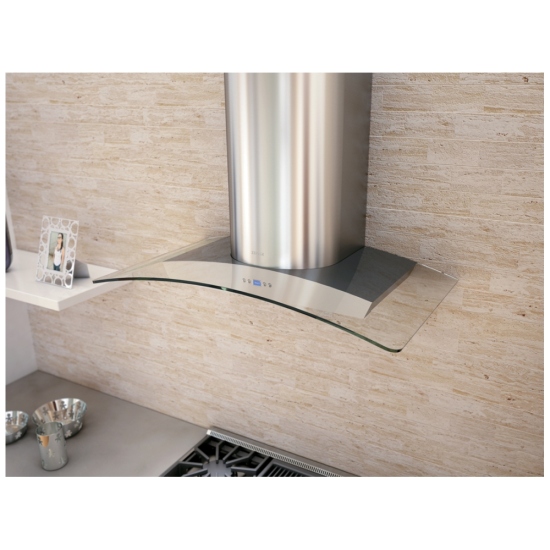

Zephyr ZMIM90BG

Zephyr ZMIM90BG

Zephyr ZMIM90BG Range Hood, 36 inch Exterior Width, Wall Mounted, 715 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour
