Zephyr ZRVM90BBSGG
Discontinued
AWX3R0
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $94.23 for 18 months
Ratings & Reviews
Similar Colours and Options
ZRV-M90BBSGG
ZRV-M90BBSGG
Black Stainless Steel
AWX3R0
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $94.23 for 18 months
Description & Features

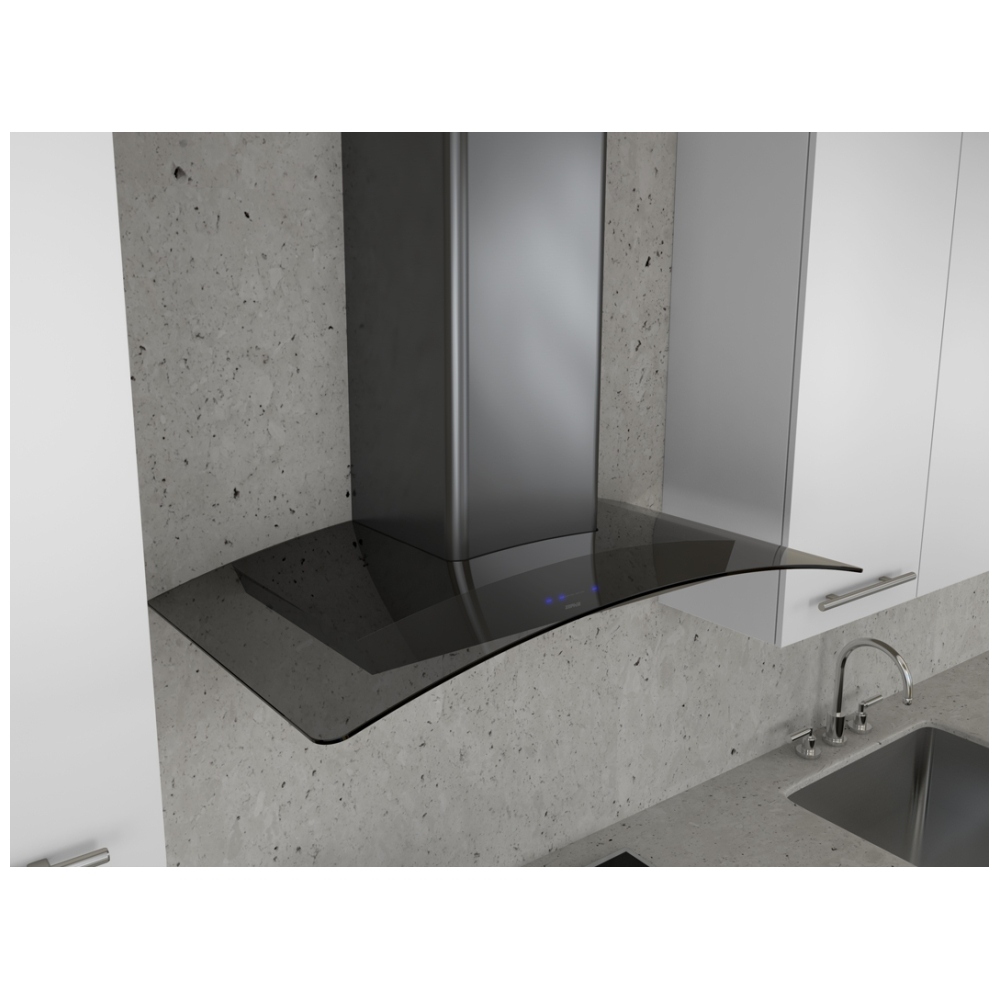

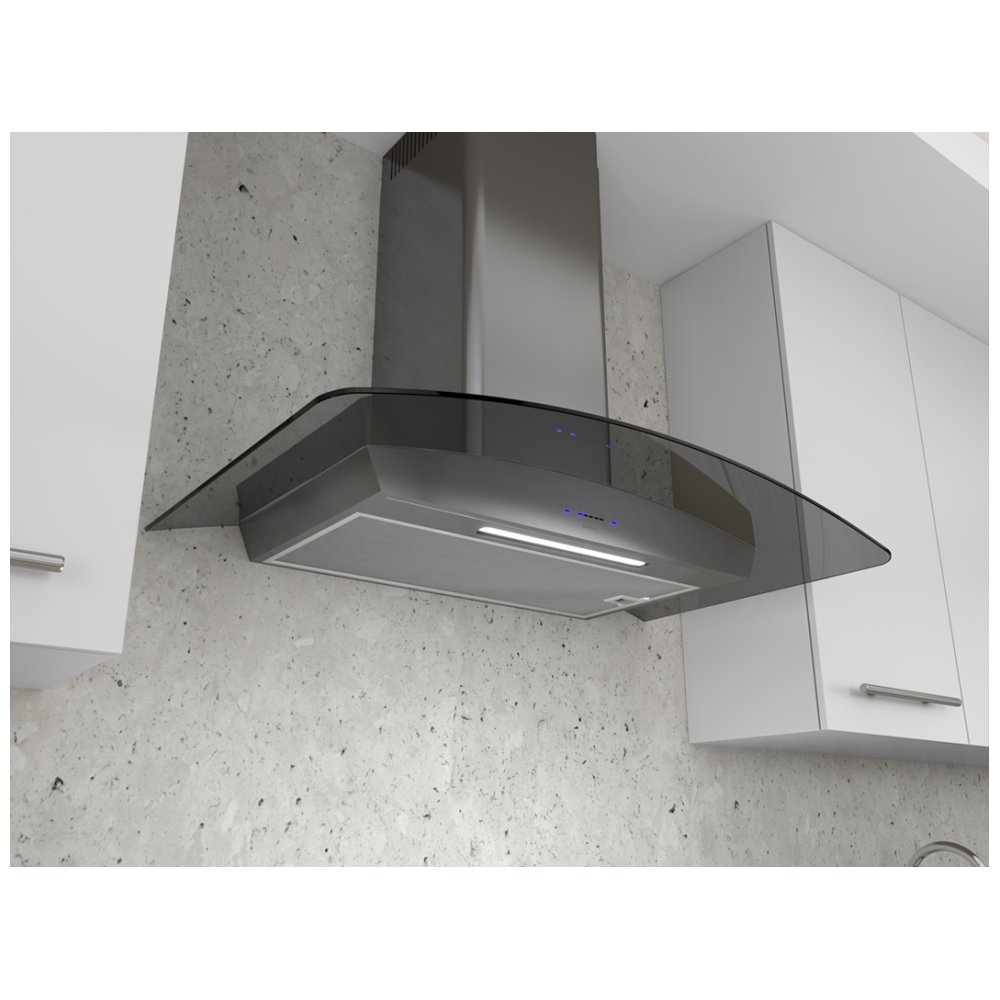

Ravenna, Wall, 90cm, Blk SS+Gray Glass, ACT, LED
Recirculating Option
  • Works to bring filtered air back into the kitchen
Icon Touch Controls
  • Seamlessly integrate into the hood and allow users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Titanium Coating
  • Titanium coated for extra durability and an anti-smudge coating for easier cleanup
Smoke-Gray Glass Canopy
  • This sleek glass canopy adds a touch of elegance to your everyday cooking experience
600 CFM
  • Internal blower of 200-600 CFM for greater ventilation
Airflow Control Technology (ACT)
  • An exclusive feature built into specific Zephyr hoods which can
  • limit the maximum blower CFM to meet local code requirements

Manufacturer's Warranty: 1 year

Canadian model: ZRVM90BBSGG

Canadian UPC: 646328005336

EAN: 0646328005336

Specs
Brand Zephyr
Manufacturer Zephyr
Category Range Hood
Sub-Category Wall
Vent Type Convertible
UPC 646328005336
GTIN 00646328005336
Country of Origin Taiwan
Model Group ZRV-B
Model Name Ravenna Wall
Collection Core Collection
Replacement Model ZRV-M90CBSGG
Blower Included Yes
Blower CFM w/ACT 390, 290
Internal Blower 1 CFM 600
Internal Blower 1 Min. Sones 1
Internal Blower 1 Max Sones 6
Minimum CFM 200
Installation Type Wall
Installation Type Wall
For Outdoor Use No
Color Stainless Steel + Glass
Controls Type ICON Touch®
Blower Speeds 5
Automatic Delay-Off Yes
Clean Air Function No
Lighting Type LED
Lights Quantity 1
Watts Per Bulb 9
Lights Levels 2
Grease Filter Type Mesh
Compatible Mesh or Baffle Filter Part Number 50200044
Duct Discharge Vertical
Duct Size; Horizontal; IN N/A
Duct Size; Vertical; IN 6
Mounting Height Above Cooktop; IN 26 - 34
Voltage 120
Maximum Amperage 5
ADA Compliant No
Warranty Parts / Labor 3 / 1
Compatible Appliances ZRC-00RV, Z1C-00RVBS, MUA006A, Z0F-C002
Bluetooth Connected No
Wi-Fi Connected No
Remote Included No
Remote Optional No
Energy Star Certified No
Alexa & Google Home Compatible No
CEC Title 20 Compliant Yes
Primary Material Steel
Wattage 480
Certification UL
Nominal Width; IN 36
Net Width; IN 35.1875
Net Depth; IN 19.75
Net Height; IN 23 - 42.5
Weight; LBS 43.5
Ceiling Height Minimum 8 ft.
Ceiling Height Maximum 9 ft.
Chimney Height in. 19
Chimney Width in. 10.37
Chimney Depth in. 10.56
Shipping Length; IN 38.58
Shipping Width; IN 21.65
Shipping Height; IN 25
Shipping Weight; LBS 60.1
Shipping Method LTL
Freight Class 300
Certification # E127334
Clean Filter Alert Yes
Duct Type Vertical
Duct Type Vertical
Overview
Internal Blower CFM (Min. - Max.):
200-600 CFM
Internal Blower Sones (Min. - Max.):
1-6 Sones
ACT 390 CFM (Min. - Max.):
200-390 CFM
ACT 390 Sones (Min. - Max.):
1-4 Sones
ACT 290 CFM (Min. - Max.):
200 - 290 CFM
Controls:
ICON Touch
Speed Levels:
5
Auto Delay-Off:
Yes
Lighting:
Brite Strip LED
Dual-Level Lighting:
Yes
Filters:
1 (Aluminum Mesh)
Recirculating Option:
Yes
Extension Duct Cover Option:
Yes (Up to 12' Ceiling)
Vertical Internal Blower:
6" Round
Electrical Specifications
Voltage:
120V
Amps:
5A
Frequency:
60 Hz
Warranty
Parts & Labor:
1 Year
Parts:
2 Additional Years
Dimensions & Weights
Width:
36"
Depth:
19 3/4"
Standard Min. Ducted Height:
23"
Standard Min. Recirculating Height:
27 1/2"
Standard Max. Height:
42 1/2"
Mounting Height:
26"-34"
Weight:
40 lbs
