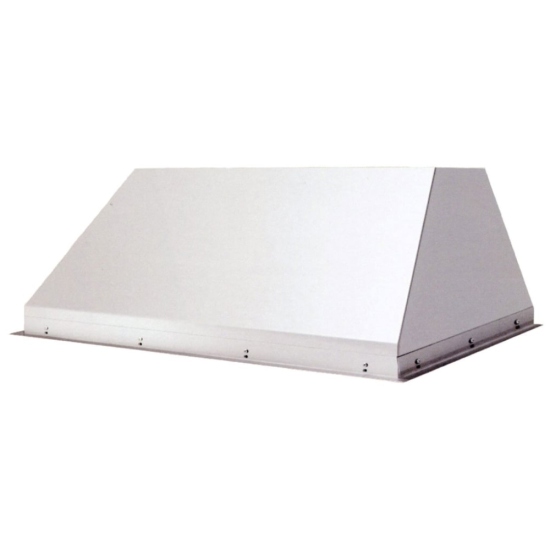

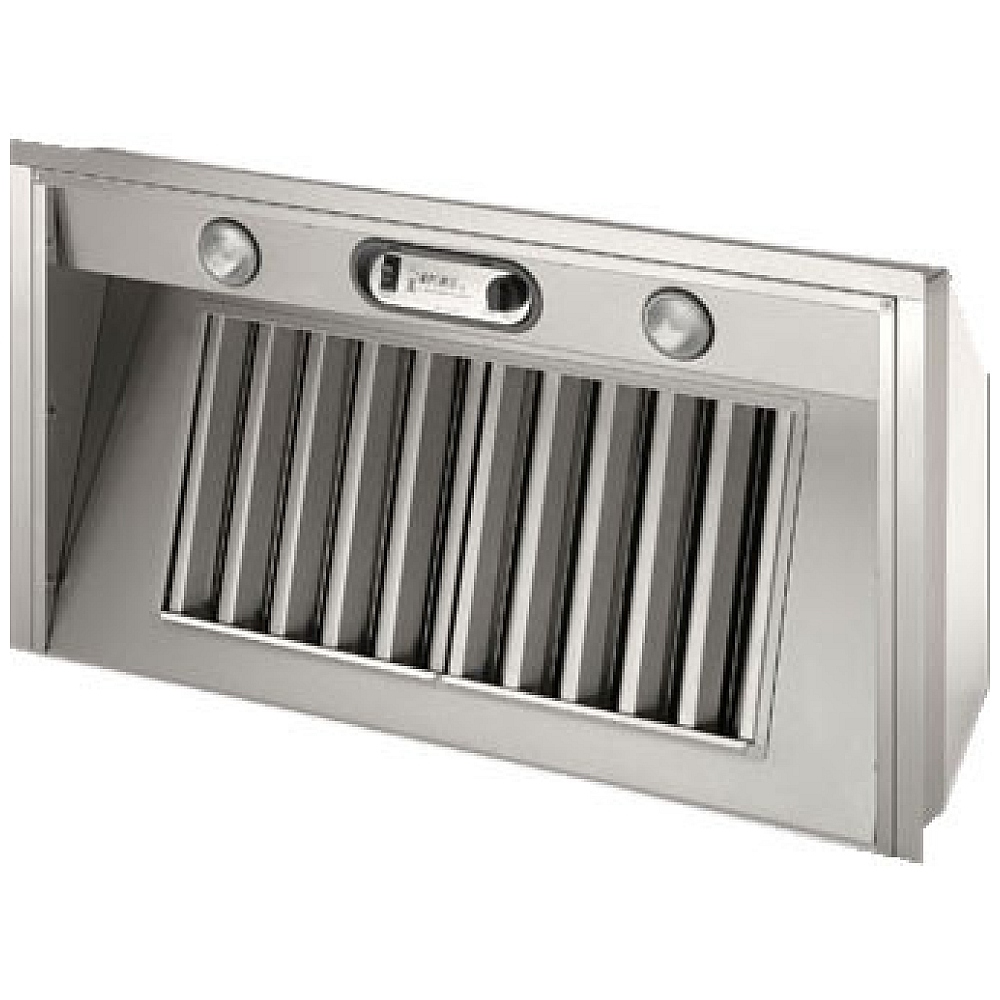

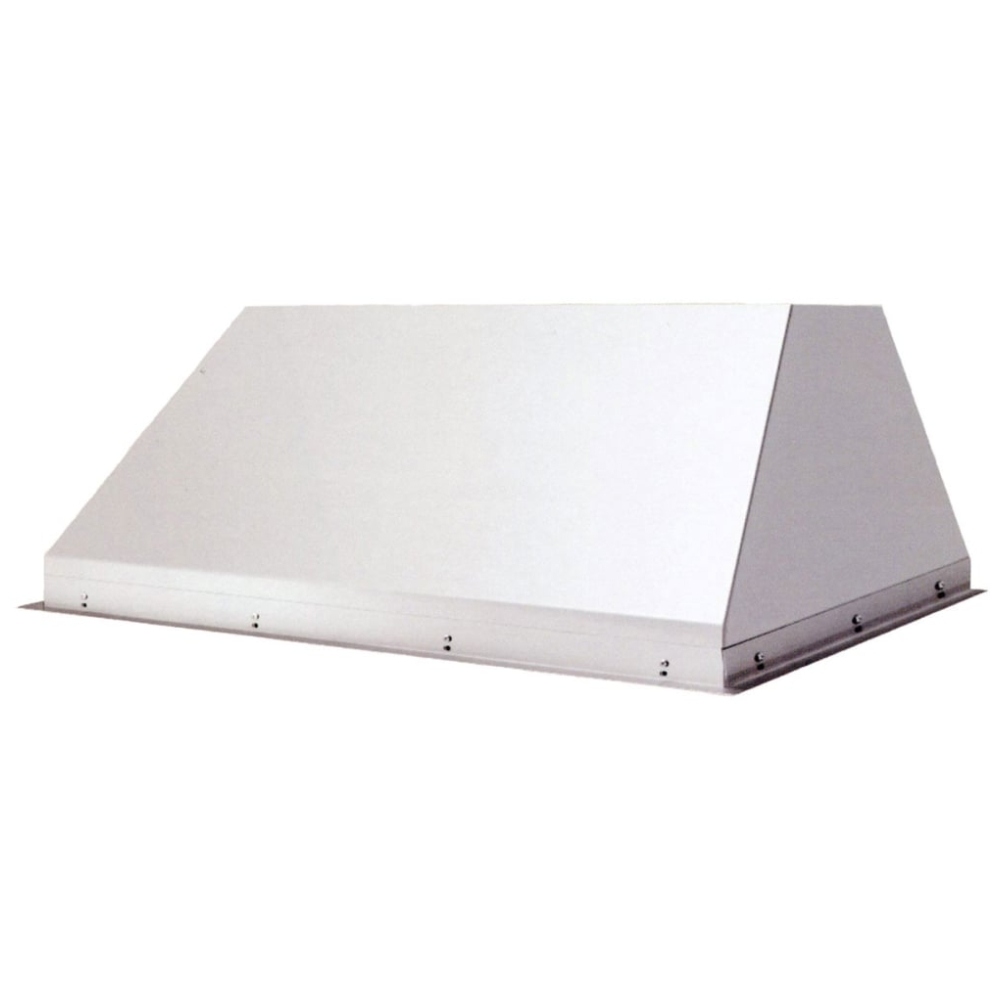

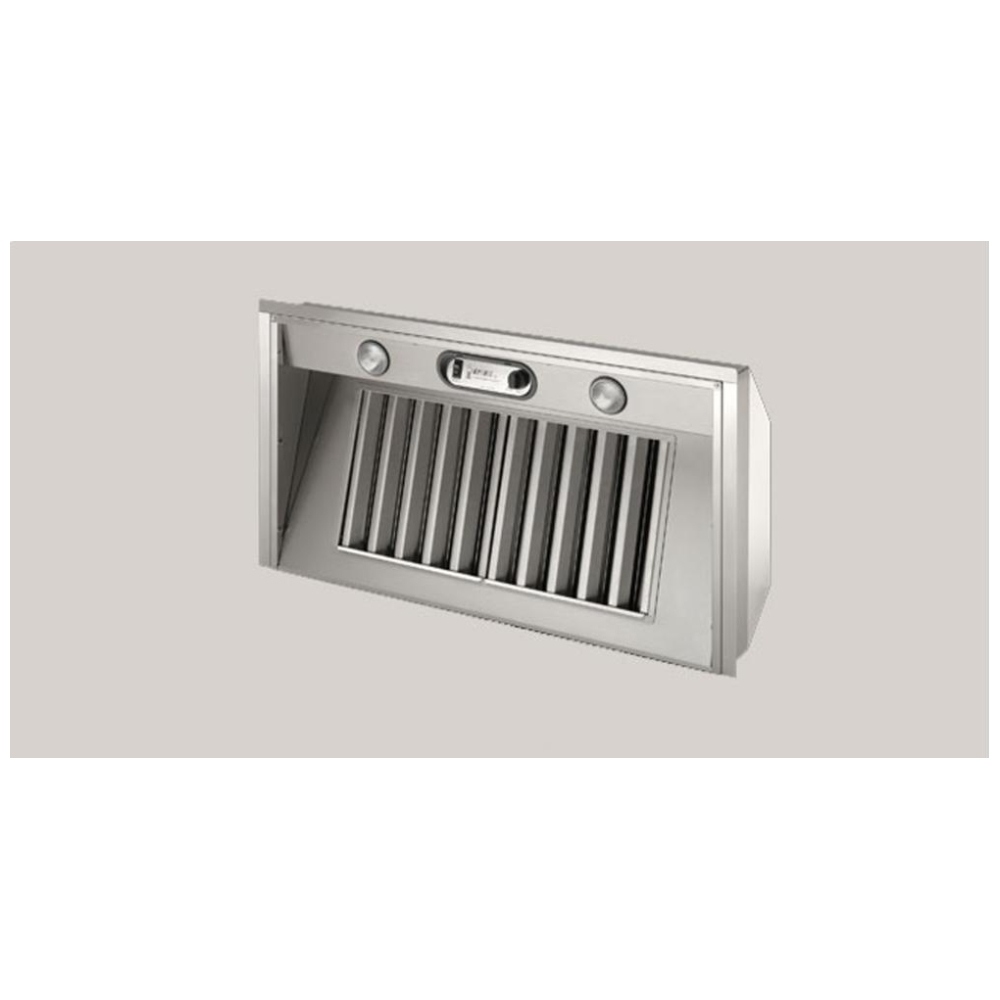

BlueStar liners provide the power to your unique ventilation design. Featuring handcrafted seamed construction, commercial style stainless steel baffle filters and double wall construction our liners will deliver pro-style results in your kitchen.
Stainless Steel Baffle Filters: Durable, dishwasher safe stainless steel baffle filters provide a smooth, even air-flow that extracts over 90% of the grease from the air. Built with commercial-grade construction, baffle filters are rugged and efficient.
Largest Filter Capture in the Industry: BlueStar® hoods feature the largest capture area in the industry to remove smoke, odors and grease from the air. When combined with the ideal blower, your hood will provide the most efficient venting system possible.
Quiet Performance with Multiple Blower Options: BlueStar® ventilation hoods provide optimal exhaust with whisper-quiet operation. They also give you the option of choosing between multiple blower options to fit any kitchen design. Internal blowers are available in 600 and 1200CFM s, In-line blowers are available in 600 and 1200CFM s while our Remote blowers are available in 1000 and 1400CFMs.
Blower Options: BlueStar® ventilation hoods provide optimal exhaust with whisper-quiet operation. They also give you the option of choosing between multiple blower options to fit any kitchen design. Internal blowers are available in 600 and 1200CFM s, In-line blowers are available in 600 and 1200CFM s and our Remote blowers are available in 1000 and 1400CFMs.
Manufacturer's Warranty: 2 years
Canadian model: BS-PMLSS-70-SS

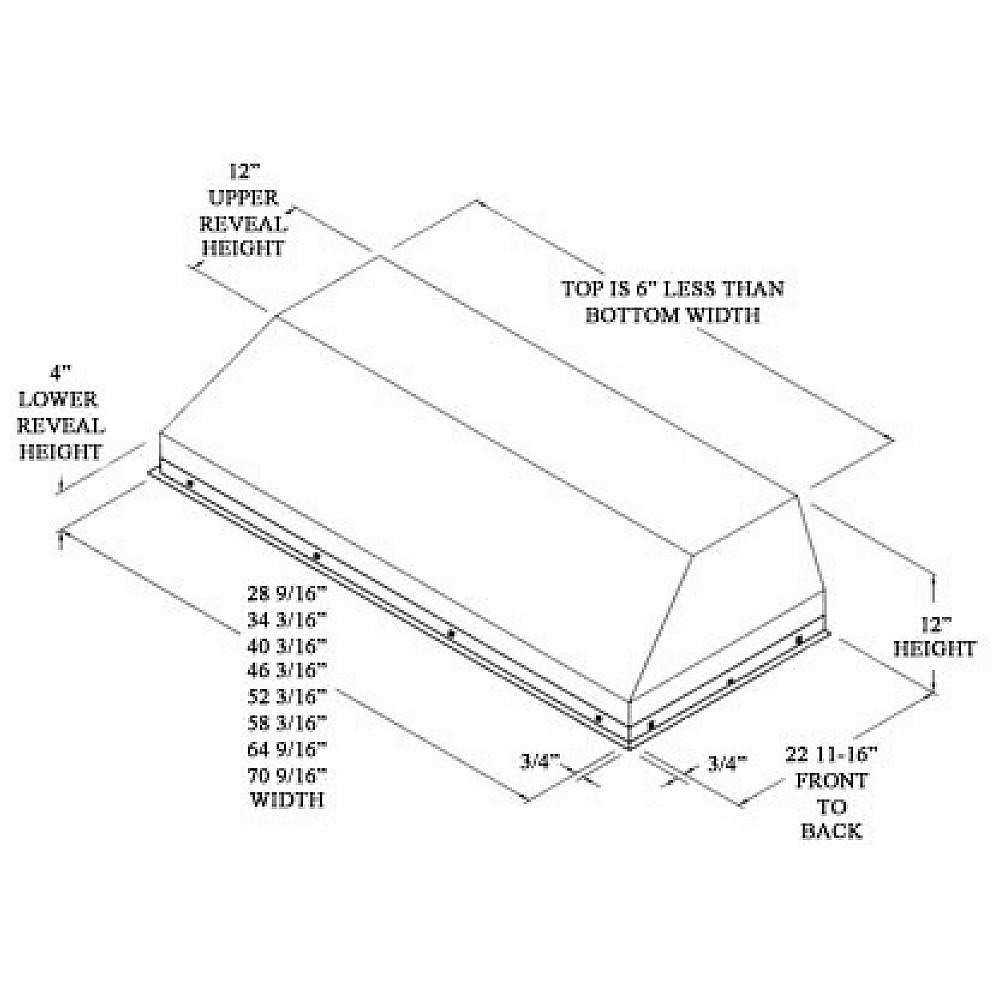

| Hood Dimensions: | 70 9/16"W x 22 11/16"D x 12"H | |
| Discharge: | Accommodates top or rear. Must specify at time of order | |
| Blower Options: | ||
| Location: | Model Number | CFM |
| In-hood | PH-CFM-600 | 600 |
| PH-CFM-1200 | 1200 | |
| In-line | PH-INLB600 | 600 |
| PH-INLB1200 | 1200 | |
| Remote | PH-1000CFMR | 1000 |
| PH-1400CFMR | 1400 |
| General | |
|---|---|
| Blower Included | No |
| Airflow | Blower Sold Seperately |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Installation | Wall Mount |
| Features | |
| Dishwasher-Proof Filters | Yes |
| Ducting Information | Round |
| Speeds | 3 |
| Additional Information | • Seamed construction • 3 speed fan control • High heat sensor • Stainless steel baffle filters • Non-mirrored, finished edges • Accommodates top discharge only |
| Electrical Information | |
| Information | 120 |
| Dimensions | |
| Class Width | 70" or more |
| Width | 70.56 inch(es) / 179.23 cm |
| Height | 12 inch(es) / 30.48 cm |
| Depth | 22.69 inch(es) / 57.63 cm |
