MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
















Manufacturer's Warranty: 1 year
| Specification | Value |
|---|---|

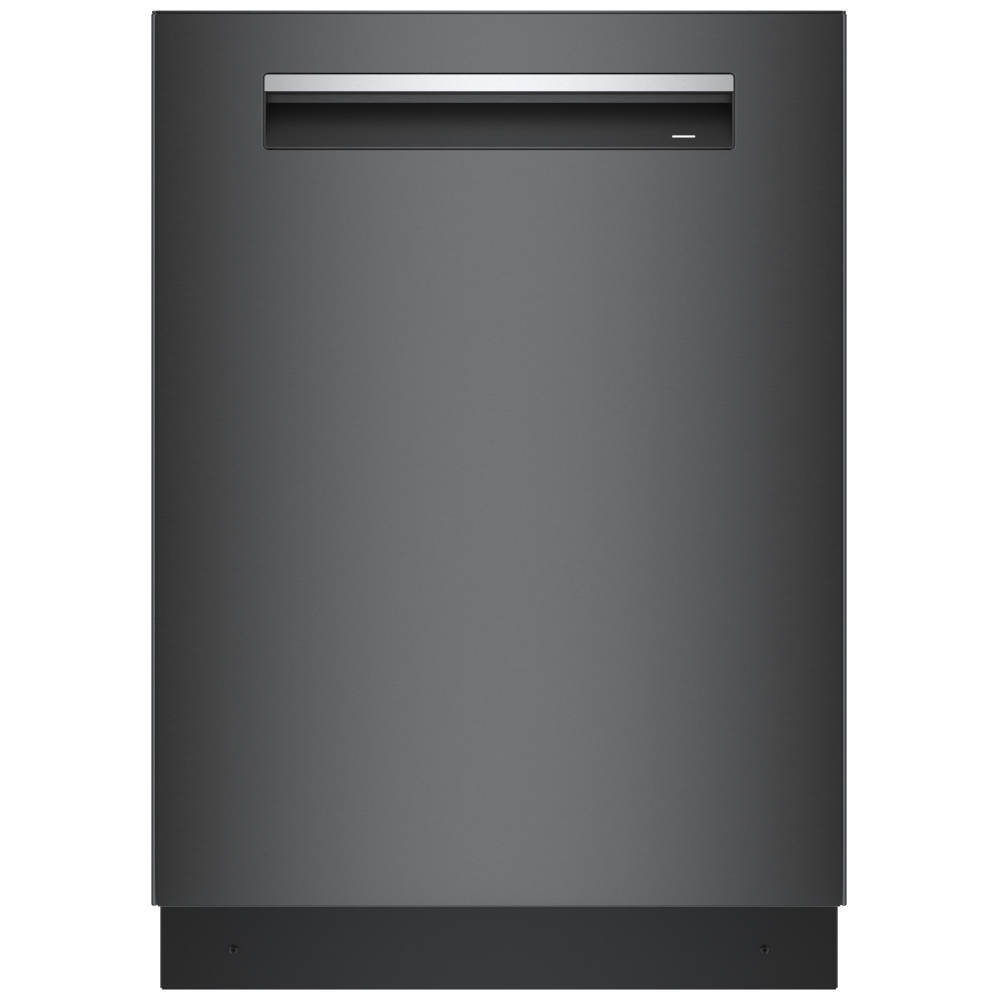

| Product Type | Built-in dishwasher |
| Series | 800 Series |
| Model | SHP78CM4N |
| Installation Type | Built-under |
| Class Width | 24" |
| Width | 23 9/16 inches |
| Height | 33 7/8 inches |
| Depth (without handle) | 23 3/4 inches |
| Required Cutout Size (HxWxD) | 33 7/8 inches x 24 inches x 24 inches |
| Overall Appliance Dimensions (HxWxD) (metric) | 860 mm x 598 mm x 602 mm |
| Net Weight | 92 lbs (approx. 41.6 kg) |
| Gross Weight | Approx. 101 lbs (varies slightly by listing) |
| Depth with Door Open 90° | Approx. 48.5 inches (1231 mm) |
| Adjustable Feet | Yes, all adjustable from front |
| Maximum Adjustability of Feet | 30 mm |
| Minimum Installation Height | 860 mm (33 7/8 inches) |
| Maximum Installation Height | 890 mm |
| Minimum Installation Width | 610 mm |
| Appliance Color / Finish | Brushed black steel anti-fingerprint (Black Stainless Steel) |
| Door Panel Options | Not panel-ready (door decor panel not possible) |
| Removable Top / Worktop | No |
| Tub Material | Stainless steel |
| Handle Design | Pocket handle |

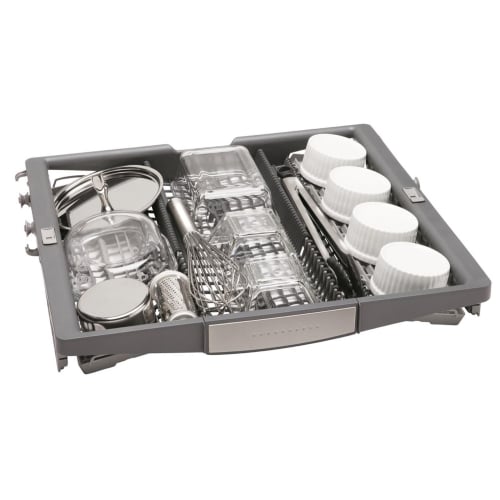

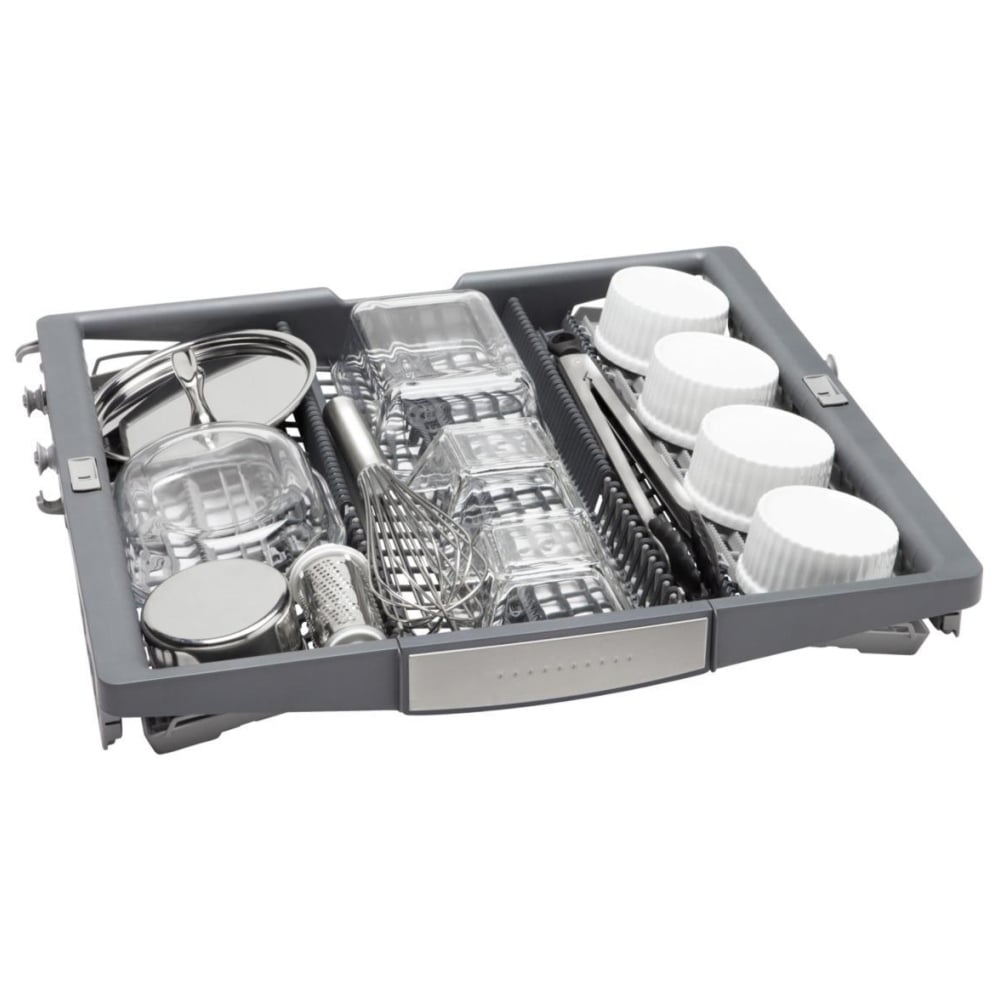

| Third Rack | Flexible 3rd Rack (3rd Rack 2.0) |

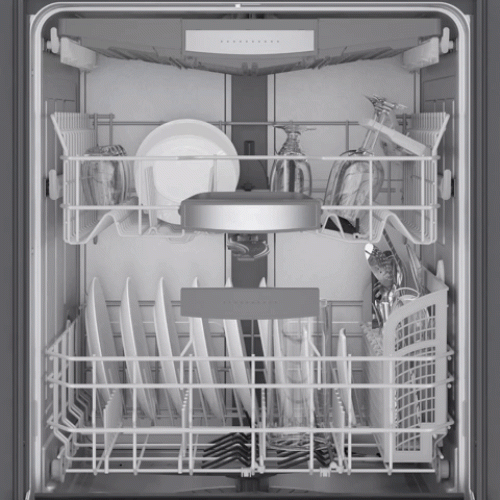

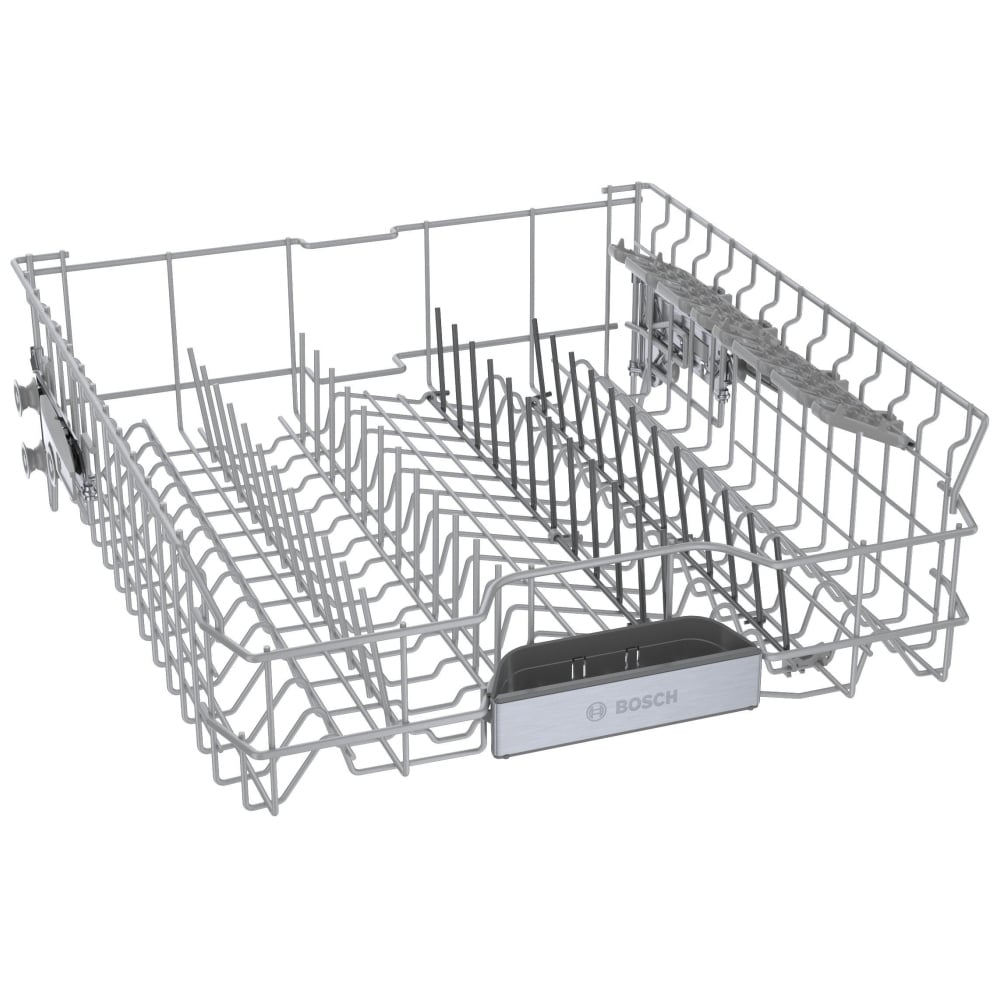

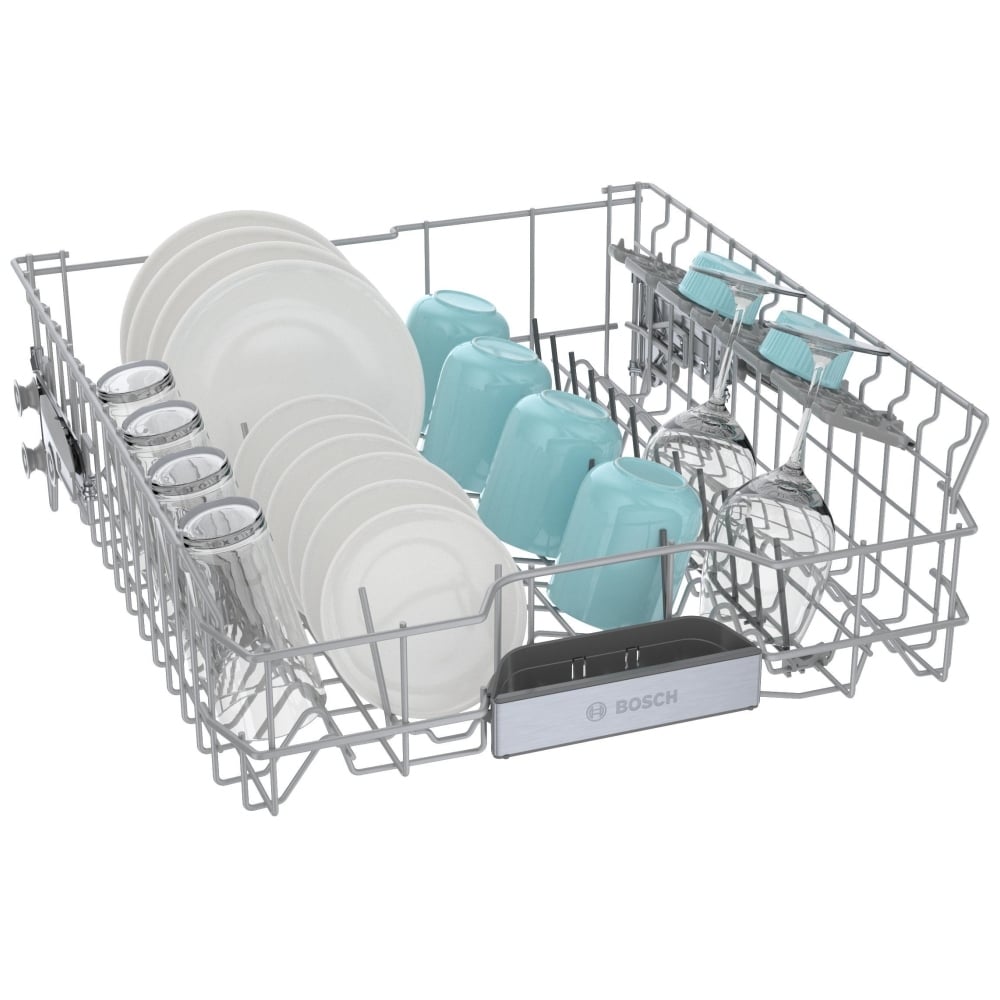

| Upper Rack Adjustability | RackMatic® adjustable upper rack |
| Number of Place Settings | 16 |

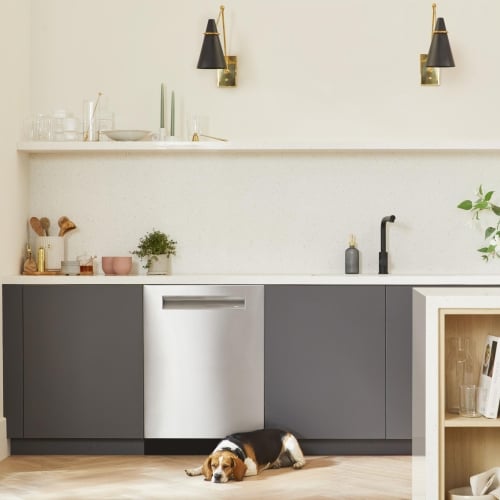

| Silence Level | 42 dBA |
| Decibel Rating Category | Extremely quiet operation |
| Energy Star Certified | Yes |
| Energy Efficiency Tier | Tier 1 (where specified) |
| Total Annual Energy Consumption | Approx. 239–240 kWh/year |
| Total Annual Water Consumption | Approx. 688 gallons/year |
| Water Usage per Cycle | Approx. 3.2 gallons |
| Number of Wash Cycles (on appliance) | 5 (Heavy, Auto, Normal, Speed 60, Favorite) |
| Additional Cycles via Home Connect | Hand Wash, Energy Save, Half Load, Machine Care, Rinse (varies by region) |
| Total Number of Cycles (including app) | Up to 8 |
| Number of Options (on appliance) | 4 |
| Additional Options via Home Connect | 2 additional options (varies by region) |
| Special Functions / Options | Remote Start, Sanitize, CrystalDry™, ZoneControl™ / PowerControl™ front, back, custom (Flex spray front/back/custom), HygienePlus |
| Drying System | CrystalDry® (Zeolith-based) with inherent heat / PureDry® (nomenclature varies by region) |
| Washing System | PrecisionWash® with PowerControl™ spray arm |
| Leak Protection System | 24/7 AquaStop® leak protection (regionally described as leak protection / AquaStop) |

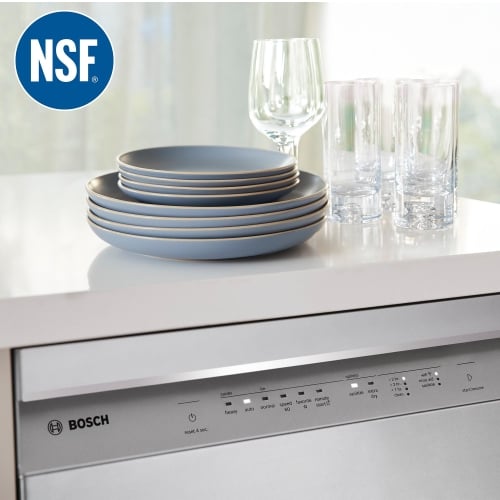

| NSF®-Certified Sanitize Option | Yes |
| Water Softener | No |
| Five-Level Wash | Yes |
| Concealed / Hidden Heating Element | Yes |
| Maximum Temperature for Water Intake | 140°F (60°C) |

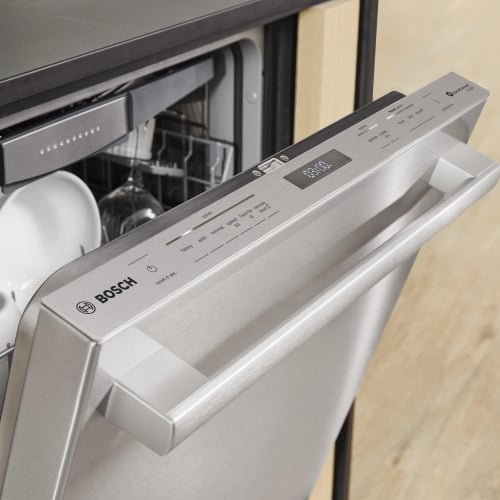

| Control Type | Electronic touch controls, fully integrated (top control) |
| Control via App | Yes (Home Connect®) |
| Wi-Fi / Connectivity | Home Connect® WiFi enabled, remote monitoring and control |
| Home Connect Features | Remote start, remote monitoring, additional programs, Smart Cycle selection |
| Status Indicator | End-of-program audible signal |
| InfoLight® / Program Status Indication | InfoLight® bar / light in door handle indicating operation (varies by listing wording) |
| TimeLight® | No |
| Interior Light | No |
| Open Door Assist | No |
| emotionLight / sideLight / Multi-color Star Glow | No |
| Delay Start | Yes |
| Pause / Reload | No |
| EcoSilence Drive | Yes |
| AquaSensor | Yes |
| Water Management System | No dedicated separate system (beyond AquaSensor / AquaStop) |
| Detergent Detection | No dedicated sensor listed |
| Child Lock / Child Safety Locks | No |
| AquaStop Warranty | Leak protection present; some listings note no separate AquaStop warranty coverage |
| Electrical Connection Rating | 1440 W |
| Current | 12 A |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power Cord Length | 67 inches (170 cm) |
| Outlet Hose Length | Approx. 78 3/4 inches (200 cm) |
| Plug Type | NEMA 5-15P |
| Minimum Water Pressure | Approx. 14 psi (where specified) |
| UPC | 825225965954 |
| EAN Code | 4242005313488 |
| Category | Built-in dishwashers |
| ADA Compliant | No |
| Tall Tub | No (standard tub height) |
| Interior Light | No |

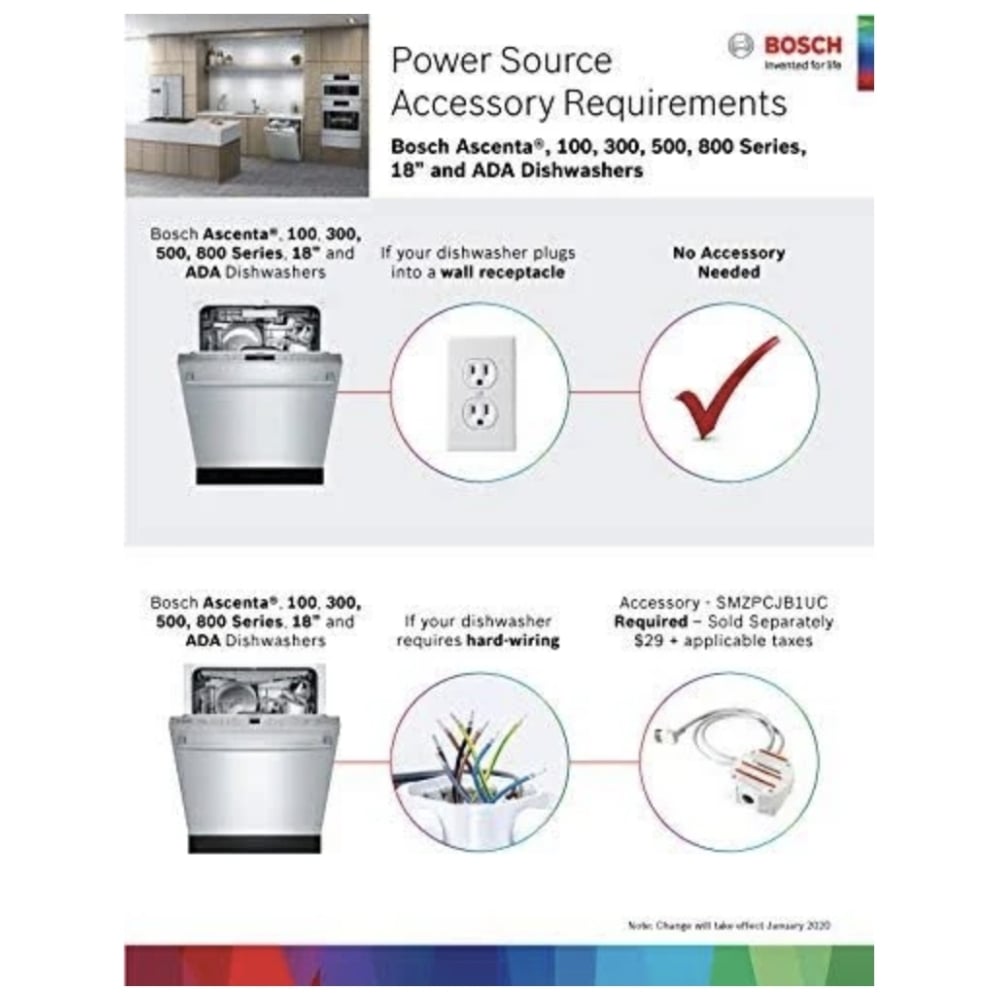

| Optional Accessories | Junction Box (SMZPCJB1UC), Junction Box + Supply Hose Kit (SMZ3IN1UC), Bosch Dishwasher Water Supply Hose (SMZSH002UC), Drain Hose Extension Kit (SGZ1010UC), Dishwasher Accessory Kit (SMZ5000), Anti-Tarnish Silverware Cassette (SMZ5002UC), Edge Protector + Power Cord Clip Install Kit (SMZEPCC1UC) |
