Bosch DHG6023UC
Discontinued
ADY3MH
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Ratings & Reviews
ADY3MH
When will I get this?

Why Buy This at CAS?
Description & Features

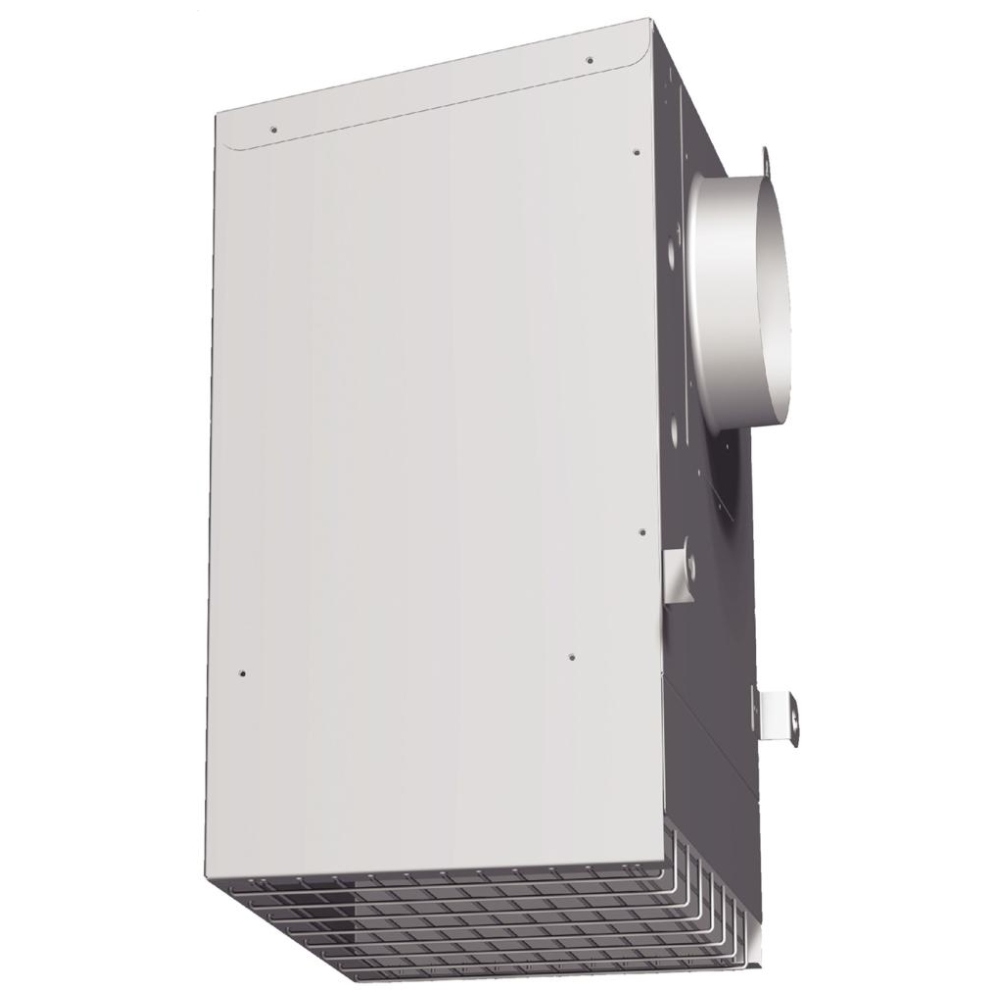

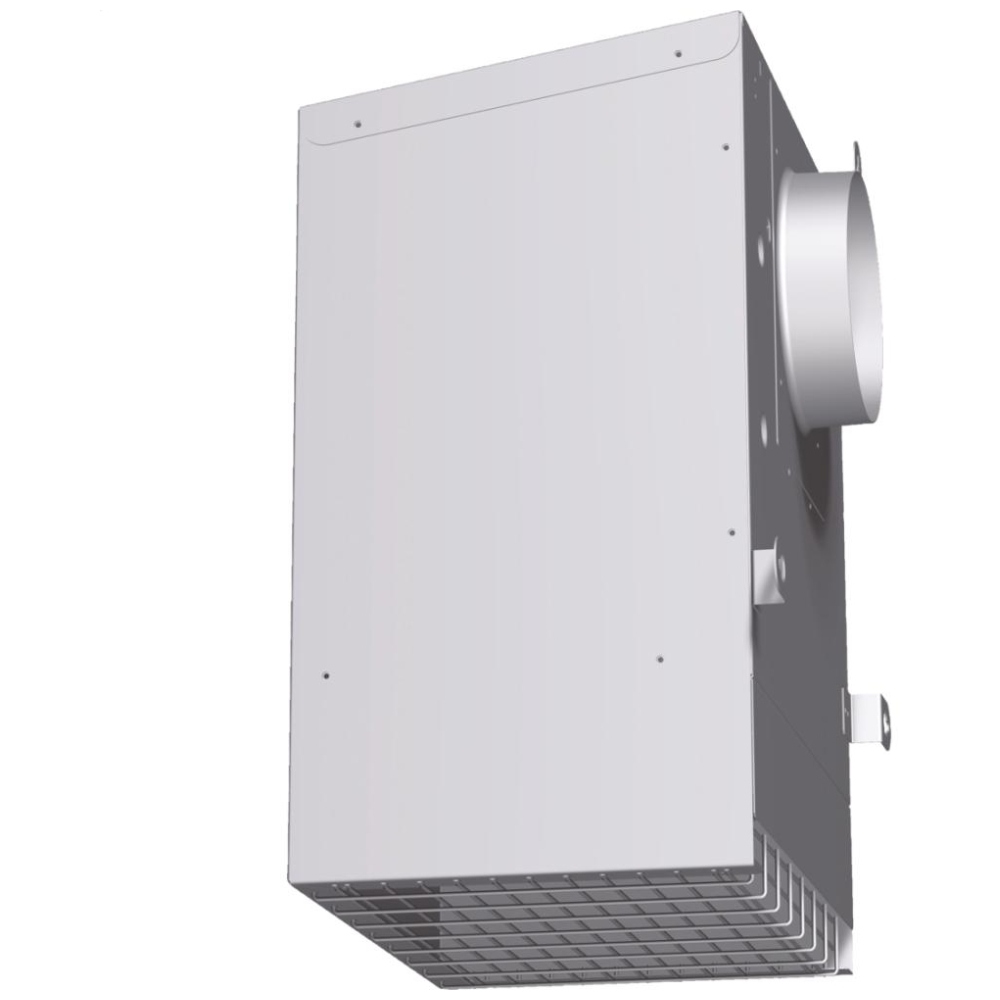

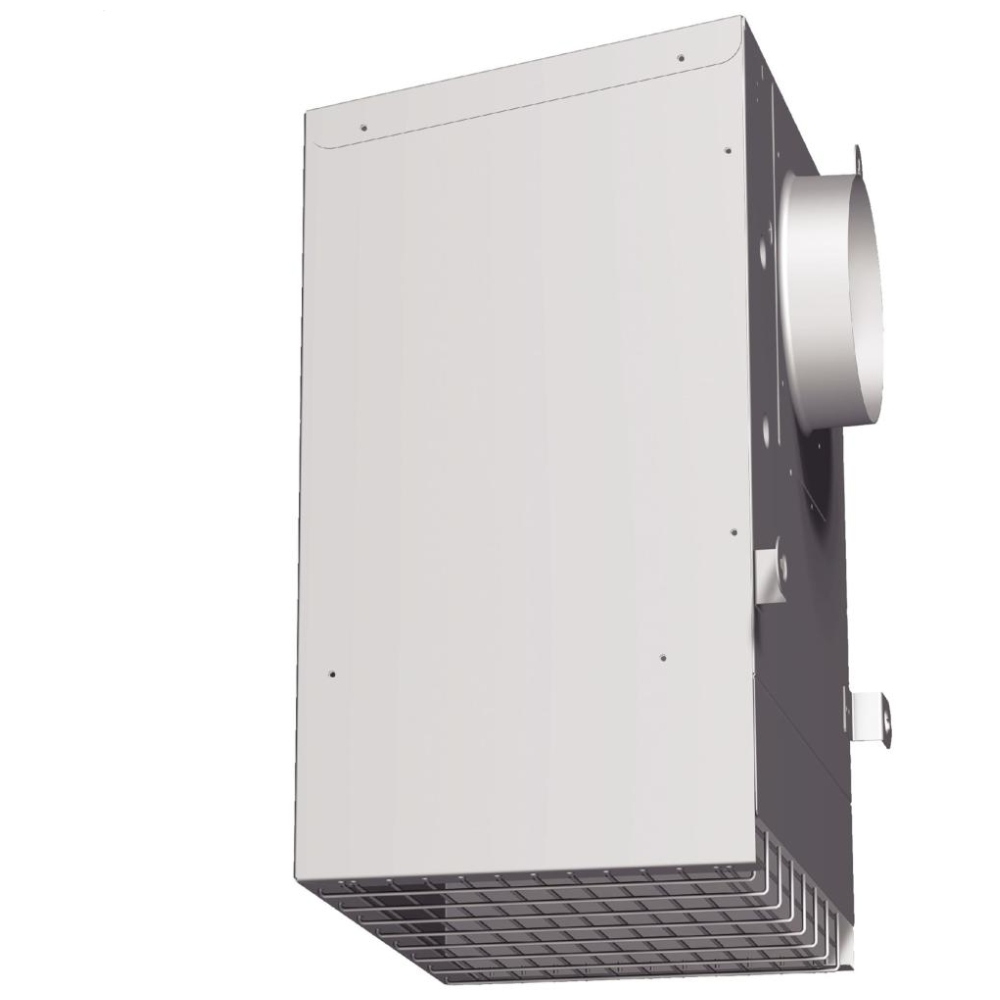

600 CFM Remote Blower

Can be mounted on the exterior of the home to minimize noise in the cooking area

Can be roof-mounted or mounted on an exterior wall, depending on appearance preferences or to best suit the ducting application
For use with Bosch Downdrafts
6" Transition required (DHZDHR6)

Manufacturer's Warranty: 1 year

Canadian model: DHG6023UC

Canadian UPC: 825225848141

EAN: 0825225848141

Specs
General Properties
Operating Mode Ducted
Maximum CFM 600 Cu Ft mi
Motor location N/A
Certifications
Approval certificates ETL
Installation Requirements
Watts (W) 530 W
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug type 120V-3 prong
Overall appliance dimensions (HxWxD) (in) 19 '' / x 14 7/16 '' x 10 13/16 ''
Product packaging dimensions (HxWxD) (in) 15.74 x 19.29 x 25.19
Diameter of air duct (in) top 6
Diameter of air duct (in) back 6
Net weight (lbs) 24 lbs
Gross weight (lbs) 28 lbs

 SKU:   DHG6023UC

Operating Mode:   Ducted
Watts (W):   530 W
Volts (V):   120 V
Frequency (Hz):   60 Hz
Approval certificates:   ETL
Power cord length (cm):   150.0 cm
Plug type:   120V-3 prong
Overall appliance dimensions (HxWxD) (mm):   483 x 367 x 275 mm
Product packaging dimensions (HxWxD) (mm):   400 x 490 x 640 mm
Net weight (kg):   11.00 kg
Gross weight (kg):   13.00 kg
Number of motors:   1
Overall appliance dimensions (HxWxD) (in):   19 '' / x 14 7/16 '' x 10 13/16 ''
Product packaging dimensions (HxWxD) (in):   15.74 x 19.29 x 25.19
Net weight (lbs):   24 lbs
Gross weight (lbs):   28 lbs
Maximum CFM:   600 Cu Ft mi
Discharge direction:   horizontal
Diameter of air duct (in) top:   6
Diameter of air duct (in) back:   6
UPC code:   825225848141
SERIES:   Accessory
