MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
















Manufacturer's Warranty: 1 year
Canadian model: SGV78C53UC
Canadian UPC: 825225970385
EAN: 4242005415168


| Specification | Value |
|---|---|
| Product Series | 800 Series |
| Design | Built-in, fully-integrated, panel-ready (custom panel and handle required) |
| Installation Type | Full-integrated, ADA compliant |
| Capacity (Place Settings) | 15 place settings |
| Width | 23 9/16 inches |
| Height | 32 1/16 inches |
| Depth | 21 5/8 inches |
| Required Cutout (HxWxD) | 32 1/8 inches x 24 inches x 24 inches |
| Overall Dimensions (HxWxD) Metric | 815 mm x 598 mm x 550 mm |
| Net Weight | Approx. 102 lbs (46.1 kg) |
| Gross / Shipping Weight | Approx. 106 lbs |
| Adjustable Feet | Yes, all adjustable from front |
| Adjustable Plinth | No |
| Panel Ready | Yes, custom panel and handle sold separately |
| Removable Top / Worktop | No |
| Column Installation | Yes |
| Door Panel Options | Custom panel possible with accessory |
| Appliance Color / Finish | Custom panel (panel-ready) |
| Control Type | Top controls, electronic buttons; app control via Home Connect |
| Display | Yes (integrated) |
| Interior Tub Material | Stainless steel |

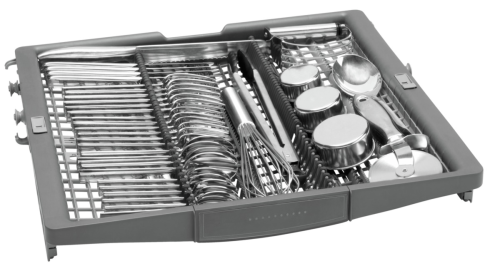

| Third Rack | Standard 3rd rack (3rd Rack 1.0) |
| Adjustable Upper Rack | Yes (RackMatic adjustable rack system) |
| Silverware Storage | 3rd rack plus lower rack silverware basket |
| Place Setting Capacity Description | Compact ADA-height 24" dishwasher with 15 place settings |
| Sound Level | 42 dBA |
| Noise Level (Db(A) re 1 pW) | 42 |
| Energy Star Certification | Yes (Tier 1) |
| Total Annual Energy Consumption | Approx. 240 kWh/year |
| Total Annual Water Consumption | Approx. 557 gallons/year |
| Water Usage per Cycle | Approx. 3.2 gallons |
| Leak Protection | 24/7 AquaStop Plus leak protection |
| Drying System | CrystalDry and PureDry / Zeolith with inherent heat |
| Washing System | PrecisionWash with multiple spray levels |
| Water Softener | Yes (built-in) |
| Concealed / Hidden Heating Element | Yes |
| Maximum Water Inlet Temperature | 140 °F |
| Number of Wash Cycles | 6 |
| Number of Options | 5 |
| Program List (common) | Heavy, Auto, Normal, Hand Wash / Glass / Delicate, Quick Wash 45 °C, Favorite / Custom |
| Special Functions / Options | Remote Start, Half Load, Sanitize / HygienePlus, CrystalDry, Machine Care |
| NSF Certified Sanitize Option | No (sanitize / HygienePlus option present but not NSF-certified) |
| Program Status Indicator | InfoLight red floor beam; end-of-program audible signal; internal time-remaining indicator |
| Interior Light | No |
| Child Lock | No |
| Home Connect (Wi-Fi) | Yes, with remote monitoring and control |
| Home Connect Features | Remote start/stop, program selection, status monitoring, smart reordering (where available) |
| EcoSilence Drive | Yes (brushless motor) |
| AquaSensor | Yes (soil sensor) |
| Water Management System | No dedicated separate water management system listed |
| Energy Consumption (Connected Standby) | Approx. 2.0 W (Wi-Fi module in network standby) |
| Network Auto-Standby Time | Approx. 2 minutes |
| Electrical Requirements | 120 V, 60 Hz, 12 A |
| Connection Rating | 1440 W |
| Power Cord Length | 67 inches (approx. 170 cm) |
| Plug Type | NEMA 5-15P (3-prong) |
| Inlet Hose Length | Approx. 65 inches (165 cm) |
| Outlet Hose Length | Approx. 74 3/4 inches (190 cm) |
| Depth with Door Open 90° | Approx. 45 1/2 inches (1155 mm) |
| Toe Kick Color | Stainless steel |
| Status Indicator Lights | Red InfoLight on floor; internal time-remaining indicator; water inlet indicator |
| Delay Start | Yes |
| End-of-Program Signal | Audible signal |
| Safety Features | AquaStop leak protection with warranty; no child safety lock |
| Accessories Included | Small parts holders (3x), bottle holder |
| Optional Accessories (Examples) | Junction box, dishwasher softener salt, drain hose extension, accessory kits, anti-tarnish silverware cassette, edge protector/power cord clip kit |
| UPC / EAN | UPC 825225970385; EAN 4242005415168 |
| Intended Market | North American 24" built-in, ADA-height, panel-ready dishwasher |
