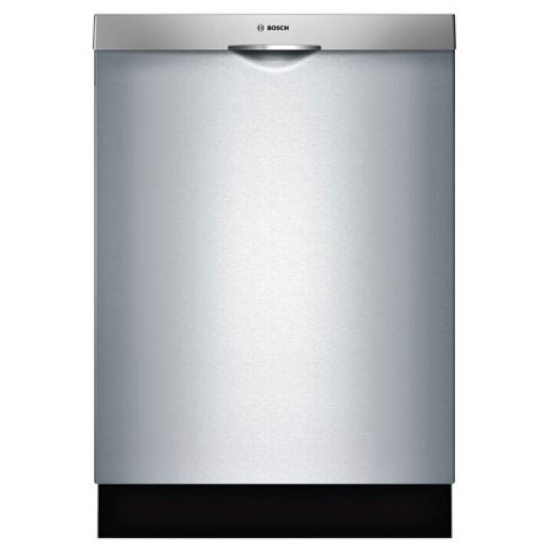

Bosch SHSM4AZ55N
Discontinued
Replaced by SHE5AE75N
ENERGY STAR®
>> View & Compare Bosch Dishwasher Line Up << >> View & Compare Bosch Dishwasher Line Up <<
Bosch Dishwashers 2024 Bosch Dishwashers 2024
AHCX73
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Replaced by SHE5AE75N
Ratings & Reviews
SMZPCJB1UC
SMZPCJB1UC
Product Accessories
$32
AHCX73
When will I get this?

Description & Features
100 Series Dishwasher60 cm Stainless steel
SHSM4AZ55N

Bosch dishwashers are so quiet, you may forget they’re on. InfoLight® projects a red light onto the floor to let you know it's on.


Bosch dishwashers are so quiet, you may forget they re on. InfoLight projects a red light onto the floor to let you know it's on.

Key Features
  • 48 dBA- Quietest Dishwasher Brand.
  • InfoLight Beams on Floor to Indicate Dishwasher is Running
  • RackMatic on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • 24/7 Overflow Protection System
Design
  • Stainless Steel Tall Tub with Polypropylene
  • 14 Place Setting Capacity
  • LED Remaining Time Display
  • RackMatic on Upper Rack - 2 Height Adjustments
  • Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items
Performance
  • 5 Wash Cycles and 4 Options
  • Detergent Tray Optimizes Detergent Dissolving
  • Load Size Sensor Automates Wash Temperature
  • Sanitize Option Eliminates Bacteria and Enhances Drying Results
  • Extra Dry Option for Better Drying Results
Efficiency
  • 269 kWh/yr - Energy Star
  • Half Load Option for Small Loads
Convenience
  • Electronic delay timer: 1-24 hours Delay Start Timer
  • Self-Latching Door

  • ExtraDry
  • ExtraDry Activating the Extra Dry option dries your dishes extra-thoroughly by higher temperatures during the rinse cycle and a longer drying phase - with just one push of a button.
  • A 3rd rack to meet your loading needs.
  • A 3rd rack to meet your loading needs. With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks
  • RackMatic™ Adjustable Upper Rack
  • RackMatic™ Adjustable Upper Rack The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
  • InfoLight® -a light that tells you when your dishwasher is running
  • InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
  • When your dishes are done, so are you.
  • When your dishes are done, so are you. With Bosch PrecisionWash™, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
  • Quality is in the details.
  • Quality is in the details. Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
  • The dishwasher that removes more than food.
  • The dishwasher that removes more than food. The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
  • Why Bosch is the #1 brand for dishwashers worldwide.*
  • From always putting our customers first, to engineering thoughtful innovations that make your life easier, see why Bosch is the #1 brand for dishwashers worldwide.* *Source: Euromonitor, volume sales, 2018.
  • Anti-Fingerprint
  • Anti-Fingerprint Stainless steel fronts with anti-fingerprint coating are permanently surface-sealed by means of a special final treatment. This protective coating makes fingerprints much more difficult to see; the surface stays clean longer, is much more scratch-resistant and is easier to clean.

Manufacturer's Warranty: 1 year

Canadian model: SHSM4AZ55N

Canadian UPC: 825225961208

EAN: 0825225961208


ExtraDry - SHSM4AZ55N
ExtraDry
SHSM4AZ55N - ExtraDry
ExtraDry Activating the Extra Dry option dries your dishes extra-thoroughly by higher temperatures during the rinse cycle and a longer drying phase - with just one push of a button.

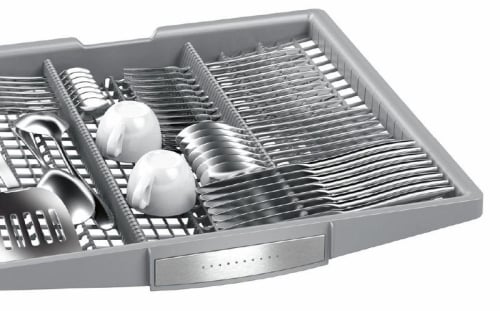

A 3rd rack to meet your loading needs. - SHSM4AZ55N
A 3rd rack to meet your loading needs.
SHSM4AZ55N - A 3rd rack to meet your loading needs.
A 3rd rack to meet your loading needs. With 30% more loading area*, the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks

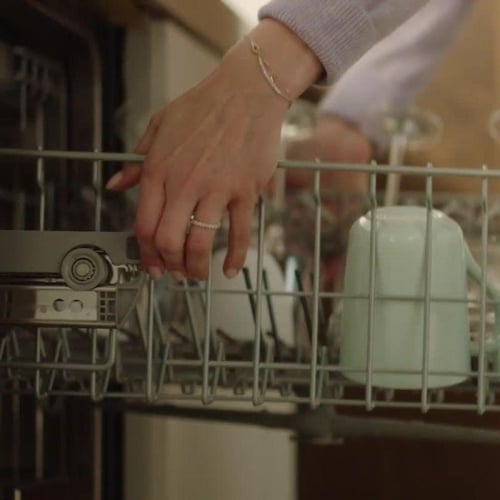

RackMatic™ Adjustable Upper Rack - SHSM4AZ55N
RackMatic™ Adjustable Upper Rack
SHSM4AZ55N - RackMatic™ Adjustable Upper Rack
RackMatic™ Adjustable Upper Rack The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

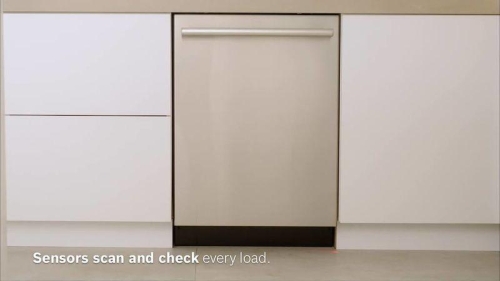

When your dishes are done, so are you. - SHSM4AZ55N
When your dishes are done, so are you.
SHSM4AZ55N - When your dishes are done, so are you.
When your dishes are done, so are you. With Bosch PrecisionWash™, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details. - SHSM4AZ55N
Quality is in the details.
SHSM4AZ55N - Quality is in the details.
Quality is in the details. Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.

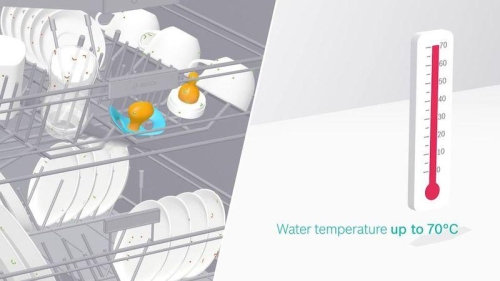

The dishwasher that removes more than food. - SHSM4AZ55N
The dishwasher that removes more than food.
SHSM4AZ55N - The dishwasher that removes more than food.
The dishwasher that removes more than food. The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.

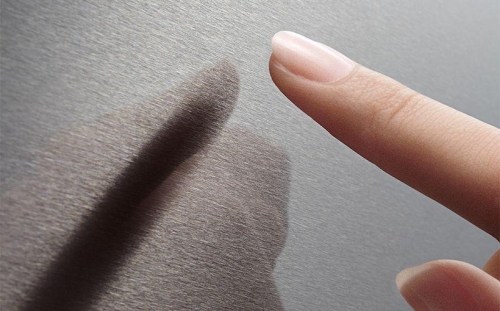

Anti-Fingerprint - SHSM4AZ55N
Anti-Fingerprint
SHSM4AZ55N - Anti-Fingerprint
Anti-Fingerprint Stainless steel fronts with anti-fingerprint coating are permanently surface-sealed by means of a special final treatment. This protective coating makes fingerprints much more difficult to see; the surface stays clean longer, is much more scratch-resistant and is easier to clean.

Specs
General
Width of the product 598 mm
Appliance Width (in) 23 9/16
Height of the product 860 mm
Height (in) 33 7/8
Installation Type Built-under
Number of place settings 15
List of programmes Economy, Intensive, Pre-Rinse, Quick L
Cycle Options Crystal Protect, Extra dry, HygienePlus
Display Yes
Silence level 48 dB(A) re 1 pW
3rd Rack 3rd Rack 1.0
Interior light No
Removable top No
Power cord length 170 cm
Power cord length (in) 67"
Construction type
Color / Material housing Tin grey
Color / Control Panel Stainless steel colour, lacqu.
Construction type Built-in
Panel ready Not possible
Drying system Inherent heat
Height of the product 860 mm
Height (in) 33 7/8
Concealed heating element Yes
Installation Type Built-under
Tub material Plastic
Water softener No
Width of the product 598 mm
Appliance Width (in) 23 9/16
Size and weight
Overall appliance dimensions (HxWxD) 860 x 598 x 573 mm
Overall appliance dimensions (HxWxD) (in) 33 7/8'' x 23 9/16'' x 22 9/16''
Adjustable plinth both horizontal and vertical
Net weight 32.2 kg
Net weight 71.000 lbs
Connectivity
Home Connect
Programmes
Status indicator End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal
List of programmes Economy, Intensive, Pre-Rinse, Quick L
Program 1 Intensive
Program 2 Auto
Program 3 Economy
Program 4 Quick L
Program 5 Pre-Rinse
Programme duration, programme1 (min.) 110-130
Programme duration, programme2 (min.) 105-130
Programme duration, programme3 (min.) 130-135
Programme duration, programme4 (min.) 60
Programme duration, programme5 (min.) 9
Number of different wash temperatures 5
Temperature, programme 1 (°C) 66-71
Temperature, programme 2 (°C) 53-55
Temperature, programme 3 (°C) 50-55
Temperature, programme 4 (°C) 50
Safety
AquaStop
ChildLock No
Consumption values
Glass protection No
Water consumption, programme 1 (l) 18.6-28
Water consumption, programme 2 (l) 9.9-20.7
Water consumption, programme 3 (l) 9.5-20.8
Water consumption, programme 4 (l) 14.3
Water consumption, programme 5 (l) 4.1
Maximum temperature for water intake (°C) 50 °C
Maximum number of place settings (EU 2017/1369) 15
Connection
Watts 1,440 W
Power cord length 170 cm
Power cord length (in) 67"
Fuse protection 12 A
Plug type Nema5-15P
Consumption values
Glass protection No
Water consumption program 1 4.9-7.4 gal
Water consumption program 2 2.6-5.5 gal
Water consumption program 3 2.4-5.5 gal
Water consumption program 4 3.8 gal
Water consumption program 5 1.1 gal
Total annual water consumption 688 gallons
Maximum temperature for water intake (°C) 50 °C
Key Features
48 dBA- Quietest Dishwasher Brand.
InfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
24/7 Overflow Protection System®
Design
Stainless Steel Tall Tub with Polypropylene
14 Place Setting Capacity
LED Remaining Time Display
RackMatic® on Upper Rack - 2 Height Adjustments
Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items
Performance
5 Wash Cycles and 4 Options
Detergent Tray Optimizes Detergent Dissolving
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results
Extra Dry Option for Better Drying Results
Efficiency
269 kWh/yr - Energy Star®
Half Load Option for Small Loads
Convenience
24 h Delay Start Timer
Self-Latching Door

Key Features
  • 48 dBA- Quietest Dishwasher Brand.
  • InfoLight® Beams on Floor to Indicate Dishwasher is Running
  • RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
  • 24/7 Overflow Protection System®
Design
  • Stainless Steel Tall Tub with Polypropylene
  • 14 Place Setting Capacity
  • LED Remaining Time Display
  • RackMatic® on Upper Rack - 2 Height Adjustments
  • Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items
Performance
  • 48 dBA- Quietest Dishwasher Brand.
  • 5 Wash Cycles and 4 Options
  • Detergent Tray Optimizes Detergent Dissolving
  • Load Size Sensor Automates Wash Temperature
  • Sanitize Option Eliminates Bacteria and Enhances Drying Results
  • Extra Dry Option for Better Drying Results
Efficiency
  • 269 kWh/yr - Energy Star®
  • Half Load Option for Small Loads
Convenience
  • InfoLight® Beams on Floor to Indicate Dishwasher is Running
  • 24/7 Overflow Protection System®
  • Electronic delay timer: 1-24 hours Delay Start Timer
  • Self-Latching Door
