Technical Specifications
General
Installation Type	Full-integrated
Number of place settings	15
List of programmes	Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
Cycle Options	Extra dry, half load, Sanitation, VarioSpeed
Display
Third Rack	Standard Third Rack
Interior Light
Removable top
Power Cord Length	43 1/2''
Connectivity
Home Connect
Size and weight
Overall appliance dimensions (HxWxD) (in)	33 7/8 '' x 23 9/16 '' x 23 1/16 ''
Adjustable plinth
Net weight (lbs)	80 lbs
Programmes
List of programmes	Auto, Hand Wash, Normal, Pots & Pans, Quick, Rinse
Program 1	Pots & Pans
Program 2	Auto
Program 3	Hand Wash
Program 4	Normal
Program 5	Quick
Program 6	Rinse
Programme duration, programme1 (min.)	110-135
Programme duration, programme2 (min.)	105-129
Programme duration, programme3 (min.)	80-85
Programme duration, programme4 (min.)	130-135
Programme duration, programme5 (min.)	30
Programme duration, programme6 (min.)	9
Reference programme	Regular US
Safety
Glass protection
Surge-back protect. installed
Leak protection system	Aqua Stop
Consumption values
Glass protection
Total annual water consumption (g)	624 gallons
Maximum temperature for water intake (°C)	60 °C
Connection
Watts (W)	1,300 W
Power Cord Length	43 1/2''
Current (A)	12 A
Length inlet hose (cm)	135 cm
Plug type	fixed connection
Construction type
Color / Control Panel	Black
Construction type	Built-in
Panel ready	Not possible
Drying system	Inherent heat
Concealed heating element
Installation Type	Full-integrated
Tub material	Stainless steel
Water Softener

General
Requires Custom Panel:	Yes
Number of programs:	6
Program 1:	Power Scrub Plus US
Program 2:	Auto US
Program 3:	Delicate/Economy Wash US
Program 4:	Regular US
Program 5:	Quick Wash US
Program 6:	Rinse & Hold US
Number of options:	5
Cycle Options:	Extra dry, Half load, Sanitation, Extra Shine, Eco Cycle, VarioSpeed
Tub material:	Stainless steel
Concealed heating element:	Yes
Display:	Yes
Interior light:	No
Water softener:	No
Load sensor:	Yes
Variable spray pressure:	Yes
Sanitized indicator light:	Yes
Filtration type:	3-fold corrugated
Five-level wash:	Yes
ChildLock:	No
Accessories Parts:	3 small item clips, bottle holder, large item spray head
Silence level:	44 dBA
Info Light:	red
Capacity
Number of place settings:	16

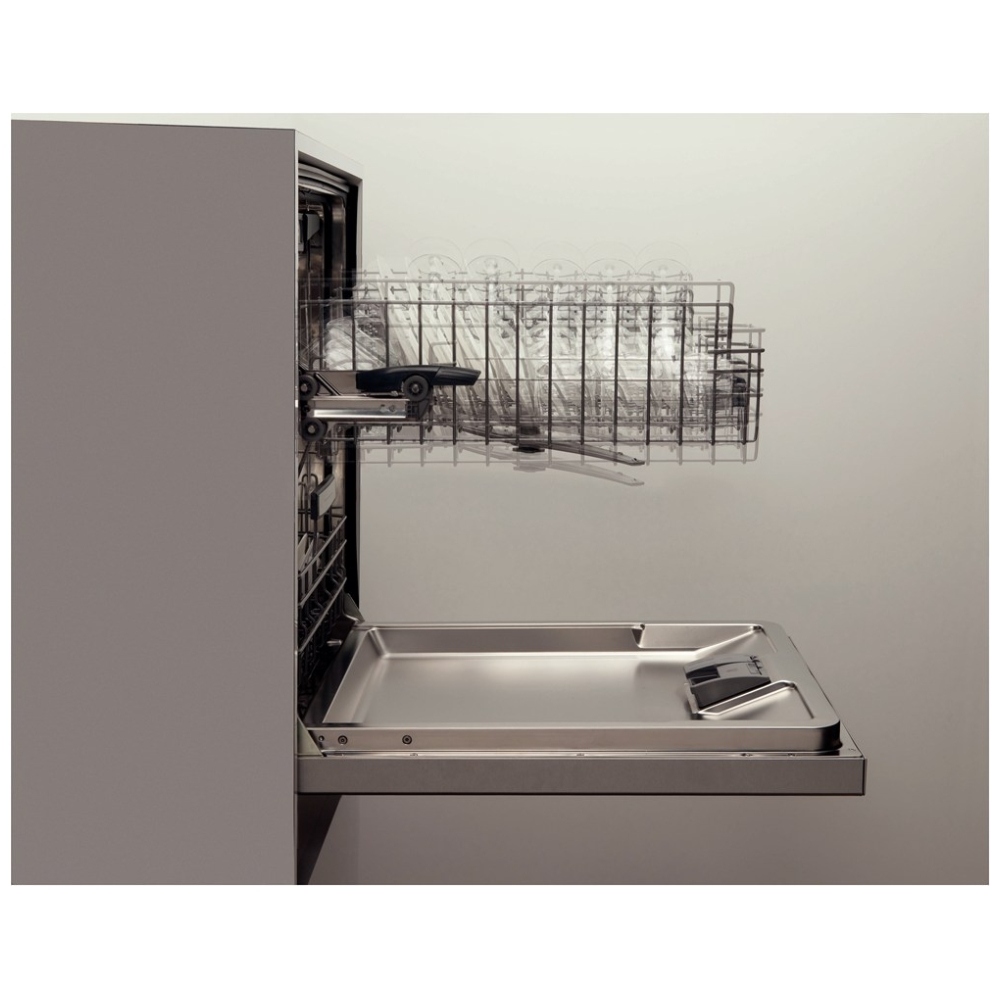

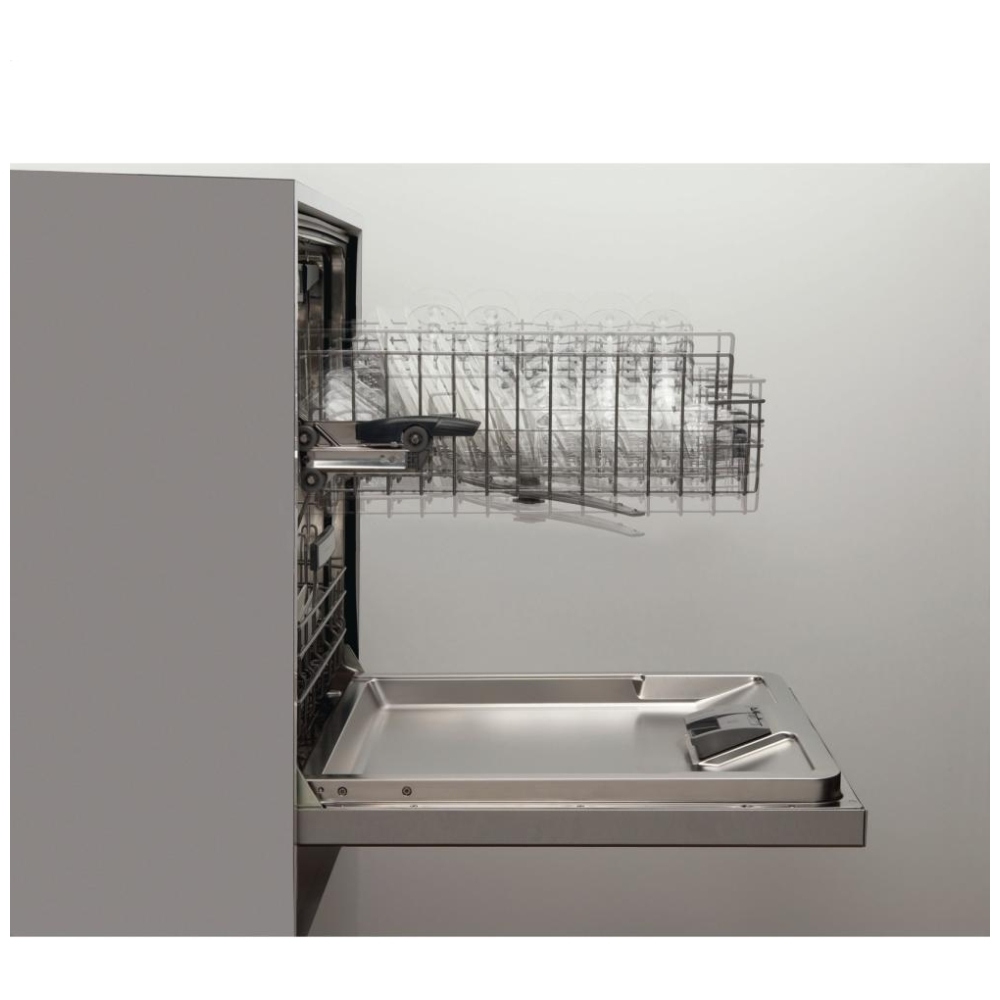

Adjustable upper rack:	Rackmatic 3-stage
Flip tines in lower rack:	2
3rd Rack:	3rd Rack 1.0

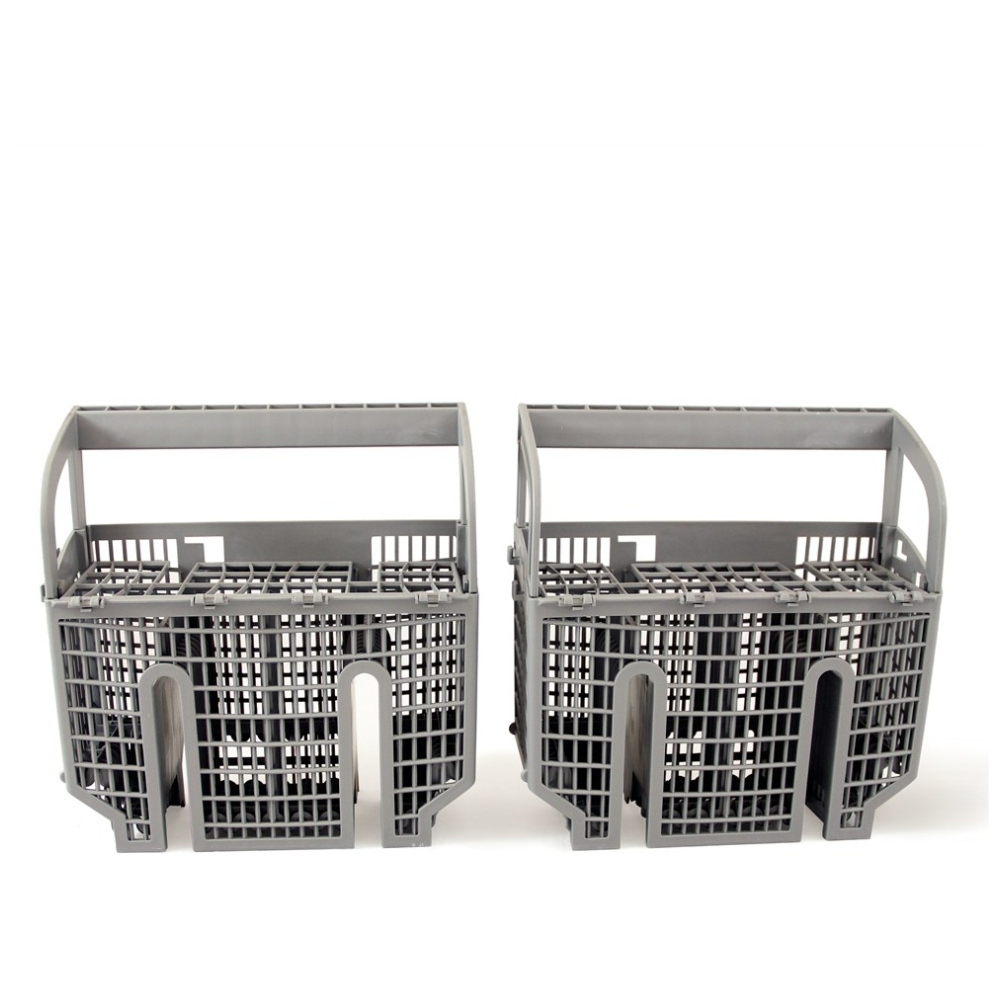

Silverware basket:	Standard
Certifications
Approval certificates:	CUL, UL
Sanitizing wash cycle:	Yes
ADA Compliant:	No
Installation Requirements
Watts:	1300 W
Current:	12 A
Volts:	120 V
Frequency:	60 Hz
Tub type:	TallTub
Plug type:	Fixed Connection
Dimensions and Weight
Overall Width:	23 9/16"
Overall Depth:	23 1/16"
Overall Height:	33 7/8"
Cutout Width:	23 5/8"
Cutout Depth:	24"
Cutout Height:	33 7/8"
Net Weight:	88 Lbs
Gross Weight:	98 Lbs

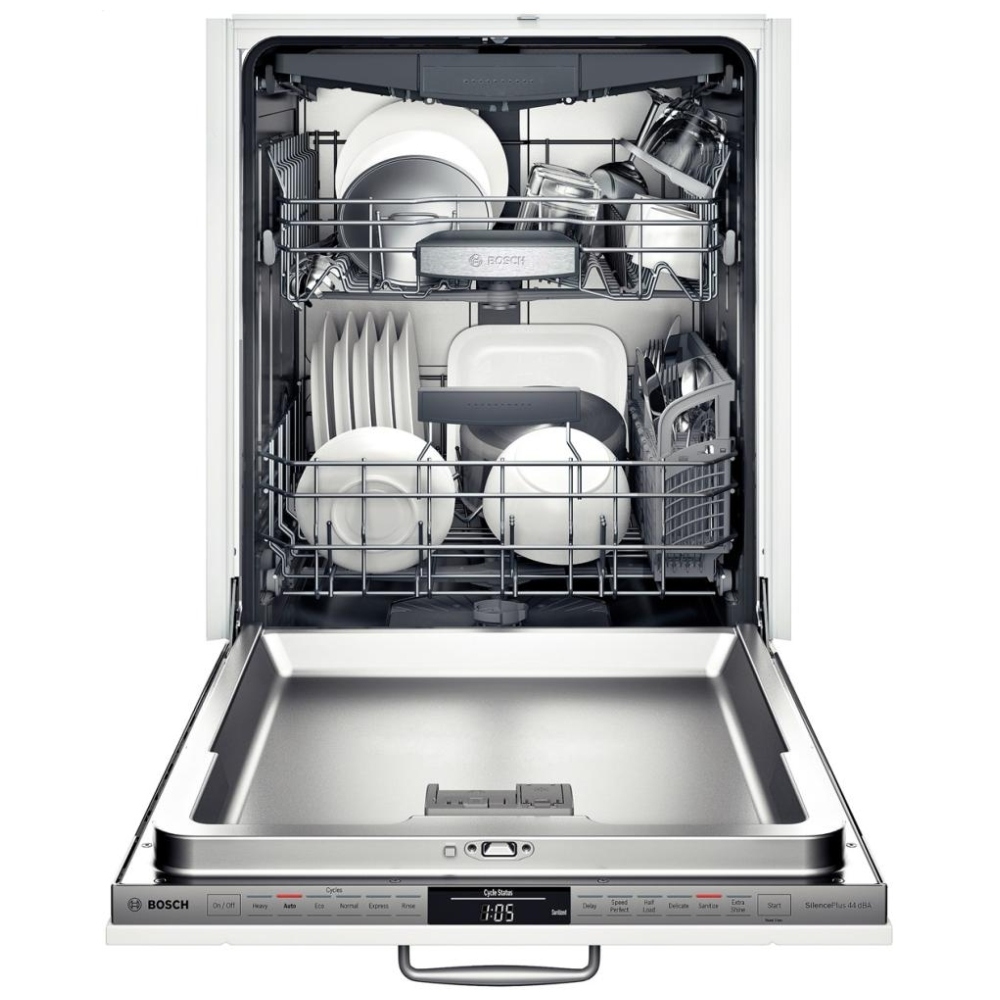

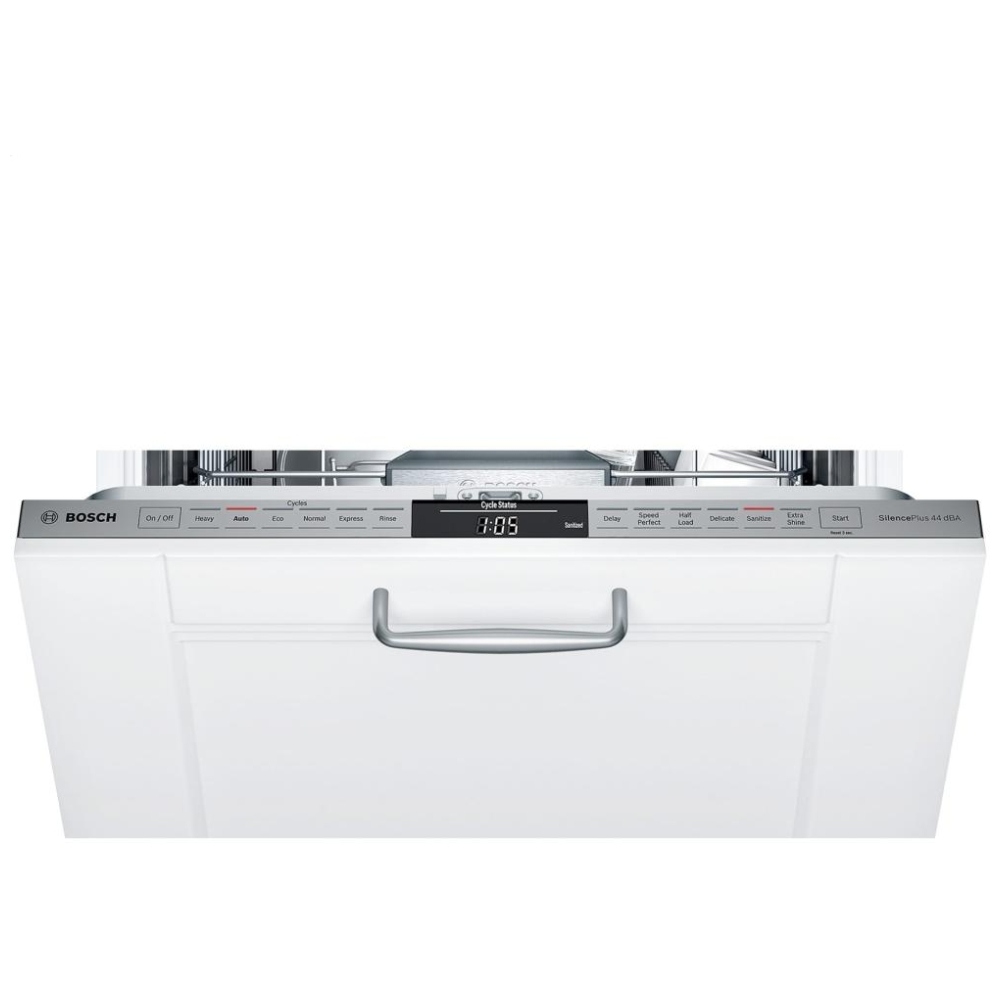

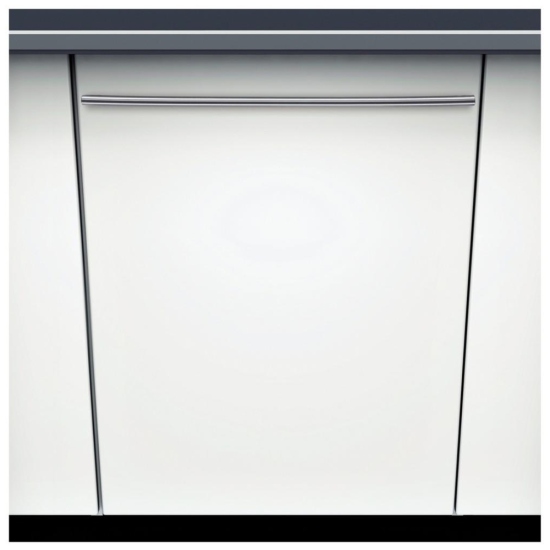

Bosch SHV68TL3UC

Bosch SHV68TL3UC

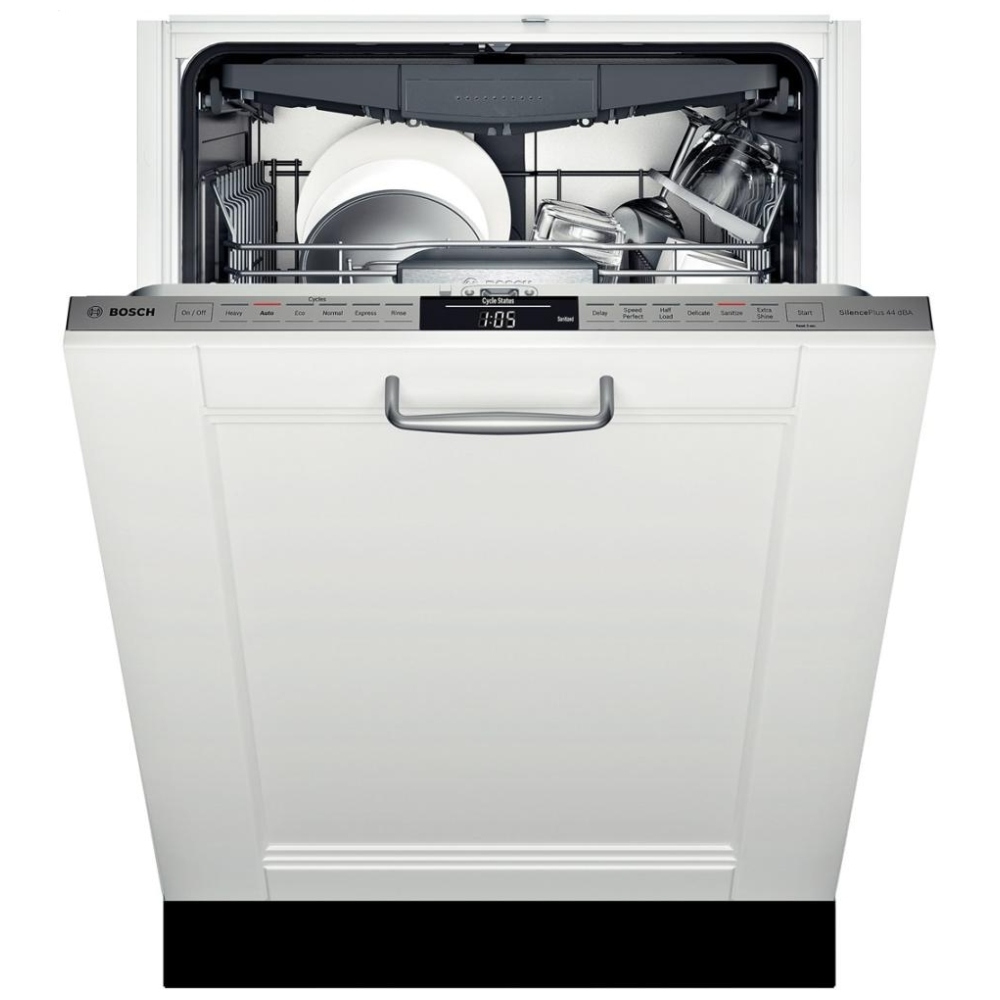

Bosch 800 Series SHV68TL3UC Dishwasher, 24 inch Exterior Width, 44 dB Decibel Level, Fully Integrated, Stainless Interior, Custom Panel Ready, 6 Wash Cycles, 16 Capacity (Place Settings), 3 Loading Racks, Panel Ready
