ECL148S4 has transitioned from 10 inch to 8 inch ducting

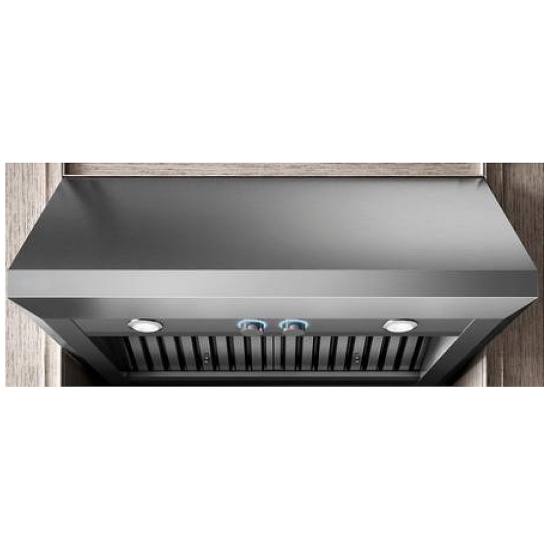

Elica ECL148S4
Discontinued
ACIN5J
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $139.78 for 18 months
Ratings & Reviews
KIT0153054
KIT0153054
Blowers
$2,329
ACIN5J
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $139.78 for 18 months
Description & Features
For homeowners who are passionate about the culinary arts, the seamless welded corner craftsmanship, traditional styling and gleaming stainless steel of Calabria, provides the look and performance expected from a professional-grade range hood. With the new backlit hidden knob controls and traditional ba_x001F_e filters, Calabria is available in 30 , 36 , 42 and 48 widths and equipped with a 600 CFM (30 and 36 ) or 1200 CFM blower (36 , 42 , 48 ) to support all cooking needs. Designed for standard ducted ventilation or recirculating with a kit.
  • Grease Collector
  • Professional grade, heavy gauge stainless steel baffle filters are the perfect choice for those with top chef dreams. Designed for high airflow cooking, the S shape design traps volumes of grease (for a cleaner kitchen), which is collected in trays for easy removal and cleaning.
  • Heat Guard
  • A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
  • Hush System
  • An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • LED Replaceable
  • High quality LED lighting usually requires a skilled technician to replace lamps. Avoid this expense with Elica s new LED lamps that enable typical homeowners to replace in seconds.
  • Professional Performance
  • Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
  • Seamless Look
  • Elica Professional grade hoods feature heavy gauge stainless steel Seamless construction that delivers refined elegance and reflects the superior quality and Italian craftsmanship invested into each range hood.
  • 1200 CFM, 4 speed
  • 2.1 sones (min.) to 10.3 sones (max.)
  • Ducting: 10" Round (Top)
  • LED Lights, 1 Level Lighting
  • Stainless Steel Baffle Slot Filter
  • Hush Silence Système
  • 2 years Warranty | Parts and labour
48'' (W) x 25'' (D) x 18'' (H)

Manufacturer's Warranty: 2 years

Canadian model: ECL148S4

Canadian UPC: 190603001938

EAN: 0190603001938

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 54.00
NET WEIGHT (kg) 48.00
CARTON LENGHT (mm) 1352.00
CARTON HEIGHT (mm) 625.00
CARTON WIDTH (mm) 764.00
VOLUMEN (M3) 0.60
SHIPPING WEIGHT 119.05
NET WEIGHT 105.82
CARTON LENGHT 53.23
CARTON HEIGHT 24.61
CARTON WIDTH 30.08
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Vented
HOODS FEATURES Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN) 48"
WIDTH (CM) 120.00
AIRFLOW (M3/H) 2040.00
CFM (MAX) 1200.00
db (min) 36.00
db (max) 59.00
SONES 1.7 - 8.5
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 8"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 8"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 7,7 A
HERTZ 60.00
WATTS 926.00
LIGHTING Premium LED 4 x 6.5 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 4.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED NO
CFM REDUCTION Yes w/kit
DIMENSIONS 120 x 64 x 46
DIMENSIONSinches 48" x 25" x 18"
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 18"
Maximum Overall Height - Top to Bottom 22 5/16
Overall Height - Top to Bottom 18"
Overall Width - Side to Side2 48"
Overall Depth - Front to Back 25"
Hood Height 18"
Minimum Compatible Ceiling Height NA
Maximum Compatible Ceiling Height NA
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT0192765 + KIT0192763+KIT0205345
CHIMNEY EXTENSION NUMBER KIT02164/KIT02165
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT KIT0185099
BACKSPLASH KIT KIT0142870
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT KIT0179549
EXTERNAL BLOWER SHELL KIT KIT0179547
HEAT LAMPS KIT0155111
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR YES
CHAROCAL FILTER NO
CERTIFICADO NOM NA
Selected Model
Color Stainless Steel
Model number ECL148S4
Dimensions
Dimensions 48'' (W) X 25'' (D) X 18'' (H)
Exterior Appearence
Stainless Steel grade 430
Features
Controls Fully recessing stainless rotating knobs with illumination
Illumination 3 2.5W Premium LED lamps, 1 intensity (bulbs included)
Blower Type 4-speed, 1200 CFM
Blower Performance Speed 1, 375 CFM, 2.1 Sones
Speed 2, 640 CFM, 4.7 Sones
Speed 3, 940 CFM, 8.1 Sones
Speed 4, 1200 CFM, 10.3 Sones
Filter Type Stainless Steel Baffle filters (3X)
Ducting Ducted Installation Only
Duct transition 10‘‘ Round (Top) | Back Draft Damper included
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 800 Watt at 6.7 Amps
Accessories (optionnal)
6'' Tall Chimney Extension Kit KIT02164 (48'' Hood)
12'' Tall Chimney Extension Kit KIT02165 (48'' hood)
Back Splash KIT0142870 ( 48'' hood Stainless steel backsplash & warm racks)
Warming Lamp with 2 175W lights KIT0155111 (48'' hood 2 x 175W)
External Blower Kit KIT0153054 (1200 CFM compatible 8'' & 10'' duct transition)
Inline blower kit KIT0154387 (1200 CFM compatible 8'' &10'' duct transition)
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
