MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).

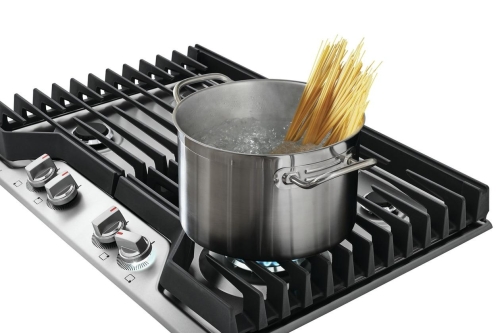

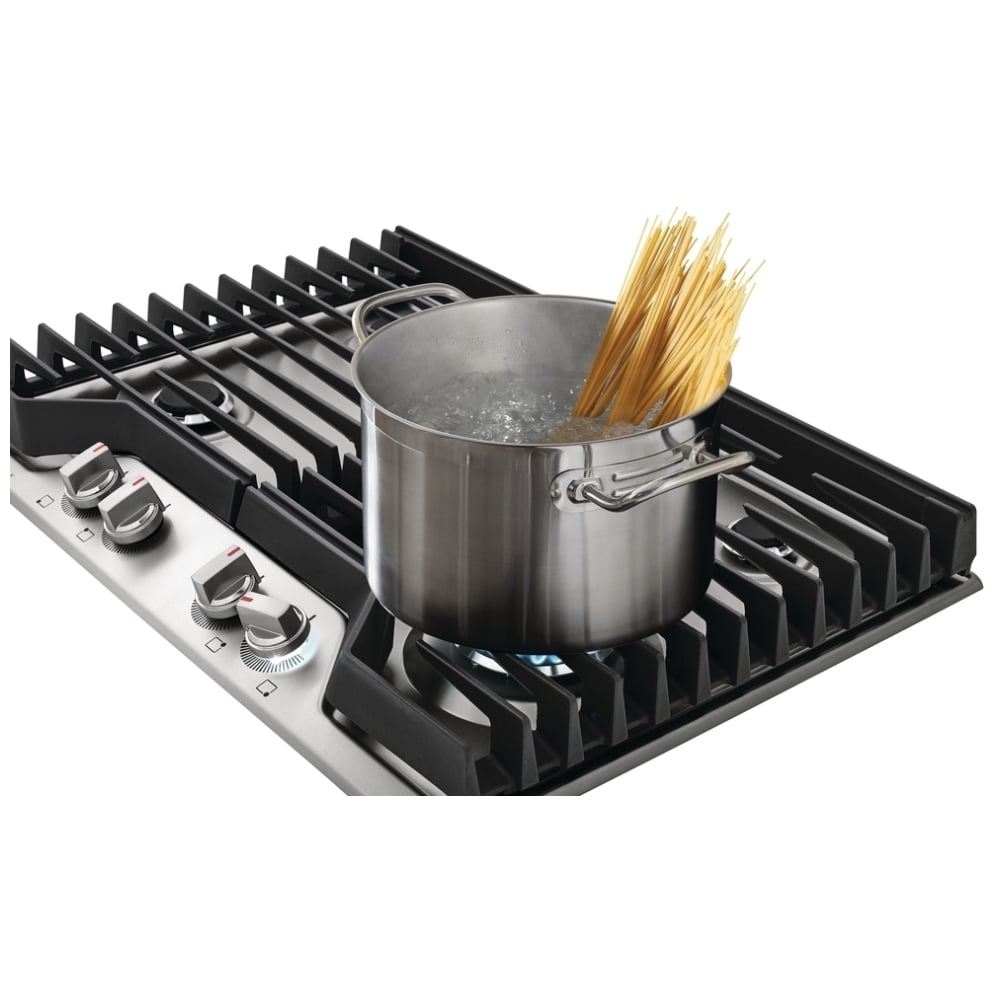

- Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

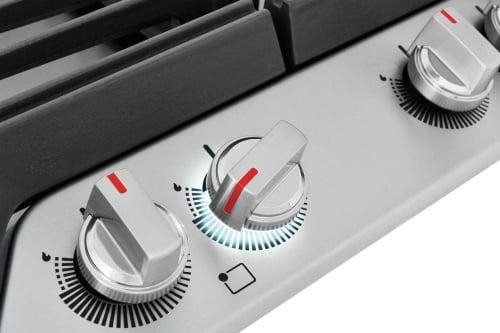

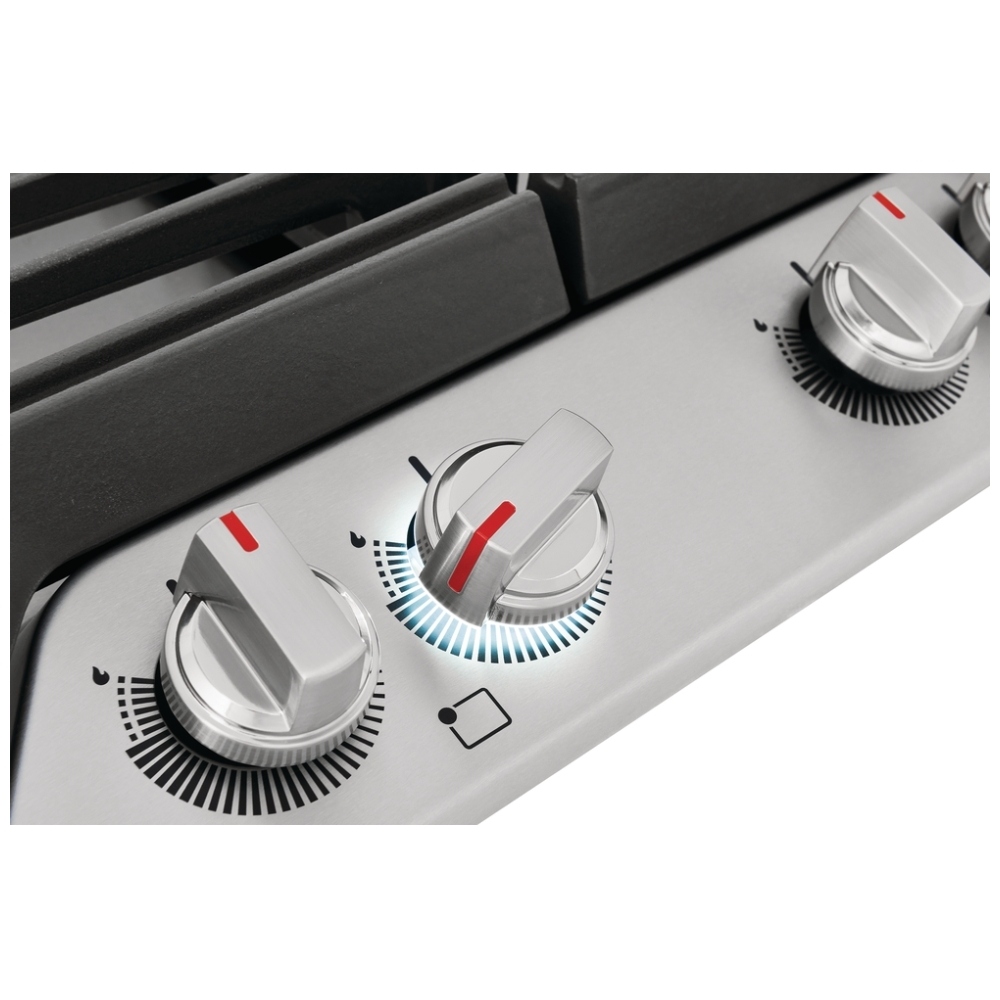

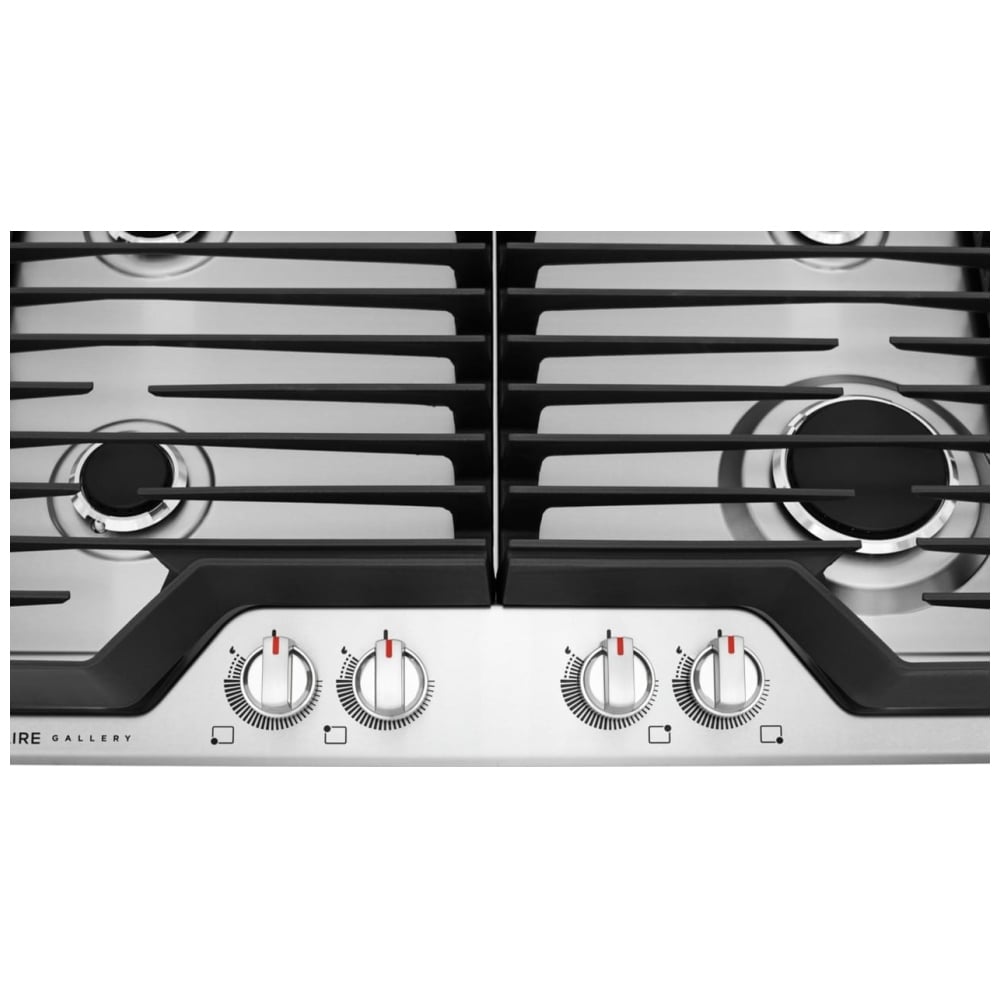

- Lights up when the cooktop is turned on.

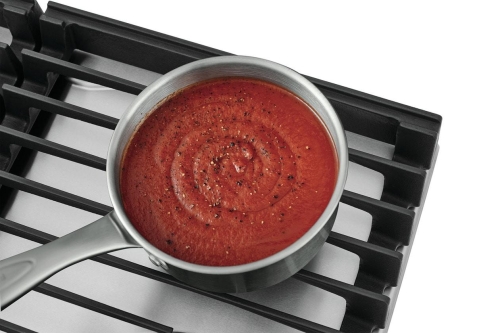

- Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.

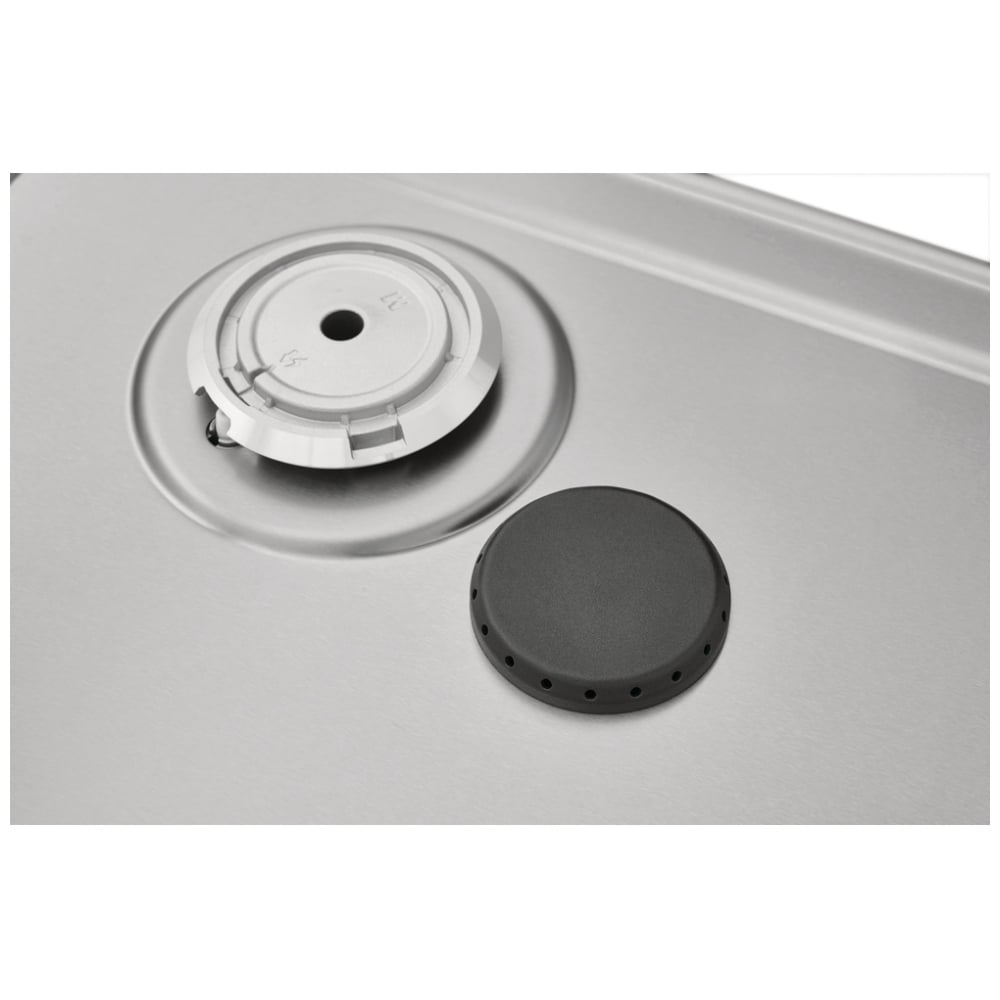

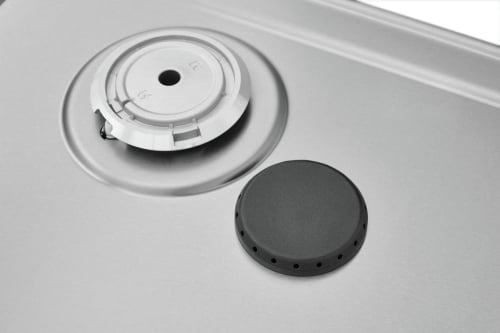

- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

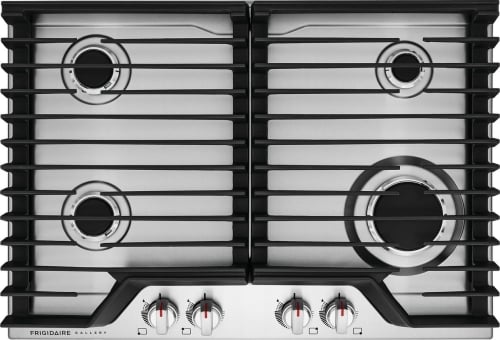

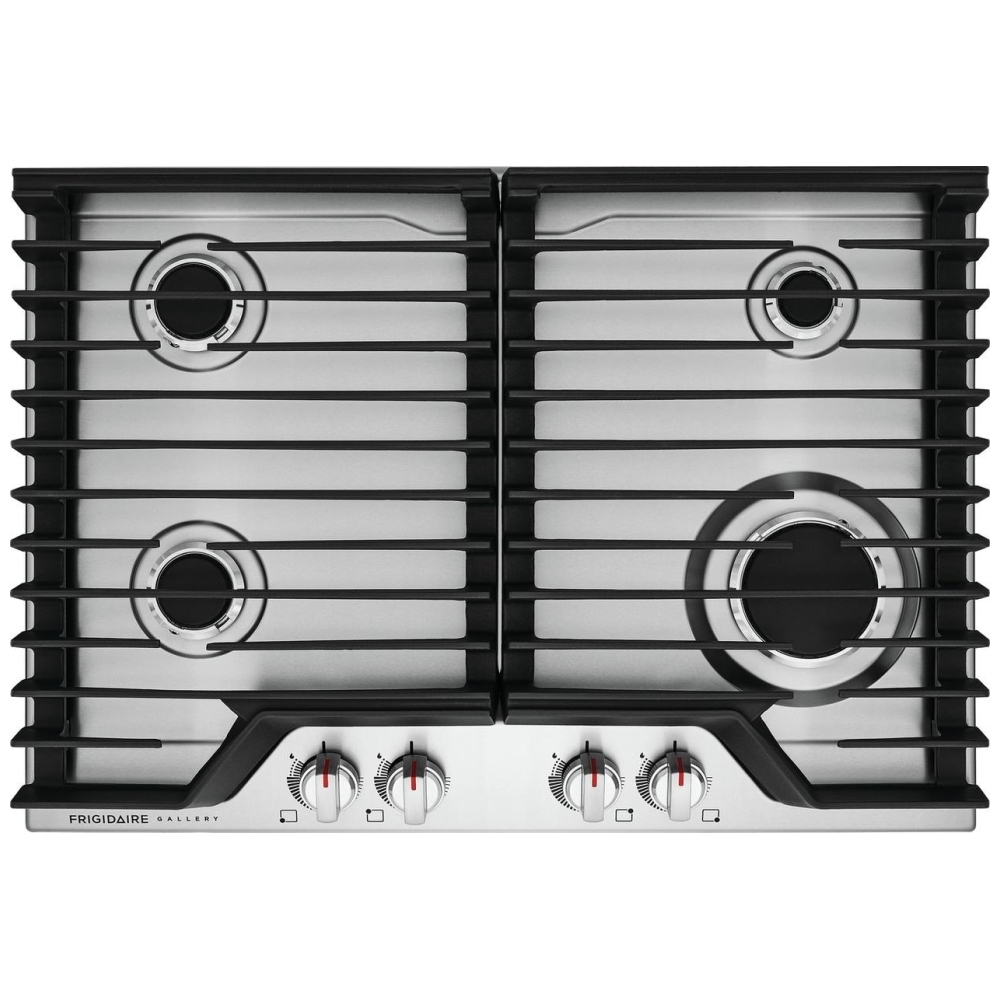

- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- We promise that your new 30" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse up to one hundred dollars for professionally modifying the countertop. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Manufacturer's Warranty: 1 year
UPC: 012505565779
EAN: 0012505565779
Product Line | Gas Cooktop |
Power Type | NG |
Size | 30" |
Installation Type | Built-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 2 |
Grate Style | Continuous |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 9500 BTU |
Left Rear Element Burner | 9500 BTU |
Display | |
Control Location | Front |
Exterior | |
Backlit Knobs | Yes |
Dimensions and Volume | |
Height | 2 7/16" |
Width | 30" |
Depth | 21" |
Cutout Height | 7 1/2" |
Minimum Cutout Width | 27 1/4" |
Minimum Cutout Depth | 19" |
Maximum Cutout Width | 29 5/16" |
Maximum Cutout Depth | 20" |
Electrical Specifications | |
Minimum Circuit Required | 5 Amps |
Voltage Rating | 120 V |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Top Right |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 40 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
