FILTER
App Filter - Cabinet Width	Dish Traditional 24 in.
App Filter - Stainless Steel Interior	No
App Filter - Product Type	Dish Built-In Front Control
App Filter - WiFi Connect	Optional
App Filter - Food Disposer	Yes
App Filter - Bottle Wash	No
APPEARANCE

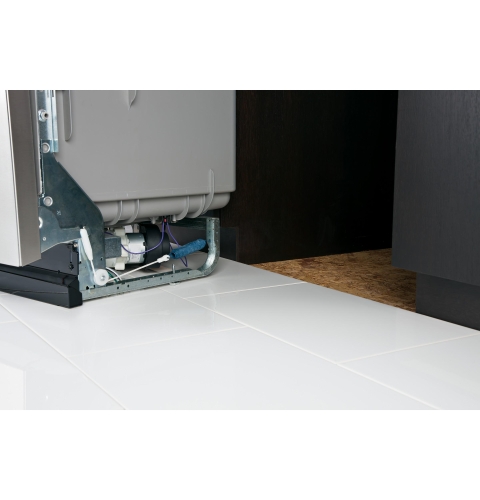

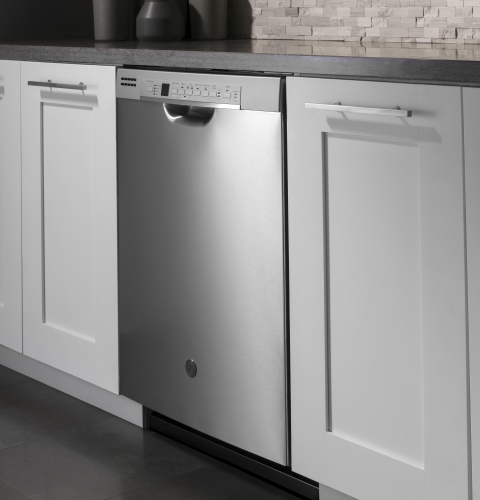

Installation	Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included
Handle Color	Stainless Steel
Door Style	Long Door
Door Appearance	Contour door
Color Appearance	Stainless Steel
Control Panel Color	Dorian Gray
Handle Design	Recessed
POWER / RATINGS
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Calrod Heater Watts	800/500
Volts/Hertz/Amps	120v; 60Hz; 7.1A
WARRANTY
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Door Insulation	Insulation
Quiet Package	59 dBA
Motor Type	Single Speed
Quiet Features	Quiet Water Valve Sealed Toe Kick
WEIGHTS & DIMENSIONS
Height w/ Legs Retracted - Minimum Height	33.375 in
Overall Depth	24 in
Cabinet Width	24 in
Net Weight	58 lb
Overall Width	23.75 in
Approximate Shipping Weight	74 lb
Overall Height	34 in
Height w/Legs Extended - Maximum Height	34.625 in
FEATURES
Wash System	500 Series
Lower Rack	Ball-Tip Tines
Tub Type	Tall Tub
Leveling System	4 Leveling Legs
Number of Place Settings	14
Tub Liner	Plastic
Dishwasher Options	Child Lock Dry Boost™ Heated Dry Start/Reset Wash TempBoost
Latch	Center Pull
Number of Options	5
Style	Built-In Front Control
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Rack Features	1 Piece Silverware Basket with 3 Cell Covers Ball-Tipped Tines
Door Liner	Clean Design with Plastic

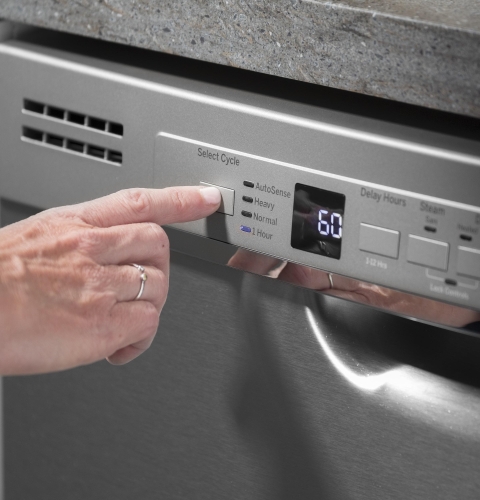

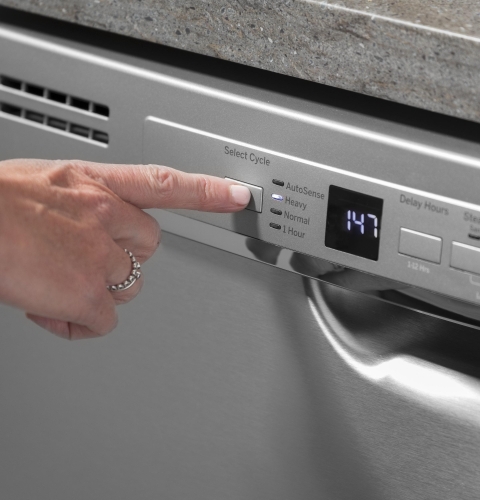

Dishwasher Cycles	1 Hour Wash Heavy Wash Normal Wash Rinse
Rack Color	Silver
Dispenser	Rinse Aid with Indicator and Adjustment
WiFi Connect	Optional (Requires part no. PBX23W00Y1)
Control Type	4 Touchpads Electronic Tactile Buttons Front Controls
Racking System	Towerless
Dishwasher Drying Features	Dry Boost™ Heated Dry - On/Off
Wash Arms	Lower Middle
Wash System Features	Automatic HotStart Automatic Temperature Control Dedicated Silverware Jets (on Wash Arm) Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter
Exterior Style	Traditional
Product Type	Built-In
Connected Capabilities	Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant
Upper Rack	Ball-Tip Tines Removable
Dishwasher Control Features	1 "Clean" Cycle Progress Indicator Last Cycle Memory
Number of Cycles	4
Tub and Door Liner	Gray Plastic
Showroom Power Mode	Yes

Colour Appearance	Stainless Steel
Door Style	Full-Length Flat Door
Exterior Style	Bowed, Front Control - new GE style

Control Location	Front
Control Type	Front Electronic Controls
Cycle Progress Indicators (on control)	1 "Clean" light
Cycles / Options	4 / 3
Latch / Door Handle	Tub mounted / pocket
Leveling Legs.	4
Place Settings	14
Rinse Aid Dispenser	With Indicator and Adjustment
Touchpads	4
Tub & Door Liner	PermaTuf

Primary Silverware Basket	In Rack, Right Side
Racking System	PVC - Pearlescent
Upper Rack - Removable	Yes

Labour Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year enitre appliance

Hard Food Disposer	Yes
Wash Arm - Lower Level	Yes
Wash Arm - Mid-Level	Yes
Wash System	Removable Filter

Overall Depth (in.)	24
Overall Height (in.)	33-3/8
Overall Height with Legs Extended (in.)	34-5/8
Overall Width (in.)	23-3/4

Energy Star Qualified	Yes
Sound Insulation Package	57 dBA

GE GDF510PSMSS

GE GDF510PSMSS

GE GDF510PSMSS Dishwasher, 24 inch Exterior Width, 57 dB Decibel Level, Full Console, Plastic Interior, 4 Wash Cycles, 14 Capacity (Place Settings), Hard Food Disposal, 2 Loading Racks, Stainless Steel colour
