Style	Built-In
Tub and Door Liner	American Gray Plastic Tub Interior
Tub Type	Tall Tub
Door Liner	Clean Design with Plastic
Tub Liner	Plastic
Control Type	Front Controls Electronic Tactile Buttons
Dishwasher Control Features	1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators Last Cycle Memory Audible End-of-Cycle Signal
Wash System	InfiniClean Wash System
Wash System Features	Dual Pumps and Motors Automatic Temperature Control Drain Pump Piranha Hard Food Disposer with removable filter Dedicated Silverware Jets
Sensor	Clean Sensor
Wash Arms	3 Pressurized Wash Arms Lower Middle Upper
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Dispenser	Rinse Aid with Indicator and Adjustment
Number of Cycles	4
Dishwasher Cycles	Auto Sense Heavy Wash Normal Wash Light Wash
Number of Options	8
Dishwasher Options	Child Lock Delay Start 2/4/8 Hr. Wash TempBoost Sani (NSF Certified) Heated Dry Steam PreWash Start/Reset Energy Smart
Rack Features	SpaceMaker Silverware Basket in door with cell covers 2 Utility Shelves with Stem Safe - Upper Ball-Tipped Tines Small Items Basket
Racking System	Towerless Pearlescent Dark Gray
Rack Color	Pearlescent Dark Gray
Number of Place Settings	Up to 16
Upper Rack	2 Stem Safe Shelves Ball-Tip Tines
Lower Rack	Ball-Tip Tines SpaceMaker Silverware Basket
Dishwasher Drying Features	4-Pass Multi-Wattage Wash & Dry Element Heated Dry - On/Off
Leveling System	4 Leveling Legs
Latch	Center Pull
Connected Home Ready	Yes
Communication Module	Required
Exterior Style	Traditional
APPEARANCE
Color Appearance	Stainless Steel
Door Style	Long Door
Installation	Side or Top Mount Install Brackets Included Built-Up Floor Capable Flush Cabinet Installation
Door Appearance	Contour door
Handle Color	Color-Matched
Handle Design	Recessed
Control Panel Color	Black
Claims & Certifications
ENERGY STAR® Qualified
America at Work: Product Assembled in the U.S.A.
NSF Certified
ECONOMICAL / QUIET
Quiet Package	54 dBA
Quiet Features	Quiet Water Valve Sealed Toe Kick
Motor Type	Single Speed
Door Insulation	Insulation Mastic
WEIGHTS & DIMENSIONS
Cabinet Width	24 in
Approximate Shipping Weight	77 lb
Net Weight	62 lb
Overall Height	34 in
Height w/ Legs Retracted - Minimum Height	33 3/8 in
Height w/Legs Extended - Maximum Height	34 5/8 in
Overall Depth	24 in
Overall Width	23 3/4 in
POWER / RATINGS
Calrod Heater Watts	415/800
Volts/Hertz/Amps	120v; 60Hz; 7.1A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Features
Audible End-of-Cycle Signal	Yes
Control Type	Front Electronic Controls
Cycle Progress Indicators (on control)	1 "Clean" Light, 1 "Sanitized" Light
Cycles / Options	4 / 8
Latch / Door Handle	Tub mounted / pocket
Leveling Legs	4
Place Settings	16
Rinse Aid Dispenser	With Indicator and Adjustment
Touchpads	6
Tub & Door Liner	PermaTuf Grey
Wash System
Hard Food Disposer	Piranha
Sensor	CleanSensor
Wash Arm - Lower Level	Yes
Wash Arm - Mid-Level	Yes
Wash Arm - Upper Level	Yes
Wash Levels	6
Wash System	InfiniClean™
Water Filtration	100% 3-stage with removable filter
Cycles
AutoSense	Yes
AutoWash	Yes
Heavy Wash	Yes
Light Wash	Yes
Normal Wash	Yes
Options
Child Lock	Yes
Delay Start	2/4/8 hr.
Heated Dry	Yes
PreWash	Steam PreWash
Sanitize (NSF)	Yes
Temp Boost	Yes
Racking
Primary Silverware Basket	Door mounted (or front of lower rack); with cell covers and small items lid
Racking System	Nylon - Grey
Secondary Silverware Basket	Auxiliary small items basket with cell cover
Upper Rack - Removable	Yes
Utility Shelf	2 plastic w/StemSafe, chopstick slots
DryIndex
Calrod Heating Element	4-pass, exposed
Economical / Quiet
Energy Star Qualified	Yes
Sound Insulation Package	54 dBA
Appearance
Colour Appearance	Black on Black
Colours Available	WW / BB / SS
Door Style	Full-Length Flat Door
Exterior Style	Bowed, Front Control - new GE style
Weights & Dimensions
Approx. Shipping Weight (lbs.)	100
Overall Depth (in.)	24
Overall Height (in.)	33-3/8
Overall Height with Legs Extended (in.)	34-5/8
Overall Width (in.)	23-3/4
Power & Ratings
Calrod Heater Watts	Multi-wattage
Electrical Requirements	120 V; 60 Hz; 9.9 A
Warranty
Labour Warranty	Limited 1-year entire appliance
Parts Warranty	Limited 1-year enitre appliance

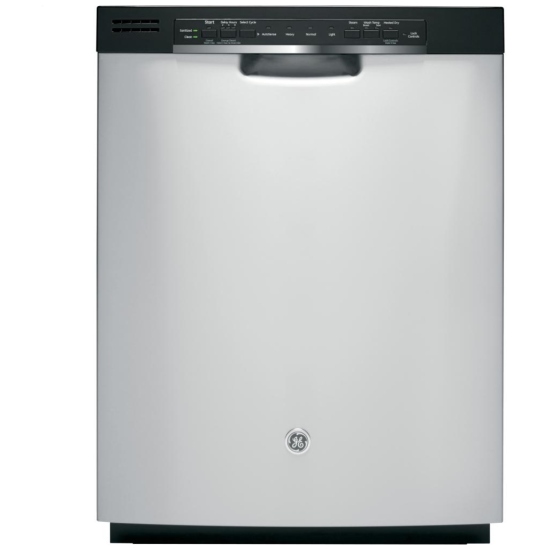

GE GDF520PSDSS

GE GDF520PSDSS

GE GDF520PSDSS Dishwasher, 54 dB Decibel Level, Full Console, 4 Wash Cycles, 16 Capacity (Place Settings), 2 Loading Racks, Stainless Steel colour
